6EP1961-2BA11

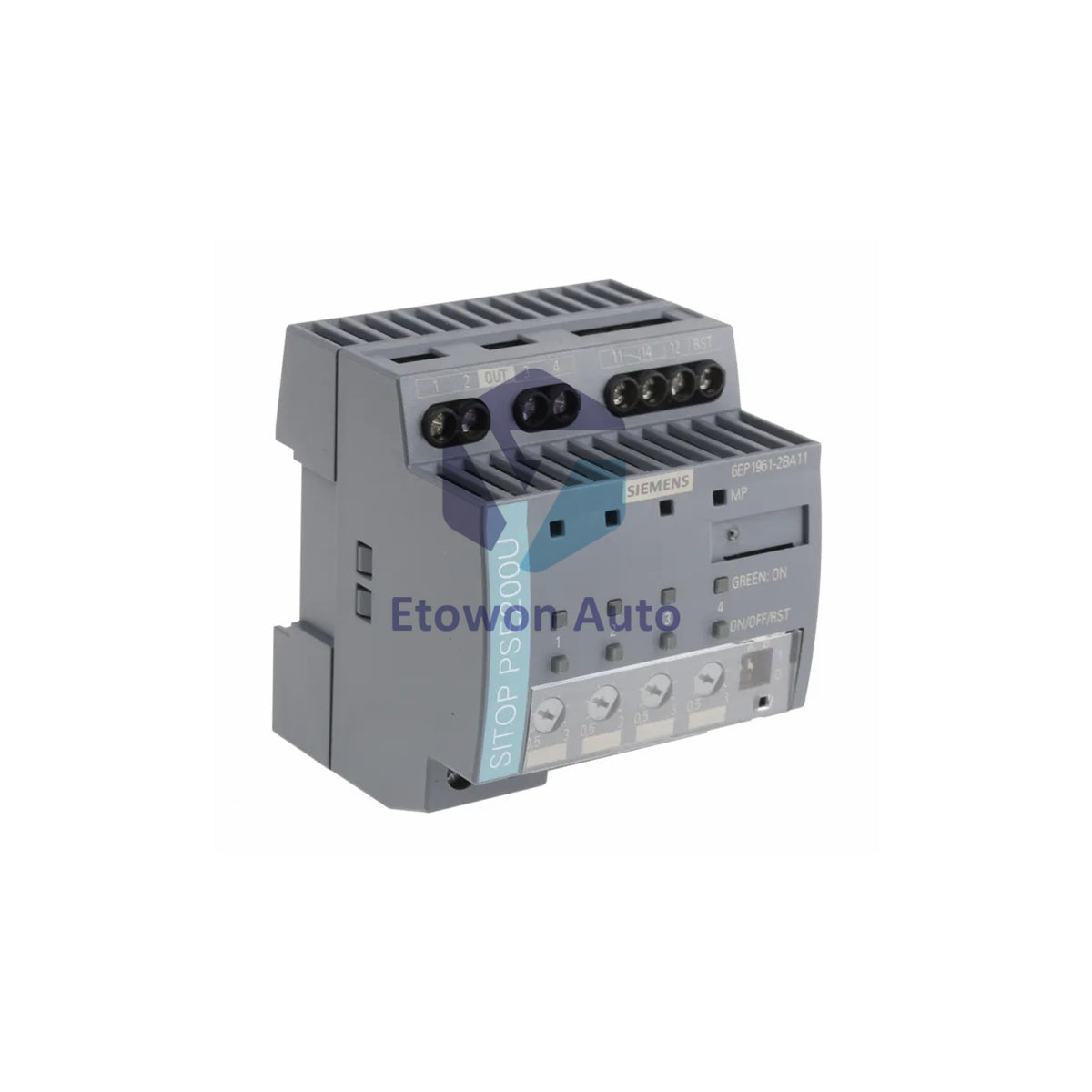

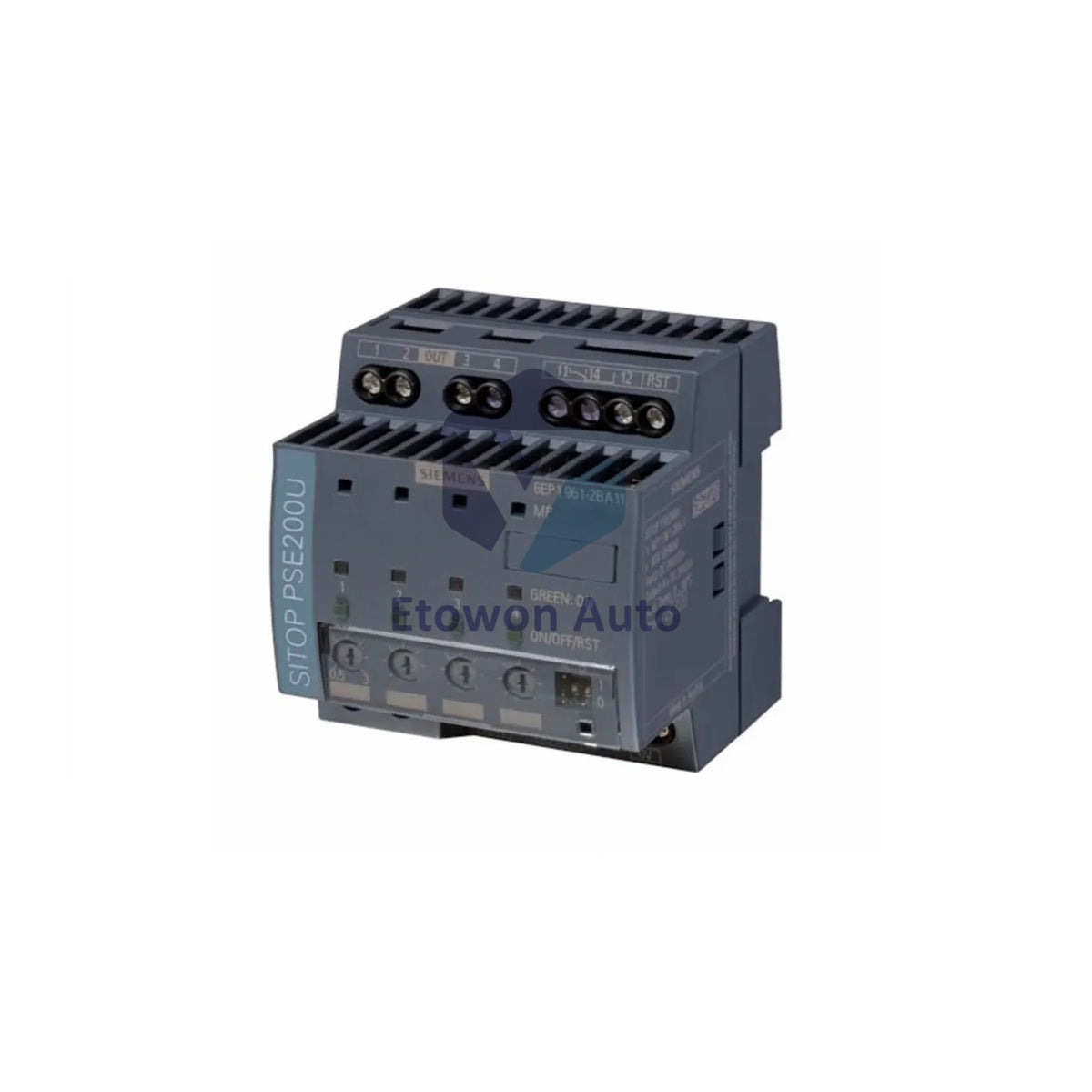

Siemens 6EP1961-2BA11 Selectivity Module PSE200U

In stock (20 units), ready to be shipped

  • Manufacturer: Siemens

  • Product No.: 6EP1961-2BA11

  • Product Type: Selectivity Module

  • Product Origin: DE

  • Payment:T/T, Western Union

  • Weight: 200g

  • Shipping port: Xiamen

  • Warranty: 12 months

30-Day Return Policy · 12-Month Warranty
  • Fast Delivery
  • 24/7 Support
  • Quality Assurance

Description

Siemens 6EP1961-2BA11 SITOP Selectivity Module

The 6EP1961-2BA11 is a Siemens SITOP PSE200U electronic selectivity module. It acts as a smart, resettable electronic fuse for 24V DC power branches. This module protects downstream circuits and enables selective shutdown in case of a fault.

Core Electrical Specifications

  • Brand & Model: Siemens 6EP1961-2BA11 (PSE200U)
  • Input Voltage: 24 V DC (22 - 30 V)
  • Total Input Current: Up to 12 A
  • Number of Outputs: 4 independent channels
  • Output Current: Adjustable from 0.5 A to 3 A per channel
  • Efficiency: Typically 97%
  • Power Loss: Typical 9 W at full load

Protection Features & Integration

  • Key Function: Protects each output branch against overload and short-circuit with adjustable thresholds.
  • Response Modes: Delayed switch-off for overload (5s), fast for high overcurrent (~100ms), immediate for input undervoltage.
  • Status Indication: Per-channel three-color LED (green/yellow/red).
  • Signaling: One common signaling contact (changeover) for remote alarm.
  • Reset: Manual per channel or via a common remote reset input.
  • Mounting: Snaps onto 35mm DIN rail.

Physical Data & FAQs

  • Dimensions: 72 mm x 80 mm x 72 mm (W x H x D)
  • Weight: Approximately 0.2 kg
  • Operating Temperature: -25°C to +60°C
  • Q: What is the main purpose of this module?
    A> It replaces fuses or circuit breakers for 24V DC branches. It allows selective disconnection of only the faulty circuit, keeping the rest of the system running.
  • Q: How is the current limit set?
    A> Each of the four channels has a potentiometer to set the trip current between 0.5A and 3A precisely.
  • Q: Can outputs be turned on in sequence?
    A> Yes. A DIP switch allows selection between simultaneous or sequential (load-optimized) startup of the outputs.
