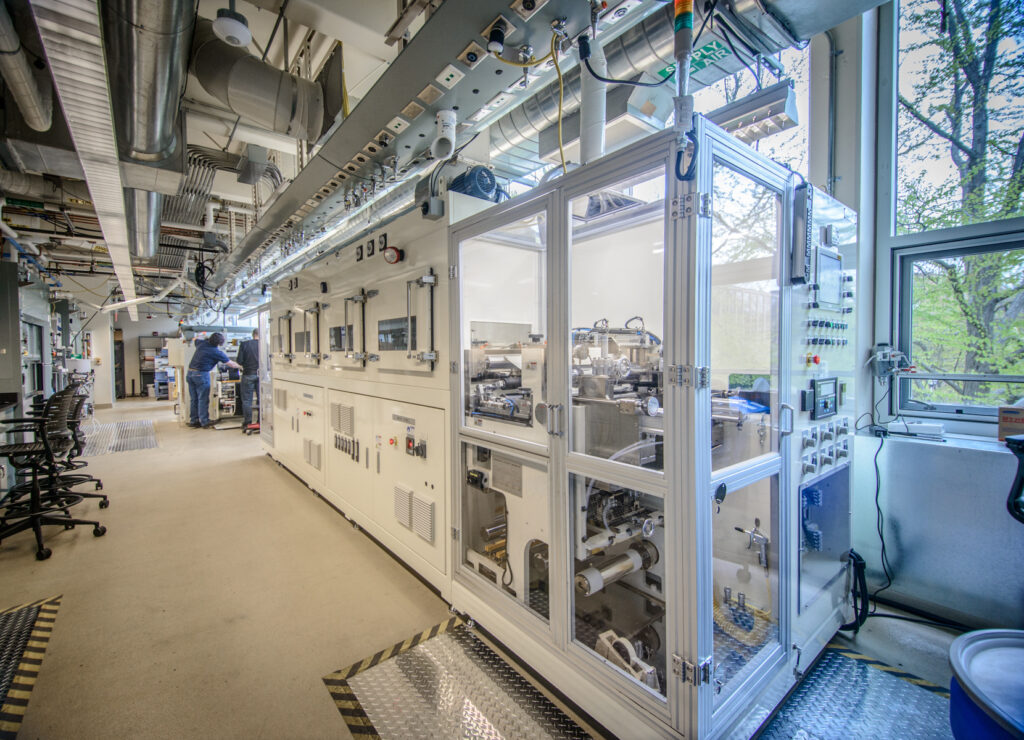

Why Battery Lines Depend on Modern Control Systems
Battery manufacturing involves precise chemical coating, electrode stacking, and formation cycling. A standard PLC oversees these steps with millisecond precision. Unlike general-purpose computers, PLCs withstand electrical noise, vibration, and temperature extremes found on factory floors. Moreover, their modular design lets engineers scale I/O as production ramps. Therefore, they offer a future-proof foundation for both pilot lines and full-scale output.
Combining PLCs with Distributed Control Systems (DCS)
Large battery plants often use a hybrid architecture. Distributed Control Systems (DCS) supervise multiple PLCs across the facility. This layered approach centralizes data while keeping critical control local. For instance, a DCS might monitor energy consumption of twenty formation cabinets, each governed by its own PLC. As a result, operators gain a plant-wide view without sacrificing speed at the machine level.
Case Study: 25% Throughput Gain at a Lithium‑Ion Gigafactory
A European battery manufacturer faced bottlenecks in electrode calendering and slitting. Legacy systems caused frequent misalignment, leading to 12 percent scrap. After retrofitting the line with Allen‑Bradley ControlLogix PLCs, real‑time tension control improved dramatically. Within three months, scrap dropped to 7 percent, and line speed increased by 25 percent. Predictive diagnostics also reduced unplanned downtime by 40 hours per quarter. This real‑world example proves that PLC upgrades deliver measurable ROI in under a year.
Another compelling metric comes from formation and aging. A Chinese plant integrated Siemens S7‑1500 PLCs with cloud analytics. By precisely regulating charge/discharge curves, they reduced formation time by 18 percent while maintaining capacity accuracy within ±1.5 percent. Such precision directly translates to higher consistency across battery batches.
Edge Computing and IoT Reshape PLC Capabilities
Modern PLCs no longer work in isolation. They now connect to IoT platforms via MQTT or OPC UA. This connectivity allows edge devices to perform advanced analytics without burdening the controller. For example, a PLC can stream vibration data to a local gateway, which then predicts bearing wear on winding machines. Consequently, maintenance shifts from reactive to condition‑based, saving thousands in emergency repairs.
AI-Assisted Parameter Optimization
Artificial intelligence is beginning to appear in PLC environments. Although the PLC itself runs deterministic code, it can receive setpoint recommendations from an AI model. In electrode mixing, slight adjustments in slurry viscosity improve coating uniformity. By letting an AI suggest new targets to the PLC, manufacturers have achieved a 6 percent increase in energy density consistency. This collaborative approach keeps safety and reliability intact while leveraging data science.
Technical Deep Dive: PLC Programming Strategies for Battery Lines
From an engineering perspective, battery production lines demand specific programming approaches. Here are key technical considerations:
Closed-Loop PID Control for Coating Thickness
Electrode coating requires precise thickness control, typically within ±2 microns. Engineers should implement cascaded PID loops where the primary loop controls coating weight and the secondary loop controls pump speed. Use velocity mode PID to prevent integral windup during roll changes. Set loop update times to 50ms or faster for adequate response.
Sequence Control for Formation Cycling
Battery formation involves complex charge/discharge profiles that can last 12-24 hours. Implement state machine logic using structured text with at least 16 discrete states per channel. Include fault handling routines that safely terminate cycles if temperature or voltage exceeds thresholds. Use indirect addressing to manage multiple formation channels efficiently.
Synchronization of Rotary Cutters and Winders
Electrode slitting and winding require precise speed synchronization. Implement electronic gearing using the PLC's motion control module. Configure the master encoder virtual axis with 10,000 pulses per revolution minimum. Set slave axes to follow with gear ratios accurate to 0.01 percent. Include registration correction using high-speed inputs for mark detection.
Safety Instrumented Systems Integration
Electrolyte filling areas require SIL-rated safety functions. Use safety PLCs with redundant I/O and certified function blocks. Implement emergency stop categories per ISO 13849 with stop time calculations under 100ms. Configure safety matrices for light curtains and interlocks using dedicated safety programming software.
Hardware Selection Criteria for Battery Production PLCs
Choosing the right hardware platform directly impacts long-term reliability. Consider these engineering specifications:
Processor Performance Requirements
For high-speed winding lines, select PLCs with scan times under 1ms per 1K logic. Look for processors with at least 4MB program memory and floating-point math coprocessors. Multi-core architectures help separate motion control from standard logic.
I/O Module Selection Guidelines
Use isolated analog input modules for thermocouple signals from formation chambers. Specify 16-bit resolution minimum for coating thickness measurements. For digital inputs, choose 24VDC sinking modules with 2ms or faster response times. Include diagnostic-capable I/O that reports open-wire conditions.
Communication Protocol Considerations
Profinet IRT or EtherCAT deliver deterministic performance for motion control. For equipment integration, support OPC UA for MES connectivity. Include dual Ethernet ports for daisy-chaining without external switches. Specify fiber optic converters for long distances between control cabinets.
Advanced Diagnostics and Predictive Maintenance Techniques
Modern PLCs enable sophisticated diagnostic capabilities that engineers can leverage:
Real-Time Performance Monitoring
Implement task time monitoring to detect scan cycle overruns. Set warning thresholds at 80 percent of watchdog timer. Log maximum and average scan times for trend analysis. Use this data to predict when additional processors might be needed.
Drive and Motor Diagnostics
Configure PLCs to read drive parameters via cyclic data exchange. Monitor motor current, temperature, and torque ripple. Establish baseline values and alert when deviations exceed 15 percent. This catches bearing wear or misalignment before failure occurs.
Network Health Monitoring
Use SNMP or embedded diagnostics to track network packet errors and retries. Monitor switch port statistics for dropped frames. Set up alerts for communication interruptions lasting more than 50ms. This prevents intermittent faults that are difficult to troubleshoot.
Commissioning Procedures for Battery Production Lines
Proper commissioning ensures reliable operation from day one. Follow this engineering checklist:
- I/O Verification – Use forced outputs sparingly. Instead, write test sequences that exercise each output while an assistant verifies field device operation. Document all discrepancies.
- Loop Tuning – Perform step tests on all PID loops. Calculate ultimate gain and period using Ziegler-Nichols methods. Fine-tune manually for critical coating applications. Record tuning parameters per product recipe.
- Motion Tuning – Tune servo axes using built-in autotune functions. Verify following error stays under 0.1mm at maximum speed. Test electronic cam profiles with empty machines first.
- Safety Validation – Test every safety input while monitoring PLC safety tags. Measure actual stop times with a stopwatch or motion analyzer. Document results for compliance.
- Network Stress Testing – Simulate maximum network traffic by running all drives and I/O simultaneously. Monitor for communication losses. Add network load management if needed.
- Recipe Management Validation – Test recipe downloads while line is running. Verify that parameter changes take effect only at allowed transition points. Prevent mid-cycle changes that could damage product.
Troubleshooting Common PLC Issues in Battery Plants
Even well-designed systems encounter issues. Here are engineering solutions to frequent problems:
Intermittent Communication Drops
Check shield grounding at both ends of network cables. Verify that shield connects to ground at only one point to prevent ground loops. Use a network analyzer to check for excessive collisions or CRC errors. Replace marginal cables with industrial-grade shielded twisted pair.
Analog Signal Drift
Temperature changes cause drift in analog modules. Specify modules with automatic calibration features. Install signal isolators for long cable runs. Use shielded cables with separate analog grounds. Perform quarterly calibration checks and adjust offset values in software.
Unexpected Machine Stops
Review fault logs for patterns. Check if stops occur at specific production counts or times of day. Examine power quality with a line monitor. Install power conditioners for sensitive electronics. Add retry logic for non-critical faults to prevent nuisance trips.
Future-Proofing Battery Line Control Systems
Engineers should design for tomorrow's requirements today. Consider these architectural decisions:
Modular Software Design
Structure code using add-on instructions or function blocks. Create standard interfaces for motors, valves, and sensors. This allows swapping hardware brands with minimal code changes. Use tag-based addressing rather than fixed memory locations.
Scalable Hardware Platforms
Select PLC families with multiple processor options. Start with mid-range CPUs but ensure backplanes support future upgrades. Include spare I/O slots for expansion. Design control panels with extra space for additional modules.
Cybersecurity Readiness
Implement defense-in-depth strategies. Use VLANs to separate control networks. Configure PLC access levels with password protection. Disable unused protocols and services. Plan for future security updates by choosing platforms with long-term support.
Solution Scenario: Retrofitting an Aging Battery Plant with Modern PLCs
Imagine a 10‑year‑old facility making prismatic cells. The original PLC‑5 systems are obsolete, and spare parts are scarce. By migrating to modern ControlLogix or CompactLogix platforms, the plant gains:
- 35 percent faster program downloads via Ethernet.
- Integrated motion control for precise stacking robots.
- Secure remote access for off‑site troubleshooting.
During one such migration, the engineering team replaced 12 legacy racks over a weekend. Production resumed Monday morning with a 15 percent efficiency bump, thanks to better fault diagnostics and reduced cycle jitter.
Frequently Asked Questions
Q1: Can a single PLC manage an entire battery production line?
A1: While technically possible for small lines, most manufacturers prefer distributed PLCs. Each major zone – mixing, coating, assembly, formation – has its own controller. This architecture improves fault isolation and simplifies troubleshooting. High-speed zones like winding require dedicated processors to maintain deterministic performance.
Q2: What communication protocols work best for battery line integration?
A2: Profinet IRT and EtherCAT excel for motion control applications requiring sub-millisecond synchronization. For equipment integration, OPC UA provides vendor-neutral data modeling. Many facilities use Profibus DP for legacy device connectivity. The key is maintaining a single protocol standard where possible to simplify troubleshooting.
Q3: How do you calculate scan time requirements for battery formation control?
A3: Formation control requires monitoring voltage and current every 100ms minimum for accurate coulomb counting. For each formation channel, calculate total instructions including PID calculations and data logging. Multiply by number of channels and add 20 percent safety margin. High-channel-count systems may need distributed processing to meet timing requirements.
