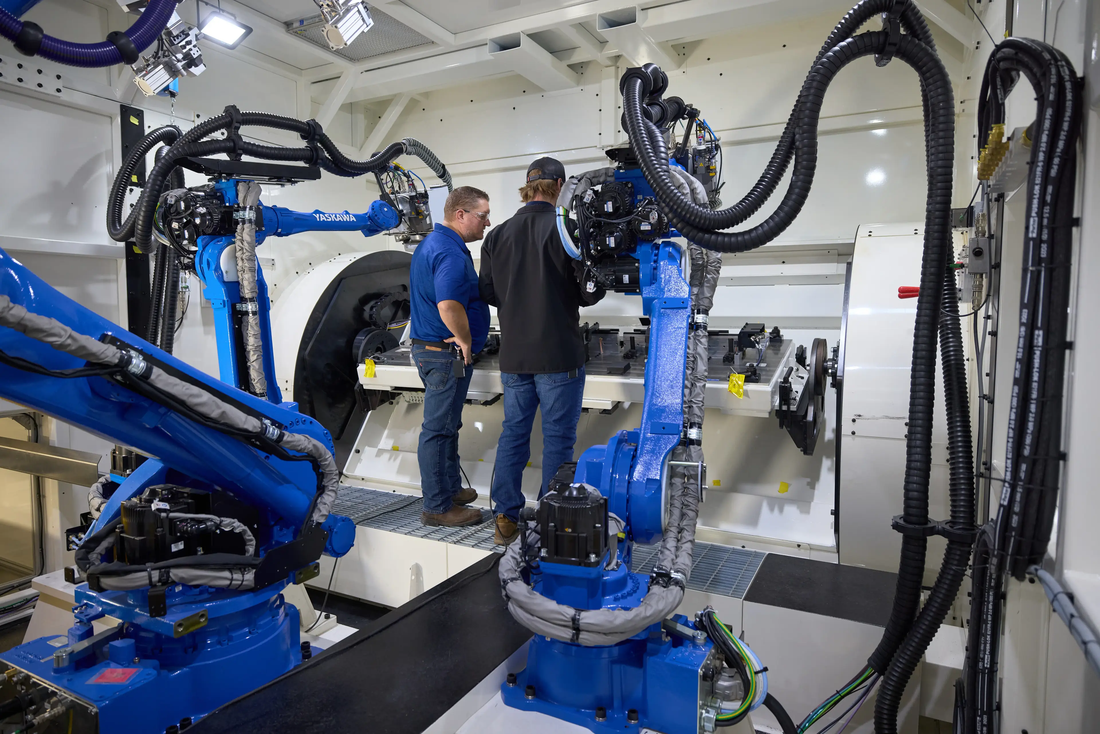

How Are PLC and Robotics Reshaping Modern Factory Automation?
The Fundamental Role of PLCs in Robotic Control Architecture
Programmable Logic Controllers serve as the central intelligence unit within automated production environments. When integrated with robotic systems, these controllers manage complex coordination tasks that extend far beyond simple on-off commands. Modern PLCs process input from multiple sensor arrays simultaneously, adjusting robot trajectories in real time based on vision system feedback or torque measurements. For instance, in precision assembly applications, the PLC monitors force feedback from a robotic gripper and adjusts closing pressure within milliseconds to prevent component deformation. This closed-loop control capability separates basic automation from intelligent manufacturing.
Communication protocols form the backbone of successful PLC-robot integration. Most contemporary systems utilize industrial Ethernet standards such as Profinet, EtherNet/IP, or OPC UA. These protocols enable deterministic data exchange with latency below 10 milliseconds, which proves essential for coordinated motion control. When selecting components, engineers must verify protocol compatibility between the PLC and robot controller to avoid costly gateway hardware. Many automation suppliers now offer pre-engineered function blocks that simplify this integration, reducing programming time by approximately 30 percent.
Robotic Automation Enhanced by Intelligent PLC Supervision
The mechanical speed of modern robots impresses, yet their true manufacturing value emerges under competent PLC supervision. A six-axis robot operating independently can achieve rapid cycle times, but without PLC coordination, it cannot adapt to upstream process variations. Consider a material handling application where parts arrive at variable intervals. The PLC monitors conveyor sensors, calculates arrival times, and commands the robot to execute pick operations precisely when parts reach the optimal position. This coordination eliminates idle time and reduces missed picks by up to 40 percent.
PLCs also enable rapid production changeovers through centralized recipe management. Operators can store hundreds of robot motion programs within the PLC memory and recall them based on product identification codes scanned at line entry. When a mixed-model production line switches from Product A to Product B, the PLC automatically loads the corresponding robot program, adjusts conveyor speeds, and validates tooling positions. This capability reduces changeover durations from thirty minutes to under three minutes in well-implemented systems.
Industry 4.0 Integration: Connecting PLCs and Robots to Digital Infrastructure
The emergence of smart manufacturing has elevated PLCs from isolated controllers to connected edge devices. Modern PLCs incorporate IoT functionality that streams operational data to cloud platforms for analysis. Engineers can now monitor robotic joint temperatures, servo drive currents, and cycle time variations remotely through customizable dashboards. One automotive components manufacturer implemented this architecture across twenty assembly cells and identified optimization opportunities that increased overall equipment effectiveness by 15 percent within six months.
Predictive maintenance represents a significant advancement enabled by PLC data collection. By analyzing trends in robot performance metrics, algorithms can forecast component failures before they cause production stoppages. A European electronics manufacturer reported that PLC-monitored vibration data predicted a critical robot gearbox failure 72 hours in advance, allowing scheduled replacement during planned maintenance rather than emergency downtime. This predictive capability typically reduces maintenance costs by 20 to 30 percent while improving production reliability.
Artificial intelligence applications increasingly integrate with PLC systems to optimize robot operations. Machine learning models analyze historical production data to identify optimal motion parameters for varying product types. The PLC then adjusts robot acceleration curves and path planning in real time based on these insights. Early adopters report energy consumption reductions of 12 to 18 percent while maintaining or improving cycle times.
Detailed Application Cases with Measurable Performance Data
Automotive Powertrain Assembly: A German transmission manufacturer integrated Siemens S7-1500 PLCs with ABB IRB 6700 robots for clutch housing assembly. The system coordinates four robots performing bolt tightening, sealant application, and dimensional verification. Before integration, manual operations required 210 seconds per unit. The PLC-coordinated robotic cell completes the same work in 145 seconds, representing a 31 percent throughput improvement. Quality data shows defect rates declining from 1.8 percent to 0.4 percent due to consistent torque control and vision-guided placement.
Electronics Surface-Mount Technology: A contract manufacturer in Taiwan implemented Mitsubishi PLCs controlling Yamaha surface-mount robots for PCBA assembly. The PLC receives real-time feedback from automated optical inspection stations positioned after each placement zone. When the inspection system detects misalignment trends, the PLC automatically adjusts the robot's placement coordinates within 0.02mm increments. This closed-loop correction reduced placement defects from 850 parts per million to 210 parts per million over three months. The line now achieves 99.6 percent first-pass yield while operating at 22,500 placements per hour.
Pharmaceutical Packaging: A Swiss pharmaceutical company deployed B&R Automation PLCs managing Fanuc SCARA robots for secondary packaging operations. The system handles vials, syringes, and cartridges with automatic format changeover. Vision systems verify lot codes and inspect for cosmetic defects at 300 units per minute. When the PLC detects a code-reading failure, it commands the robot to divert the suspect unit to a verification station without stopping the main line. This selective rejection capability reduced product waste by 65 percent compared to previous batch rejection methods.
Food Processing and Primary Packaging: A Dutch dairy cooperative installed Rockwell Automation ControlLogix PLCs coordinating KUKA delta robots for fresh cheese packaging. The system handles 200-gram cups at 240 units per minute with 0.5 gram filling accuracy. The PLC manages sterilization cycles between production runs, ensuring food safety compliance without operator intervention. Energy monitoring revealed that PLC-optimized robot motion reduced compressed air consumption by 22 percent, saving approximately €18,000 annually in utility costs.
Practical Technical Guidance for PLC-Robot System Implementation
Phase One: System Design and Component Selection
Begin with a comprehensive requirements analysis documenting production rates, product variety, and environmental conditions. Calculate required robot payload, reach, and cycle time margins, typically adding 20 percent buffer for future flexibility. Select PLCs with processing capacity to handle all I/O points plus 30 percent expansion capability. Document communication protocol requirements and verify compatibility between all major components before procurement.
Phase Two: Electrical and Network Installation
Install all control cabinets with proper segregation of power and signal wiring to minimize electromagnetic interference. Use shielded twisted-pair cables for Ethernet communications and ensure proper grounding at single points. Terminate all shields according to manufacturer specifications. Implement industrial network switches with managed capabilities to prioritize real-time control traffic over data collection traffic.
Phase Three: Programming and Configuration Sequence
Develop the PLC program architecture before writing detailed code. Create function blocks for common operations such as robot handshaking, conveyor control, and vision system integration. Program safety routines independently using certified safety PLC functions or dedicated safety relays. Implement handshake sequences with timeout monitoring to prevent system hangs. Test each I/O point and communication link individually before integrated testing.
Phase Four: Commissioning and Validation
Begin integrated testing at reduced speeds, typically 30 percent of designed rates. Verify all interlock functions and emergency stop responses. Document actual cycle times and compare against calculated targets. Adjust robot paths and PLC timing parameters to optimize performance. Run continuous production simulations for 72 hours to validate reliability before full production release.
Phase Five: Operator Training and Documentation
Develop comprehensive operator interfaces displaying machine status, fault messages, and production counts. Train maintenance personnel on diagnostic procedures using PLC programming software. Provide complete documentation including network diagrams, I/O lists, program comments, and spare parts recommendations.
Future Trajectories in PLC and Robotics Collaboration
The evolution toward autonomous manufacturing continues accelerating. Collaborative robots operating without safety fencing rely on PLCs to monitor human presence through laser scanners and adjust operating speeds accordingly. Current safety PLC technology enables safe reduced speed when operators approach, maintaining productivity while ensuring protection.
Edge computing architectures are transforming PLC capabilities. Rather than sending all data to cloud servers, modern systems process information locally on powerful PLCs or adjacent edge devices. This distributed approach reduces decision latency to under five milliseconds, enabling real-time responses to dynamic production conditions. Vision inspection algorithms running on edge devices can detect defects and command robot rejection within a single production cycle.
Digital twin technology allows engineers to develop and validate PLC and robot programs entirely in simulation environments. Programming changes undergo virtual testing before deployment, reducing commissioning time by up to 50 percent. These digital models continue providing value during operation by enabling what-if analysis for production optimization.
Manufacturers should evaluate their current automation architecture and identify opportunities for enhanced PLC-robot integration. Starting with a pilot cell allows validation of approaches and quantification of benefits before broader deployment. The integration path requires investment in engineering resources but delivers measurable returns through improved efficiency, quality, and flexibility.
