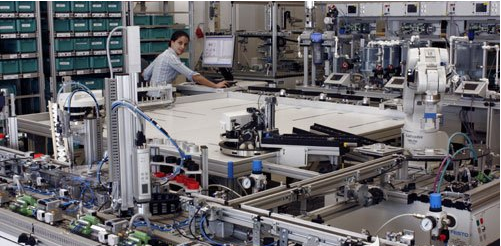

The Enduring Role of PLCs in Modern Industrial Environments
For several decades, Programmable Logic Controllers (PLCs) have functioned as the reliable core of industrial operations. They oversee a vast range of tasks, from high-speed assembly line coordination to critical safety interlocks in chemical processing plants. Their robustness, deterministic behavior, and real-time responsiveness make them essential for factory automation and process control. However, as production demands grow in complexity, relying solely on conventional PLC programming methods combined with physical testing creates significant bottlenecks. Engineering teams frequently face pressure to shorten development cycles while simultaneously enhancing system reliability and functionality.
Virtual Simulation: The Engineer's Digital Proving Ground
Virtual simulation technology has evolved into a powerful and practical tool for automation design and validation. It enables control engineers to construct a comprehensive digital twin of a physical system. Before any physical wiring begins or a single motor is mounted, the entire control logic can be rigorously tested against this virtual model. This approach provides immediate, detailed feedback on how a control system will respond to standard operations, edge cases, and unexpected fault conditions. Consequently, design flaws that might have remained hidden until the physical commissioning phase are identified and resolved early in the project lifecycle. This transition from physical trial-and-error to digital validation represents a significant leap in engineering efficiency and project predictability.
Technical Advantages of Integrating PLC Logic with Virtual Environments
Integrating PLC programming with simulation delivers concrete benefits that directly impact both project timelines and final operational performance. Here are the primary technical advantages:
- Accelerated Development Through Parallel Workflows: Virtual commissioning can be executed concurrently with hardware procurement and physical panel fabrication. This overlap significantly compresses the overall project schedule, reducing the time from concept to production-ready status.
- Comprehensive Safety Validation: High-risk scenarios, including emergency stops, power failures, and safety interlock challenges, can be simulated exhaustively without endangering personnel or damaging equipment. This allows for thorough validation of safety-rated PLC code.
- Precision Tuning of Control Strategies: Engineers can fine-tune PID loops, motion profiles, and complex sequence logic within a risk-free digital space. This ensures optimal performance from the very first moment of physical operation, minimizing costly on-site tuning.
- Reduced Travel and Enhanced Collaboration: Global engineering teams can review, test, and validate the same virtual system from remote locations. This minimizes the need for expensive and time-consuming on-site visits during the design and debug phases.
- Effective Operator Training: Production personnel can be trained extensively on a virtual replica of the actual plant. This allows them to become proficient with the HMI and understand process responses well before the real system is commissioned, leading to smoother start-ups.
Deep Dive: Understanding Scan Cycles and Virtual Signal Timing
From an engineer's perspective, one of the most critical technical aspects of this integration is accurately modeling PLC scan cycle behavior. In a physical PLC, the program executes cyclically: reading inputs, executing logic, and updating outputs. A virtual simulation environment must faithfully replicate this cycle, including the exact I/O update times and network delays (e.g., Profinet or EtherNet/IP packet cycles). When the simulation runs in soft real-time or hardware-in-the-loop (HIL) configuration, the engineer can observe how the program's logic interacts with the virtual machine's dynamics. For instance, a missed sensor reading due to a slow network cycle in the simulation can reveal a race condition in the code that would cause a real-world machine fault. This level of timing fidelity is what transforms simulation from a simple visualization tool into a true engineering validation platform.
Real-World Technical Impact: Data-Driven Application Cases
The theoretical advantages are best illustrated through concrete examples where companies have achieved measurable, data-backed improvements.
Case Study 1: Optimizing a High-Speed Beverage Bottling Line
A global beverage company faced persistent issues with mechanical jams and inefficient product changeovers on their high-speed bottling lines. By constructing a detailed virtual simulation of their PLC-controlled conveyors, fillers, and labelers, their engineering team identified a subtle bottleneck in the synchronisation logic between the filler turret and the inbound conveyor. After virtually testing a revised control algorithm that included dynamic speed matching, they implemented the change during a scheduled weekend shutdown. The result was a sustained 15% increase in overall line throughput and a 40% reduction in product changeover time, leading to annual operational savings of approximately $500,000.
Case Study 2: Enhancing Reliability in a Specialty Chemical Processing Plant
A specialty chemical manufacturer needed to upgrade their aging Distributed Control System (DCS) controlling a critical batch reactor. Using a hardware-in-the-loop (HIL) simulation setup with the new PLC-based control system, they validated the entire control logic against thousands of process variations, including raw material quality fluctuations and extreme temperature scenarios. This pre-deployment testing identified a critical valve sequencing error in the emergency venting logic that could have led to a serious safety incident and production downtime. Post-implementation data over the following year showed a 99.8% system availability and a 20% reduction in energy consumption, directly attributed to more precise temperature control achieved through virtually optimized PID tuning.
Case Study 3: Commissioning a Robotic Assembly Cell for Automotive Parts
An automotive tier-1 supplier implemented virtual simulation for a new robotic welding and assembly cell. The system involved multiple robots, positioners, and a complex PLC-based safety system. By simulating the entire cell, the integrators detected and resolved several robot reachability issues and potential collision points before any equipment was installed on the factory floor. This virtual validation reduced the physical on-site commissioning time from an estimated six weeks to just ten days. The customer reported a first-pass yield of over 98% from the first day of production, avoiding the typical ramp-up losses associated with new automation systems.
Practical Technical Steps for Implementing PLC and Simulation Integration
For organizations ready to adopt this technology, a structured, engineer-focused approach ensures successful implementation. Here is a practical guide to integrating virtual simulation into your next automation project:
- Define the Scope and Interfaces: Begin with a critical machine or process cell. Clearly document all I/O lists, network communication protocols (Profinet, EtherNet/IP, Modbus TCP), and safety functions to be modeled.
- Select Compatible Software Tools: Choose a simulation platform that supports direct communication with your PLC hardware brand (e.g., Siemens TIA Portal, Rockwell Studio 5000, Mitsubishi GX Works) using standard protocols like OPC UA or shared memory interfaces for soft-PLCs.
- Build the Virtual Model with Fidelity: Develop a digital twin that accurately represents the physical behavior of the machinery, including kinematics, mass inertia, sensor timing, and actuator response characteristics.
- Establish the Communication Link: Connect the simulation software to the actual PLC or a soft-PLC running the target code. For HIL, this involves physical I/O wiring or fieldbus coupling. For software-only simulation (SIL), the connection is internal.
- Execute Systematic Test Protocols: Run through all standard operating procedures, fault conditions, and edge cases defined in your test plan. Log all PLC events and simulation responses for analysis.
- Iterate and Optimize: Use the insights gained from the virtual tests to refine the PLC code and HMI logic. Repeat the testing cycle until all performance and safety targets are met.
- Deploy and Monitor: Download the validated program to the physical system. Use the simulation model for ongoing operator training, procedure validation, and future "what-if" analysis.
Navigating the Future: AI, IoT, and the Self-Optimizing Plant
Looking ahead, the convergence of PLCs with simulation is paving the way for even more intelligent and autonomous systems. The integration of Industrial IoT (IIoT) sensors provides a continuous stream of real-time operational data. When this data is fed back into simulation models, it enables powerful predictive analytics. For example, a machine's real-world performance can be continuously compared against its digital twin. If performance deviations are detected, the system can alert maintenance teams to potential issues before a failure occurs. Furthermore, incorporating AI and machine learning into this feedback loop could eventually allow control systems to autonomously adjust operational parameters for optimal efficiency, moving beyond simple automation toward true, closed-loop process optimization. This evolution is central to the Industry 4.0 vision, where the physical and digital worlds are in constant, intelligent dialogue.
