How PLC and HMI Integration Transforms Manufacturing Performance?
Modern production facilities depend on the seamless connection between control hardware and operator interfaces. This article examines how programmable controllers and visualization tools work together to optimize factory operations, featuring documented performance improvements, setup methodologies, and solutions to common integration challenges encountered on the shop floor.
The Foundation: Understanding Programmable Controllers in Production Environments
Programmable logic controllers serve as the decision-making component in automated systems. These industrial computers continuously monitor input signals from sensors and switches, execute user-programmed instructions, and adjust output devices accordingly. Unlike standard computers, these units withstand vibration, electrical noise, and temperature extremes found in manufacturing settings. Typical scan times range from 10 to 100 milliseconds, enabling precise coordination of high-speed machinery. Leading manufacturers including Mitsubishi Electric, Schneider Electric, and Bosch Rexroth offer controllers tailored to applications from simple packaging machines to complex assembly lines.
Operator Interfaces: Bridging Personnel and Machinery

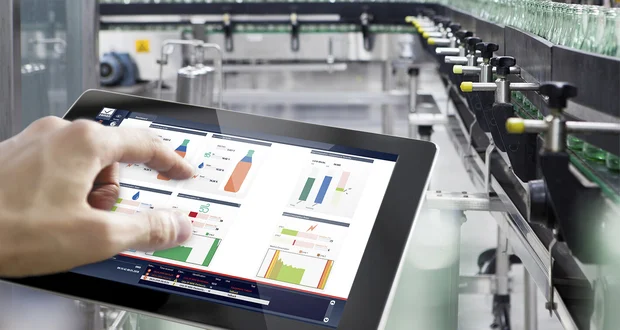

Human-machine interfaces provide the window into automated processes. These touchscreen panels display real-time production metrics, equipment status, and alarm notifications in easily interpreted formats. Operators adjust parameters, acknowledge warnings, and initiate sequences through intuitive graphical screens. Research indicates that facilities implementing well-designed operator interfaces experience 25-40% faster troubleshooting response times. Modern interfaces support multi-touch gestures, remote access capabilities, and integrated web browsers for accessing maintenance documentation.
Communication Mechanisms Between Control and Visualization Layers
The exchange of information between controllers and visualization panels occurs through established industrial protocols. Programmable controllers maintain internal registers containing current values for temperatures, motor speeds, part counts, and fault codes. Visualization panels periodically request these values over Ethernet connections using protocols such as EtherCAT, Powerlink, or Sercos. When an operator modifies a target temperature on screen, the new value transmits to the appropriate controller register, triggering corresponding output adjustments. This bidirectional data flow typically updates every 100 to 500 milliseconds, providing operators with near real-time visibility.
Performance Data: Automotive Component Assembly Application
A tier-one automotive supplier manufacturing transmission components struggled with downtime due to undetected feeder jams. Engineers deployed a Beckhoff CX series controller paired with a TwinCAT HMI running on industrial panel PCs. The controller monitored photo-eye signals at 5-millisecond intervals, detecting jams within two seconds of occurrence. The operator interface displayed machine status on a single overview screen with color-coded station indicators. Results: jam detection time improved from 45 seconds to under 3 seconds, reducing material waste by 1,200 pounds monthly. Overall line uptime increased from 82% to 94%, representing approximately $230,000 annual savings.
Distributed Control Architectures in Continuous Processing Industries
Facilities handling continuous processes such as petrochemical refining or pharmaceutical manufacturing typically employ distributed control architectures. Within these systems, programmable controllers manage specific equipment clusters like reactor vessels or distillation columns. The central control room houses operator workstations displaying aggregated data from multiple controllers. For example, a Yokogawa Centum DCS might coordinate with Mitsubishi PLCs controlling utility systems. This arrangement centralizes supervision while maintaining distributed control reliability. Modern distributed systems incorporate redundant communication paths, ensuring continuous operation even if individual components fail.
Practical Implementation: Seven-Step Integration Procedure
Successful integration follows systematic methodology:
1. I/O Assignment Documentation: Create comprehensive lists connecting field devices to controller input and output addresses. Include signal types, engineering units, and normal operating ranges.
2. Network Topology Design: Diagram the physical connections between controllers, switches, and operator panels. Specify cable types, maximum lengths, and grounding requirements.
3. Tag Database Development: Build structured tag lists using consistent naming conventions. Include analog value scaling parameters and alarm limits.
4. Screen Hierarchy Planning: Design navigation flows from plant overviews to equipment detail pages. Limit navigation depth to three levels maximum.
5. Alarm Philosophy Definition: Categorize alarms by priority with corresponding acknowledgment requirements. Establish notification escalation procedures for critical conditions.
6. Communication Verification: Test each data point individually before full system startup. Verify that values display correctly and control commands execute as expected.
7. Documentation Compilation: Archive controller programs, interface applications, network configurations, and device manuals. Store copies both locally and in secure cloud storage.
Resolving Compatibility Issues Across Equipment Generations
Production facilities often operate equipment from multiple eras, creating communication challenges between older controllers and newer visualization systems. Many legacy controllers from the 1990s utilize proprietary serial protocols requiring specialized interface converters. Solutions include protocol converters from manufacturers like ProSoft Technology or Anybus, which translate between serial protocols and modern Ethernet standards. Another approach employs OPC servers that aggregate data from diverse controllers into unified format accessible to modern visualization software. These strategies enable facilities to extend useful life of existing control investments while gaining benefits of updated operator interfaces.
Emerging Capabilities: Analytics Integration at the Control Level
Advancements in edge computing enable analytical capabilities previously requiring separate computer systems. Modern controllers increasingly incorporate mathematical processing power sufficient for vibration analysis, thermal imaging interpretation, and predictive algorithm execution. Connected operator panels display trend predictions indicating when bearings require replacement or filters need cleaning. Early adopters report 25-35% reductions in unexpected equipment failures. Cloud connectivity options allow secure data transmission to centralized analytics platforms, enabling comparison across multiple plant locations. These capabilities shift maintenance strategies from time-based schedules to condition-based interventions.
Functional Safety Integration Through Coordinated Systems
Machine safety requirements demand coordinated response between standard control equipment and dedicated safety devices. Safety-rated controllers monitor emergency stops, light curtains, and position switches independently from standard controllers. When safety events occur, these dedicated units initiate rapid machine halts while simultaneously communicating status to standard controllers. Operator panels display safety device locations, activation causes, and reset procedures. This integration reduces troubleshooting time for safety-related stoppages by providing immediate diagnostic information. Safety controllers meeting ISO 13849 and IEC 62061 standards are available from vendors including Pilz, Sick, and Omron.
Financial Impact Assessment for Control System Modernization
Financial justification for control system upgrades requires quantifiable benefit calculations. A beverage bottling facility replaced 15-year-old proprietary controllers with open-platform programmable controllers and modern operator panels. Before upgrade, average troubleshooting time for conveyor jams was 28 minutes. After upgrade, diagnostic screens identified jam locations instantly, reducing average repair time to 9 minutes. With 3-4 jams occurring per shift, annual savings exceeded 2,100 labor hours. Including energy efficiency improvements from variable frequency drive control, payback period was 14 months with ongoing annual savings of $87,000.
Frequently Asked Questions
Q1: What communication protocol works best when connecting controllers from different manufacturers?
A1: OPC UA has become the preferred solution for multi-vendor environments due to its platform independence and built-in security features. Most major automation suppliers now offer OPC UA servers embedded in their controllers, enabling straightforward data exchange without custom programming.
Q2: How should alarm limits be established for new production equipment?
A2: Begin with manufacturer recommendations for equipment operating ranges, then adjust based on actual production data collected during first months of operation. Statistical analysis of normal variations helps distinguish between acceptable fluctuations and conditions requiring operator attention.
Q3: What training is recommended for maintenance personnel working with integrated control systems?
A3: Effective training combines controller programming fundamentals with interface navigation and network troubleshooting. Hands-on sessions using simulation software allow technicians to practice without affecting production. Refresher courses every two years keep skills current with technology updates.
