DI801

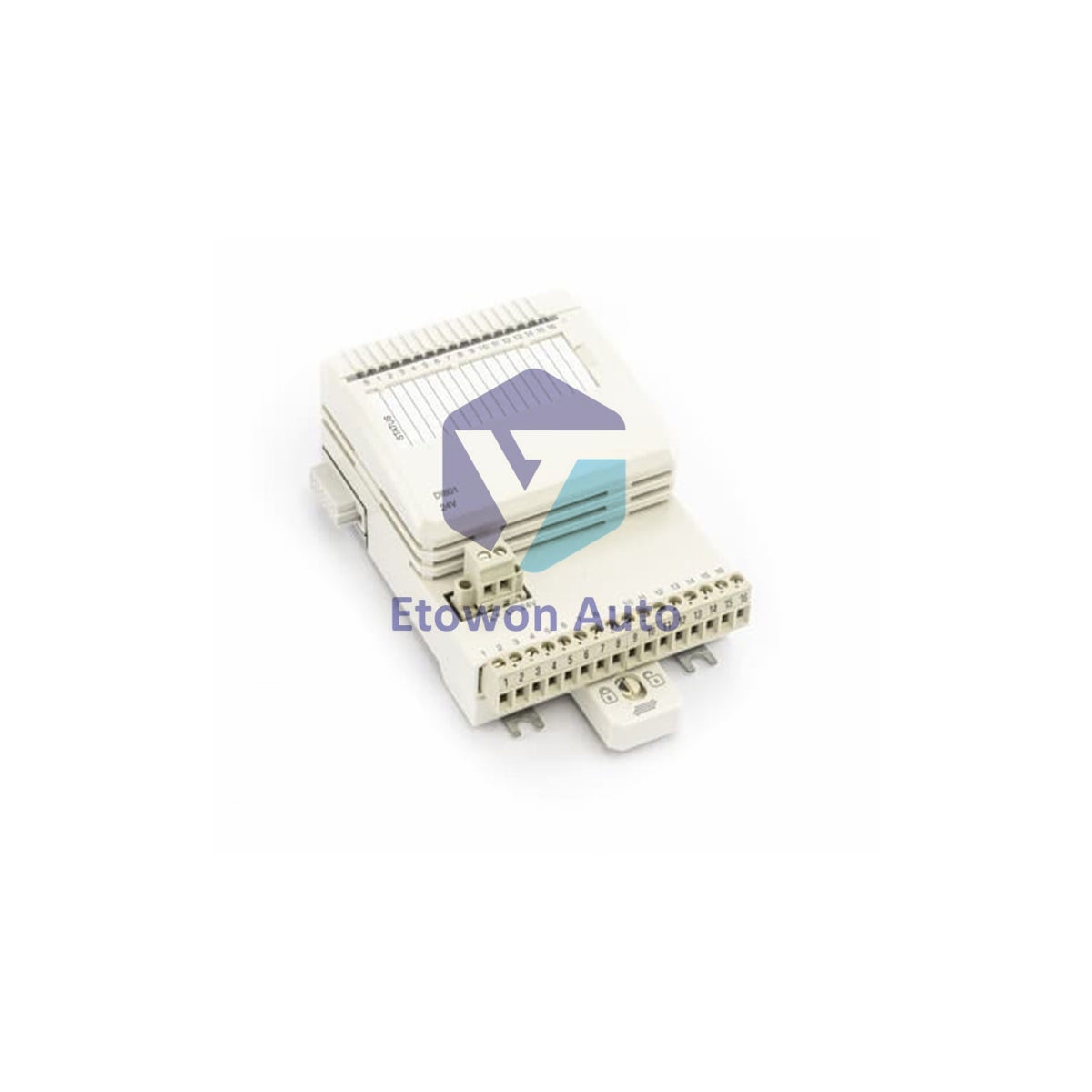

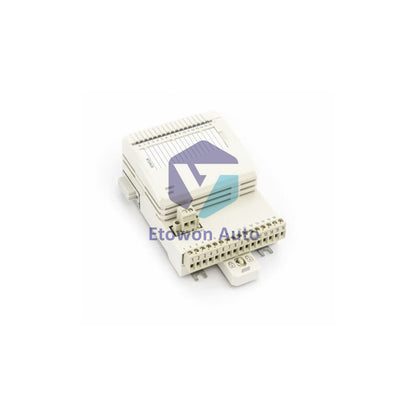

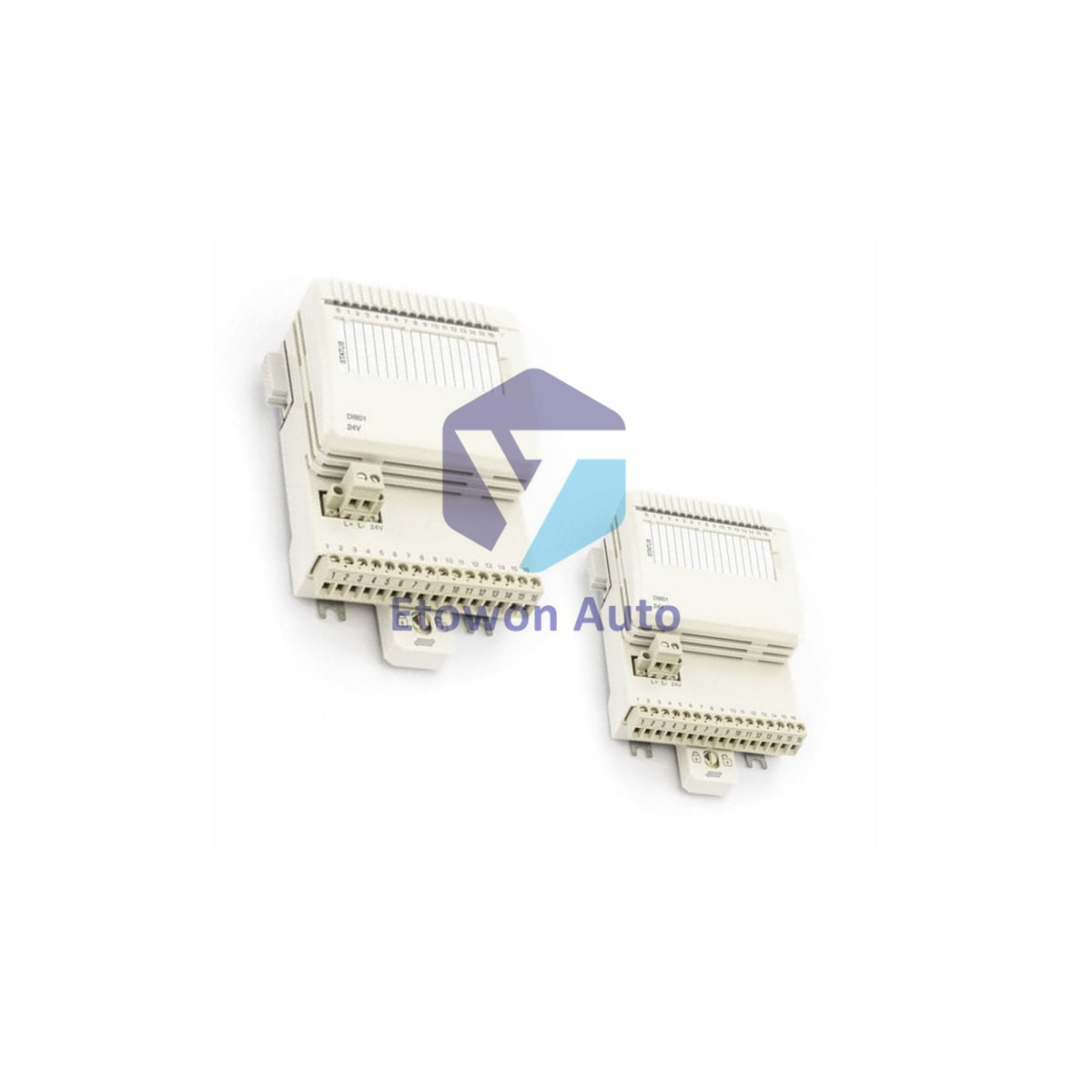

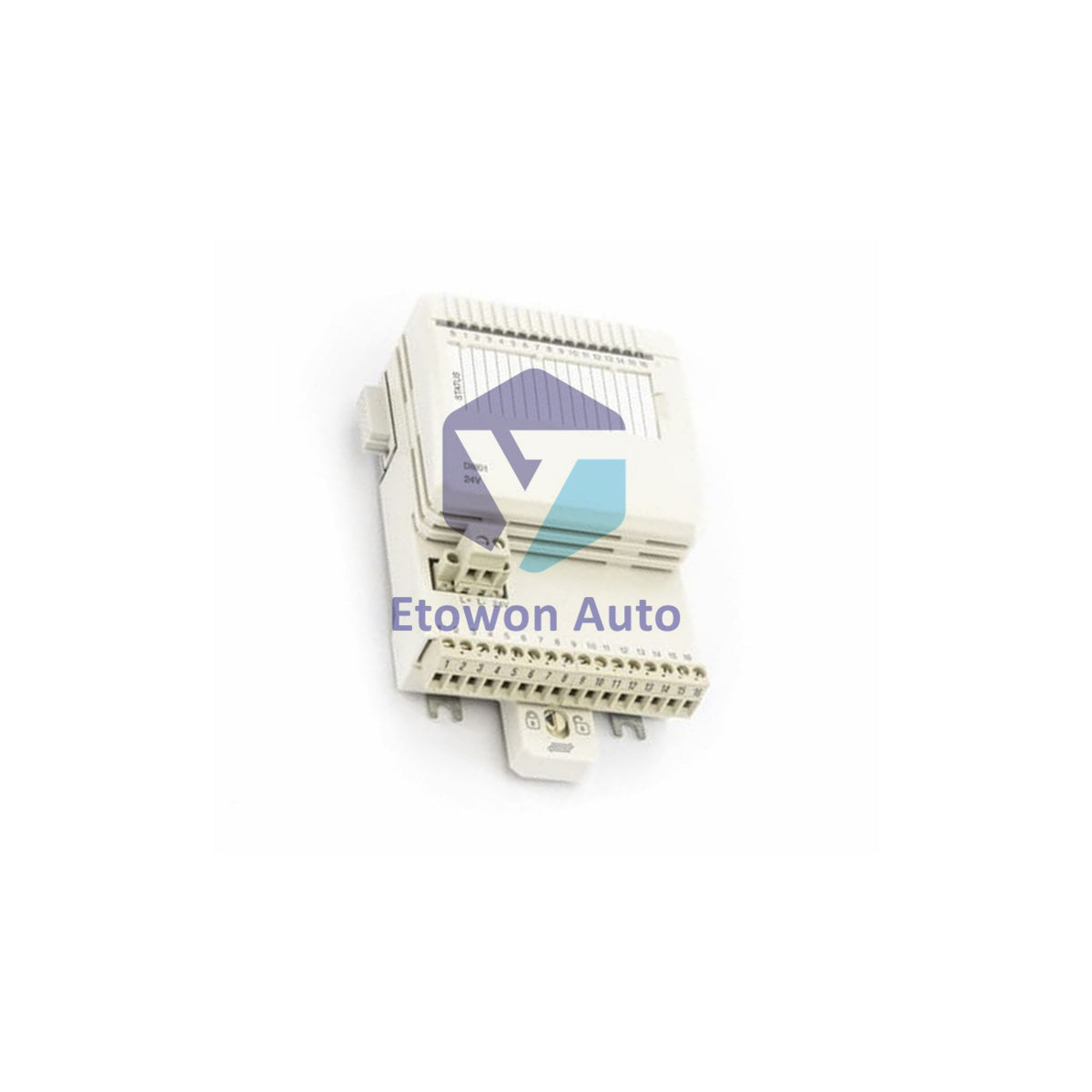

DI801 16-Channel Digital Input Module ABB

In stock (34 units), ready to be shipped

  • Manufacturer: ABB

  • Product No.: DI801

  • Product Type: Digital Input

  • Product Origin: SE

  • Payment:T/T, Western Union

  • Weight: 240g

  • Shipping port: Xiamen

  • Warranty: 12 months

30-Day Return Policy · 12-Month Warranty
  • Fast Delivery
  • 24/7 Support
  • Quality Assurance

Description

Product Overview

The DI801 16-channel digital input module from ABB provides reliable signal acquisition for S800 I/O systems. This industrial-grade module accepts 24V DC inputs with comprehensive protection and status monitoring features.

Key Technical Specifications

  • Brand: ABB
  • Model: DI801
  • Product Type: Digital Input Module
  • Article Number: 3BSE020508R1
  • Signal Type: 24V DC Current Sinking
  • Channel Count: 16 channels
  • Input Voltage Range: 18-30V DC
  • Input Current: 6 mA at 24V

Electrical Specifications

  • Logic "0" Level: -30 to +5 V
  • Logic "1" Level: 15 to 30 V
  • Input Impedance: 3.5 kΩ
  • Isolation: Groupwise isolated from ground
  • Filter Times: 2, 4, 8, 16 ms selectable
  • Power Dissipation: 2.2 W typical

Installation & Wiring

  • Wire Size: 0.05-2.5 mm² solid, 0.05-1.5 mm² stranded
  • Terminal Torque: 0.5-0.6 Nm recommended
  • Stripping Length: 6-7.5 mm
  • Cable Length: Up to 600 meters maximum
  • Connectors: Detachable process and power connectors

Diagnostics & Indicators

  • Status LED: Run or fault indication
  • Channel LEDs: Individual "0" or "1" status for all 16 channels
  • Voltage Supervision: Channel 16 for process voltage monitoring
  • Status Indication: Module Error, Module Warning, Channel Error

Environmental Specifications

  • Operating Temperature: 0 to +55 °C
  • Storage Temperature: -40 to +70 °C
  • Protection Class: IP20 according to IEC 60529
  • Humidity Range: 5 to 95% non-condensing
  • Corrosion Protection: ISA-S71.04 G3 compliant

Physical Dimensions

  • Width: 86.1 mm
  • Depth: 58.5 mm
  • Height: 110 mm
  • Weight: 0.24 kg
  • Mechanics: S800L form factor

Certifications & Compliance

  • Electrical Safety: EN 61010-1, UL 61010-1
  • Hazardous Location: C1 Div 2 cULus, ATEX Zone 2
  • Marine Certificates: ABS, BV, DNV, LR
  • RoHS Compliance: DIRECTIVE/2011/65/EN
  • EMC Standards: EN 61000-6-4, EN 61000-6-2

Frequently Asked Questions

  • How many input channels does DI801 provide?
    The DI801 offers 16 digital input channels for 24V DC signals with current sinking.
  • What is the voltage supervision feature?
    Channel 16 can be used for process voltage supervision to monitor input power status.
  • What are the module dimensions?
    The module measures 86.1×58.5×110 mm and weighs 0.24 kg compact design.
