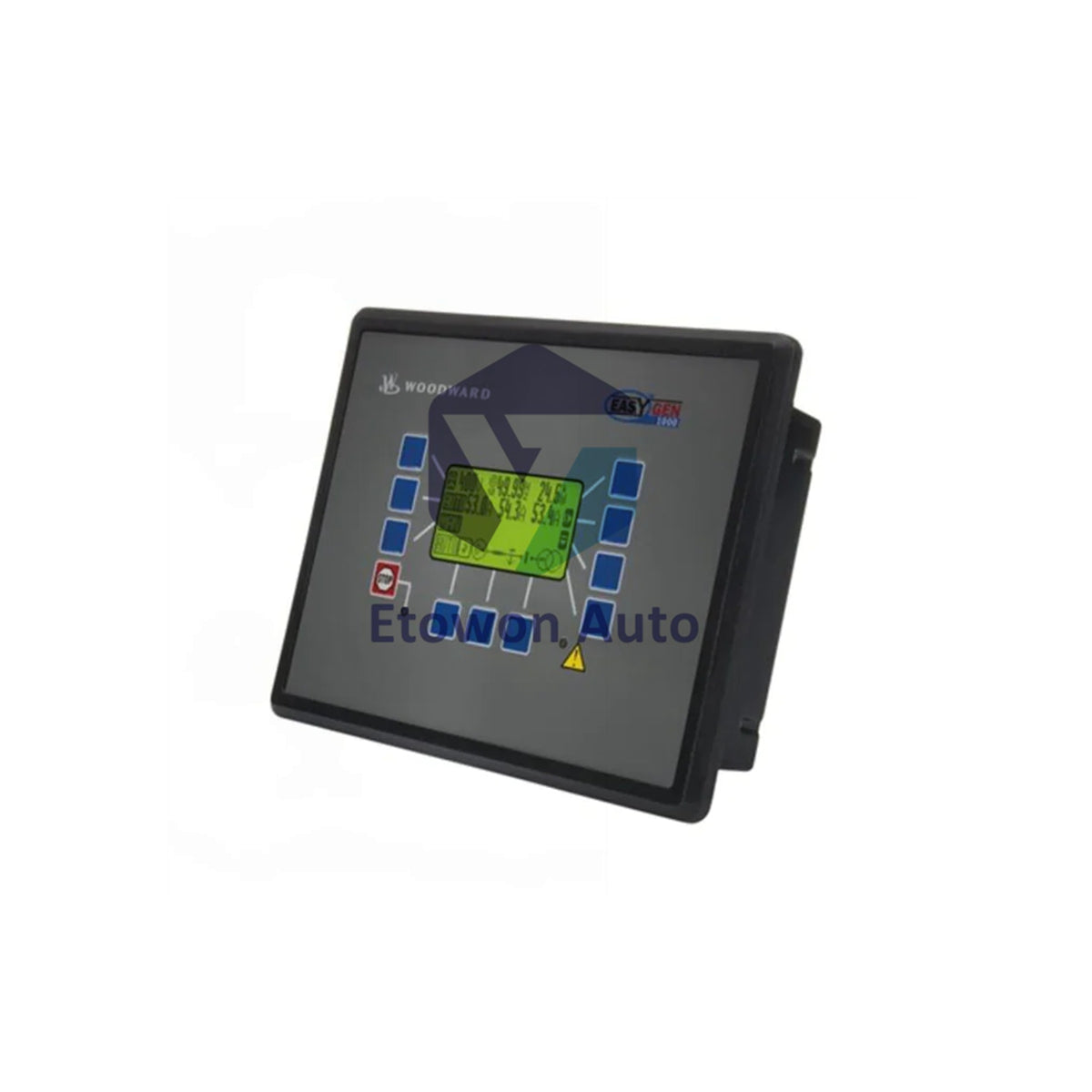

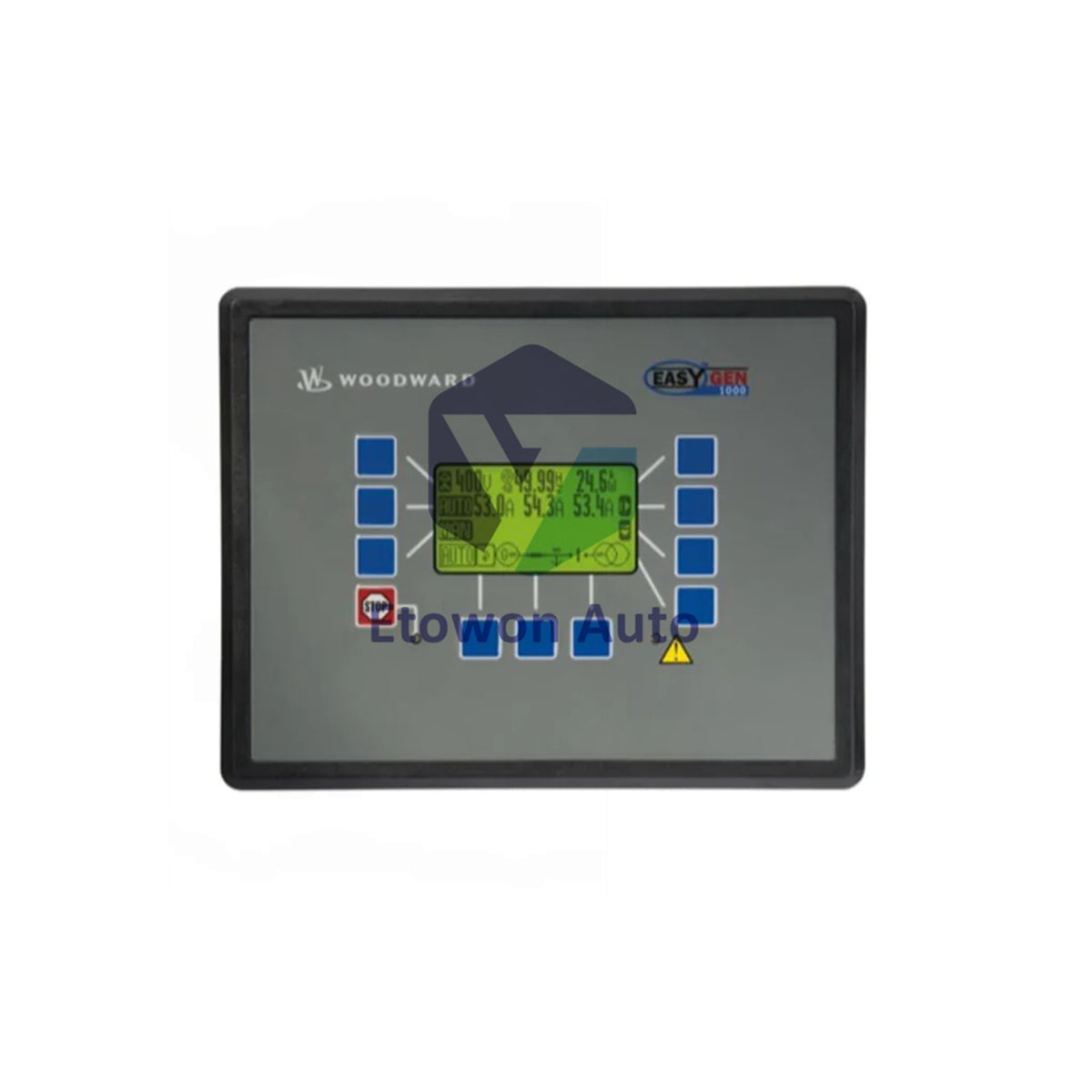

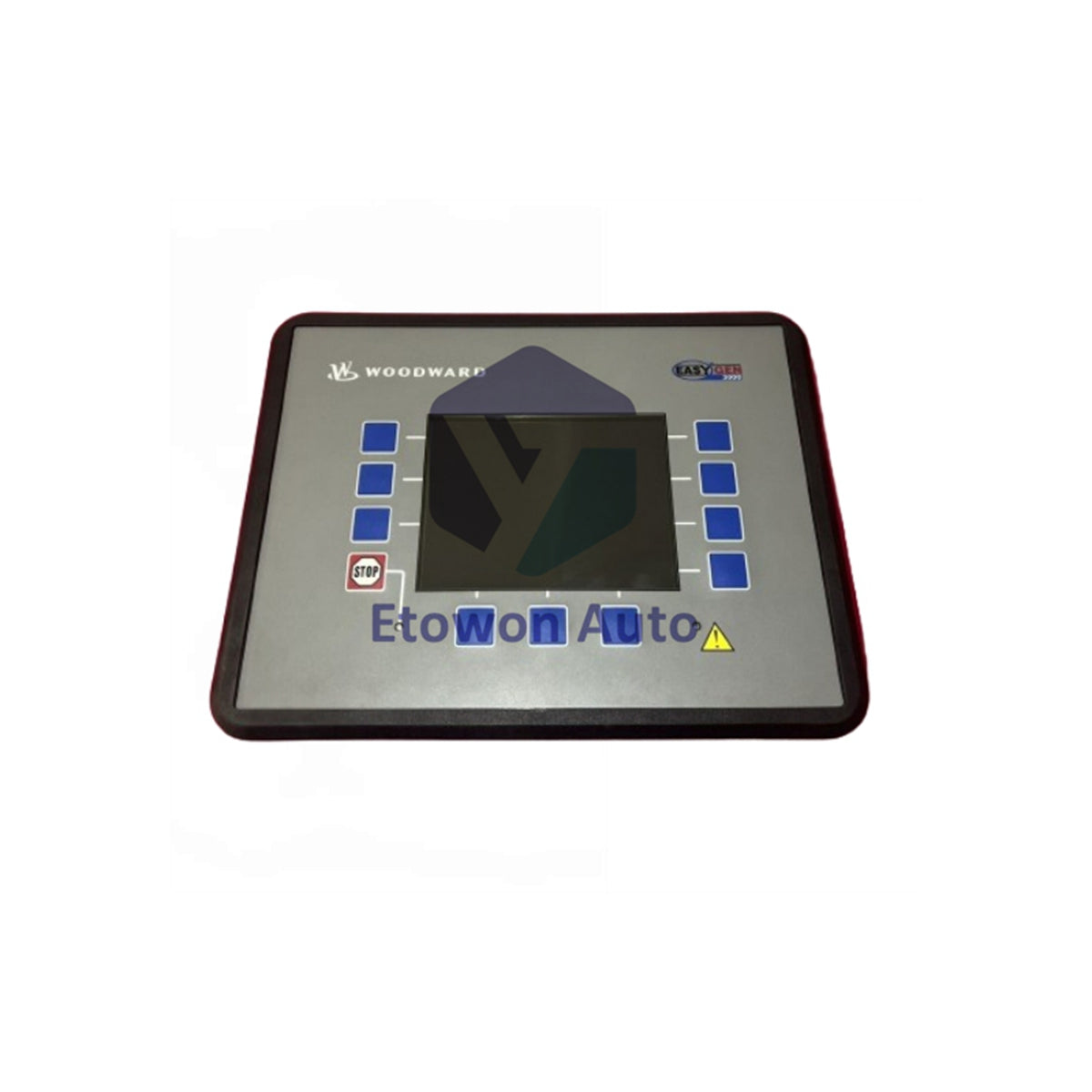

Woodward easYgen-3200 8440-2049 Control Module HMI

Diňe 10 sany galdy

  • Manufacturer: Woodward

  • Product No.: 8440-2049

  • Product Type: Control Module

  • Product Origin: USA

  • Payment:T/T, Western Union

  • Weight: 1800g

  • Shipping port: Xiamen

  • Warranty: 12 months

30 günlük yzyna gaýtaryş syýasaty · 12 aýlyk kepillik
  • Çalt eltip berme
  • 24/7 goldaw
  • Hil üpjünçiligi

Düşündiriş

Product Overview

The Woodward 8440-2049 is a sophisticated genset management controller belonging to the easYgen-3000 / easYgen-3200 series platform. Engineered for complex power generation system management, this controller coordinates automatic load sharing, synchronizing, and breaker control for up to 32 interconnected engine-generator sets operating in island or mains-parallel modes.

Operating on a nominal 12/24 V DC power supply, the 8440-2049 incorporates an integrated front-panel Human Machine Interface (HMI) equipped with soft keys and a 5.7-inch monochrome LCD. Housed in a 282 x 216 x 96 mm enclosure, the unit weighs 1.80 kg (3.97 lbs) with an estimated gross package shipping weight of 2.50 kg (5.51 lbs), supporting multi-language menu navigation across 14 global languages.

Core Technical Advantages

  • Multi-Genset Load Management: Manages complex load-sharing configurations and breaker synchronization for up to 32 generator units via CAN bus network.
  • Comprehensive Breaker Control: Provides open/closed transition, soft loading/unloading, slip frequency matching, and phase angle synchronization for generator and utility breakers.
  • Intuitive Multi-Lingual Display: Features a 5.7-inch LCD screen with multi-level password protection and support for 14 operational languages (including English, Chinese, German, Spanish, and Russian).
  • Versatile Network Integration: Fully compatible with major industrial automation architectures using serial RS-232, RS-485, and CAN communication interfaces.

Technical Specifications

Parameter Specification Details
Brand / Manufacturer Woodward
Part Number / Model 8440-2049
Product Series easYgen 3000 / easYgen 3200 Series
Product Type Engine-Generator Control & Synchronization Unit
Operating Power Supply 12 / 24 V DC (8 to 32 V DC operating range)
Power Consumption < 0.15 W max power consumption per path
Display / Operator Interface 5.7" Graphical LCD with soft keys and status LEDs
Measurable Alternator Windings 3p-3w, 3p-p-4w, 3p-4wOD, 1p-2w, 1p-3w
Current Transformer Setting Range 1 A to 32,000 A adjustable
Output Relays Galvanically Isolated Relay Contacts
Communication Interfaces RS-232, RS-485, CAN Bus (Multi-protocol support)
Physical Front Dimensions 282 mm (W) x 216 mm (H) x 96 mm (D)
Operating / Storage Temperature Operation: -20 °C to +70 °C | Storage: -30 °C to +80 °C
Estimated Net / Shipping Weight Net Unit: 1.80 kg (3.97 lbs) | Gross Shipping: 2.50 kg (5.51 lbs)

Installation & Commissioning Setup

  • Cutout & Panel Mounting: Mount flush in switchgear door panel using supplied clamp fasteners, adhering to standard 282 x 216 mm cutout dimensions.
  • Control Power Connection: Connect filtered 12 V or 24 V DC system supply with reverse-polarity protection to the primary power input terminals.
  • Communication Bus Wiring: Wire CAN bus connections using shielded twisted-pair cable with 120 Ω terminal resistors at both ends of the load-sharing network.

Technical FAQs

Q1: How many generator sets can the Woodward 8440-2049 control in a single network?
A1: It can interface and control load sharing for up to 32 interconnected generator sets.

Q2: What CT secondary ratio setting range is supported?
A2: The primary current transformer setting range is adjustable from 1 A up to 32,000 A.

Q3: What alternator winding configurations can this controller measure?
A3: It supports 3p-3w, 3p-p-4w, 3p-4wOD, 1p-2w, and 1p-3w alternator winding systems.

🏷️ Tags: Control Module Woodward
