3500/92-04-01-00

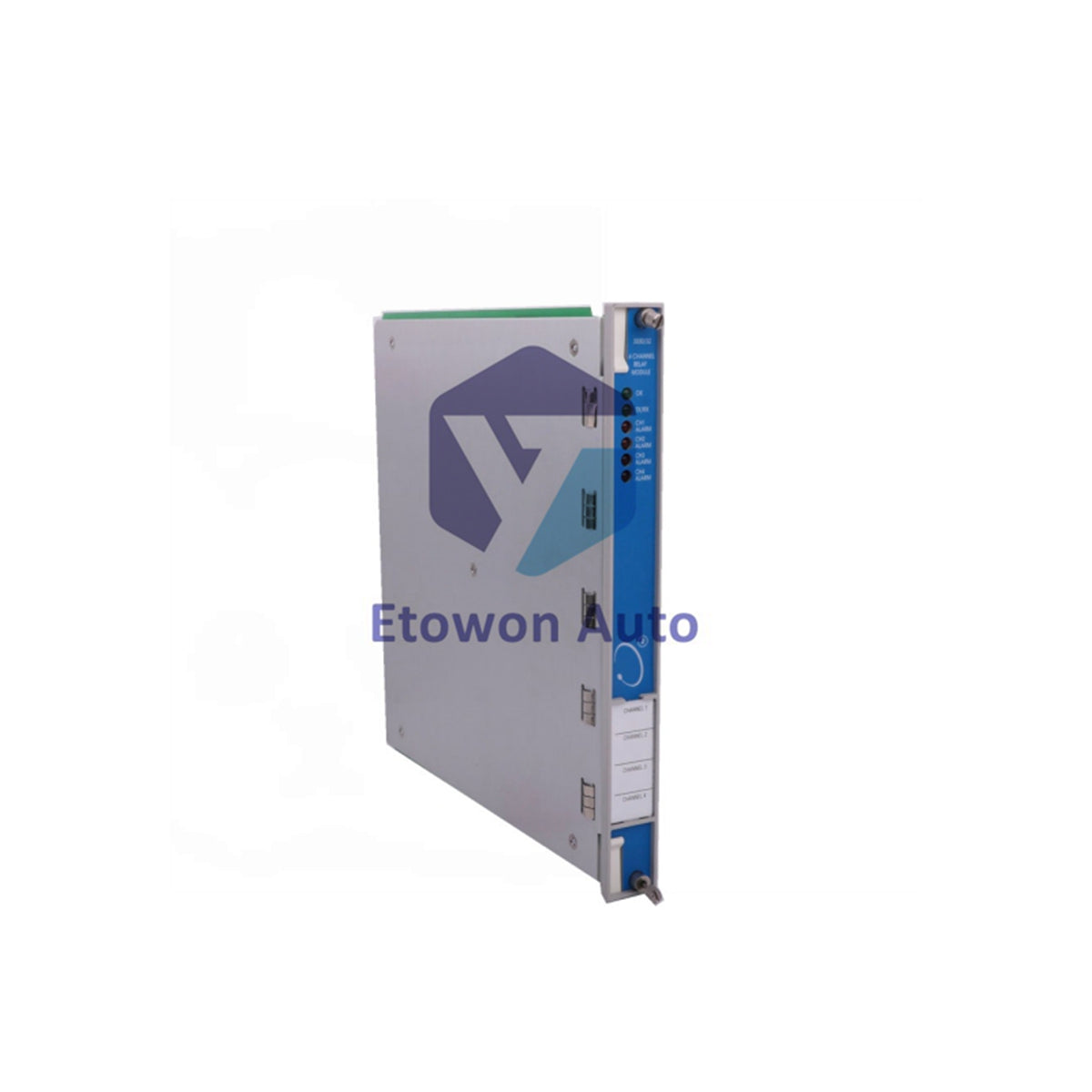

Bently Nevada 3500/92-04-01-00 Communication Gateway

Skladda bar (26 sany), ibermek üçin taýýar

  • Manufacturer: Bently Nevada

  • Product No.: 3500/92-04-01-00

  • Product Type: Communication Gateway Module

  • Product Origin: USA

  • Payment:T/T, Western Union

  • Weight: 1260g

  • Shipping port: Xiamen

  • Warranty: 12 months

30 günlük yzyna gaýtaryş syýasaty · 12 aýlyk kepillik
  • Çalt eltip berme
  • 24/7 goldaw
  • Hil üpjünçiligi

Düşündiriş

Bently Nevada 3500/92-04-01-00 Communication Gateway (136180-01)

The Bently Nevada 3500/92-04-01-00 Communication Gateway collects data from 3500 rack modules via high speed internal network. Provides Ethernet and Modbus connectivity for integration with plant control systems and vibration monitoring software.

Product Identification

  • Manufacturer: Bently Nevada
  • Product Number: 3500/92-04-01-00 (136180-01)
  • Type: 3500/92 Communication Gateway
  • Origin: Made in U.S.A.

Model Configuration

  • 04 – Ethernet/RS485 Modbus I/O Module
  • 01 – Low Memory
  • 00 – No Agency Approval

Technical Specifications

Parameter Specification
Main Board (H×W×D) 241 × 24.4 × 242 mm
I/O Module (H×W×D) 241 × 24.4 × 99.1 mm
Weight 1.26 kg
Power (RS232/RS422) 5.0 W typical
Power (RS485) 5.6 W typical
Data Update Rate < 1 second
Ethernet 10 Mbps, RJ-45 (10BASE-T)
Protocols TCP/IP, Modbus/TCP, Modbus RTU
Operating Temperature -30°C to +65°C
Storage Temperature -40°C to +85°C
Humidity 95% non-condensing
Rack Space 1 full-height front slot

Indicators

  • OK LED: Normal operation
  • TX/RX LED: Active communication with rack modules

Certifications

  • FCC Part 15
  • EN 61000-6-2 / -6-4 (EMC)
  • EN 61010-1 (Electrical Safety)
  • RoHS 2011/65/EU
  • DNV GL, ABS (Maritime)

Installation

  • Install in 3500 rack full-height front slot.
  • Use shielded twisted-pair cabling for RS485/RS422.
  • Verify Ethernet network settings before commissioning.

Technical FAQs

Q1: What software communicates with the 3500/92?
A1: 3500 Configuration Software and 3500 Data Acquisition Software via Ethernet TCP/IP.

Q2: What does 04 specify in the model number?
A2: Ethernet/RS485 Modbus I/O Module. Other options include RS232/RS422 variants.

Q3: Does it support Modbus TCP?
A3: Yes. Modbus RTU over serial and Modbus/TCP over Ethernet are both supported.
