9905-969

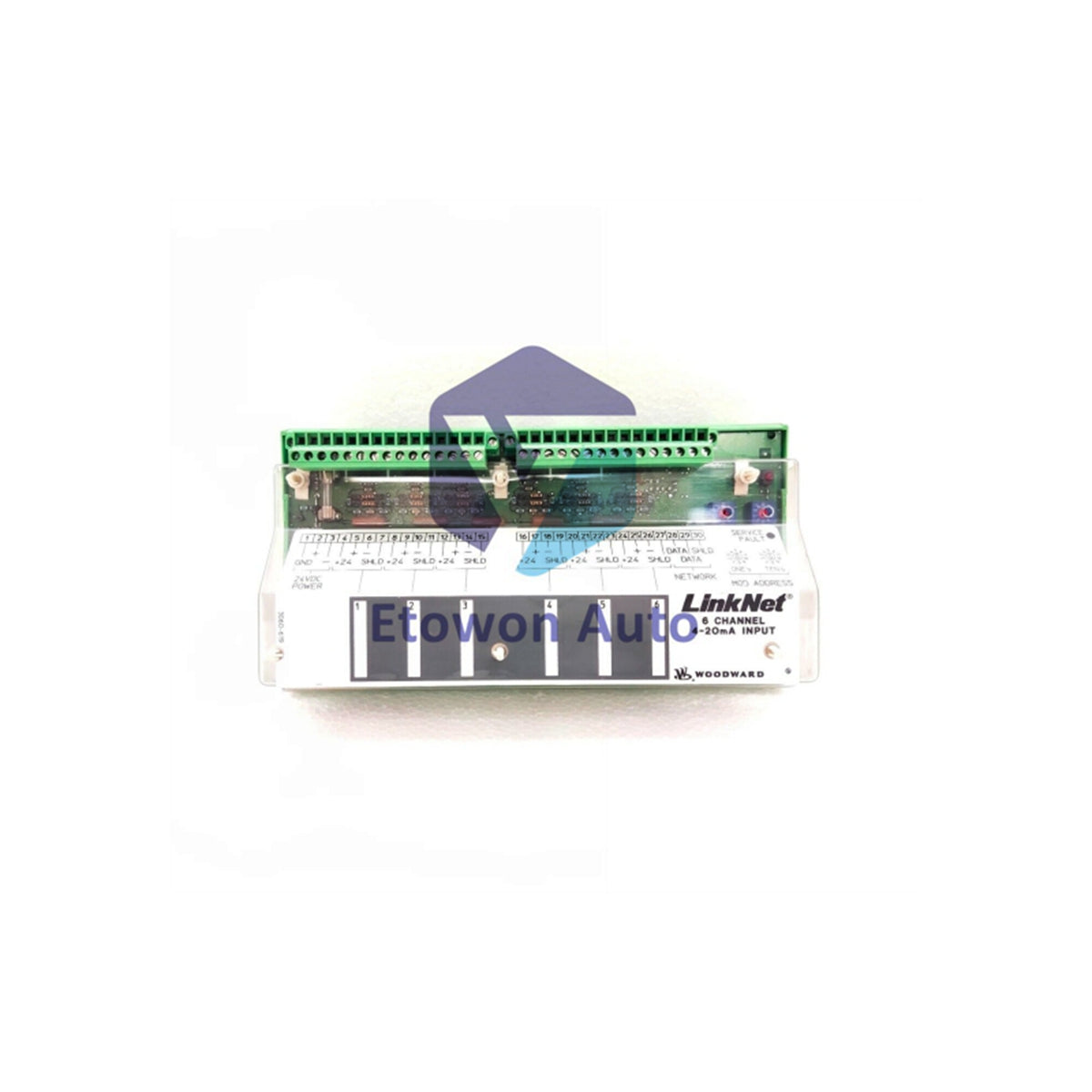

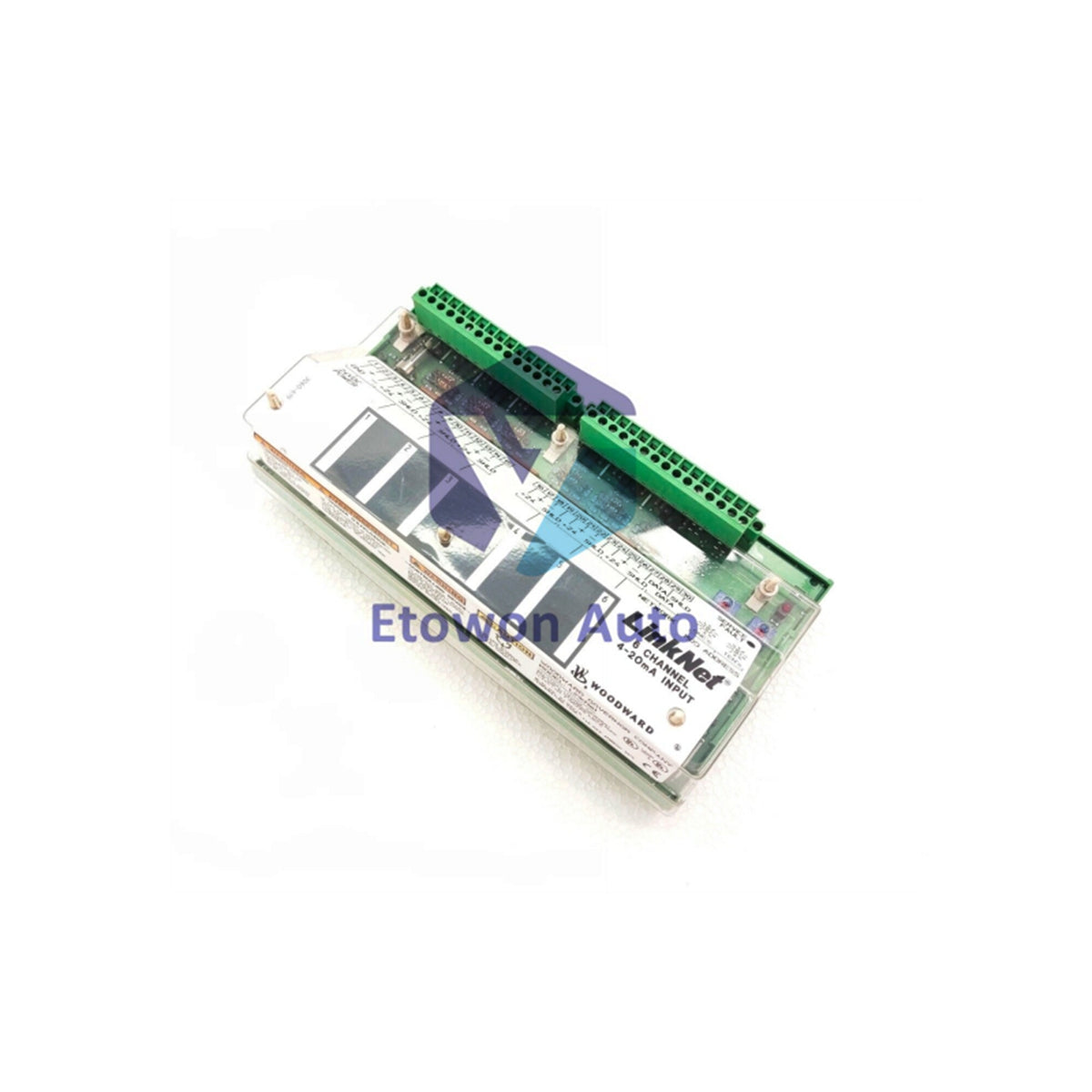

Woodward 9905-969 4-20mA 6-Channel Input Module

Diňe 10 sany galdy

  • Manufacturer: Woodward

  • Product No.: 9905-969

  • Product Type: Analog Input Module

  • Product Origin: USA

  • Payment:T/T, Western Union

  • Weight: 4130g

  • Shipping port: Xiamen

  • Warranty: 12 months

30 günlük yzyna gaýtaryş syýasaty · 12 aýlyk kepillik
  • Çalt eltip berme
  • 24/7 goldaw
  • Hil üpjünçiligi

Düşündiriş

Woodward 9905-969 Technical Overview

The Woodward 9905-969 is an industrial-grade LINKnet 6-Channel Analog Input Module (4-20mA) designed by Woodward for distributed I/O integration within NetCon control system networks. Weighing 9.11 lbs with dimensions of 14W x 11H x 4D inches, it features a 2-line x 24-character display, 30 multi-function keypad, and 1% accuracy at 25°C. Housed in a Phoenix field termination package for DIN rail mounting, this module operates on 18–32 VDC power across harsh temperatures ranging from -40°C to +55°C.

Part Number Breakdown

  • 9905: Woodward NetCon & LINKnet Control System Series
  • -969: Specific Model Designator — 6-Channel 4-20mA Analog Input Module

Technical Specifications Table

Parameter Specification
Manufacturer / Brand Woodward
Full Part Number 9905-969
Product Type & Channels LINKnet Analog Input Module / 6 Channels (4-20 mA)
Display & Interface 2 Line x 24 Characters Display / 30 Multi-function Keypad
Power Supply & Input Current 18 to 32 VDC Input Range / +24 VDC @ 1 A Nominal
Accuracy & Isolation Voltage 1% at 25 °C / 277 VAC Network to I/O / 500 V Power to I/O
Physical Weight & Dimensions 9.11 lbs (4.13 kg) / 14" W x 11" H x 4" D
Operating Temperature & Mounting -40 to +55 °C / Phoenix Field Termination DIN Rail Mount
Country of Origin United States (USA)

Key Features & Hardware Configurations

Features 6-channel 4-20mA inputs, 24 VDC power, 9.11 lbs weight, display keypad, DIN mount, and USA origin.

Frequently Asked Questions (FAQs)

Q1: What are the main specs of the Woodward 9905-969 module?
A1: 6 analog channels (4-20mA), 24 VDC power, 1% accuracy, 9.11 lbs weight, and -40 to +55°C temperature range.

Q2: How does the module connect to the NetCon network?
A2: It connects via a single twisted pair wire to the NetCon controller trunk and uses two rotary switches to set node addresses (1–60).

Q3: How is the physical housing configured for installation?

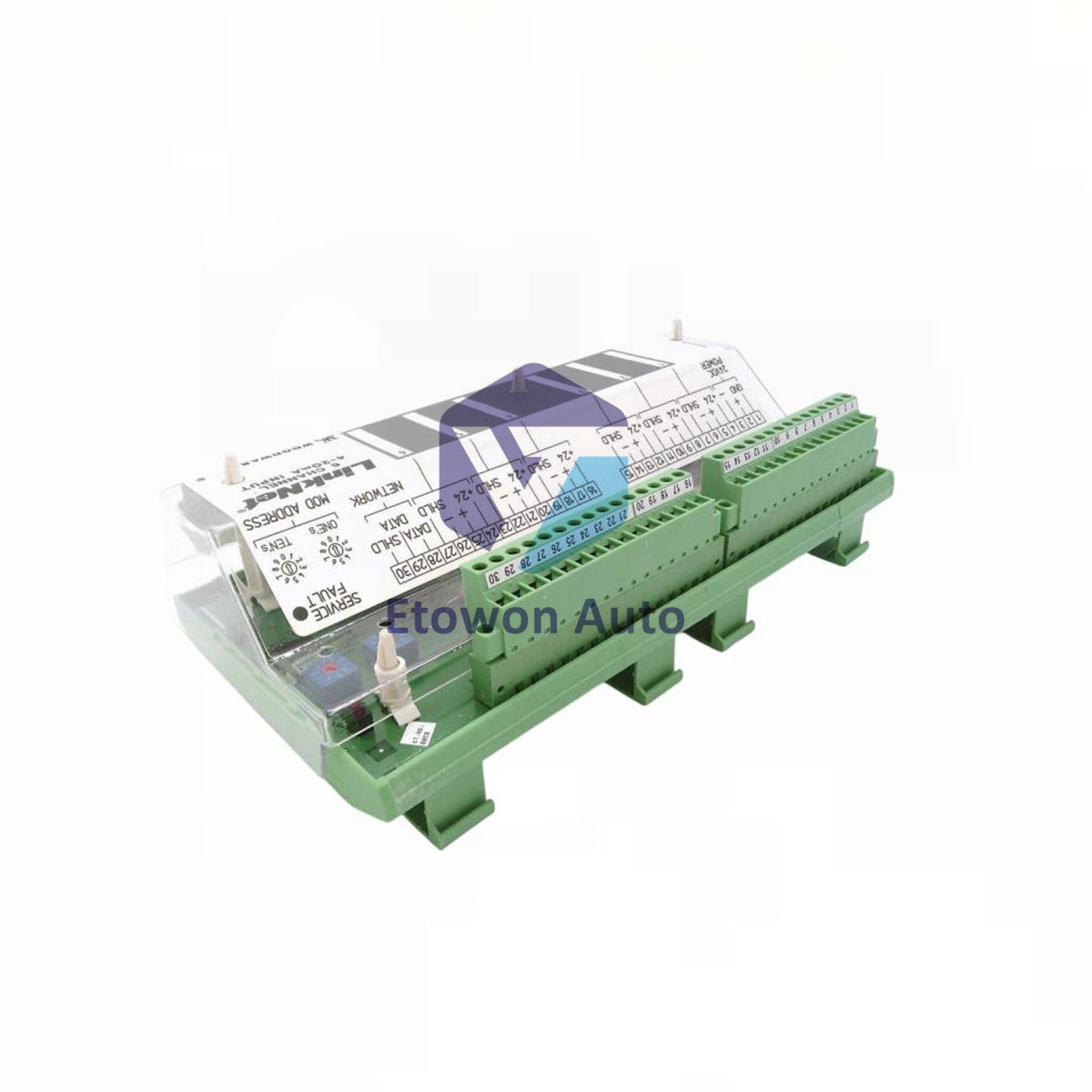

A3: Enclosed in a plastic Phoenix field termination package designed for convenient DIN rail mounting inside or near control cabinets.
