IC200MDL640

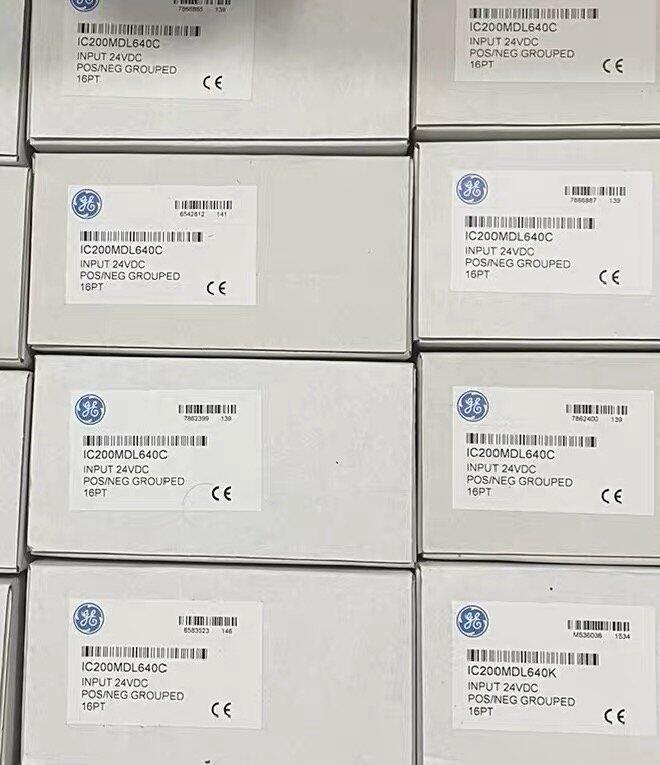

VersaMax 24VDC Input Module GE Fanuc IC200MDL640

Skladda bar (13 sany), ibermek üçin taýýar

  • Manufacturer: General Electric

  • Product No.: IC200MDL640

  • Product Type: Input Module

  • Product Origin: USA

  • Payment:T/T, Western Union

  • Weight: 200g

  • Shipping port: Xiamen

  • Warranty: 12 months

30 günlük yzyna gaýtaryş syýasaty · 12 aýlyk kepillik
  • Çalt eltip berme
  • 24/7 goldaw
  • Hil üpjünçiligi

Description

GE Fanuc VersaMax IC200MDL640 16-Point Discrete Input Module

The IC200MDL640 is a 24 Volts DC discrete input module from the GE Fanuc VersaMax series featuring 16 input points arranged in 2 groups of 8. This module supports both positive and negative logic configurations with 10KΩ input impedance.

Product Overview

  • Brand: GE Fanuc
  • Series: VersaMax
  • Model: IC200MDL640
  • Module ID: FFFF8008
  • Product Type: Discrete Input Module

Technical Specifications

  • Number of Inputs: 16 points
  • Input Groups: 2 groups of 8
  • Supported Logic: Positive and Negative
  • Input Voltage Range: 0-30 Volts DC
  • Nominal Voltage: 24 Volts DC
  • On-State Voltage: 15 to 30 Volts DC
  • Off-State Voltage: 0 to 5 Volts DC
  • Input Impedance: 10K Ohms
  • Basic Response Time: 0.5 ms
  • Configurable Filter Times: 0 ms (min), 1.0 ms (default), 7.0 ms (max)
  • Backplane Current: 5 Volts @ 25 mA max
  • External Power Supply: None required

Isolation Specifications

  • Group-to-Group Isolation: 250 VAC continuous
  • Group-to-Group (1 min): 1500 VAC for 1 minute
  • Point-to-Point Isolation: None

Key Features

  • 16 inputs in 2 groups of 8 for organized wiring
  • Configurable filter times (0/1/7 ms) for noise immunity
  • Low power consumption - only 25 mA from backplane
  • Supports hot insertion with proper installation precautions
  • 10KΩ input impedance for reliable signal detection
  • No external power supply or thermal derating required
  • Shorting bar compatible with B Terminal for additional bussed terminals

Shipping Options

  • FedEx Priority Overnight
  • UPS 2-Day Air
  • DHL Express Worldwide
  • Ground shipping available

FAQ

Q1: What is the part number for this VersaMax input module?

The part number is IC200MDL640.

Q2: What are the key specifications of the IC200MDL640?

It features 16 inputs in 2 groups of 8, 24VDC nominal (0-30VDC range), 10KΩ impedance, configurable filters (0/1/7ms), and 25mA backplane current.

Q3: What filter options are available on this module?

The configurable filter times are 0 ms (minimum), 1.0 ms (default), and 7.0 ms (maximum) with a basic response time of 0.5 ms.
