1747-CP3

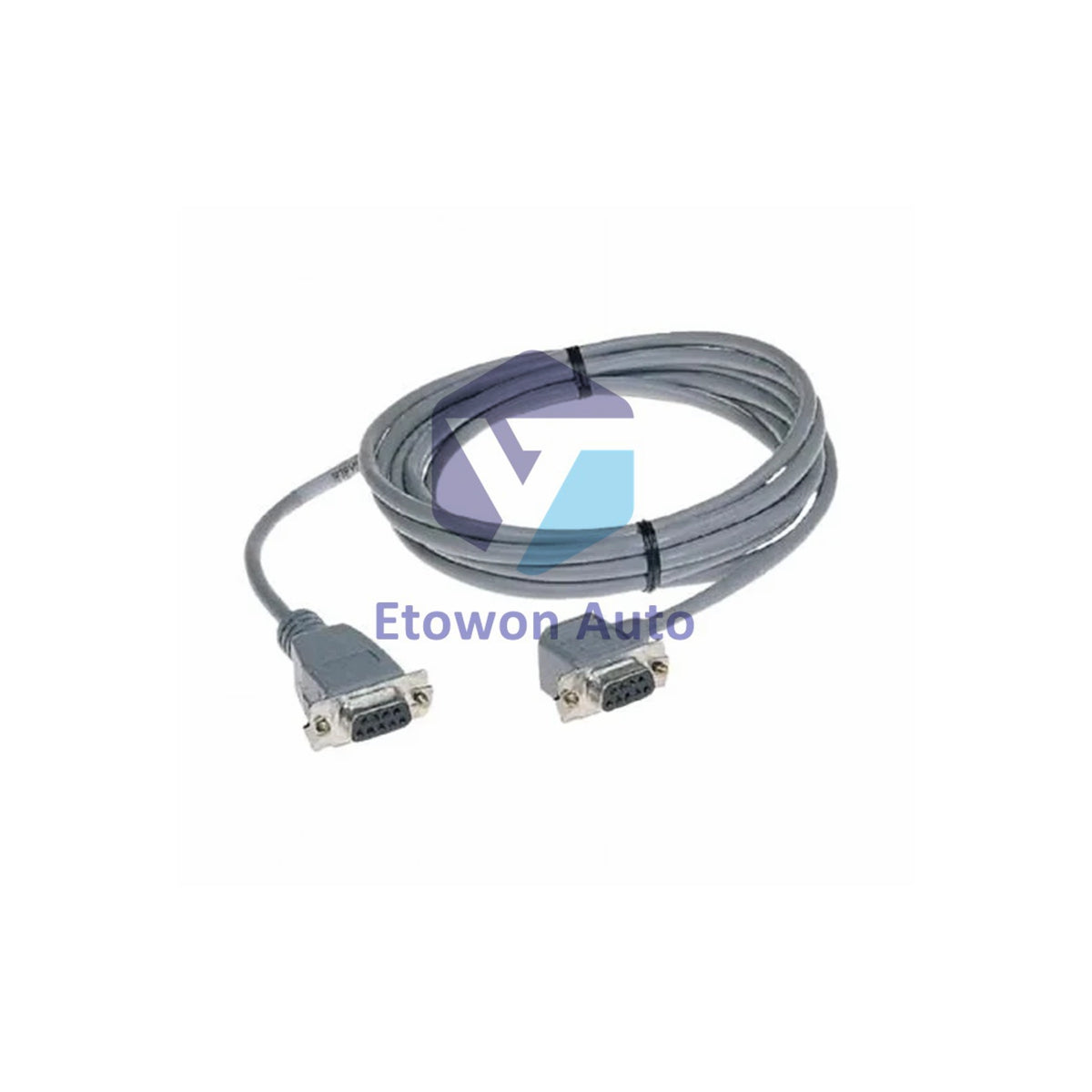

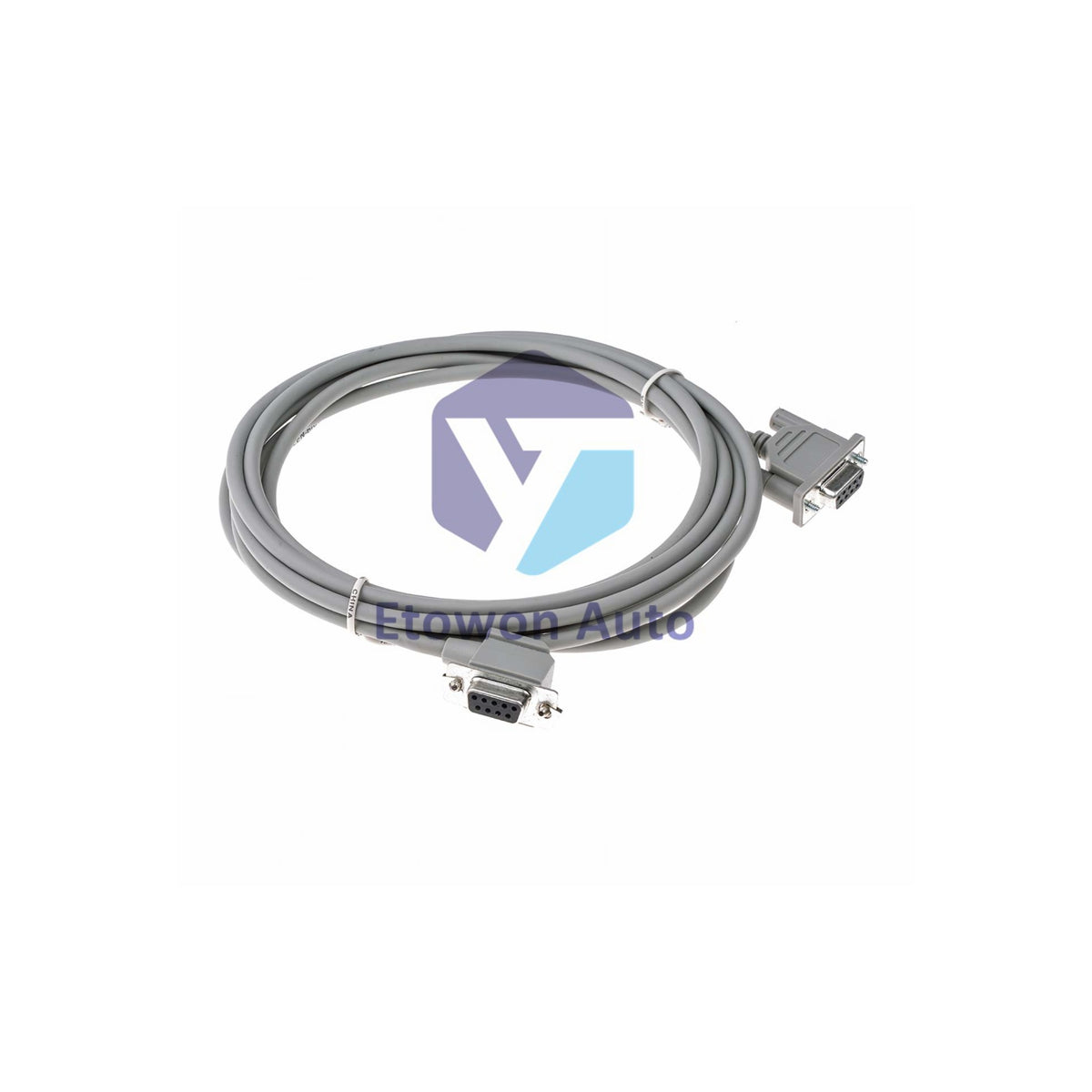

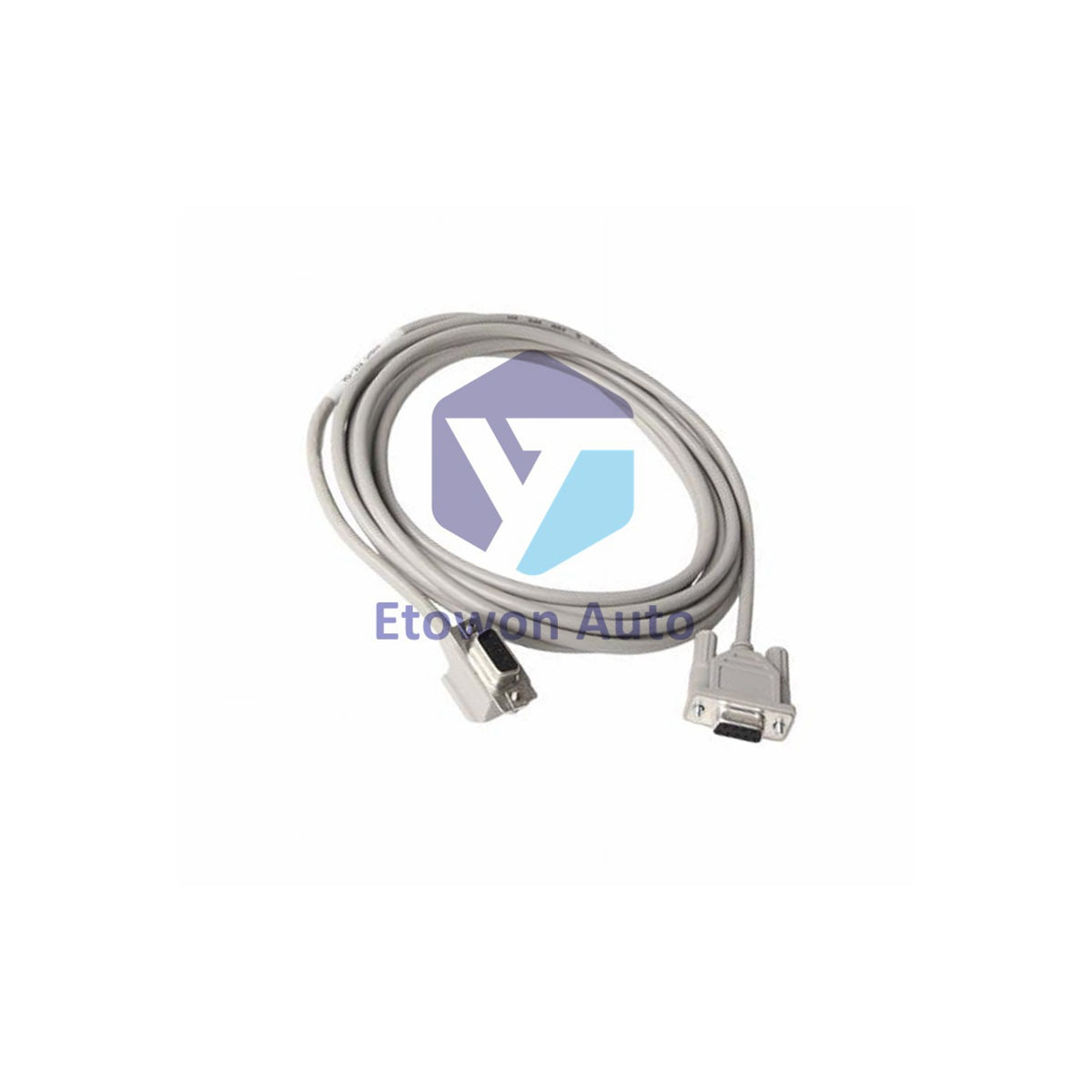

SLC 5/03 5/04 PC Interface Cable 1747-CP3 Allen-Bradley

Skladda bar (19 sany), ibermek üçin taýýar

  • Manufacturer: Allen-Bradley

  • Product No.: 1747-CP3

  • Product Type: Interface Cable

  • Product Origin: USA

  • Payment:T/T, Western Union

  • Weight: 170g

  • Shipping port: Xiamen

  • Warranty: 12 months

30 günlük yzyna gaýtaryş syýasaty · 12 aýlyk kepillik
  • Çalt eltip berme
  • 24/7 goldaw
  • Hil üpjünçiligi

Düşündiriş

Product Overview

The Allen-Bradley 1747-CP3 is a 3-meter (118 inches / 9.8 feet) serial programming cable designed for the SLC 500 modular controller system by Rockwell Automation. Functioning as a 9-pin D-sub to 9-pin D-sub null modem cable, it establishes a direct RS-232 communication bridge between a host computer (DTE) and SLC 5/03, 5/04, or 5/05 processor communication ports.

Engineered with internal cross-over jumpers on both ends for hardware handshaking, the 1747-CP3 is also fully compatible with PanelView component operator terminals and select MicroLogix controllers. Weighing approximately 0.17 kg (0.37 lbs), this industrial-grade cable complies with European EMC Directives (EN 50081-2 and EN 50082-2) for reliable signal transmission in high-noise factory environments.

Core Technical Advantages

  • Direct RS-232 PC-to-PLC Connection: Eliminates the need for custom serial wiring by offering a pre-molded, 9-pin female DB9 to 9-pin female DB9 null modem pinout.
  • Broad Controller Compatibility: Seamlessly interfaces host PCs running RSLogix 500 with SLC 5/03, 5/04, and 5/05 processors, as well as PanelView HMI terminals.
  • Industrial Noise Immunity: Manufactured to withstand electromagnetic interference (EMC) in harsh industrial setups per EN 50081-2 and EN 50082-2 generic standards.
  • Integrated Handshake Jumpers: Built-in internal jumpers ensure immediate RS-232 hardware handshaking without requiring external adapter blocks.

Technical Specifications

Parameter Specification Details
Brand / Manufacturer Allen-Bradley / Rockwell Automation
Catalog Part Number 1747-CP3
Product Series SLC 500 System Accessories
Component Type RS-232 Null Modem Programming Cable
Cable Length 3 meters (118 inches / 9.8 feet)
Connector Type 9-Pin D-Shell Female to 9-Pin D-Shell Female (DB9)
Communication Protocol RS-232 Serial (DF1 / DH-485 point-to-point)
Compatible Hardware SLC 5/03, SLC 5/04, SLC 5/05, MicroLogix, PanelView Terminals
Operating Temperature 0°C to 60°C (32°F to 140°F)
EMC Compliance Standards 89/336/EEC, EN 50081-2 (Emission), EN 50082-2 (Immunity)
Physical Dimensions 5.72 x 1.37 x 5.15 inches (Packaged)
Approximate Net Weight 0.17 kg (0.37 lbs)

Installation & Handling Guidelines

  • Port Pin Protection: Ensure the host computer and PLC RS-232 port thumb screws are properly secured to avoid intermittent serial communication drops during programming.
  • USB Converter Usage: When connecting to modern laptops lacking physical serial ports, use a high-quality USB-to-RS232 converter (e.g., 9300-USBCBS) along with the 1747-CP3 cable.
  • ESD Precautions: Discharge static electricity prior to plugging the DB9 connector into sensitive communications ports to prevent transceiver damage.

Technical FAQs

Q1: Cable type?
A1: 3-meter RS-232 DB9 null modem cable for SLC PLCs.

Q2: Compatible PLCs?
A2: Connects PC to SLC 5/03, 5/04, 5/05, and PanelView HMIs.

Q3: Length & ports?
A3: 3 meters (118 in) long with 9-pin female DB9 ends.
