TSXP57104M

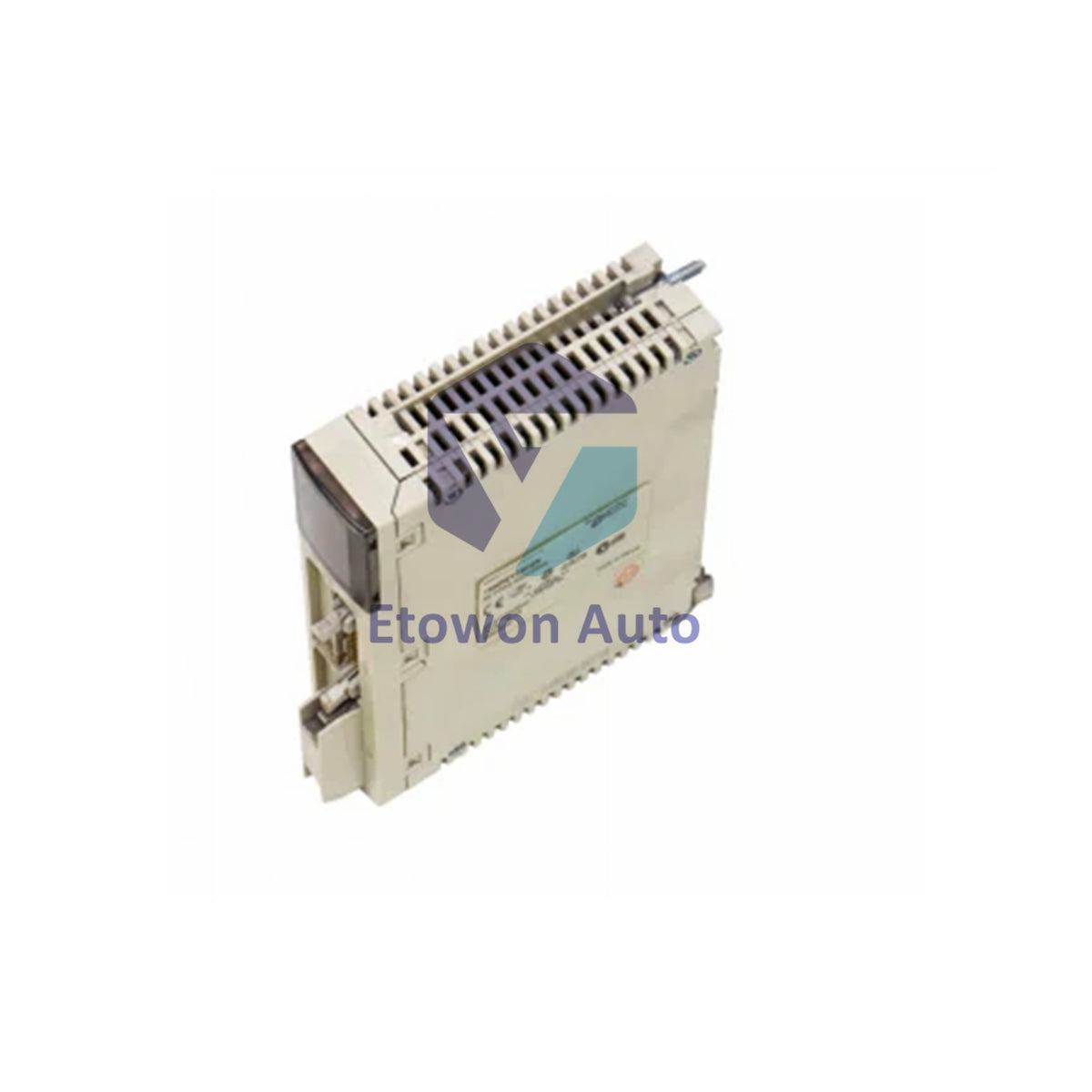

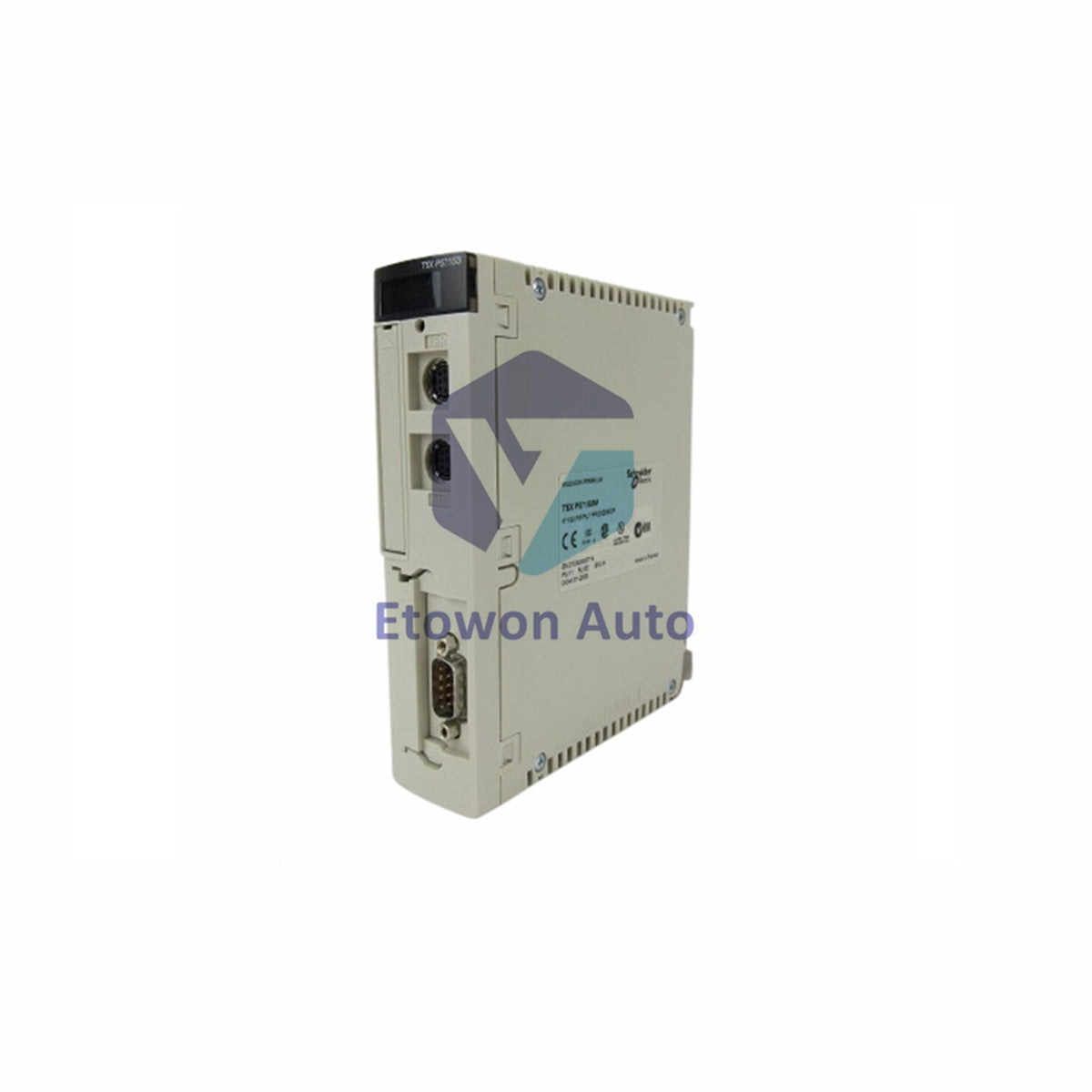

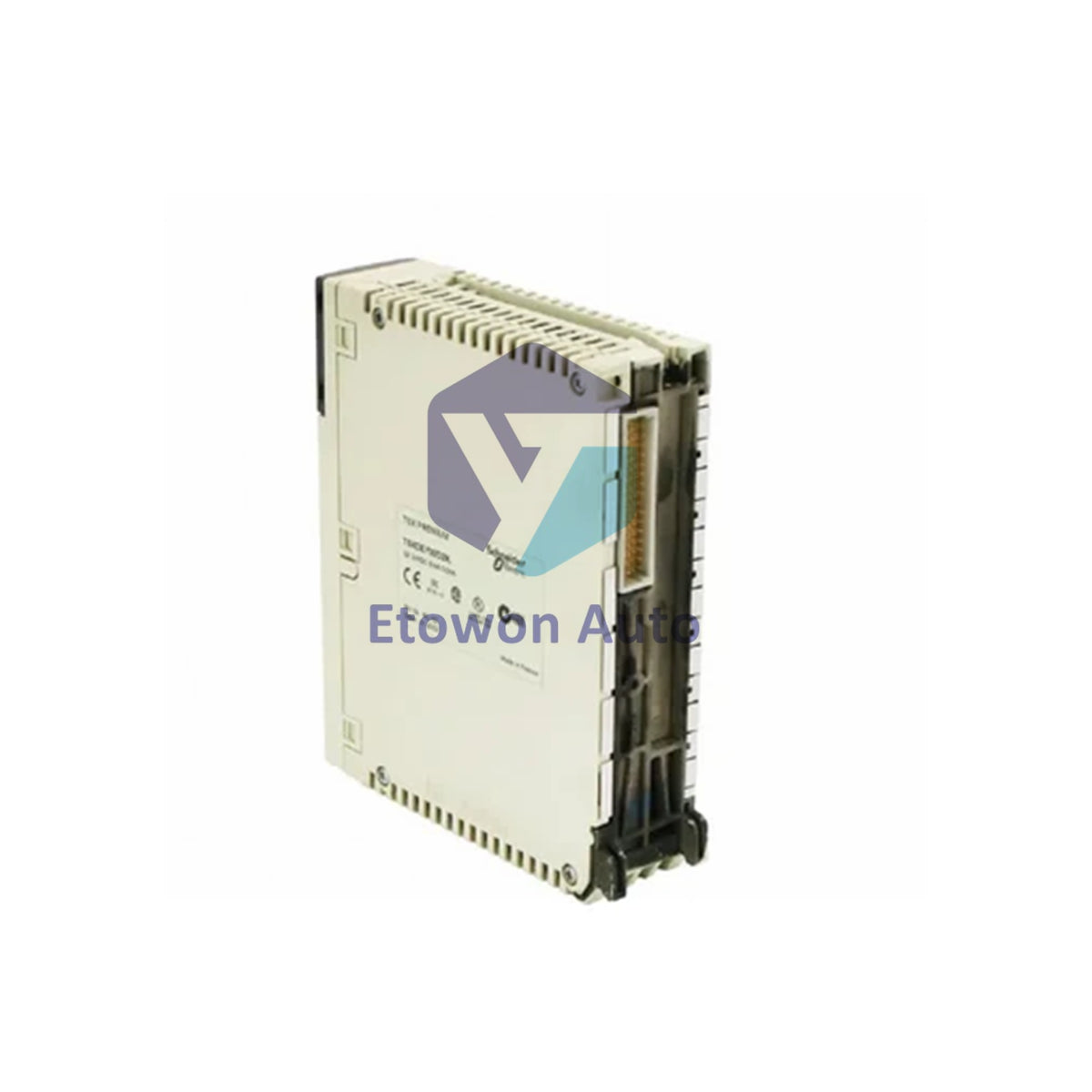

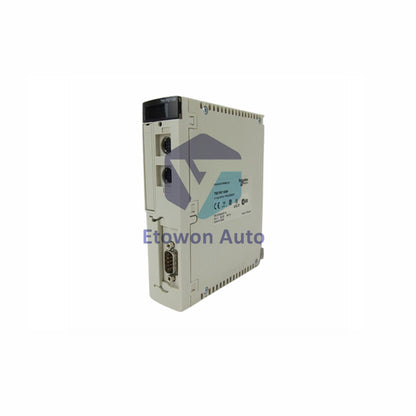

Schneider Electric TSXP57104M Unity Pro CPU Processing Unit

Skladda bar (12 sany), ibermek üçin taýýar

  • Manufacturer: Schneider

  • Product No.: TSXP57104M

  • Product Type: Processor Module

  • Product Origin: FR

  • Payment:T/T, Western Union

  • Weight: 380g

  • Shipping port: Xiamen

  • Warranty: 12 months

30 günlük yzyna gaýtaryş syýasaty · 12 aýlyk kepillik
  • Çalt eltip berme
  • 24/7 goldaw
  • Hil üpjünçiligi

Düşündiriş

Product Overview

The Schneider Electric TSXP57104M is a Modicon Premium processor module (0.38 kg / 0.84 lbs) designed for Unity Pro automation platforms. It provides 96 KB internal RAM, expandable to 224 KB program memory via PCMCIA card, managing up to 512 discrete and 24 analog I/O points for fast machine control.

Core Features

  • Flexible Memory Expansion: Features 96 KB onboard memory, expandable with PCMCIA cards for 224 KB program and 256 KB additional data storage.
  • High Execution Speed: Delivers Boolean instruction execution times as fast as 0.19 μs with throughput up to 4.76 Kinst/ms.
  • Extensive Network & Rack Capacity: Supports up to 4 racks (32 total slots), 2 communication modules, and non-isolated RS485 serial links via mini-DIN ports.
  • Diagnostic LED Array: Four status LEDs give instant visual indication for RUN, I/O fault, system fault (ERR), and TER port activity.

Technical Specifications

Parameter Data
Part Number TSXP57104M
Manufacturer / Series Schneider Electric / Modicon Premium (TSX Micro)
Product Type Unity Processor Module
Net Weight 0.38 kg (0.84 lbs)
I/O Capacity 512 Discrete I/O, 24 Analog I/O
Internal RAM 96 KB (onboard) / 224 KB (with PCMCIA card)
Execution Speed 0.19 μs Boolean (without card) / 0.25 μs (with card)
Current Consumption 850 mA at 5V DC
Integrated Ports Non-isolated RS485 serial link (2 x female mini-DIN, 19.2 kbit/s)
Operating Temperature 0°C to +60°C (32°F to 140°F) / IP20

Engineering & Installation Guide

Slot CPU into rack. Supply 5V DC power. Connect TER port for programming and configure via Unity Pro.

Technical FAQs

Q1: What is the maximum discrete and analog I/O capacity of TSXP57104M?
A1: It supports up to 512 discrete I/O points and 24 analog I/O channels.

Q2: How much program memory is available when using a PCMCIA card?
A2: Equipping a PCMCIA memory card increases internal program RAM to 224 KB.

Q3: What power supply voltage and current does the module require?
A3: The module draws 850 mA operating on a standard 5V DC backplane supply.
