PR6423/010-020

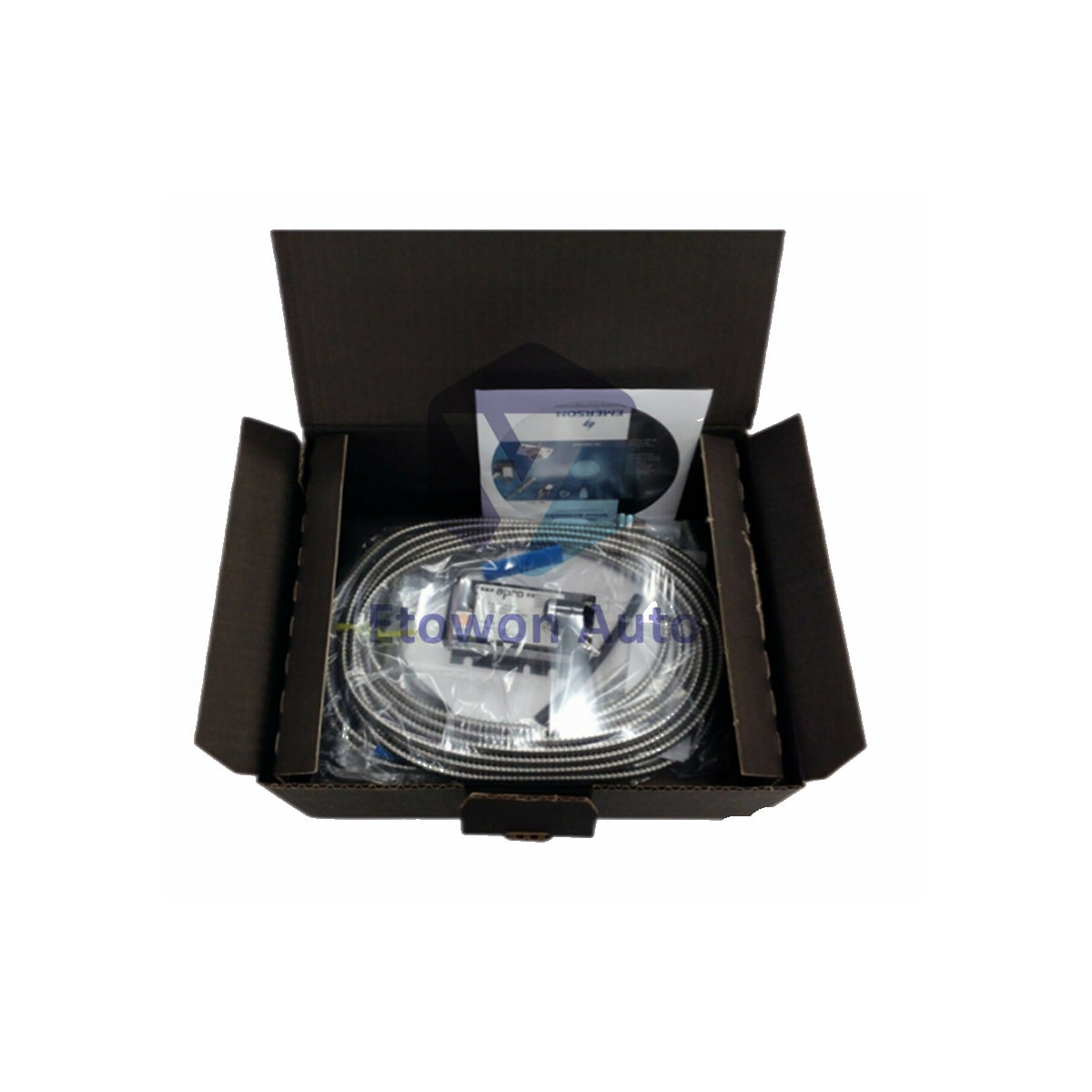

PR6423/010-020 Emerson EPRO Proximity Sensor M10x1 4m Cable

Skladda bar (17 sany), ibermek üçin taýýar

  • Manufacturer: Emerson

  • Product No.: PR6423/010-020

  • Product Type: Eddy Current Sensor

  • Product Origin: USA

  • Payment:T/T, Western Union

  • Weight: 100g

  • Shipping port: Xiamen

  • Warranty: 12 months

30 günlük yzyna gaýtaryş syýasaty · 12 aýlyk kepillik
  • Çalt eltip berme
  • 24/7 goldaw
  • Hil üpjünçiligi

Düşündiriş

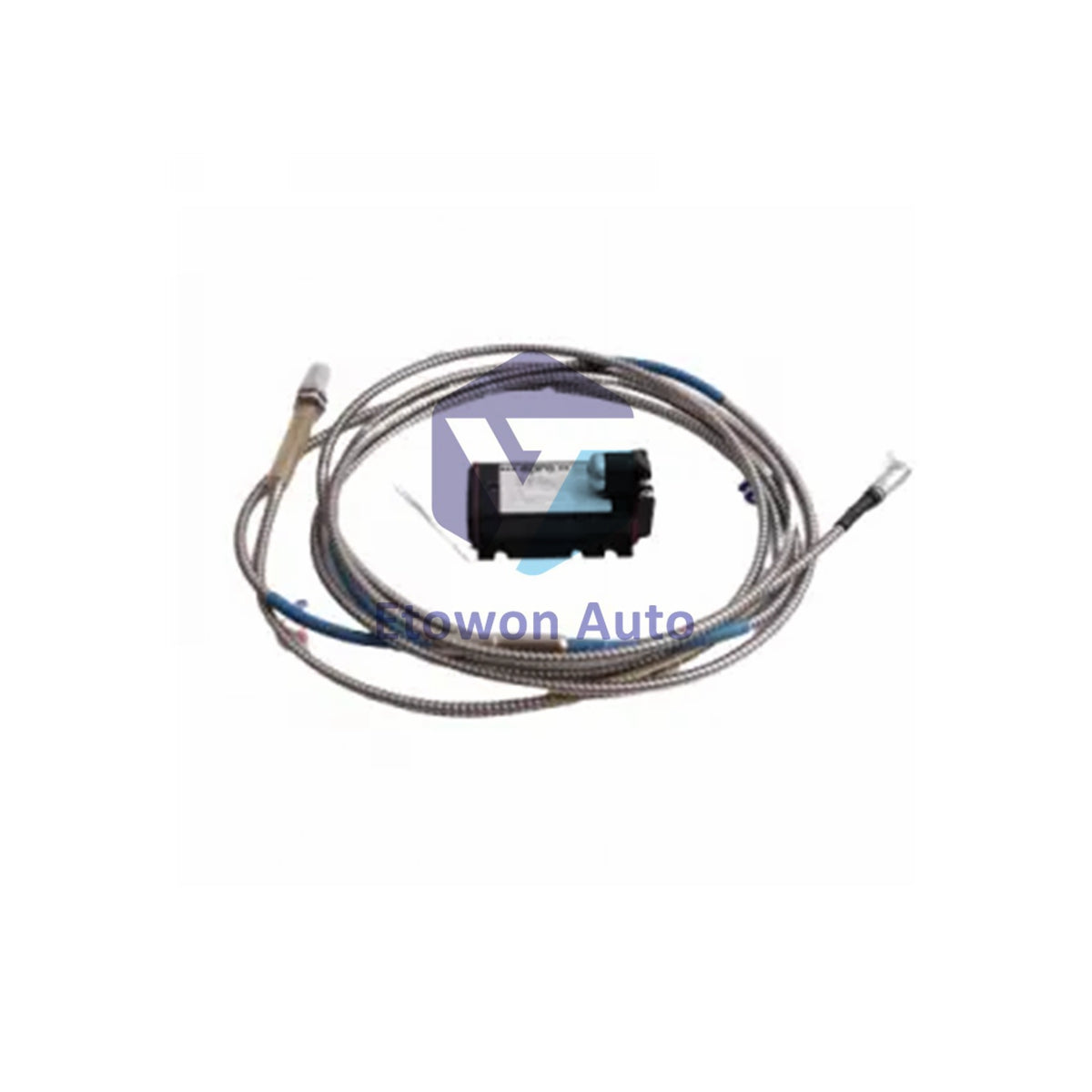

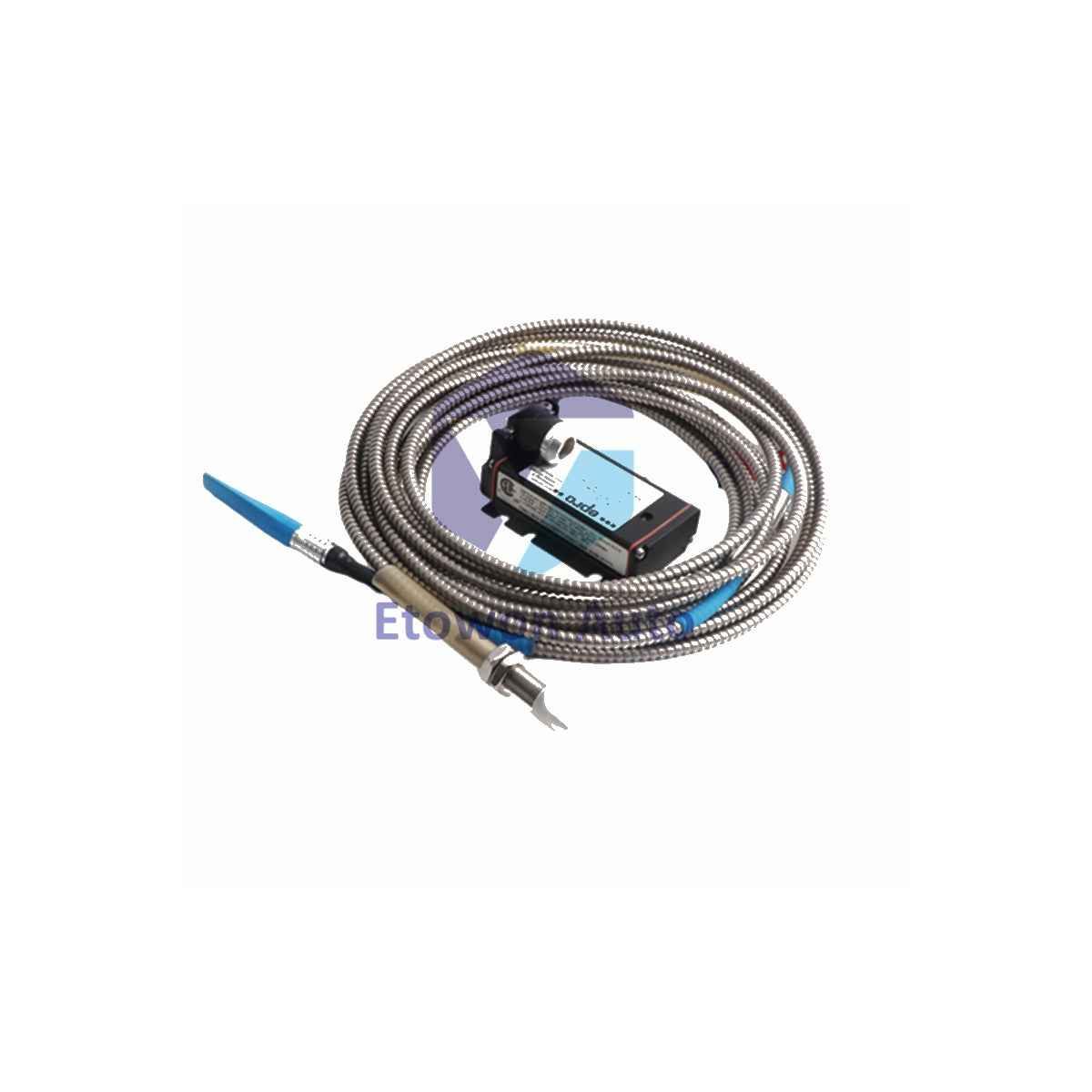

EPRO PR6423/010-020 8mm Eddy Current Sensor

EPRO PR6423/010-020 is an 8mm eddy current sensor for critical turbomachinery applications. Measures radial and axial shaft dynamic displacement, position, eccentricity, and speed. Features 2mm linear range with 8 V/mm scale factor. ATEX, IECEx, and CSA certified for hazardous areas. Weight: 0.1 kg (3.53 oz).

Technical Specifications

Parameter Specification
Manufacturer EPRO
Model PR6423/010-020
Product Type 8mm Eddy Current Sensor
Linear Measurement Range 2 mm (80 mils)
Initial Air Gap 0.5 mm (20 mils)
Incremental Scale Factor 8 V/mm (203.2 mV/mil) ±5%
Deviation from Best Fit Line ±0.025 mm (±1 mil)
Tip Diameter 8 mm
Case Threads M10x1
Case Length 25 mm
Cable Length 4.0 meters
Armored Cable Yes
Connector Type Lemo
Protection Class IP66
Operating Temperature (Sensor) -35°C to +180°C (-31°F to 356°F)
Operating Temperature (Cable) -35°C to +150°C (-31°F to 302°F)
Sensor Tip Material PEEK
Case Material Stainless Steel
Cable Material PTFE
Connector Material Brass, nickel-plated
Weight (Sensor with 1m Cable) 0.1 kg (3.53 oz)

Hazardous Area Approvals

Classification Temperature Class Max Ambient
T6 Intrinsic Safety (ia) / Non-sparking (nA) Ta ≤ 64°C
T4 Intrinsic Safety (ia) / Non-sparking (nA) Ta ≤ 114°C
T3 Intrinsic Safety (ia) / Non-sparking (nA) Ta ≤ 160°C

Key Features

  • Non-contact measurement for turbomachinery monitoring
  • 2mm linear range with 8 V/mm scale factor
  • ATEX, IECEx, and CSA certified for hazardous areas
  • IP66 protection for harsh environments
  • Wide operating temperature range -35°C to +180°C
  • Armored 4.0m cable with Lemo connector
  • PEEK sensor tip and stainless steel case

Installation Guidelines (Field Engineer Notes)

Mounting: Thread sensor into M10x1 hole. Recommended torque 5 N·m. Ensure minimum shaft diameter of 25mm for accurate measurement.

Gap Setting: Initial air gap is 0.5mm. Use appropriate spacer or gauge block for gap setting. Verify gap with dial indicator.

Cable Routing: Armored cable requires minimum bend radius of 50mm. Route away from high-voltage cables. Secure cable with clamps every 300mm.

Hazardous Area Installation: Sensor temperature classification depends on converter. Refer to converter documentation for area classification. Do not exceed T6, T4, or T3 max ambient temperatures.

FAQs

Q1. What is the linear measurement range of the PR6423/010-020?
A1. The sensor provides a 2mm (80 mils) linear measurement range with initial air gap of 0.5mm (20 mils).

Q2. What hazardous area approvals does this sensor hold?
A2. The sensor is certified for Intrinsic Safety (ia) and Non-sparking (nA) with ATEX, IECEx, and CSA approvals. Temperature classifications T6, T4, and T3 are available.

Q3. What is the cable length and connector type?
A3. The sensor comes with a 4.0m armored PTFE cable terminated with a Lemo connector.
