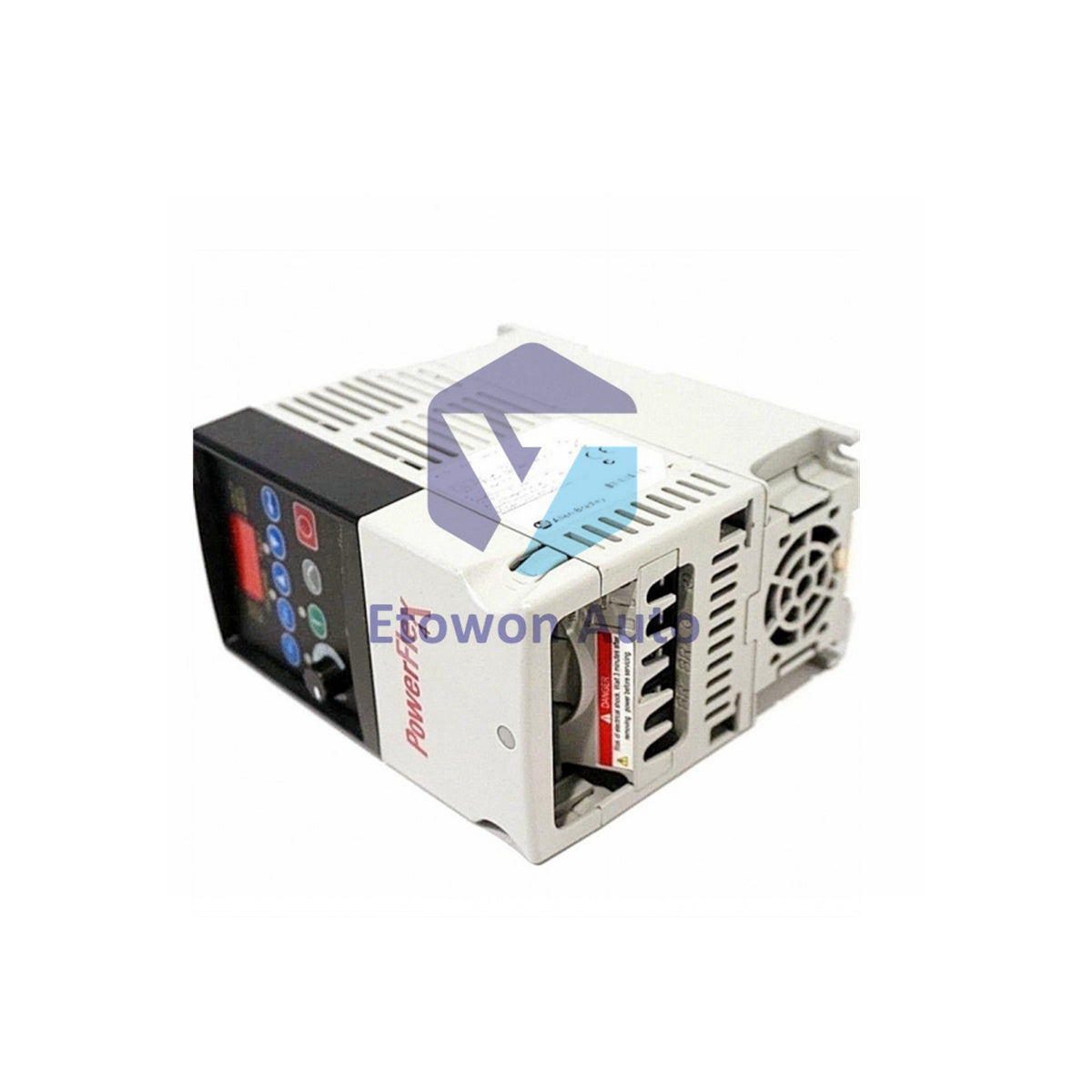

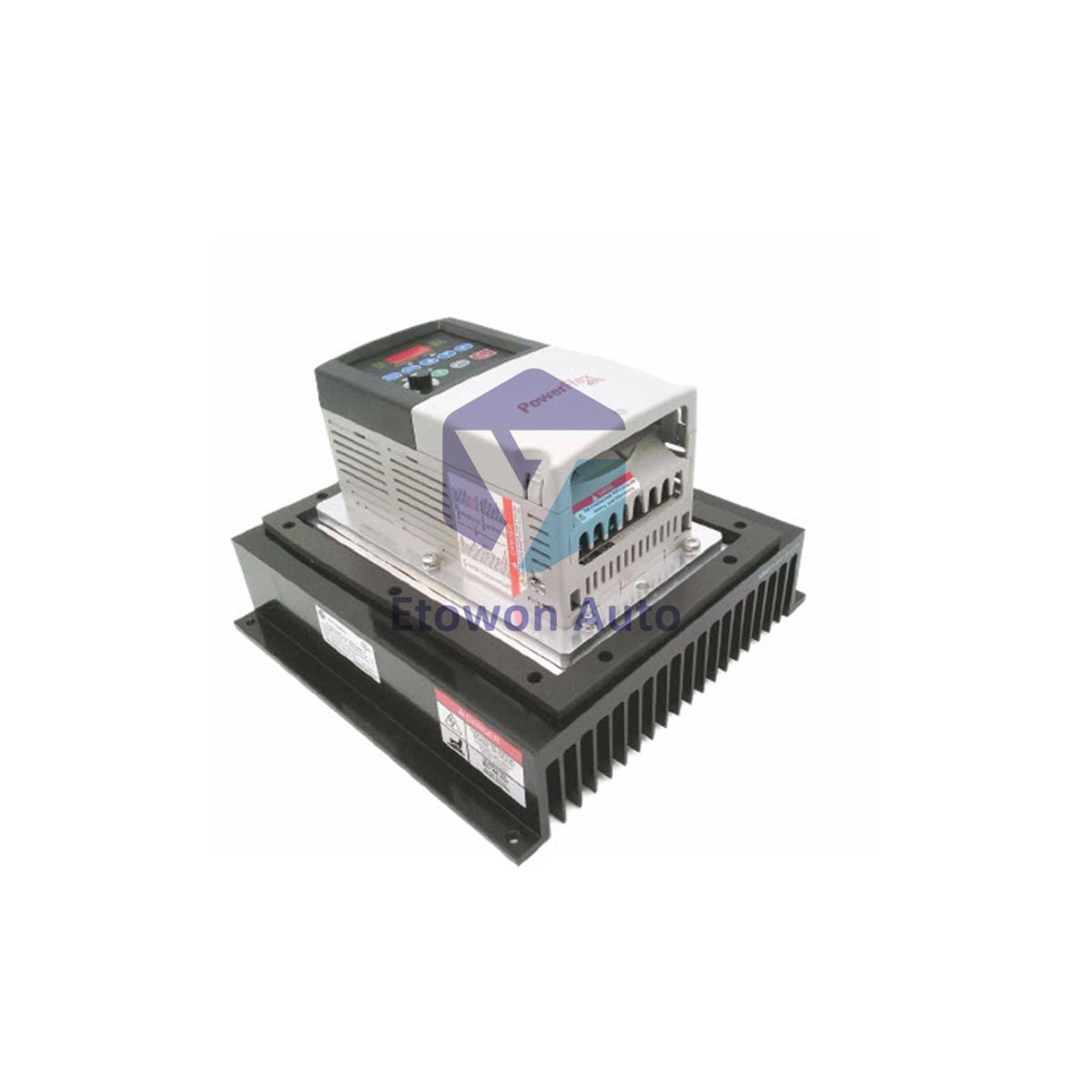

22B-A8P0N104

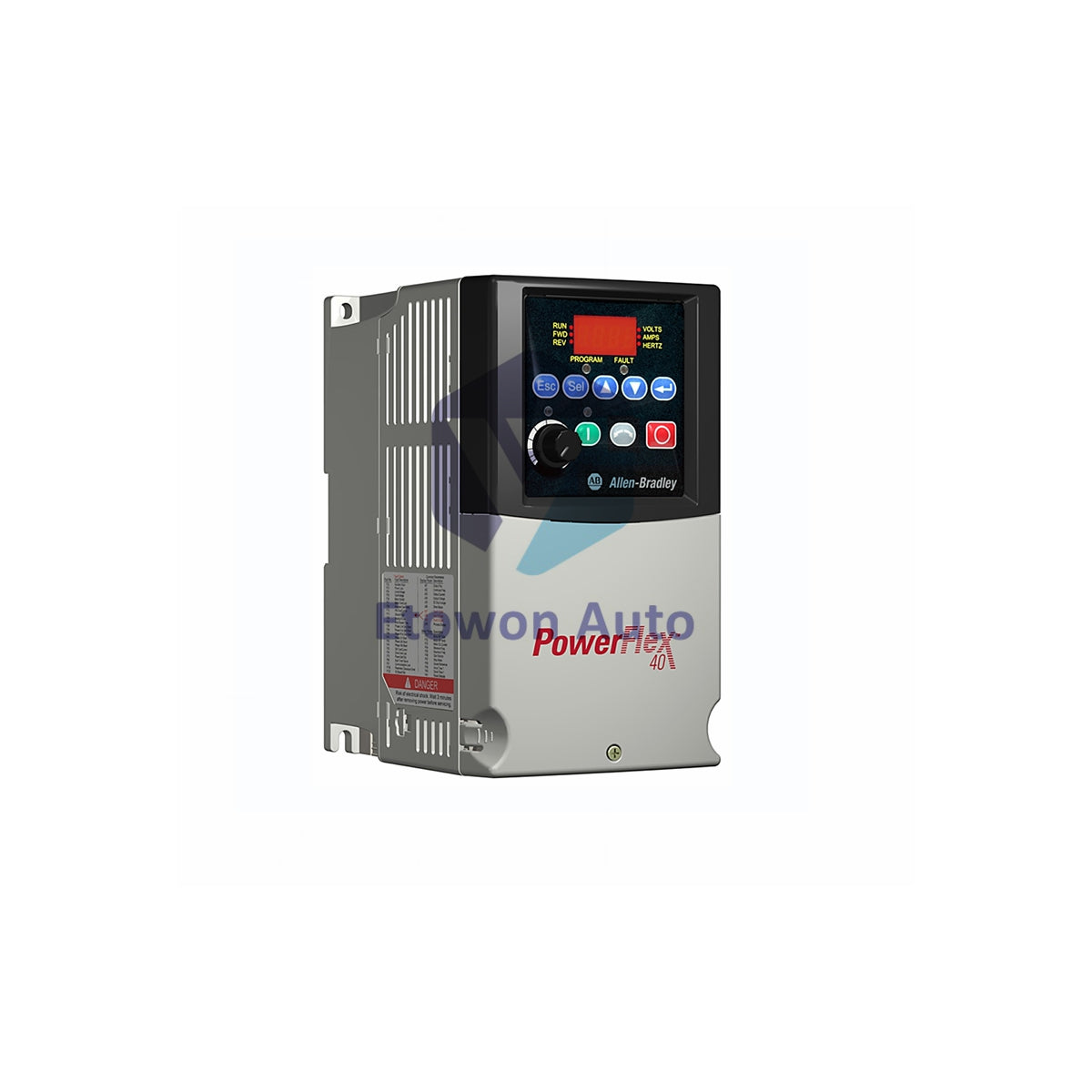

PowerFlex 40 Drive 2HP 240V Allen-Bradley 22B-A8P0N104

Skladda bar (11 sany), ibermek üçin taýýar

  • Manufacturer: Allen-Bradley

  • Product No.: 22B-A8P0N104

  • Product Type: AC Drive

  • Product Origin: USA

  • Payment:T/T, Western Union

  • Weight: 2570g

  • Shipping port: Xiamen

  • Warranty: 12 months

30 günlük yzyna gaýtaryş syýasaty · 12 aýlyk kepillik
  • Çalt eltip berme
  • 24/7 goldaw
  • Hil üpjünçiligi

Düşündiriş

Technical Specifications

Manufacturer / Brand Allen-Bradley (Rockwell Automation)
Product Line PowerFlex 40 Adjustable Frequency AC Drive
Part Number 22B-A8P0N104
Input / Output Voltage Input: 200–240V AC, 1-Phase, 50/60 Hz | Output: 200–240V AC, 3-Phase
Power Rating & Output Current 2 HP (1.5 kW) | Output Current: 8.0 A
Control Method Sensorless Vector Control (Adjustable PWM Frequency)
Enclosure & Mounting IP20 / NEMA / UL Open Type | DIN Rail or Flange Mount
User Interface & Communication Integral Keypad with Potentiometer | RS-485 Interface
Operating Temperature & Protection -10°C to 40°C | Overload Protection, Relay Pre-charge, Removable MOV
Weight 2.57 kg (5.67 lbs)

Product Overview

The Allen-Bradley 22B-A8P0N104 is a versatile PowerFlex 40 adjustable frequency drive weighing 2.57 kg (5.67 lbs). Operating on a single-phase 200–240V AC input, it delivers an 8.0 A output current to regulate 3-phase induction motors rated up to 2 HP (1.5 kW). Featuring Sensorless Vector Control, an IP20 open-type enclosure, integral keypad with potentiometer, and built-in RS-485 serial communication, this drive provides precise motor control and energy efficiency for OEM industrial automation applications.

Key Features

  • Sensorless Vector Control: Provides exceptional low-speed torque and speed regulation with adjustable PWM frequency for quiet operation.
  • Compact & Flexible Mounting: Supports both standard DIN rail and panel flange mounting for space-saving panel installation.
  • Integrated User Interface: Includes a factory-built keypad with dedicated programming keys and an analog potentiometer for immediate local control.
  • Comprehensive Drive Protection: Features internal motor overload protection, relay pre-charge circuitry, and a removable MOV for ungrounded systems.

Installation Essentials

Mount the 22B-A8P0N104 on a standard 35mm DIN rail or flange mount inside a suitable IP20 enclosure. Maintain proper enclosure ventilation to ensure ambient operating temperatures remain between -10°C and 40°C. Connect single-phase 200–240V AC line power to the input terminals and utilize shielded cabling when wiring RS-485 serial communication lines.

Technical FAQs

Q1: What are the input power and motor output ratings for the 22B-A8P0N104?
A1: It accepts single-phase 200–240V AC input and delivers 3-phase 8.0 A output for 2 HP (1.5 kW) motors.

Q2: What mounting options and weight specifications apply to this model?
A2: It weighs 2.57 kg (5.67 lbs) and can be mounted via DIN rail or panel flange installation.

Q3: Does the drive feature built-in speed adjustment controls?
A3: Yes, it includes an integral keypad equipped with programming keys and an integrated potentiometer.
