New Bently Nevada 330103-00-07-10-01-05 Proximity Probe

Bently Nevada 330103-00-07-10-01-05 Overview

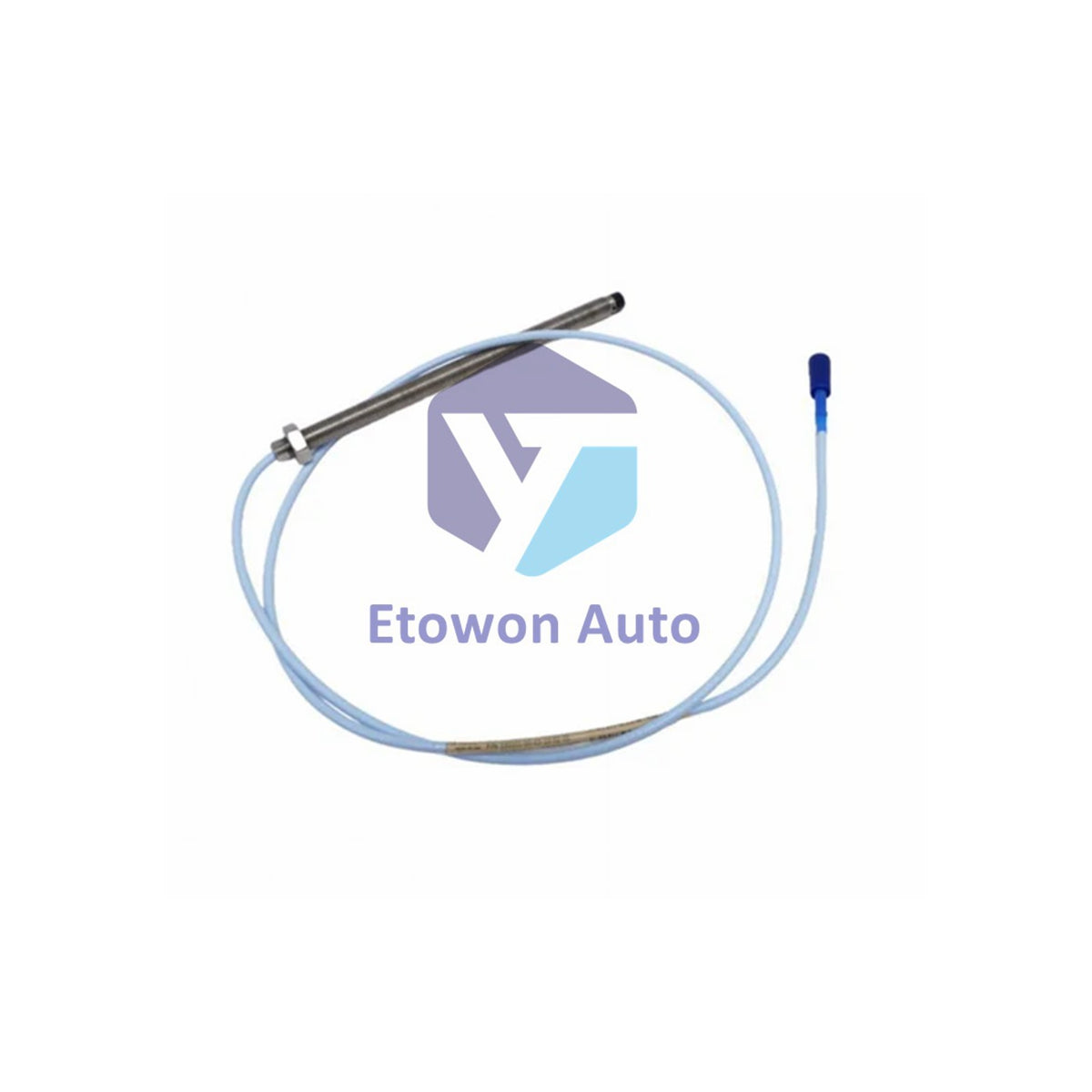

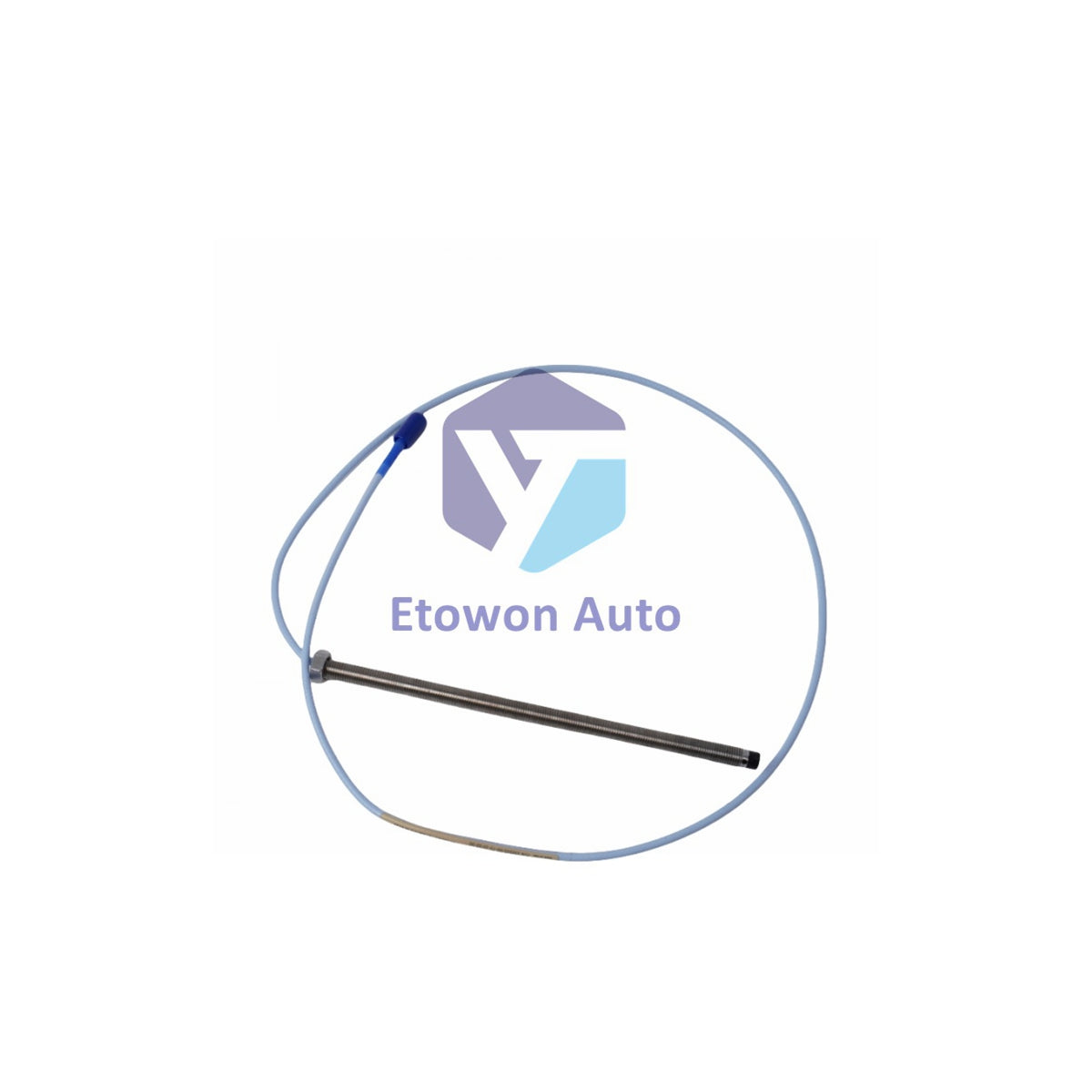

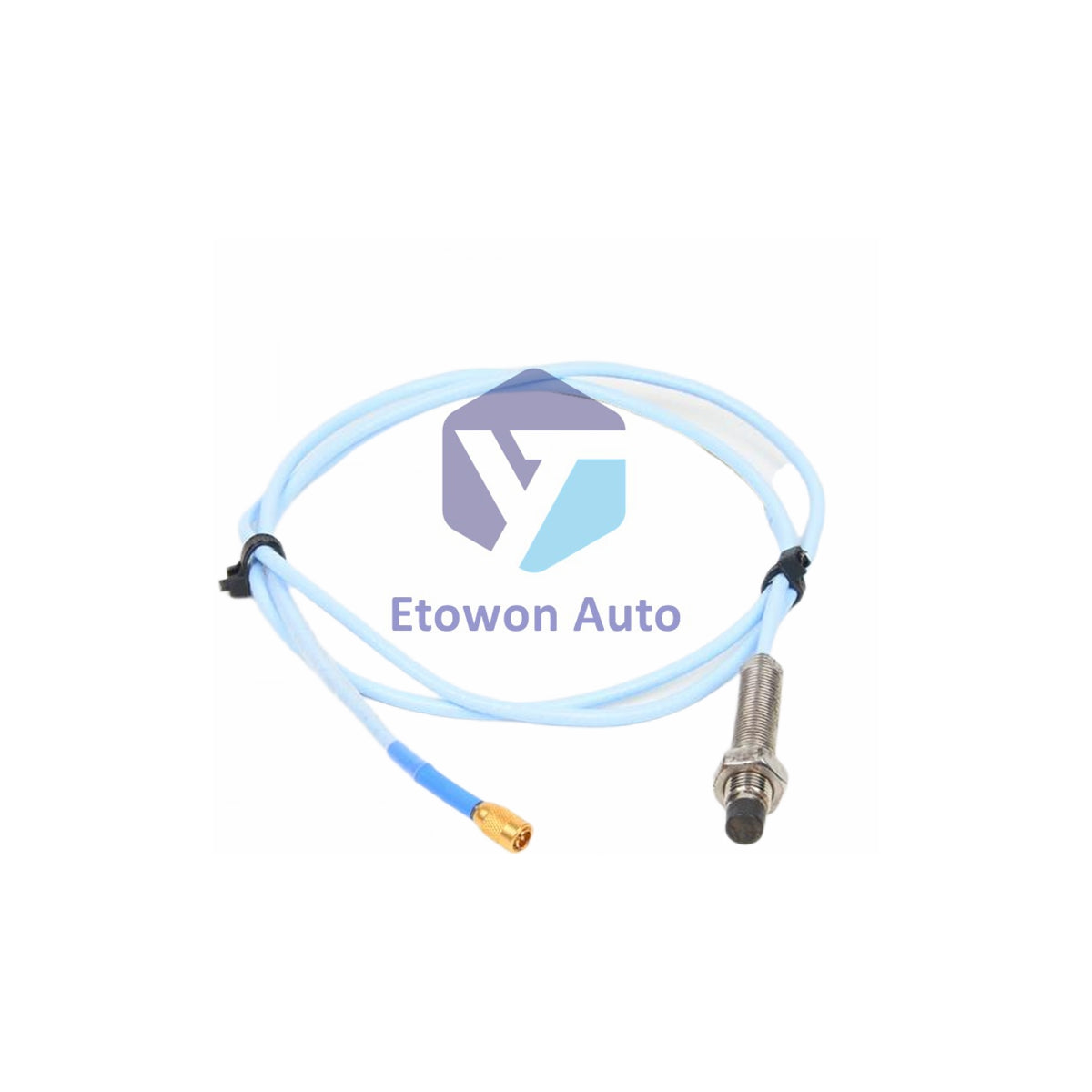

The Bently Nevada 330103-00-07-10-01-05 is a high-precision 3300 XL 8mm proximity probe engineered for continuous, industrial-grade machinery monitoring and vibration detection. Featuring a rugged 70mm stainless steel unthreaded housing coupled with a Polyphenylene Sulfide (PPS) tip, this metric probe delivers exceptional chemical and environmental resistance. It provides stable eddy current measurement paths across an active range of 0.25 to 2.3 mm (10 to 90 mils), yielding a highly accurate linear voltage output mapping from -1 to -17 Vdc. Weighing approximately 323g/m, it is heavily favored for mission-critical deployments across volatile, hazardous industrial environments.

Core Technical Advantages

Excellent Thermal & Chemical Endurance

The sensor assembly withstands extreme temperature ranges, supporting standard probe operation from -62°F to +350°F (-52°C to +177°C). The robust PPS tip construction protects the internal sensing coils against corrosive machine fluids and lubricants.

Secure ClickLoc Micro-Coaxial Connection

Equipped with an integrated 1.0-meter coaxial cable terminating in a specialized miniature coaxial ClickLoc connector with a built-in connector protector. This mechanism provides a robust, vibration-resistant locking joint that prevents signal attenuation or intermittent connection dropouts caused by high-frequency machinery harmonics.

Hazardous Area Classification

Fully certified for global hazardous area operation under ATEX, IECEx, and CSA standards (Agency Approval Option 05). It is rated for Zone 0 (AEx/Ex ia IIC T5...T1 Ga) intrinsically safe installations as well as Zone 2 (AEx/Ex nA/ec IIC T5...T1 Gc) safe-operating schemas spanning Groups A through G.

Technical Specifications

Installation & Engineering Guide

Mechanical Alignment and Gap Setup

Mount the 70mm probe body securely through the machine casing wall using the M10×1 thread profile, ensuring a maximum length of thread engagement of 15 mm. Adjust the physical gap distance relative to the target shaft surface until your digital voltmeter registers exactly -9 Vdc at the Proximitor sensor output terminal, validating the perfect 50 mils center operating gap.

Field Extension Wiring Parameters

When extending the sensor loop to your central control cabinet or monitoring rack, use a 3-conductor shielded triad wire layout (0.2 to 1.5 mm² or 16 to 24 AWG recommended). Keep the total field extension length restricted within a maximum wiring threshold of 305 meters (1,000 feet) between the 3300 XL Proximitor Sensor and the monitor to manage high-frequency signal rolloff.

Environmental Limitations & Sealing

The module features premium differential pressure sealing between the probe tip and case utilizing a Viton® O-ring. However, these units are not pressure tested prior to shipment; contact the custom design department if application-specific verification is required. Avoid exposing the coaxial assembly to temperatures below -34°C (-30°F) to prevent premature failure of the pressure seal.

Technical FAQs

Q1: What does the 323g/m physical weight specification imply for field engineering?
A1: The 323g/m rating indicates the exact hardware density profile of the combined probe body and shielded coaxial line, giving installation engineers structural data for calculating strain relief bracket loads on long cable runs.

Q2: Can the 330103-00-07-10-01-05 probe handle high-pressure fluid environments out of the box?
A2: While it features an integrated Viton® O-ring assembly for robust differential pressure isolation, the default configuration is not pressure-tested prior to shipment. Specific custom pressure testing must be requested manually.

Q3: How does high relative humidity affect the operational accuracy of this 8mm probe?
A3: The probe features a hermetically sealed assembly that restricts the Average Scale Factor (ASF) drift to less than 3% even under continuous exposure to 93% relative humidity conditions for up to 56 days per IEC standard 68 2 3.
