TSXP57453AM

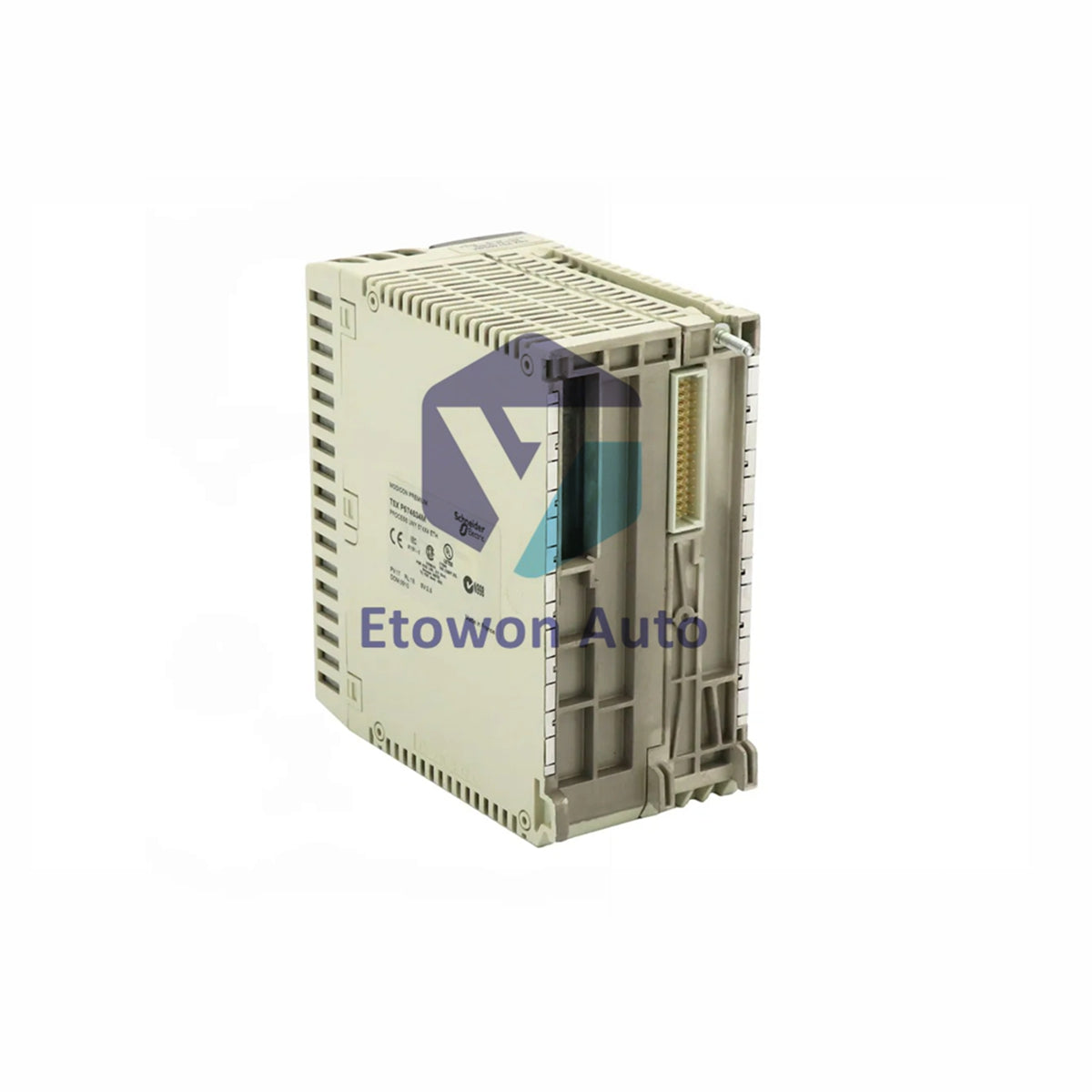

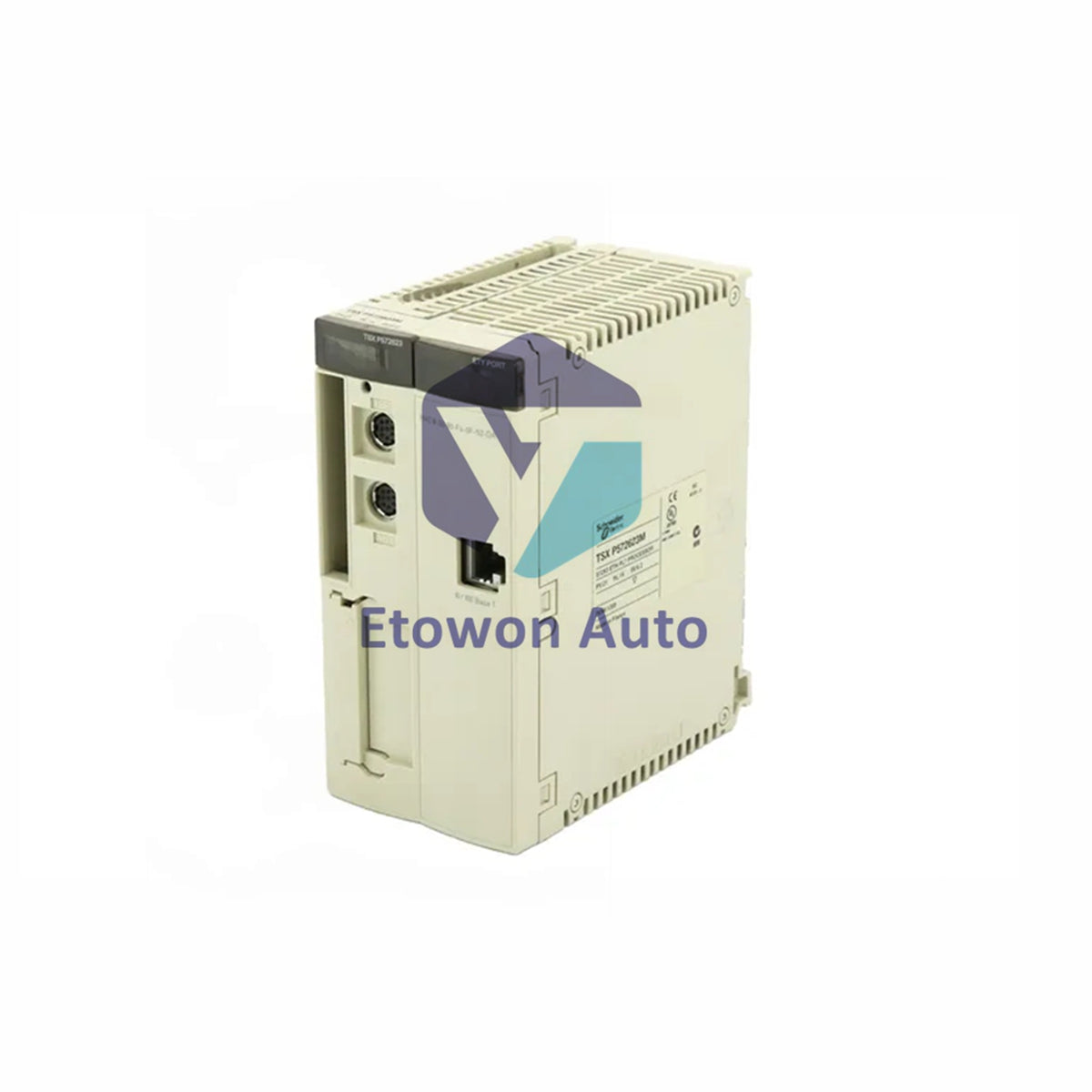

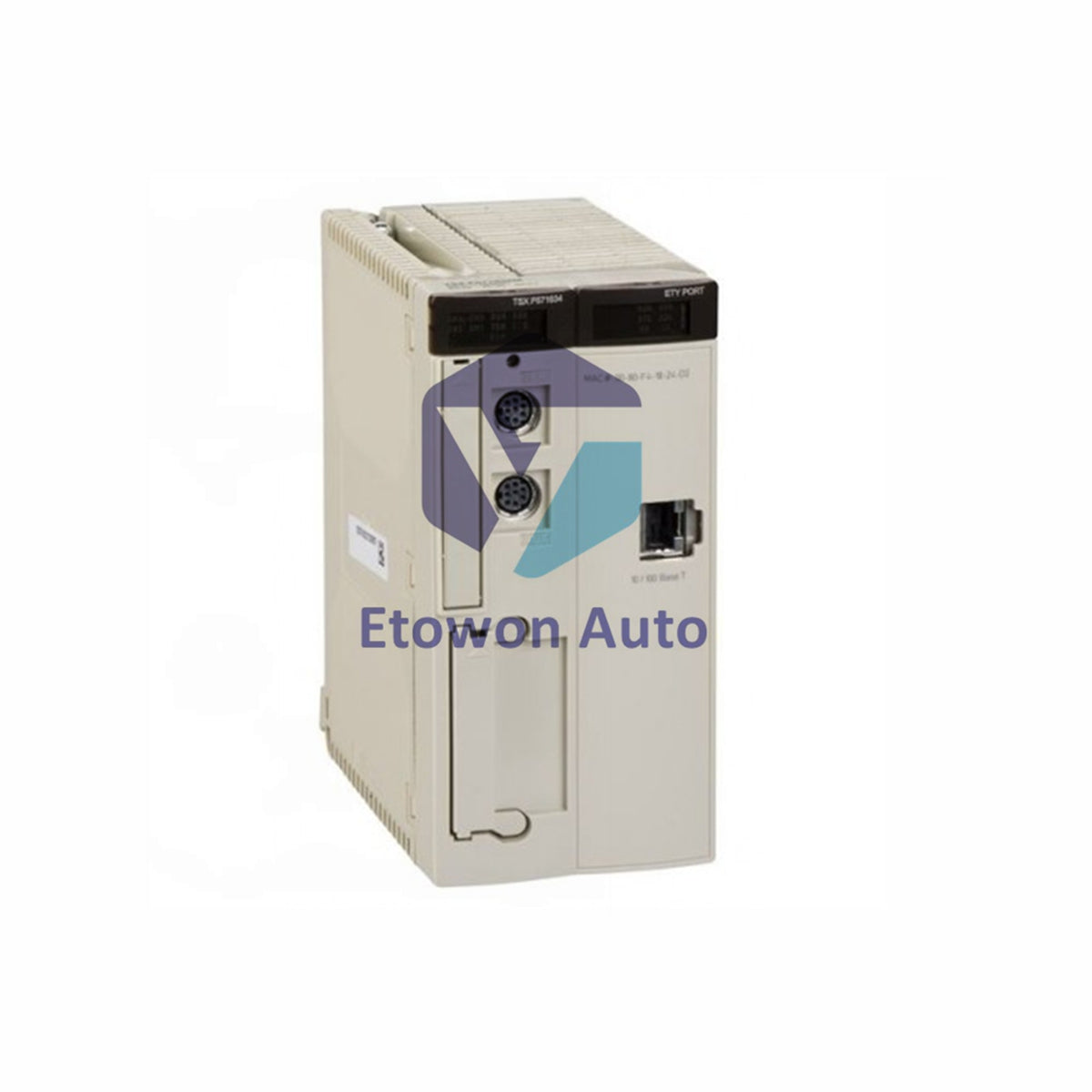

Modicon Premium TSXP57453AM Schneider Double-Format CPU

Skladda bar (18 sany), ibermek üçin taýýar

  • Manufacturer: Schneider

  • Product No.: TSXP57453AM

  • Product Type: CPU Module

  • Product Origin: FR

  • Payment:T/T, Western Union

  • Weight: 800g

  • Shipping port: Xiamen

  • Warranty: 12 months

30 günlük yzyna gaýtaryş syýasaty · 12 aýlyk kepillik
  • Çalt eltip berme
  • 24/7 goldaw
  • Hil üpjünçiligi

Düşündiriş

Product Overview

The Schneider Electric TSXP57453AM is a high-performance double-format processor module designed for the Modicon Premium and TSX Micro PLC automation platforms. Programmed via PL7 Junior/Pro software, this advanced PLC processor executes fast tasks with an overhead time of only 0.22 ms and master tasks in 1.15 ms, delivering exceptional responsiveness for complex automation architectures.

Operating on a 5 V DC supply with a current draw of 1080 mA, the TSXP57453AM incorporates 96 Kwords of internal RAM for program and data (expandable up to 2048 Kwords data / 992 Kwords program via PCMCIA cards). It features built-in Fipio Manager connectivity via SUB-D 9 along with dual RS485 mini-DIN serial links. Net unit weight is 0.56 kg (1.23 lbs) with an estimated gross package shipping weight of 0.80 kg (1.76 lbs).

Core Technical Advantages

  • High Instruction Throughput: Processes 100% Boolean instructions at 0.06 µs (13.82 Kinst/ms) to support demanding, high-speed industrial processes.
  • Integrated Fipio Bus Manager: Includes an onboard SUB-D 9 connector acting as a Fipio Manager capable of coordinating up to 127 network agents.
  • Massive Scalability: Supports control expansion across up to 16 backplane racks, handling up to 2040 discrete I/O and 256 analog I/O points.
  • Industrial Durability: Treated with TC protective coating, IP20 degree of protection, and global certifications (CE, UL, CSA, DNV, ABS) for operating environments from 0 °C to +60 °C.

Technical Specifications

Parameter Specification Details
Brand / Manufacturer Schneider Electric
Part Number / Model TSXP57453AM
GTIN / EAN Barcode 3595863914382
Product Line / Series Modicon Premium / TSX Micro PLCs
Module Format / Type Double-Format PL7 Processor CPU
Software Designation PL7 Junior / PL7 Pro
Base Memory Capacity 96 Kwords Internal RAM (Program & Data without card)
PCMCIA Card Expansion Up to 2048 Kwords data / 992 Kwords program storage
I/O Handling Capacity 2040 Discrete I/O Points | 256 Analog I/O Points
Onboard Communication Ports 1x Fipio Manager (SUB-D 9), 2x RS485 Serial Links (Mini-DIN 19.2/115 kbit/s)
Instruction Speed (Boolean) 0.06 µs per Boolean instruction (13.82 Kinst/ms)
Power Consumption & Voltage 1080 mA at 5 V DC
Operating Temp & Protective Finish 0 °C to +60 °C (32 °F to 140 °F) / TC Treatment, IP20
Estimated Net / Shipping Weight Net Unit: 0.56 kg (1.23 lbs) | Gross Shipping: 0.80 kg (1.76 lbs)

Installation & Hardware Setup

  • Rack Mounting: Occupies two standard slots on a Modicon Premium backplane; ensure both upper and lower rack locks engage fully before powering on.
  • Fipio Connection: Attach standard SUB-D 9 cable to the Fipio Manager interface and terminate network ends correctly to maintain signal reflection protection.
  • PCMCIA Expansion: Insert optional PCMCIA memory cards into the front access slot prior to powering up the unit to enable extended program memory.

Technical FAQs

Q1: Which software package is required to program the TSXP57453AM processor?
A1: This processor is designed specifically for programming with PL7 Junior or PL7 Pro software.

Q2: What is the onboard communication capacity for fieldbus interfaces?
A2: It includes an integrated SUB-D 9 Fipio Manager port (handling up to 127 agents) and two RS485 mini-DIN serial connections.

Q3: How much memory is available without inserting a PCMCIA card?
A3: Without a PCMCIA card, the internal RAM provides 96 Kwords allocated for program execution and operational data.
