IS200ESELH3A

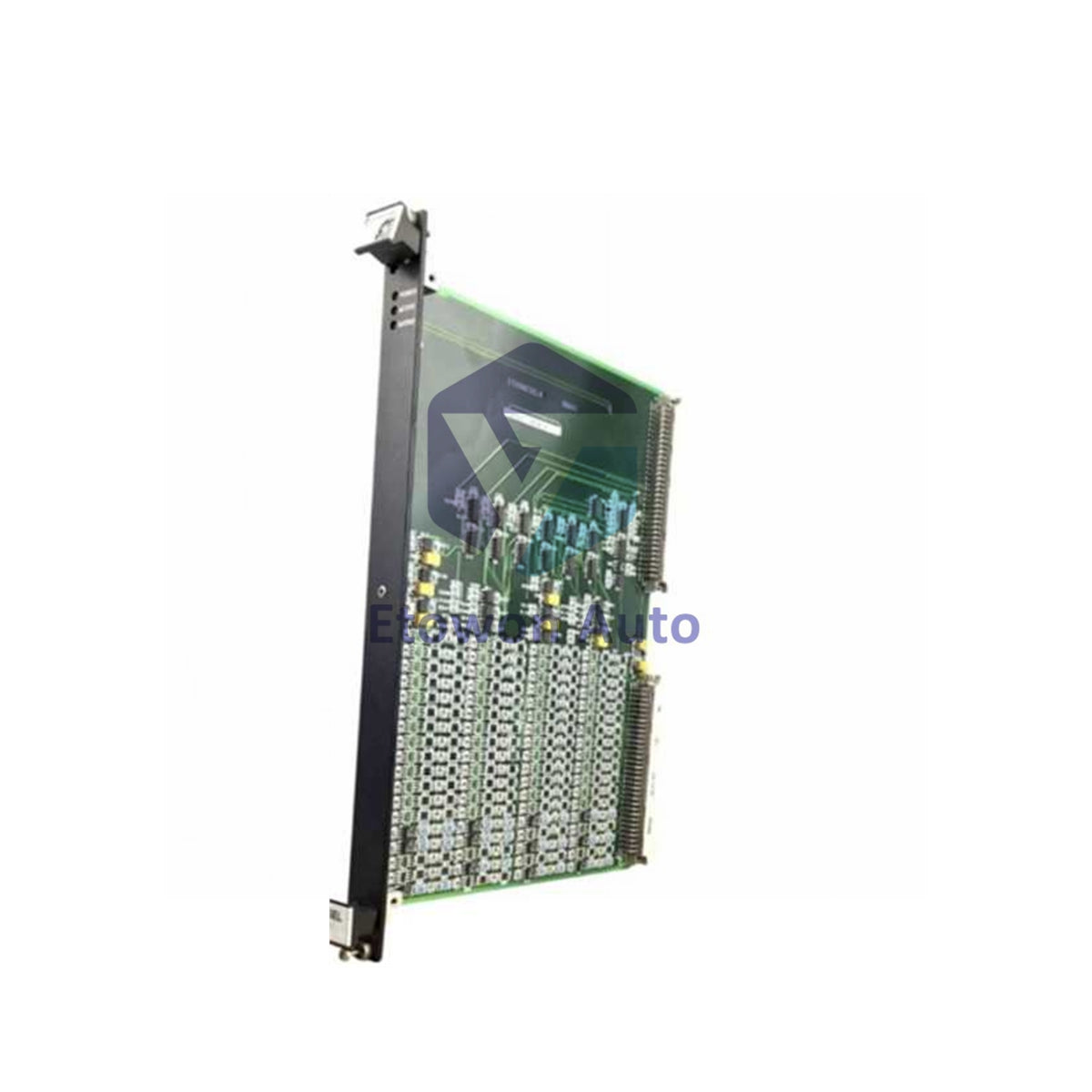

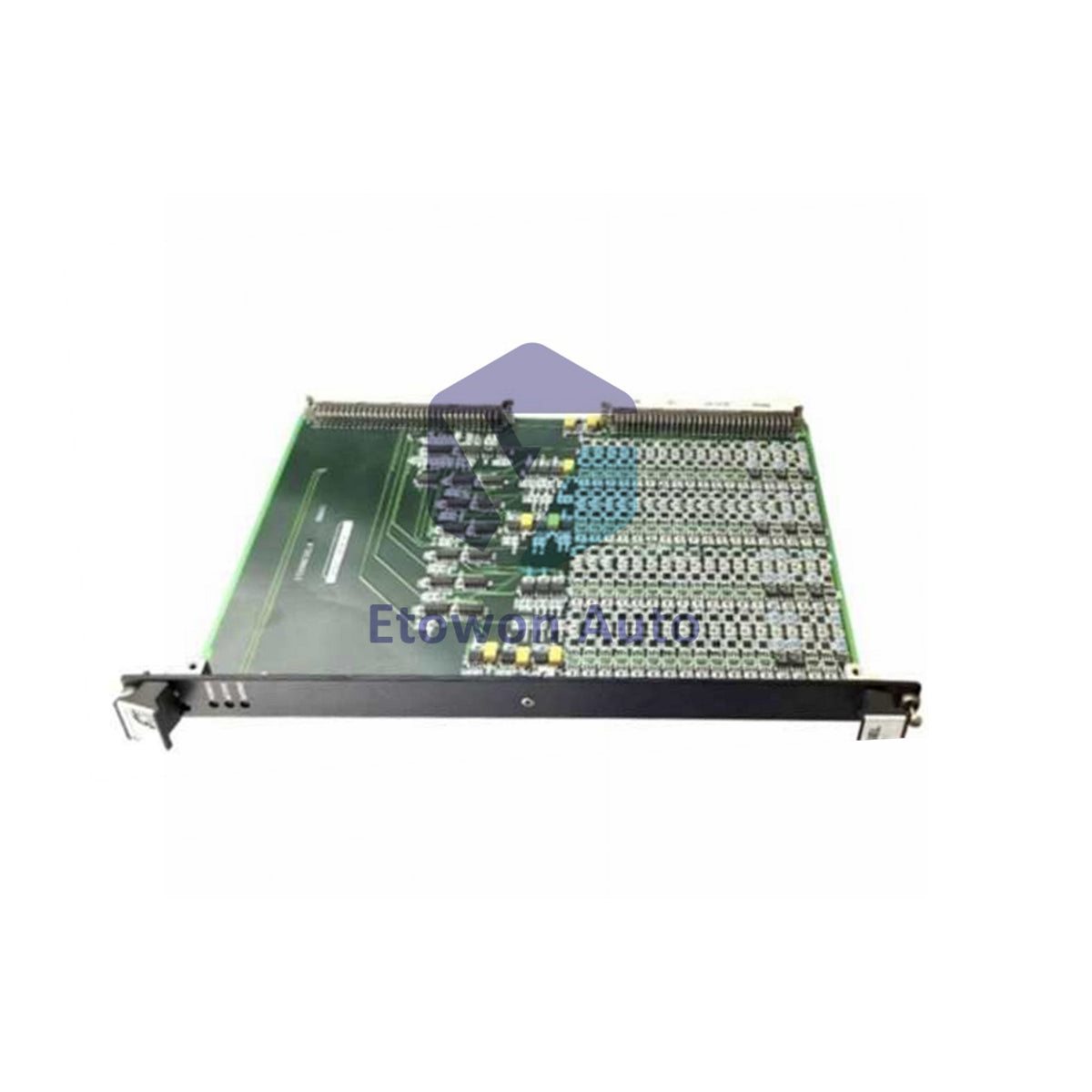

IS200ESELH3A GE EX2100 Exciter Regulator Control Card

Diňe 9 sany galdy

  • Manufacturer: General Electric

  • Product No.: IS200ESELH3A

  • Product Type: Control Board

  • Product Origin: USA

  • Payment:T/T, Western Union

  • Weight: 1200g

  • Shipping port: Xiamen

  • Warranty: 12 months

30 günlük yzyna gaýtaryş syýasaty · 12 aýlyk kepillik
  • Çalt eltip berme
  • 24/7 goldaw
  • Hil üpjünçiligi

Düşündiriş

Product Overview

The GE IS200ESELH3A is an Exciter Selector (ESEL) board manufactured by General Electric as part of the EX2100 Excitation Control System. Mounted directly in the control rack, this module receives six logic-level gate pulse signals from the Exciter Master I/O (EMIO) board and routes them through six dedicated cable sets to the Exciter Gate Pulse Amplifier (EGPA) boards in the Power Conversion Cabinet. With a physical size of 33.02 cm x 10.16 cm (13.0 in x 4.0 in) and an estimated net weight of 1.20 kg (2.65 lbs) [shipping weight: 2.72 kg / 6 lbs], it plays a critical role in accurately timing SCR firing for stable generator output regulation.

Key Advantages

  • Six-Bridge Driver Architecture: Equipped with six bridge drivers specifically designed for Group 3 variations, providing precise drive signals for SCR firing controls.
  • Streamlined & Low-Maintenance Design: Engineered without jumpers or test points, eliminating potential configuration errors and simplifying overall system diagnostics.
  • Real-Time LED Diagnostics: Features three front-panel green status LEDs (Power Supply, Active/Enabled state from Control C, and Gate Input Activity from EMIO) for immediate visual monitoring.
  • Seamless VME Backplane Integration: Communicates with the system via P1 and P2 VME backplane connectors for reliable signal routing to EGPA amplifiers in redundant or simplex control setups.
  • Compact Module Footprint: Standard rack-mount form factor measuring 33.02 cm high by 10.16 cm wide with a net weight of 1.20 kg (2.65 lbs).

Technical Specifications

Manufacturer / Brand General Electric (Made in USA)
Part / Catalog Number IS200ESELH3A (Common Revision: IS200ESELH3AAA)
System Series / Board Type EX2100 Excitation Series | Exciter Selector Board
Group Variation / Drivers Group Variation 3 | 6 Bridge Drivers
Board Physical Dimensions Height: 33.02 cm (13.0 in) | Width: 10.16 cm (4.0 in)
Backplane Interfacing VME Backplane Connectors P1 and P2
Front Panel Indicators 3 Green LEDs (Power, Active, Gating)
Instruction Manual Refs GEI-100456 (IS200ESEL Manual) / GEH-6632 (EX2100 User Guide)
Approximate Net Weight 1.20 kg (2.65 lbs)
Gross Shipping Weight 2.72 kg (6.0 lbs)

Frequently Asked Questions

Q1: What are the primary functions of GE IS200ESELH3A?

A1: It receives 6 gate pulses from EMIO, routes them to EGPA boards, and drives SCR firing.

Q2: What do the three front panel LEDs indicate?

A2: The LEDs display power status, active board status, and active EMIO gate pulse driving.

Q3: How many ESEL boards are needed in redundant control modes?

A3: Two ESEL boards must be installed when utilizing redundant control systems with EGPA units.
