IC755ACC15MNT

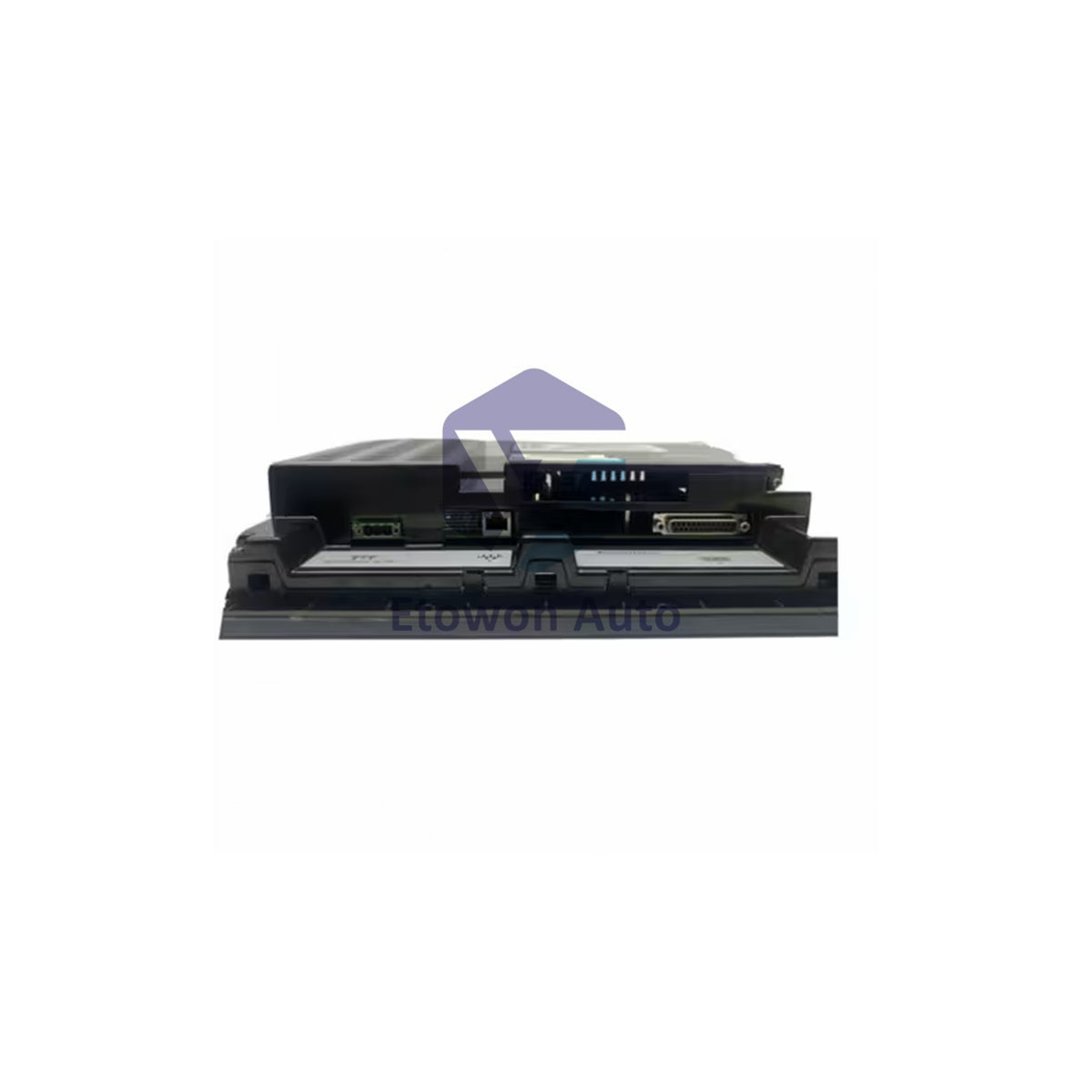

IC755ACC15MNT GE Fanuc Quickpanel 15 Inch Mounting Clip Set

Diňe 9 sany galdy

  • Manufacturer: General Electric

  • Product No.: IC755ACC15MNT

  • Product Type: Operator Interface

  • Product Origin: USA

  • Payment:T/T, Western Union

  • Weight: 1360g

  • Shipping port: Xiamen

  • Warranty: 12 months

30 günlük yzyna gaýtaryş syýasaty · 12 aýlyk kepillik
  • Çalt eltip berme
  • 24/7 goldaw
  • Hil üpjünçiligi

Düşündiriş

Technical Specifications

Manufacturer / Brand GE (General Electric)
Product Line Quickpanel Series
Part Number IC755ACC15MNT
Product Type 15-Inch Display Accessory Kit
Compatibility 15-Inch Quickpanel Units
Kit Contents Mounting clips, DC power connector (Tyco 284510-3), RS-232 serial connector (Tyco 284510-5)
Supported Input Voltage 12V DC or 24V DC (Power Consumption: 30W)
Current Rating 1.25 A @ 24V DC | 2.5 A @ 12V DC
Terminal Screw Torque 0.3 N-m recommended torque
Weight 3.00 lbs (1.36 kg)

Product Overview

The GE IC755ACC15MNT is an essential replacement accessory kit, weighing 3.00 lbs (1.36 kg), specifically created for 15-inch GE Quickpanel industrial operator interfaces. The kit contains replacement panel mounting clips, a Tyco 284510-3 DC power connector (supporting 12V or 24V DC inputs), and a Tyco 284510-5 RS-232 serial port connector. It allows maintenance teams to quickly restore damaged or missing hardware on 30W 15-inch Quickpanel operator terminals.

Key Features

  • Complete Replacement Package: Includes essential mounting clips alongside original power and RS-232 serial connectors for seamless repair.
  • Dual Voltage DC Compatibility: Features a Tyco 284510-3 power connector engineered for both 12V DC and 24V DC supply lines.
  • Industrial Wiring Specifications: Tyco 284510-5 serial connector accepts AWG 30 to AWG 14 wires rated up to 167°F (75°C).
  • Secure Mechanical Mounting: Mounting clips ensure tight panel sealing when tightened to the recommended 0.3 N-m screw torque.

Installation Essentials

When installing the mounting clips from the IC755ACC15MNT kit onto a 15-inch GE Quickpanel unit, tighten all mounting screws to a maximum recommended torque of 0.3 N-m. Avoid repeated retightening of clips to prevent gasket degradation and ensure panel ingress sealing. For serial connection wiring, use AWG 30 to AWG 14 wires rated for high-temperature operating environments.

Technical FAQs

Q1: What items are included in the GE IC755ACC15MNT kit?
A1: It includes mounting clips, a Tyco 284510-3 DC power connector, and a Tyco 284510-5 RS-232 connector.

Q2: What is the weight and compatibility of the IC755ACC15MNT?
A2: It weighs 3.00 lbs (1.36 kg) and is compatible with 15-inch GE Quickpanel units.

Q3: What is the recommended torque for the connector screws?
A3: The recommended tightening torque for attaching the terminal block screws is 0.3 N-m.

Product Resources

📄 Download PDF
🏷️ Tags: HMI Panel Operator Interface
