IC670MDL740 GE Fanuc 24VDC 0.5A Logic Output Module

Diňe 8 sany galdy

  • Manufacturer: General Electric

  • Product No.: IC670MDL740

  • Product Type: Positive Logic Output Module

  • Product Origin: USA

  • Payment:T/T, Western Union

  • Weight: 910g

  • Shipping port: Xiamen

  • Warranty: 12 months

30 günlük yzyna gaýtaryş syýasaty · 12 aýlyk kepillik
  • Çalt eltip berme
  • 24/7 goldaw
  • Hil üpjünçiligi

Düşündiriş

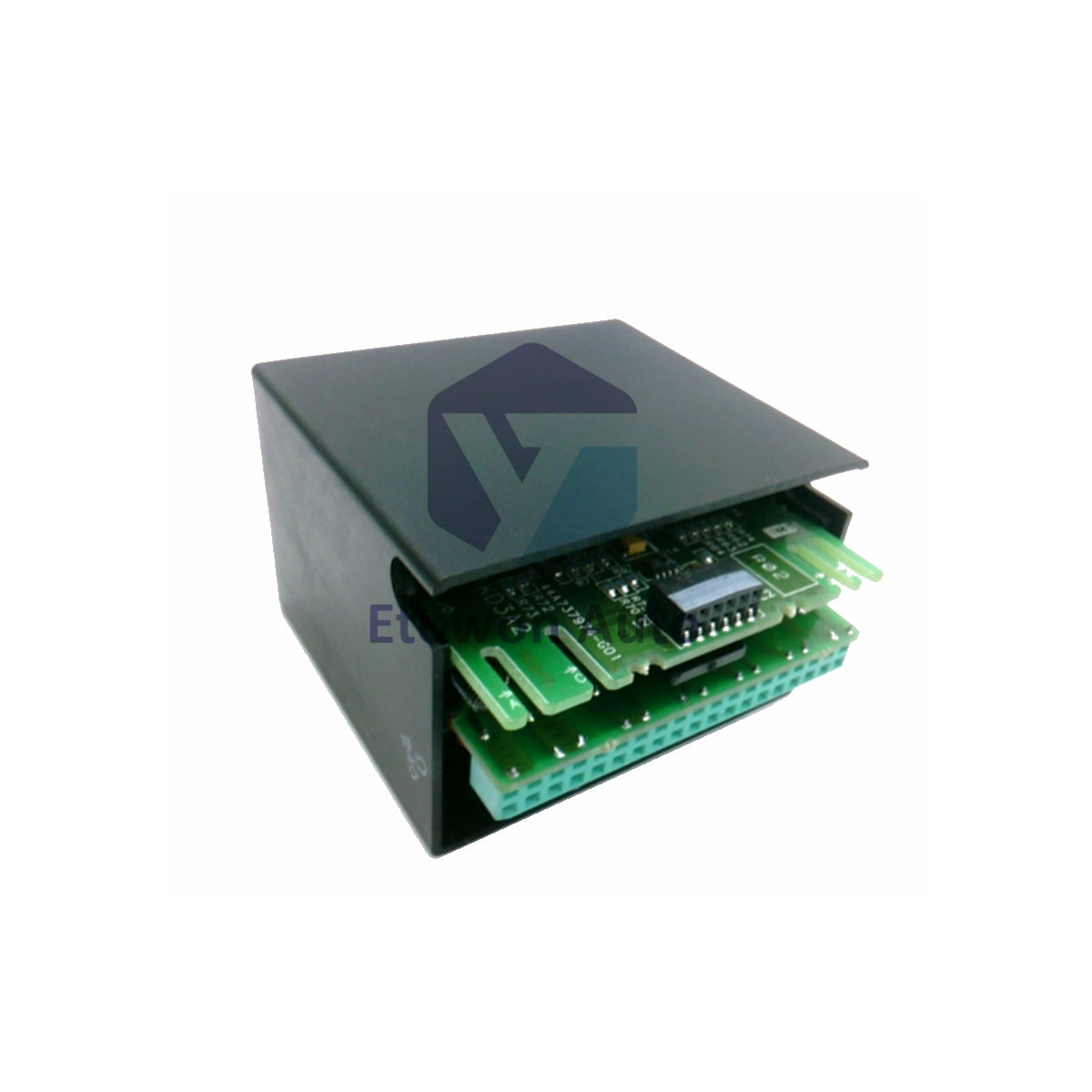

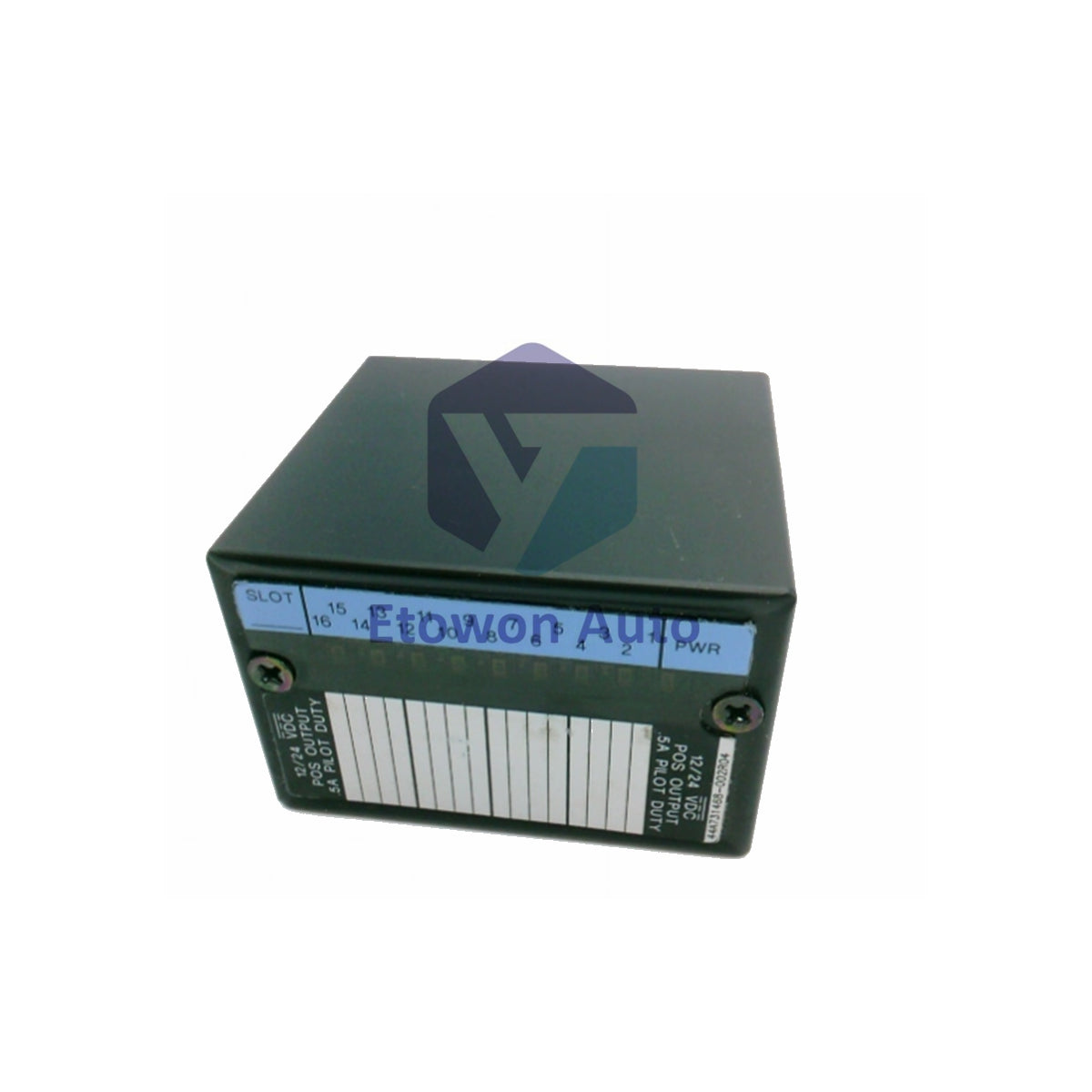

GE Fanuc IC670MDL740 Field Control 16-Point Discrete Output Module

The GE Fanuc IC670MDL740 is a high-reliability 16-point positive logic (sourcing) discrete output module from the Field Control series. Engineered to operate along a Bus Interface Unit (BIU) for versatile expansion I/O setups, it provides 16 discrete channels delivering 12/24 VDC nominal (9.2–29.5 VDC range) at 0.5 Amps per point (4 Amps maximum per module). Weighing approximately 2 pounds (0.91 kg), this module is ideal for powering low-current industrial loads like pilot lamps, solenoids, and relay coils. It features per-point LED status indication, integrated 5A group fuse protection with fault diagnostics, 1500 VAC isolation, and a 25-terminal integrated terminal block.

Technical Specifications

Brand / Series GE Fanuc / Field Control
Part Number IC670MDL740
Module Type & Logic Discrete Output Module | Positive Logic (Sourcing)
Outputs & Grouping 16 Channels | 1 Single Group
Output Voltage Range 10–30 VDC (24 VDC Nominal) | Operational Range: 9.2–29.5 VDC
Current Output Rating 0.5 A per point | 4.0 A maximum per module (1 mA min load)
Inrush Current & Voltage Drop 2.0 A max for 100 ms | Output Drop: 0.5 V maximum
BIU Current Draw 111 mA maximum from BIU Power Supply
Isolation Voltage 1500 VAC for 1 minute (User Input to Logic / Frame Ground)
Protection & Diagnostics 5A Slow-Blow Group Fuse | Low Voltage (<9.8 VDC) & Blown Fuse LEDs
Terminal Block & Wire Size 25 Terminals | AWG #14 to #22 (Single) / AWG #18 (Two wires)
Shipping Weight 2 lbs (approx. 0.91 kg)

Quick Installation Guide

  • Mount the IC670MDL740 directly onto the designated Field Control I/O base connected to the Bus Interface Unit (BIU).
  • Wire loads to the 25-position terminal block using AWG #14–#22 field wiring; verify correct 24 VDC polarity to avoid blowing the protective fuse.
  • Ensure an appropriately rated 5A, 250 VAC slow-blow fuse is installed in the internal fuse holder for output group protection.

Technical FAQs

Q1: What is the current switching capability of the IC670MDL740 per channel?
A1: Each output point supplies up to 0.5 Amps at 10–30 VDC, with a total module load limit of 4.0 Amps.

Q2: How does the module indicate fuse faults or power errors?
A2: Dedicated LED indicators signal a blown fuse or user supply voltage drop below 9.8 VDC, while diagnostic messages are transmitted to the BIU.

Q3: What type of replacement fuse is recommended for this output module?
A3: Use a 5 Amp, 250 VAC slow-blow type fuse designed for group short-circuit and reverse-polarity protection.

🏷️ Tags: Positive Logic Output Module
