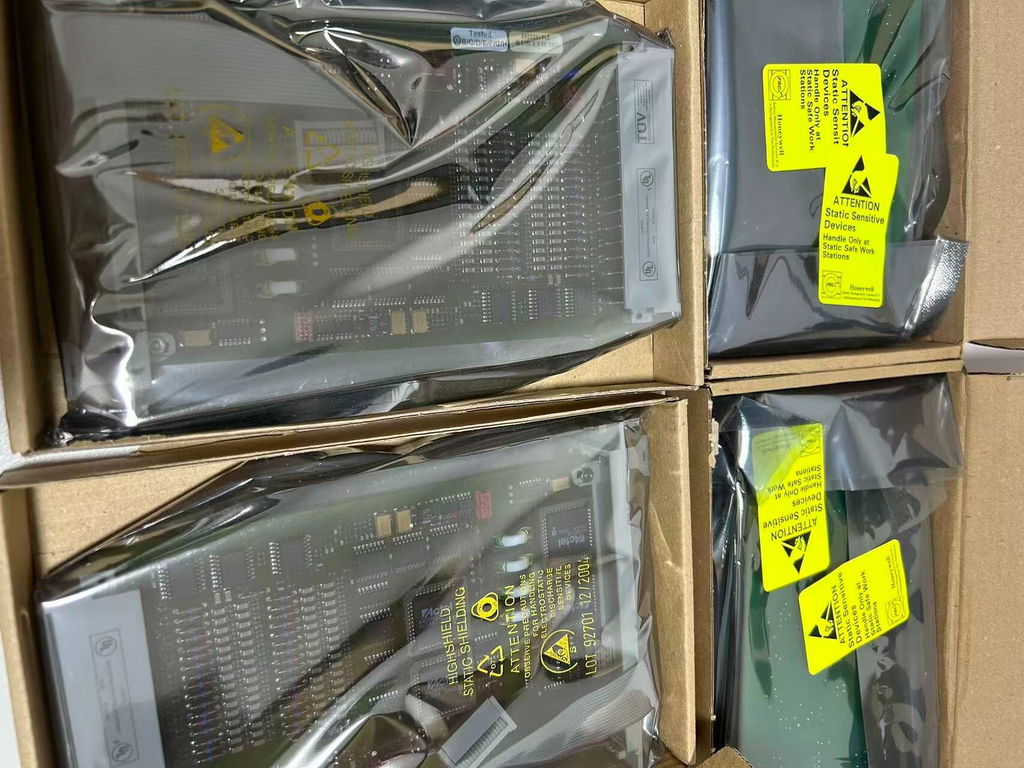

Honeywell FC-DO-1224 Digital Output Module | Brand New

Product Overview

The Honeywell FC-DO-1224 is a high-density digital output module designed for Safety Manager and FSC systems. It controls twelve independent 24 V DC solid-state channels, split into two isolated groups of six. This module reliably drives non-safety critical field loads up to 13 W, including resistive, inductive, and lamp loads. By managing auxiliary functions like status lights or control relays, it offloads non-essential tasks from core safety loops while keeping full diagnostic visibility. Integrated suppression diodes block inductive back-EMF, and direct system watchdog links ensure rapid, deterministic shutdown.

Core Technical Advantages

Built-in Inductive Protection

Integrated flyback suppression diodes on every channel neutralize voltage spikes from heavy inductive devices like contactors and valves. This built-in protection removes the need for external diodes, simplifying your panel wiring.

Dual-Group Isolation

The twelve outputs are isolated into two independent groups of six. If an electrical fault or short circuit occurs on one side, the problem stays confined, allowing the other group to run without downtime.

Watchdog Synchronization

The module connects directly to the system's central watchdog timer. In case of a processor halt or communication timeout, the system cuts power to all outputs immediately to maintain plant safety.

Technical Specifications

Installation and Maintenance

Slot Placement & Mechanical Alignment

Slide the FC-DO-1224 firmly into its assigned slot within the standard 3U Safety Manager chassis along the card guides. Lock the module in place by tightening the front panel screws to secure the rear backplane connection and establish a proper chassis ground.

Field Wiring Rules

Connect external 24 V DC power sources directly to the corresponding termination block on the backplane for each channel group. Use high-quality, twisted-pair field wires to limit signal noise, and keep continuous current under the 550 mA per-channel limit.

Cooling Requirements

Keep all vertical ventilation paths inside the chassis completely clear. Verify that enclosure fans maintain steady airflow to prevent hot spots or premature thermal trips on active digital outputs.

Engineering Advantages

Space-Saving 4 HP Design

The slim 4 HP form factor increases total I/O density inside your controller racks. This compact build lets you add channels in tight marshalling cabinets without increasing hardware costs.

Overcurrent & Short-Circuit Protection

Onboard electronic protection instantly isolates field-side short circuits or overheating events. This automatic shutdown features isolates faults to a single channel, keeping neighboring circuits online.

Unified Honeywell Integration

This module interfaces natively with Safety Manager hardware and software tools. It uses standard diagnostic rules and configurations, reducing your overall spare parts inventory and engineering overhead.

Technical FAQs

Q1: What is the main difference between FC-DO-1224 and FS-DO-1224 prefixes?

A1: FC-DO-1224 includes a conformal coating on the circuit board to resist moisture, dust, and airborne corrosion. The FS-DO-1224 uses an uncoated board best for clean, climate-controlled equipment rooms.

Q2: Why is the maximum lamp load restricted to 275 mA?

A2: Incandescent lamps draw massive inrush currents when cold. Keeping the nominal load limited to 275 mA ensures this startup surge does not accidentally trigger the module's electronic short-circuit protection.

Q3: Can I mount this Non-Safe module inside a safety-instrumented system (SIS) rack?

A3: Yes. It is fully compatible with safety chassis. "Non-Safe" simply means these channels do not execute certified SIL emergency trips. It handles status lights and auxiliary signals while maintaining full isolation from the safety loops.
