10313/1/1

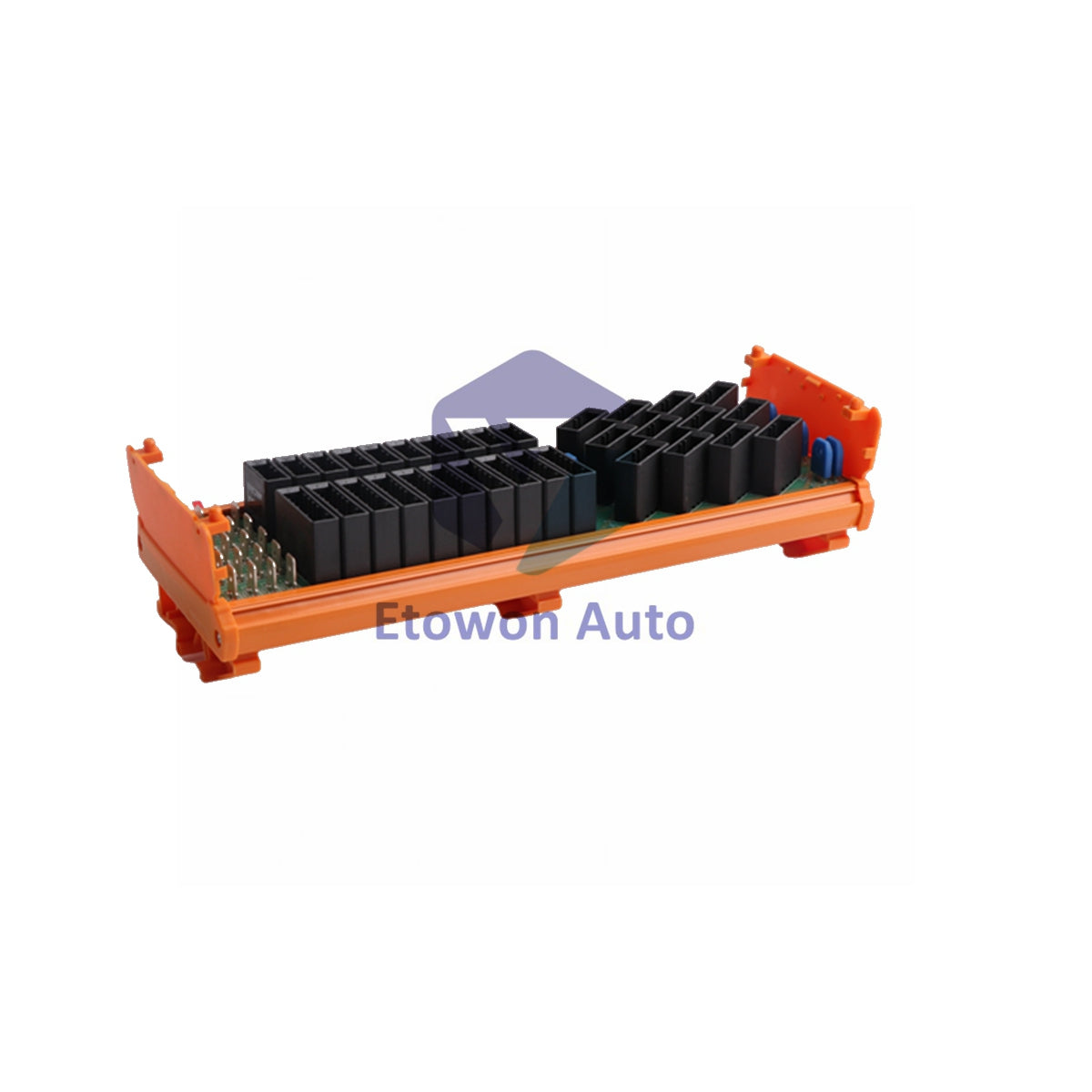

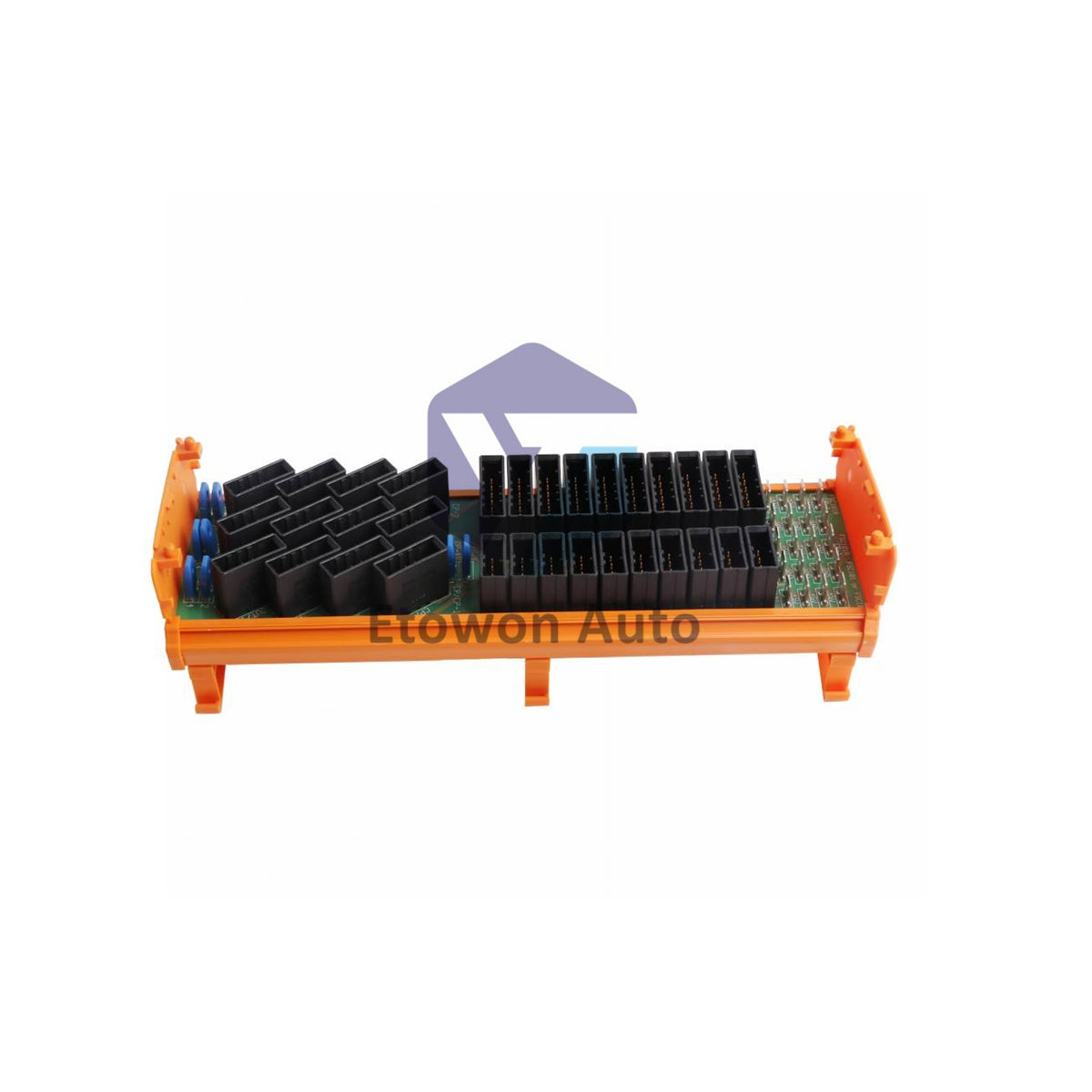

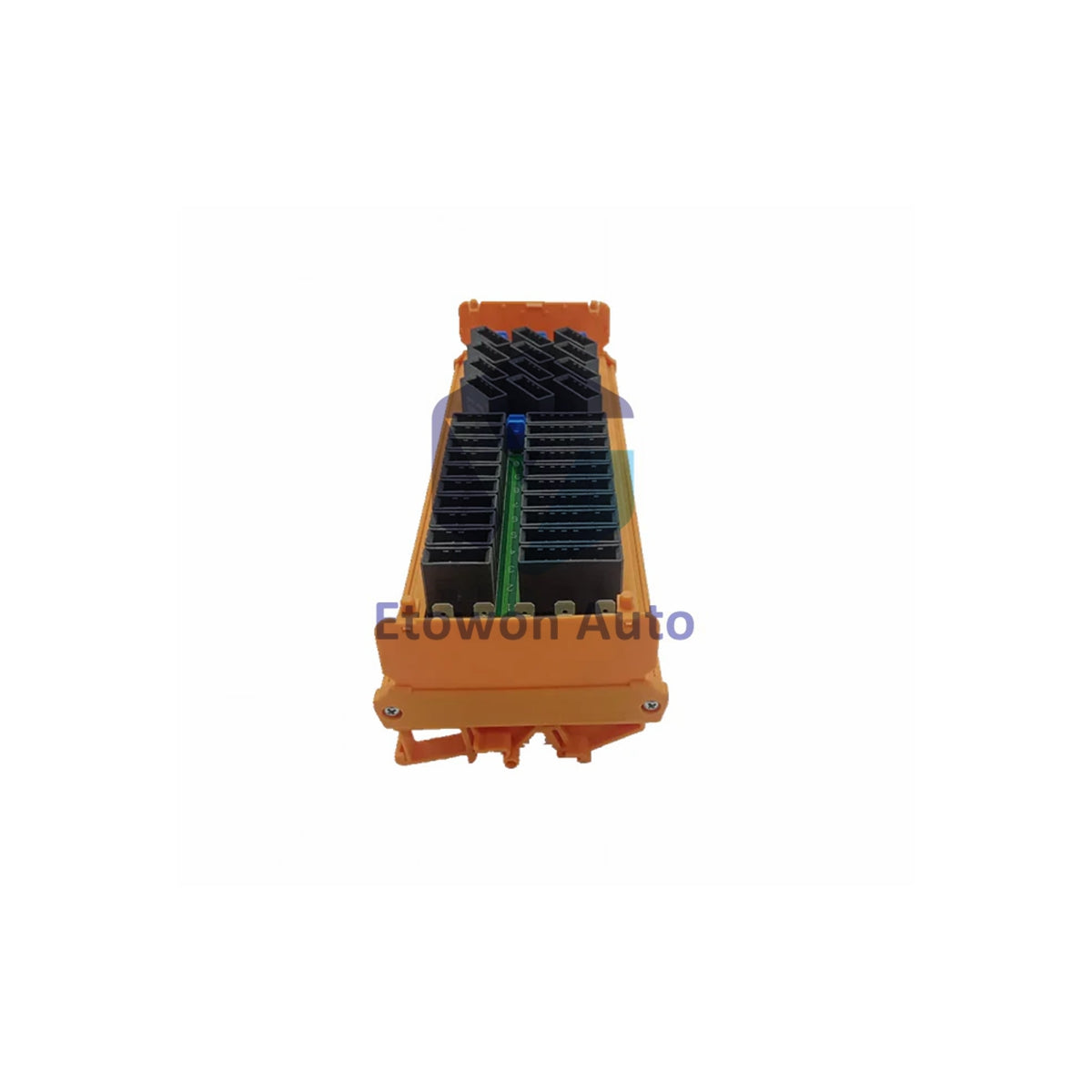

Honeywell 10313/1/1 FSC 5V DC Distribution Module

Skladda bar (14 sany), ibermek üçin taýýar

  • Manufacturer: Honeywell

  • Product No.: 10313/1/1

  • Product Type: Distribution Module

  • Product Origin: USA

  • Payment:T/T, Western Union

  • Weight: 200g

  • Shipping port: Xiamen

  • Warranty: 12 months

30 günlük yzyna gaýtaryş syýasaty · 12 aýlyk kepillik
  • Çalt eltip berme
  • 24/7 goldaw
  • Hil üpjünçiligi

Düşündiriş

Product Overview

The Honeywell 10313/1/1 module distributes 5V DC and watchdog (WD) signals throughout the FSC system. It supports both redundant and non-redundant I/O backplanes, ensuring reliable power delivery and system monitoring for safety-critical process applications.

Technical Configuration

This module connects up to ten I/O backplanes via RCN (redundant) and SCN (non-redundant) connectors. Dedicated Faston pins accept incoming 5V DC power. The design includes direct ports for watchdog repeaters, horizontal bus bars, and cabinet-to-cabinet linking, providing flexible system architecture.

Technical Specifications

Parameter Value
Type Number 10313/1/1 207011
Approvals CE, TÜV (UL pending)
Current Consumption None (sourced from I/O modules)
Max. Current (Faston Pin) 4 A
Max. Current (I/O Connector) 2 A
Dimensions (L x W x H) 240 x 87 x 60 mm
DIN Rail TS32 / TS35 x 7.5
Rail Length Used 241 mm (9.49 in)

Installation Guide

Mount on a TS35 DIN rail. Connect incoming 5V DC power to the designated Faston pins. For redundant setups, wire both CP-1 and CP-2 feeds. Secure all RCN and SCN backplane connectors. Use the dedicated ports for linking to additional modules in separate cabinets.

Engineering Advantages

This module adds zero power consumption to the system and centralizes WD signal distribution. Its passive design reduces cabinet wiring complexity while the robust build ensures high reliability in demanding industrial environments.

Technical FAQs

Q1: How do I configure redundant power?
A1: Connect both 5V DC supplies to the 'FSC101R CP-1' and 'FSC101R CP-2' Faston pins for automatic failover.

Q2: What is the difference between RCN and SCN connectors?
A2: RCN connects to redundant I/O backplanes (10315/1/1), while SCN connects to non-redundant backplanes (10314/1/1).

Q3: Can I replace the older 20700 version with this 207011?
A3: Verify your cabinet wiring first, as the 207011 version features a different connector layout than the 20700 suffix.
