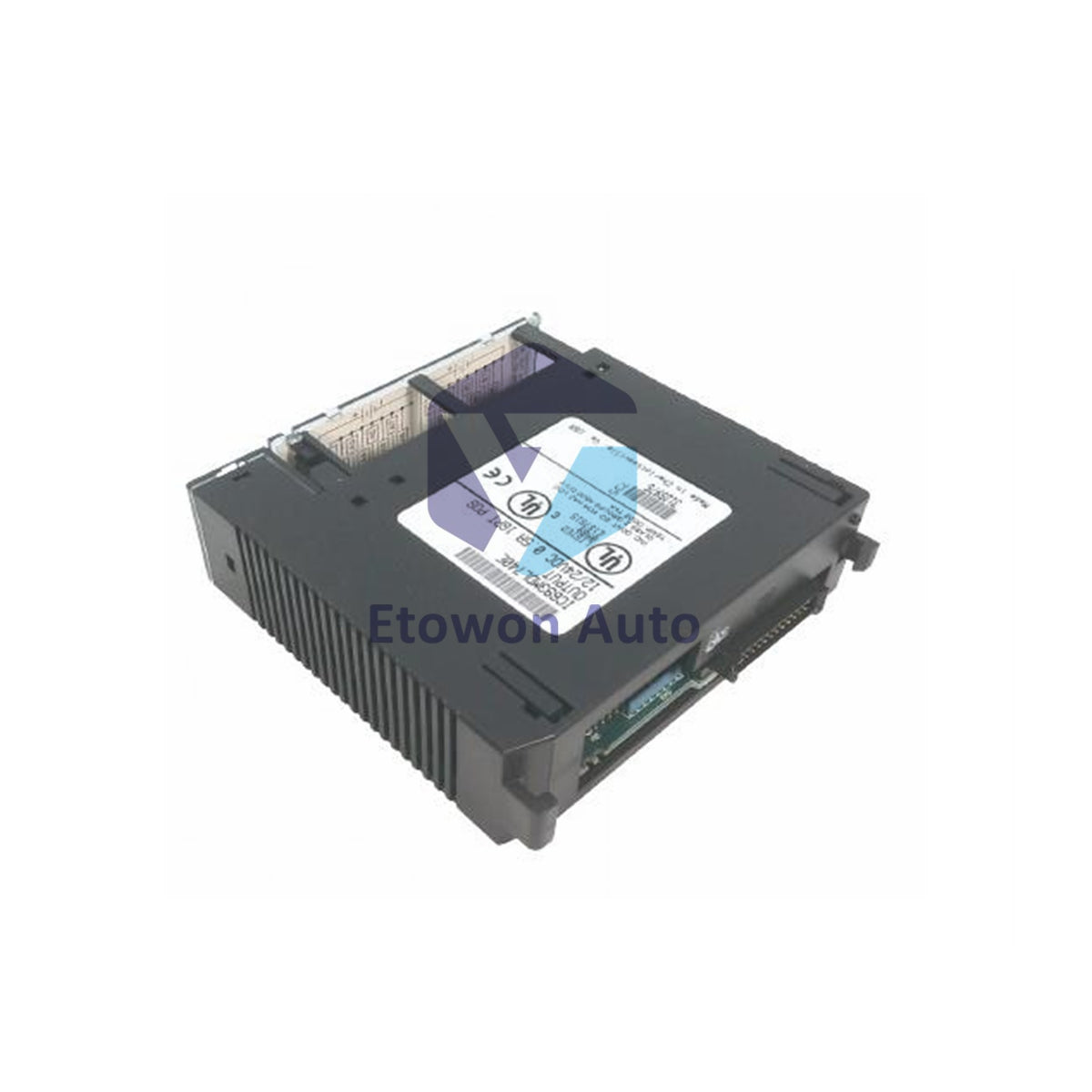

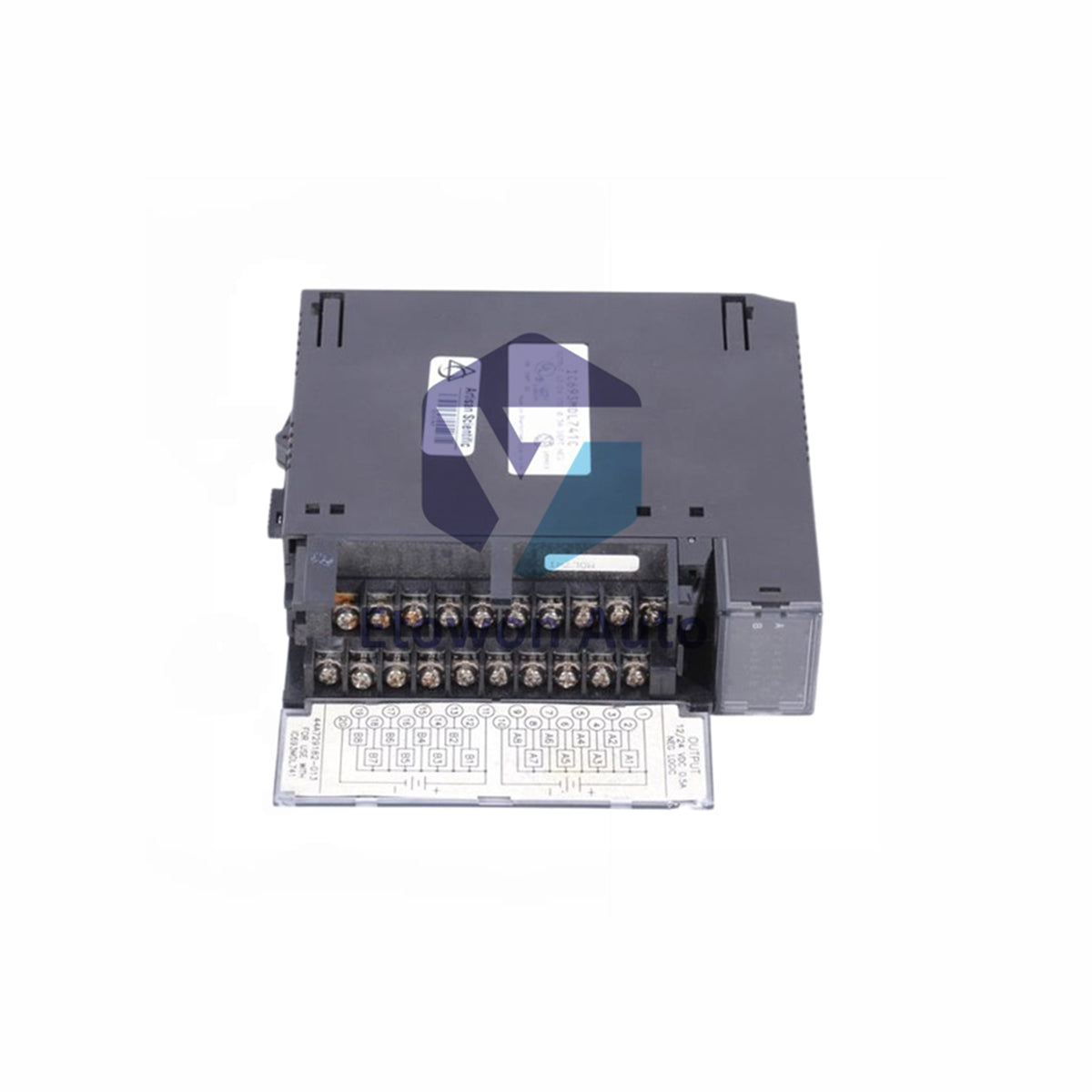

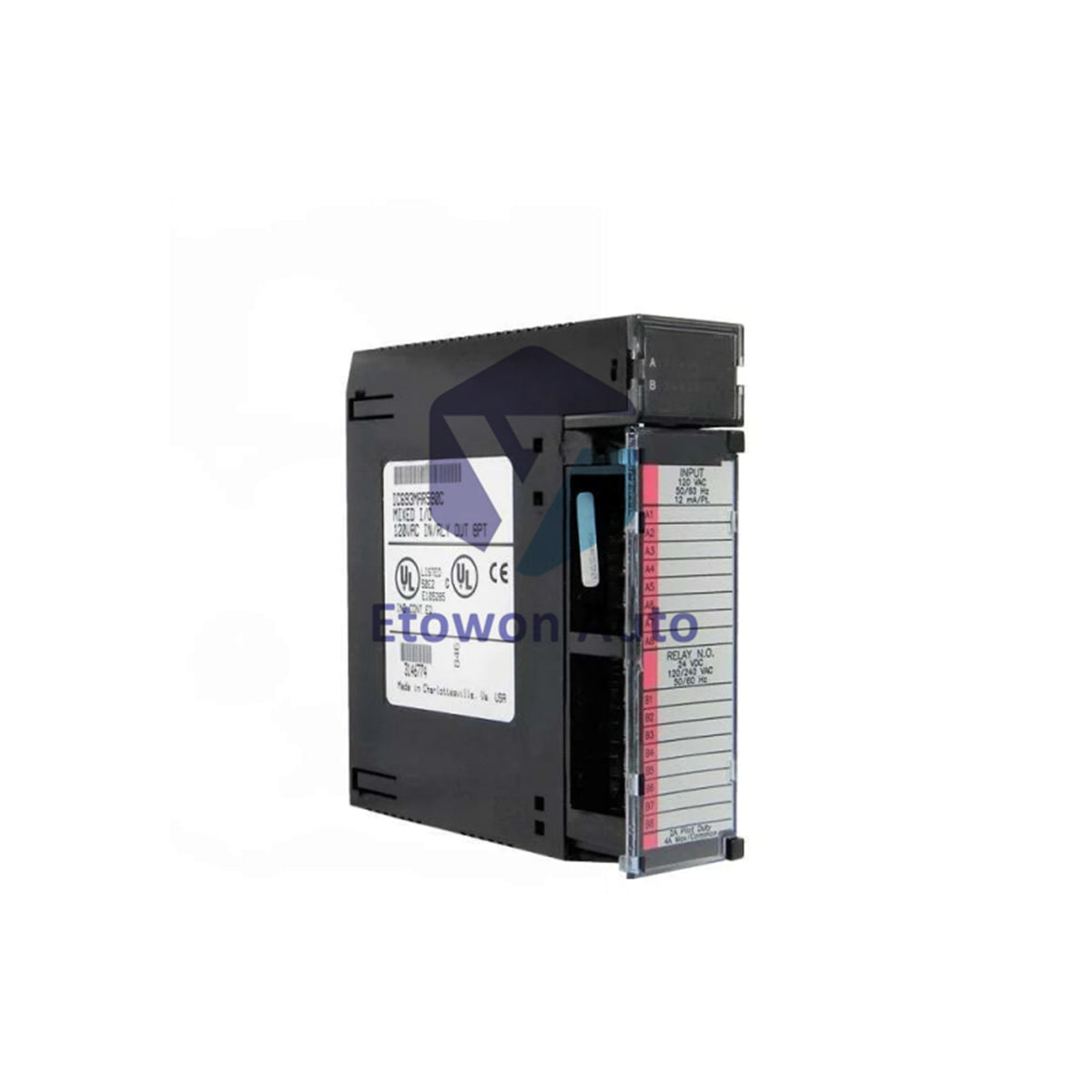

IC693MDL260

GE Series 90-30 IC693MDL260 120V AC 32-Pt Grouped Input Module

Diňe 10 sany galdy

  • Manufacturer: General Electric

  • Product No.: IC693MDL260

  • Product Type: Input Module

  • Product Origin: USA

  • Payment:T/T, Western Union

  • Weight: 380g

  • Shipping port: Xiamen

  • Warranty: 12 months

30 günlük yzyna gaýtaryş syýasaty · 12 aýlyk kepillik
  • Çalt eltip berme
  • 24/7 goldaw
  • Hil üpjünçiligi

Düşündiriş

Technical Specifications

Manufacturer / Brand GE Fanuc / GE Intelligent Platforms
Product Series Series 90-30 PLC
Part / Catalog Number IC693MDL260
Product Type 120V AC Grouped Input Module
Input Points & Groups 32 Points (4 isolated groups of 8 inputs each)
Input Voltage / Frequency 120V AC Nominal (0 to 132V AC Range), 50/60 Hz
Input Current 12 mA per input at 120V AC
Isolation & Filter Isolation between groups; Adjustable input filter via rear DIP switch
LED Diagnostics 32 channel status LEDs, 1 terminal block status LED
Weight Approx. 0.38 kg (0.84 lbs)

Product Overview

The GE Fanuc IC693MDL260 is a high-density 120V AC discrete input module (approx. 0.38 kg) for GE Series 90-30 PLC racks. It provides 32 input channels organized into 4 isolated groups of 8 inputs each. Drawing 12 mA per channel at 120V AC (50/60 Hz), it features 32 channel status LEDs, a terminal block LED, and a rear DIP switch for adjustable input filter times to filter out industrial signal noise.

Key Features

  • High Channel Density: Offers 32 discrete 120V AC input channels in a single compact PLC slot.
  • Group Isolation: Divided into 4 isolated groups of 8 inputs with shared commons for flexible field wiring.
  • Adjustable Input Filter: Configurable rear DIP switch allows fine-tuning of input response time against noise.
  • Clear Visual Diagnostics: Includes 32 individual channel status LEDs and 1 terminal block status indicator.

Installation Essentials

Insert the IC693MDL260 module into any available I/O slot in a Series 90-30 baseplate. Configure the DIP switches on the back of the module for your desired input filter speed before installation. Ensure field wiring to the terminal block strictly respects the 120V AC voltage limits and group isolation boundaries.

Technical FAQs

Q1: What is the input voltage range for the GE IC693MDL260 module?
A1: The module operates at a nominal 120V AC input with a functional range of 0 to 132V AC (50/60 Hz).

Q2: How are the 32 input channels grouped?
A2: The 32 inputs are divided into 4 isolated groups of 8 channels, with each group sharing a common power connection.

Q3: How do you adjust the input response filter time?
A3: Input filter response times are set using the DIP switches located on the rear panel of the module before mounting into the rack.
