MPU55

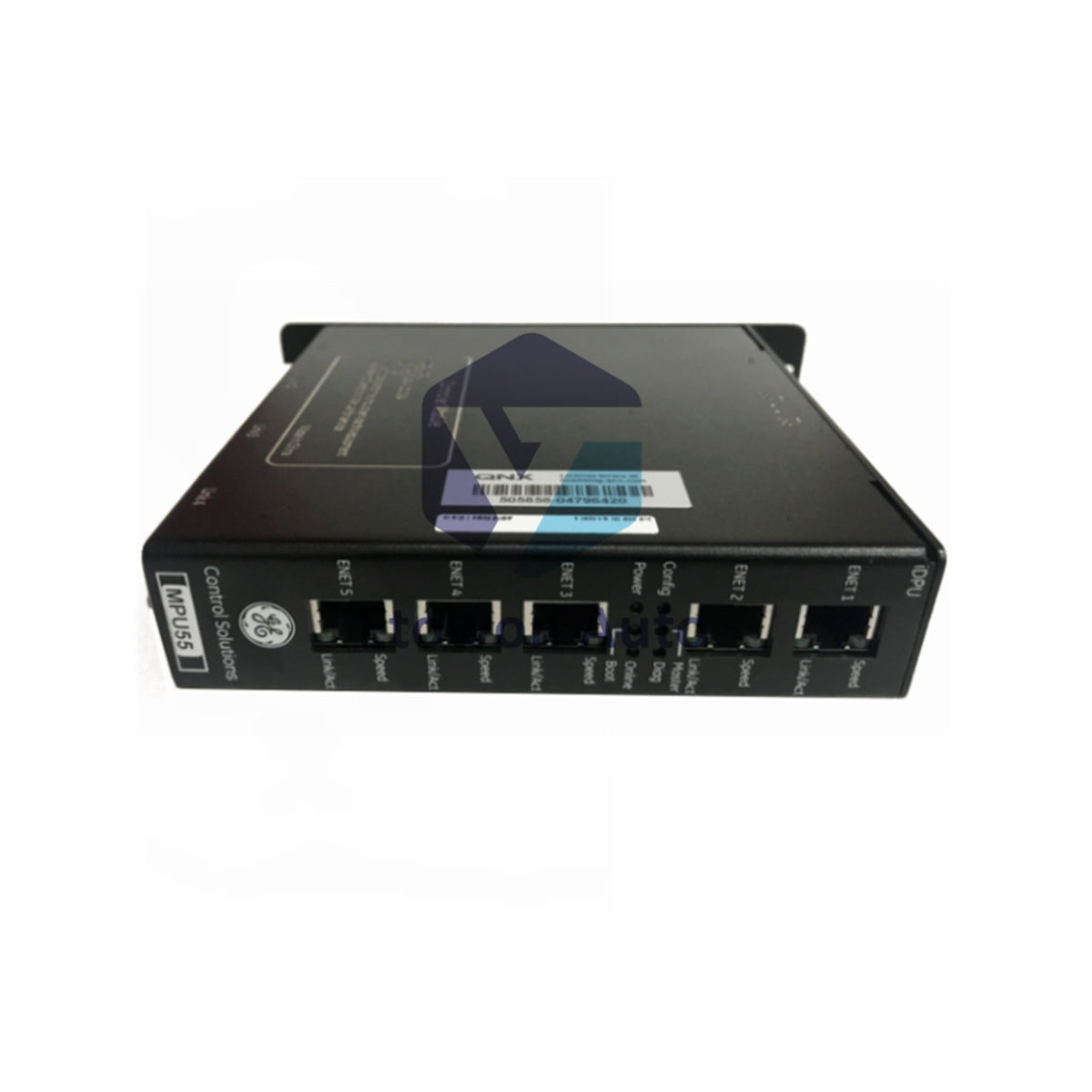

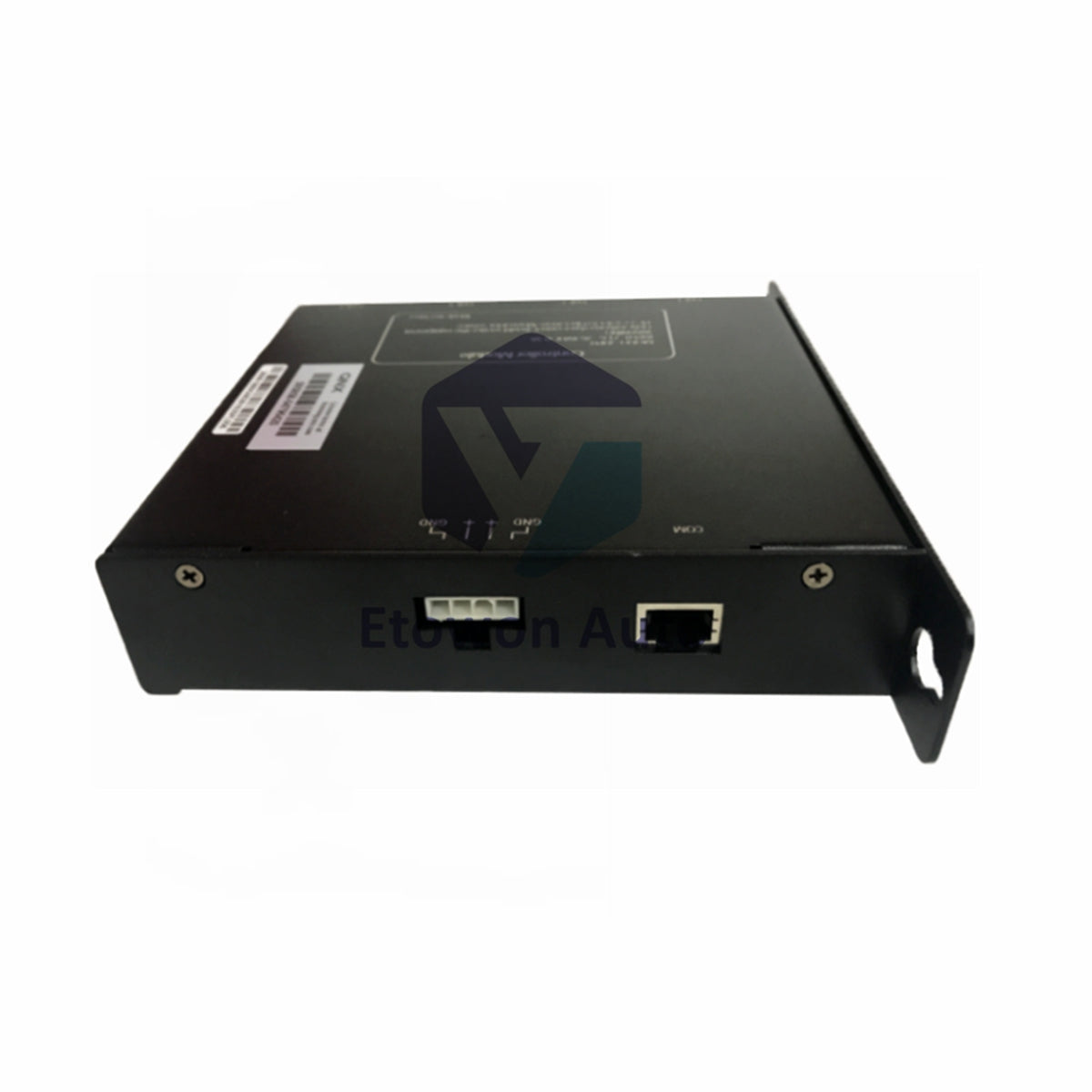

GE MPU55 369B1860G0030 FADEC Control Module PowerPC

Diňe 8 sany galdy

  • Manufacturer: General Electric

  • Product No.: MPU55

  • Product Type: Control Module

  • Product Origin: USA

  • Payment:T/T, Western Union

  • Weight: 500g

  • Shipping port: Xiamen

  • Warranty: 12 months

30 günlük yzyna gaýtaryş syýasaty · 12 aýlyk kepillik
  • Çalt eltip berme
  • 24/7 goldaw
  • Hil üpjünçiligi

Düşündiriş

GE MPU55 369B1860G0030 FADEC Control Module

GE MPU55 369B1860G0030 is a compact aircraft engine control module designed for FADEC systems. Features PowerPC 604e processor with 128MB RAM and 512MB Flash memory. Supports RS-232 and MIL-STD-1553 interfaces with IP67 protection. Weight: 0.5 kg (1.1 lbs).

Technical Specifications

Parameter Specification
Manufacturer GE
Model MPU55 369B1860G0030
Product Type FADEC Control Module
Processor PowerPC 604e
Memory 128MB RAM, 512MB Flash
Interfaces RS-232, MIL-STD-1553
Power Supply 24V DC
Transmission Rate 10/100/1000 Mbps auto-sensing
Protocol Support Modbus TCP, Profinet
Management Method Web, SNMP
Operating Temperature -55°C to +75°C
Protection Rating IP67
Mounting Type DIN rail or panel mount
Enclosure Material IP67 dust and water resistant
Dimensions (L x W x H) 100 × 100 × 50 mm
Weight 0.5 kg (1.1 lbs)

Key Features

  • PowerPC 604e processor for rapid processing and precise control
  • Redundant design for high reliability in extreme conditions
  • Modular design for easy maintenance and reduced downtime
  • Wide operating temperature range -55°C to +75°C
  • IP67 dust and water resistant for harsh environments
  • Supports Modbus TCP, Profinet, and MIL-STD-1553
  • Web and SNMP management for remote monitoring

Applications

  • Military aircraft FADEC systems
  • Civilian aircraft engine control
  • Helicopter propulsion systems
  • Drone engine management

Installation Guidelines (Field Engineer Notes)

Mounting: Mount on DIN rail or panel using all mounting holes. Ensure proper grounding to chassis ground. IP67 rating requires proper sealing of all cable entries.

Power Connection: Connect 24V DC supply to power terminals. Use 1.5 mm² minimum wire. Verify polarity before energizing. Module draws approximately 15W.

Network Configuration: Set IP address via Web interface or SNMP. Default IP is 192.168.1.100. Use crossover cable for direct PC connection.

MIL-STD-1553: Use shielded twisted pair cable. Terminate bus with 78Ω resistors at both ends. Set terminal mode via software configuration.

FAQs

Q1. What communication protocols does the MPU55 support?
A1. The module supports Modbus TCP, Profinet, RS-232, and MIL-STD-1553 protocols.

Q2. What is the operating temperature range?
A2. The module operates from -55°C to +75°C, suitable for aerospace and military applications.

Q3. Is the module suitable for outdoor installations?
A3. Yes. IP67 rating provides dust and water resistance for outdoor installations.
