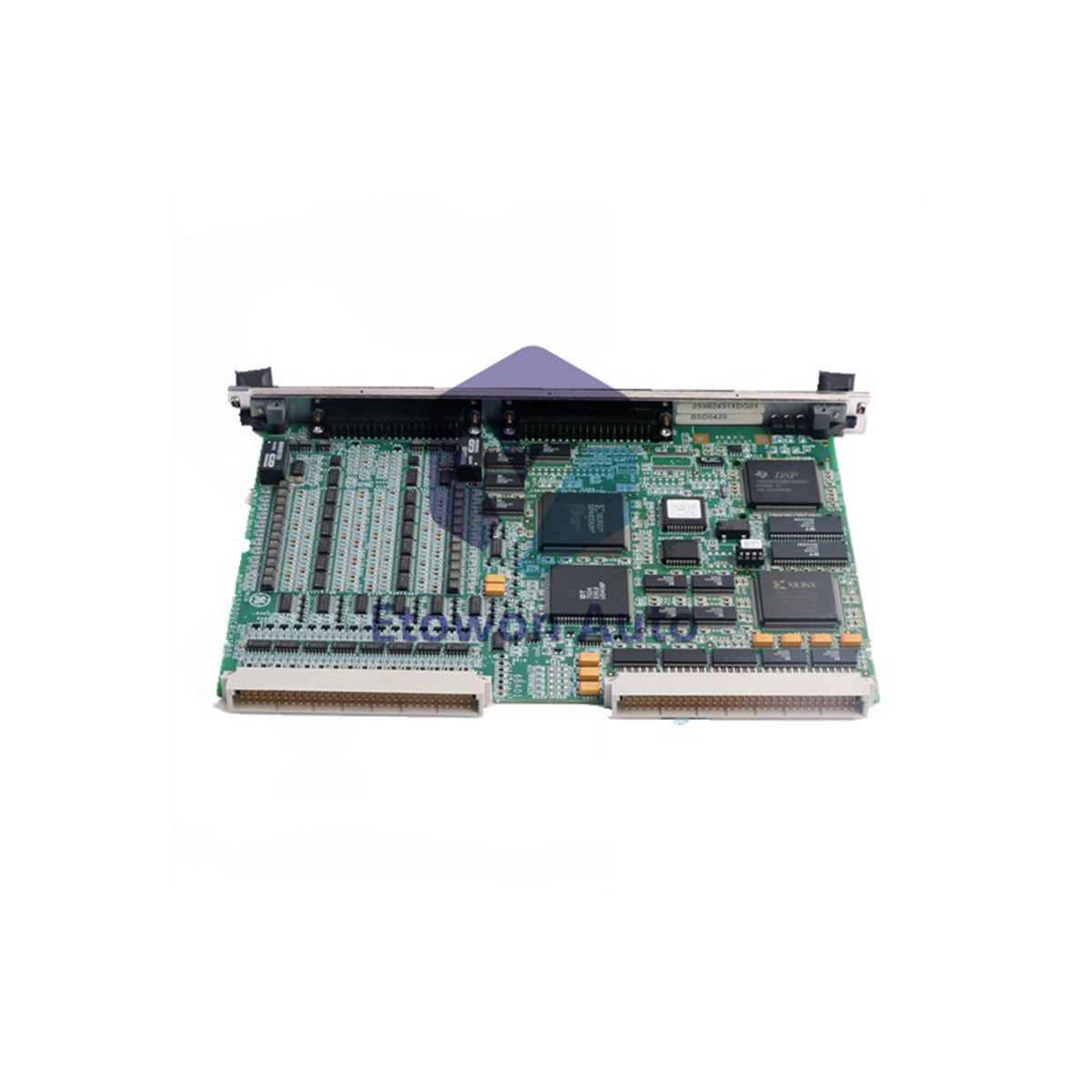

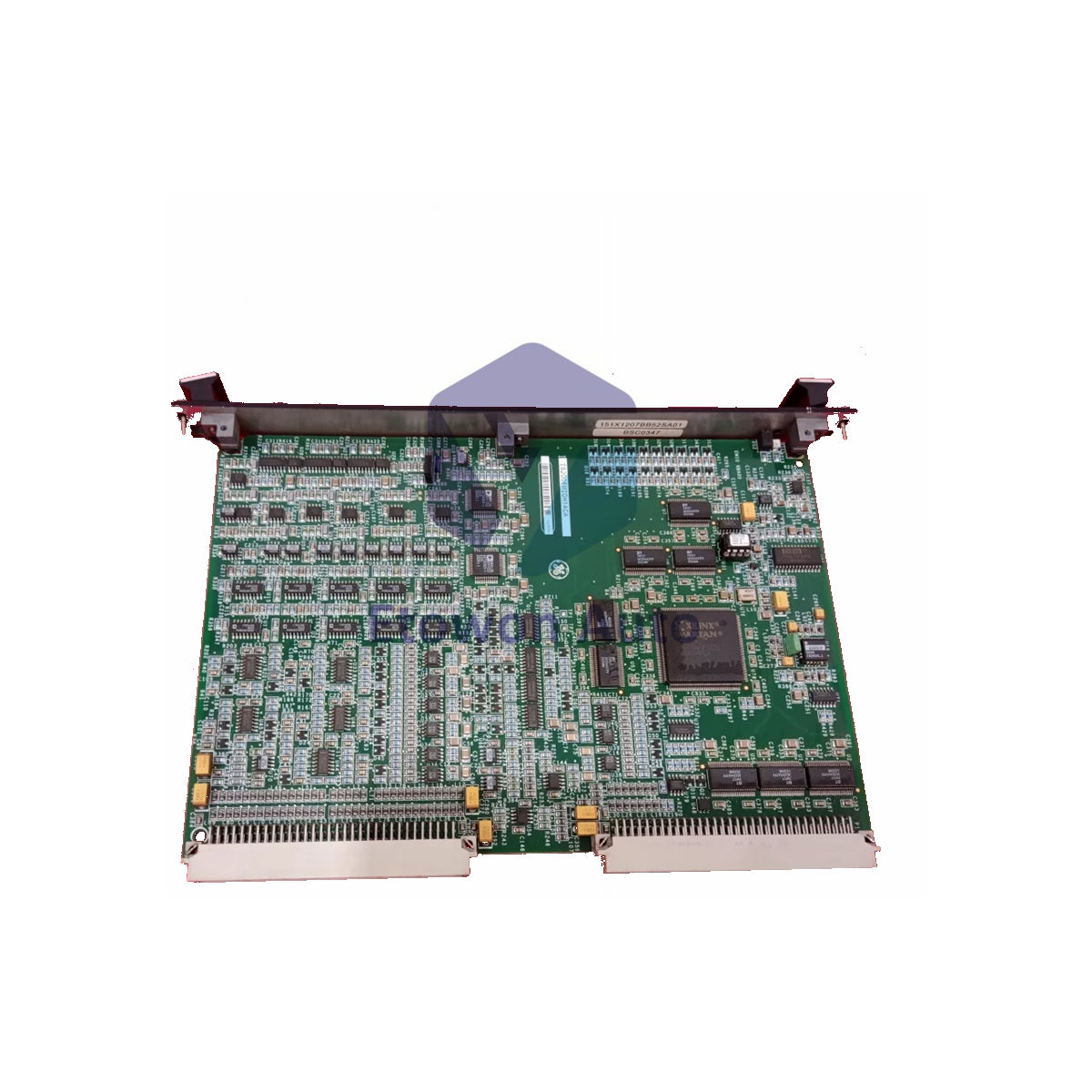

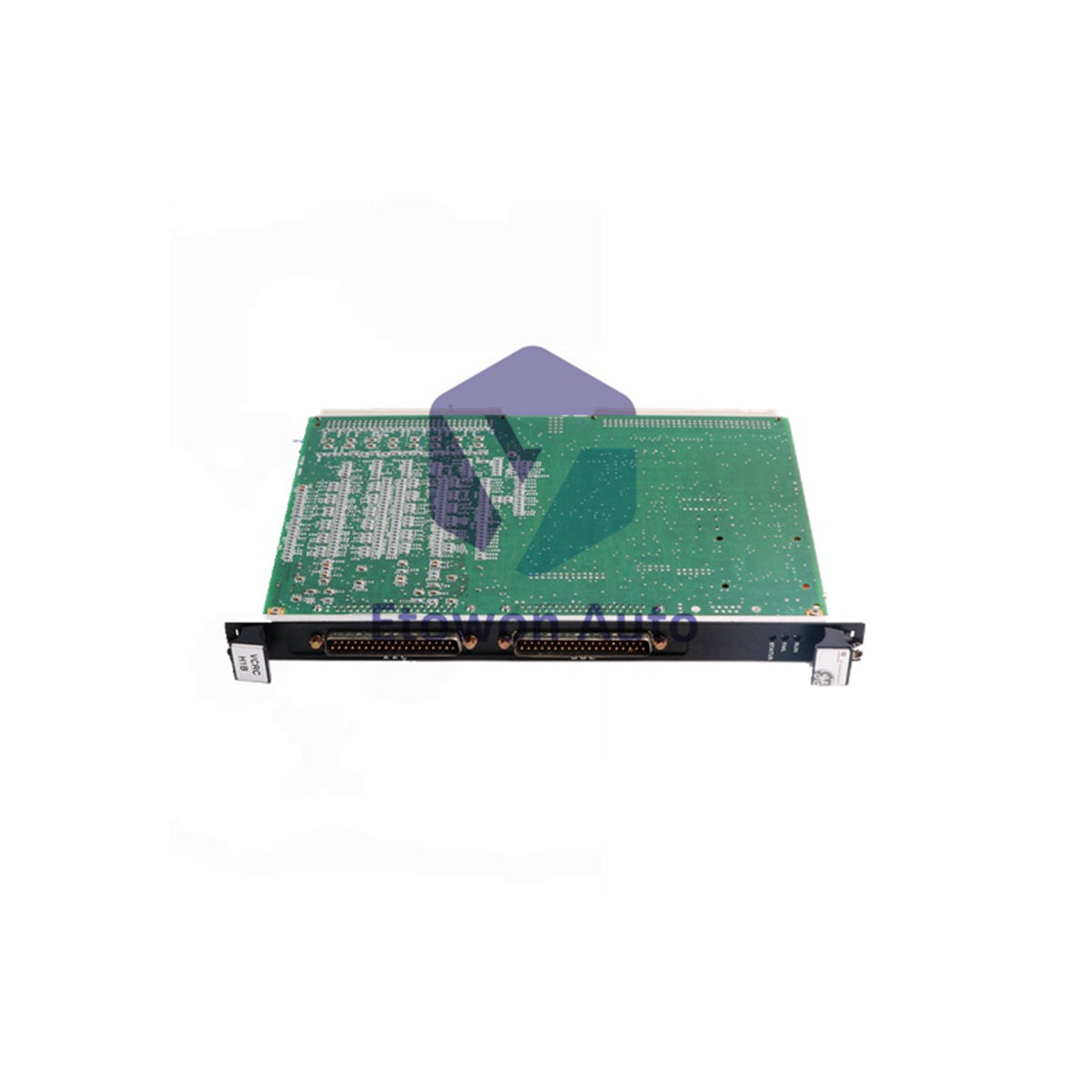

GE IS200EMIOH1A EX2100 Exciter Main I/O Board VME Module

Skladda bar (12 sany), ibermek üçin taýýar

  • Manufacturer: General Electric

  • Product No.: IS200EMIOH1A

  • Product Type: I/O Board

  • Product Origin: USA

  • Payment:T/T, Western Union

  • Weight: 910g

  • Shipping port: Xiamen

  • Warranty: 12 months

30 günlük yzyna gaýtaryş syýasaty · 12 aýlyk kepillik
  • Çalt eltip berme
  • 24/7 goldaw
  • Hil üpjünçiligi

Düşündiriş

Product Overview

The GE IS200EMIOH1A is an Exciter Main Input/Output (EMIO) board manufactured by General Electric as part of the EX2100 Excitation Control System. Designed as a single-slot, double-height VME-style Eurocard module, it installs directly into the control rack to manage analog and discrete I/O signals across the EPCT, ECTB, EACF, and EXTB terminal boards. Operating without fuses, jumpers, or faceplate cable connectors, the module routes all I/O connections through the EBKP control backplane. Weighing approximately 0.91 kg (2 lbs), it controls PT/CT signals, contact inputs, output relay drivers, pilot trip relay drives, and de-excitation sequence functions for power generation systems.

Key Advantages

  • Centralized Terminal Board Integration: Consolidates and manages I/O signals from ECTB, EACF, EXTB, and EPCT terminal boards through a single high-speed VME slot.
  • Gate Pulse Processing: Transmits logic-level gate pulse signals via the backplane to the ESEL board, which routes them directly to the EGPA board in the power conversion cabinet.
  • Integrated De-Excitation Control: Interlaces with the EXTB terminal board to initiate and manage de-excitation sequences via the EDEX board during system shutdown or trip events.
  • Backplane Cable Management: All field and board wiring interfaces through backplane connectors P1 and P2 on the EBKP backplane, eliminating front-panel cabling mess.
  • Compact VME Form Factor: Features a standardized 9.25 x 6.5 inch footprint weighing only 0.91 kg (2 lbs) for fast offline card replacement.

Technical Specifications

Manufacturer / Brand General Electric (Made in USA)
Part / Catalog Number IS200EMIOH1A
System Series / Board Type EX2100 Excitation Series | Exciter Main I/O Board
Physical Form Factor Single-Slot, Double-Height VME Eurocard
Board Dimensions Length: 9.25 Inches | Width: 6.5 Inches
Status Diagnostic LEDs 2 LEDs (Power: 5V DC Supply | Status: FPGA IMOK Output)
Backplane Interfacing Connector P1 (Control Board Comms), Connector P2 (I/O Signals)
On-Board Components Zero Jumpers, Fuses, or Front Cable Connectors
Instruction Manual Ref. GEI-100453 / GEH-6632 (EX2100 Control Guide)
Approximate Net Weight 0.91 kg (2.0 lbs)

Frequently Asked Questions

Q1: What are the primary functions of GE IS200EMIOH1A?

A1: It manages terminal board I/O, sends gate pulses to ESEL, and controls PT/CT signals.

Q2: What do the faceplate status LEDs indicate?

A2: Power LED shows 5V DC supply status, while Status LED shows FPGA IMOK health signal.

Q3: How are cables connected to IS200EMIOH1A?

A3: No cables connect to front panel; all wiring routes via P1/P2 backplane connectors.
