IS200EISBH1A

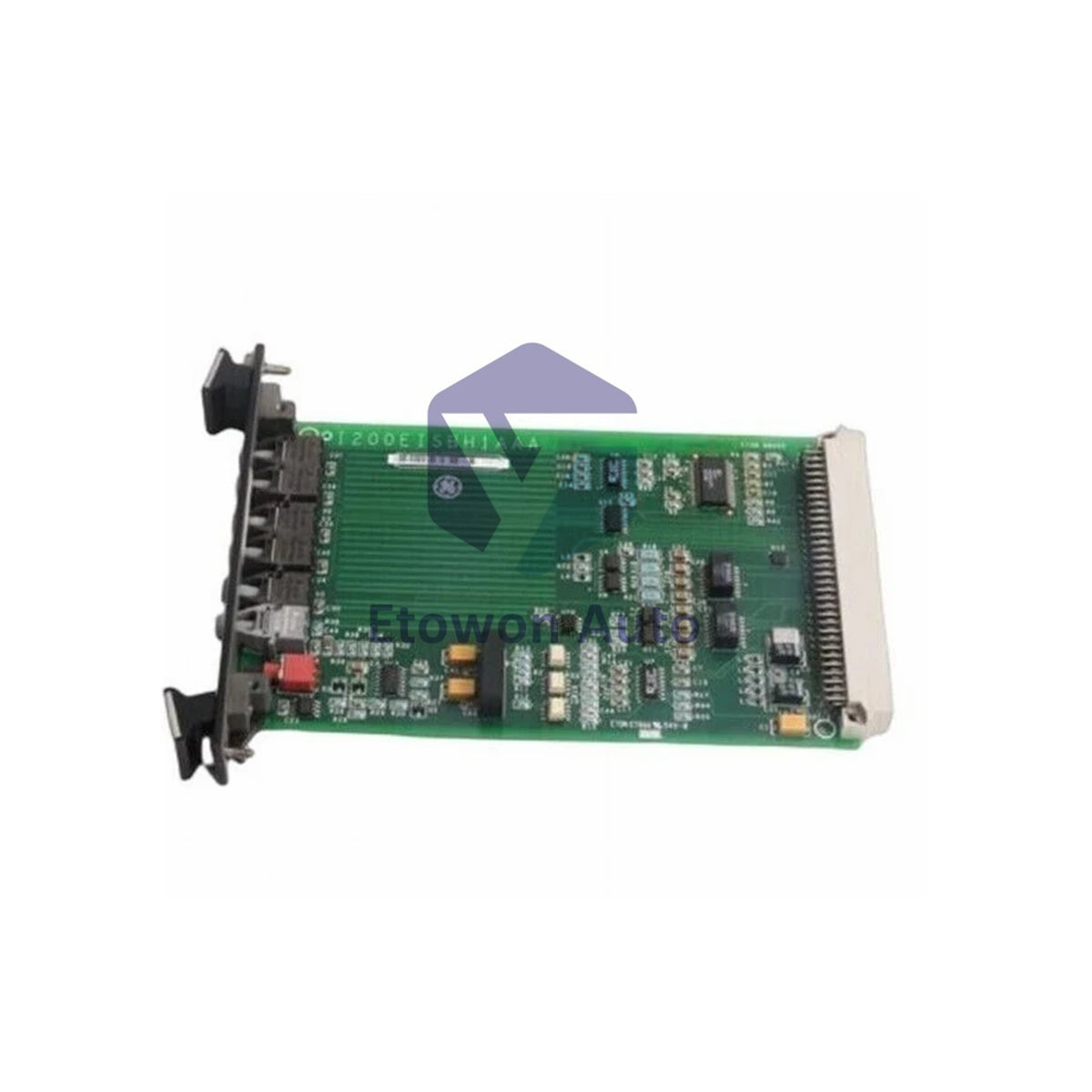

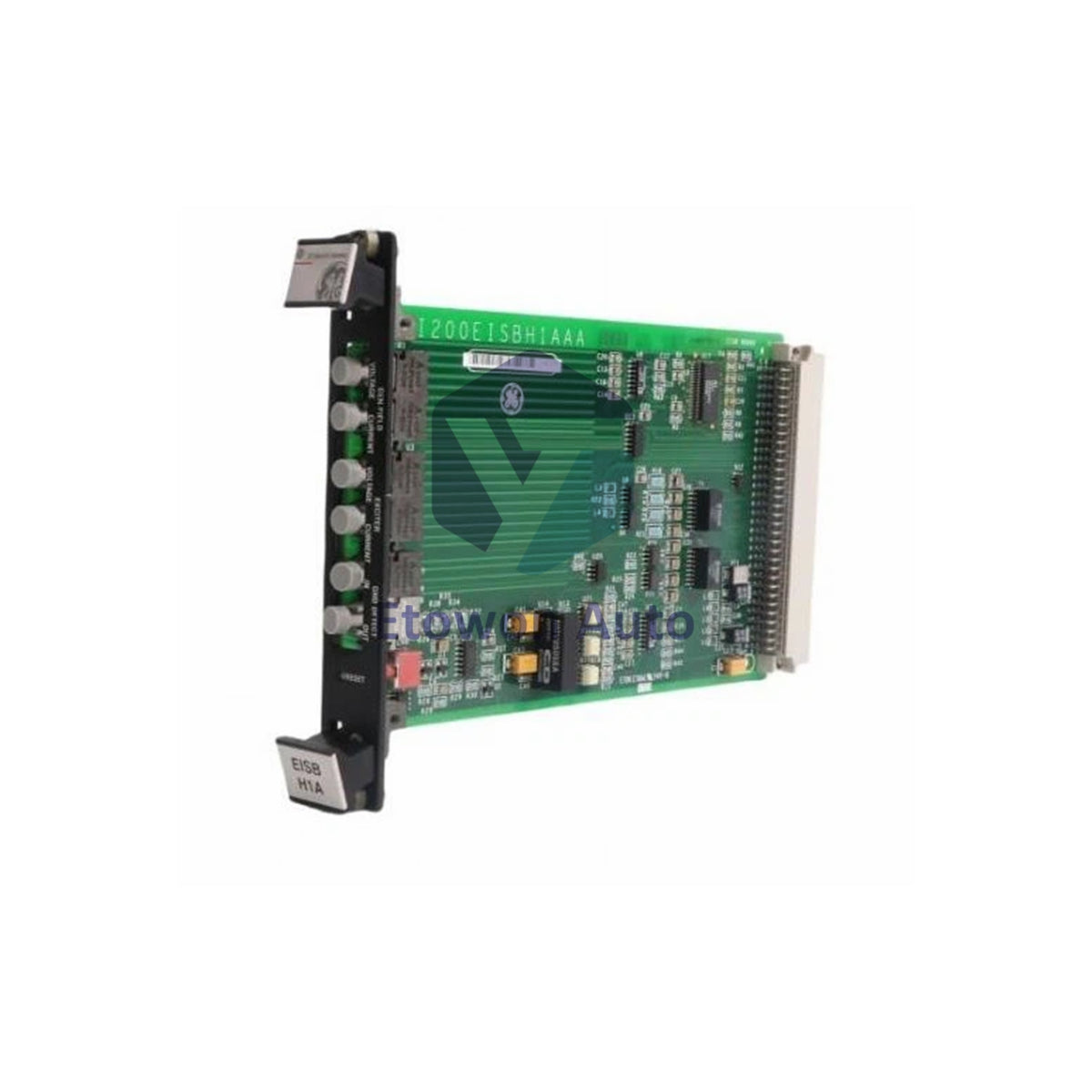

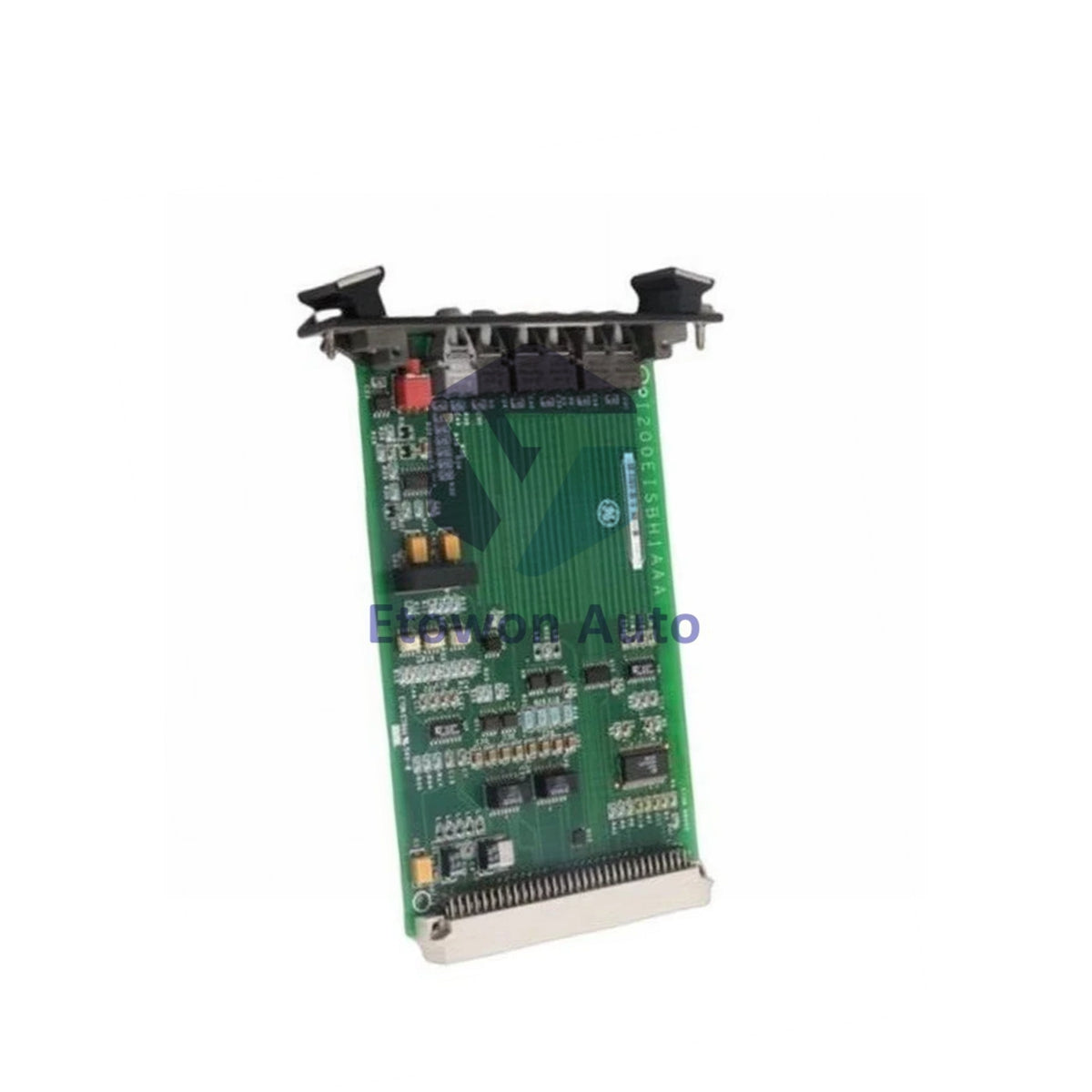

GE IS200EISBH1A | EX2100 Series Exciter ISBus Board

Diňe 7 sany galdy

  • Manufacturer: General Electric

  • Product No.: IS200EISBH1A

  • Product Type: Exciter Board

  • Product Origin: USA

  • Payment:T/T, Western Union

  • Weight: 280g

  • Shipping port: Xiamen

  • Warranty: 12 months

30 günlük yzyna gaýtaryş syýasaty · 12 aýlyk kepillik
  • Çalt eltip berme
  • 24/7 goldaw
  • Hil üpjünçiligi

Düşündiriş

General Electric IS200EISBH1A Exciter ISBus Board (EISB)

The General Electric IS200EISBH1A is a specialized Exciter ISBus Board (EISB) engineered as part of the GE EX2100 Series Excitation Control System. Designed to function in conjunction with the M1, M2, and C control modules, the EISB serves as a lightweight, high-speed communication bridge (approximate weight of 0.28 kg) that receives and transmits fiber-optic feedback signals across cabinet electronics, forwarding crucial real-time operational data via the control backplane directly to the main DSPX controller.

Key System & Functional Features

Housed in a compact, single-slot, 3U-high form factor weighing approximately 0.28 kg (0.62 lbs) and situated directly beneath the DSPX module in the control rack, the IS200EISBH1A handles internal cabinet fiber-optic telemetry and interface routines. It facilitates serial communication between the DSPX and external tool/keypad ports via RS-232C across the backbone connector. For redundant excitation system architectures, the EISB integrates proprietary ISBus interface electronics to ensure seamless data exchange across the M1, M2, and C controllers.

Front Panel Fiber-Optic Channel Mapping

Generator Field DC Voltage Input Receives variable frequency voltage signal from Generator Field via EDCF board
Generator Field DC Current Input Receives variable frequency current signal from Generator Field via EDCF board
Exciter Voltage Input (Optional) Receives optional exciter AC/DC voltage feedback from EDCF board
Exciter Current Input (Optional) Receives optional exciter current feedback from EDCF board
Ground Detector Input & Output Bi-directional optical interface connected directly to the EGDM Ground Detection Module

Technical Specifications

Manufacturer & Part Number General Electric | IS200EISBH1A
Series & Functional Acronym EX2100 Excitation Control System | EISB
Board Format & Approximate Weight 3U Single Slot (8.26 cm H x 4.19 cm W) | Approx. 0.28 kg (0.62 lbs)
Channels & Input Span 12 Channels | 4-20 mA Input Span / 0-20 mA Output
Signal & Electrical Tolerances ±5 V Common Mode Voltage Range | 15 Ω Max Lead Resistance
Operating Temperature & Manual -30 °C to +65 °C (-22 °F to +149 °F) | Instruction Manual GEI-100454

Installation & Operation Considerations

  • Rack Placement & Handling: Due to its lightweight 0.28 kg build, carefully seat the single-slot 3U module into its dedicated control rack slot located immediately below the DSPX processor board without applying excessive mechanical stress to the backplane pins.
  • Fiber Optic Cable Handling: Ensure proper bend radius and maintain optical clean-face standards on all 6 front-panel ST/FC fiber connectors to prevent signal attenuation from EDCF/EGDM boards.
  • Serial Integration: Verify RS-232C cable pinouts when linking the backbone connector to local keypad terminals or software commissioning tools.

Frequently Asked Questions

Q1: What is the primary role of the IS200EISBH1A in an EX2100 control rack?
A1: It acts as the central fiber-optic interface board that gathers electrical feedback (via EDCF) and ground fault telemetry (via EGDM) and relays it across the backplane to the DSPX controller.

Q2: How does the EISB board support redundant excitation systems?
A2: It houses proprietary ISBus interface electronics enabling seamless high-speed communication and data synchronization between the M1, M2, and C control channels.

Q3: Which instruction manual covers installation and diagnostic routines for this module?
A3: Detailed installation guidelines, pinouts, and system diagnostics are documented in GE Instruction Manual GEI-100454.

🏷️ Tags: Exciter Board General Electric
