IC755CKS15CDMEP

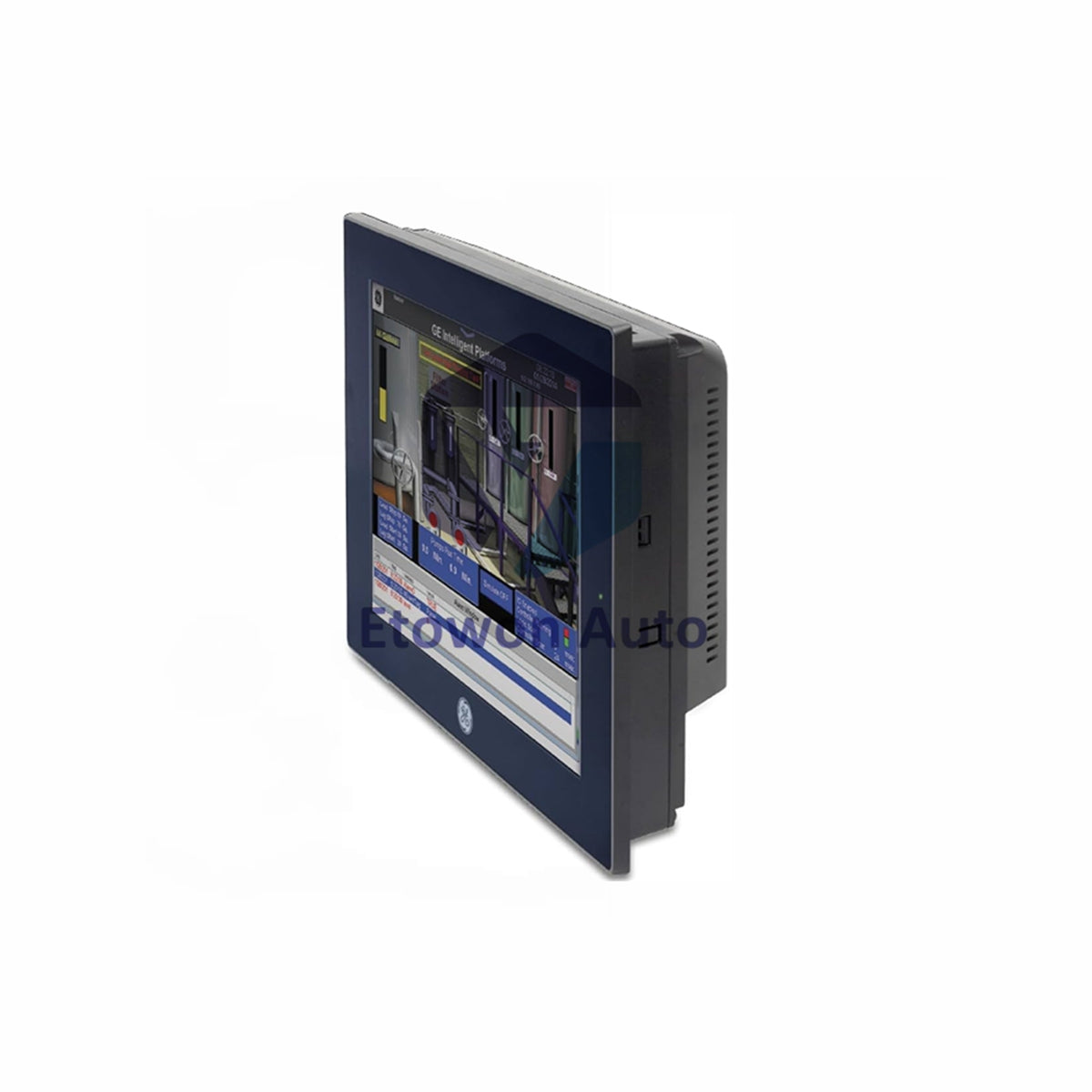

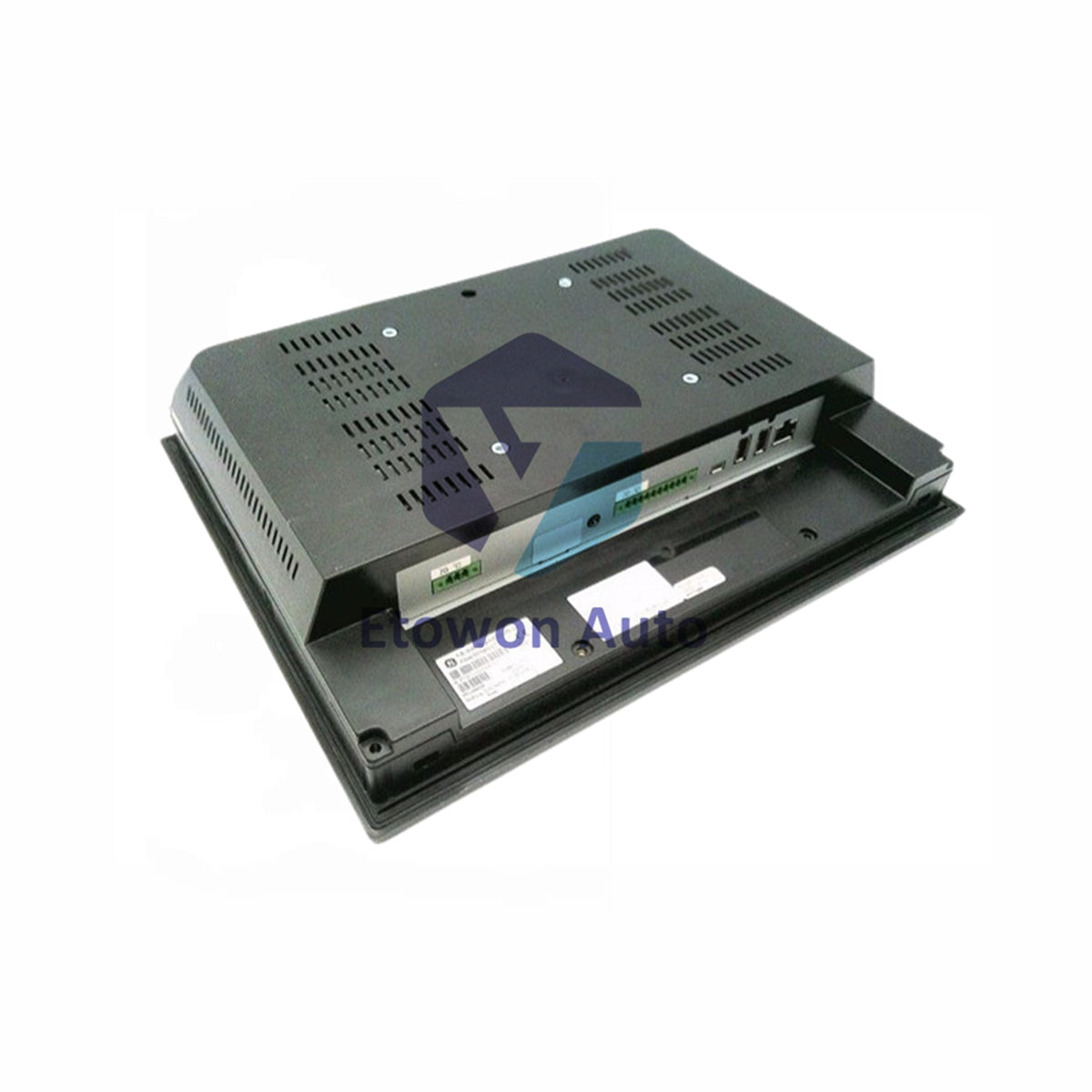

GE IC755CKS15CDMEP QuickPanel 15-Inch Display Module

Skladda bar (15 sany), ibermek üçin taýýar

  • Manufacturer: General Electric

  • Product No.: IC755CKS15CDMEP

  • Product Type: Operator Interface

  • Product Origin: USA

  • Payment:T/T, Western Union

  • Weight: 4500g

  • Shipping port: Xiamen

  • Warranty: 12 months

30 günlük yzyna gaýtaryş syýasaty · 12 aýlyk kepillik
  • Çalt eltip berme
  • 24/7 goldaw
  • Hil üpjünçiligi

Düşündiriş

Product Overview

The GE IC755CKS15CDMEP is an advanced QuickPanel+ 15-inch industrial operator terminal engineered for high-performance human-machine interface (HMI), PLC control, and real-time data processing. Equipped with integrated RSTi-EP Modbus TCP communications, this micro-computer terminal delivers versatile monitoring and supervisory control across complex industrial automation environments.

Featuring a 15-inch TFT LCD projective capacitive multi-touch screen, the IC755CKS15CDMEP is powered by a high-speed 1 GHz ARM CPU with an integrated GPU, Level 1/Level 2 caches, and a NEON SIMD media accelerator. Weighing approximately 4.50 kg (9.92 lbs) (with an estimated shipping weight of 14.54 kg / 32.06 lbs including specialized protective packaging), this terminal features panel mounting and VESA 100 mounting options, fully compliant with UL, CE, IP65F, FCC, and RoHS standards.

Core Technical Advantages

  • High-Resolution Multi-Touch Display: Features a 15-inch projective capacitive TFT LCD screen supporting multi-touch control for intuitive operator navigation.
  • Powerful Processing Architecture: Built with a 1 GHz ARM CPU with an integrated GPU, floating-point coprocessor, and media accelerator for rapid control execution.
  • Integrated RSTi-EP Modbus TCP: Native support for RSTi-EP Modbus TCP enables seamless connectivity and data exchange across industrial networks.
  • Flexible Installation Options: Supports standard panel mounting via a 379 x 305 mm cutout or mounting via a VESA 100 arm.

Technical Specifications

Parameter Specification Details
Brand / Manufacturer GE / GE Fanuc
Full Catalog Part Number IC755CKS15CDMEP
Product Line QuickPanel+ Series
Product Type QuickPanel+ with RSTi-EP Modbus TCP
Display Size & Type 15-Inch TFT LCD, Projective Capacitive Multi-Touch
Processor & Speed 1 GHz ARM CPU with Integrated GPU & NEON SIMD Accelerator
System Memory 1 GB SDRAM, 512 MB NAND NVRAM, 512 KB SRAM
Input Voltage & Current 12/24 V DC (2.5 A @ 12 V DC / 1.25 A @ 24 V DC)
Peak Power Consumption 30 Watts
Communication Interfaces 2x FastEthernet, 3x USB, 2x Serial Ports, 1x 3.5mm Audio Mic-In
Overall Dimensions 399 x 323 x 70 mm
Panel Cutout Dimensions 379 x 305 mm
Operating / Storage Temp 0°C to 55°C (Operating) | -10°C to 60°C (Storage)
Unit / Shipping Weight Net Unit: ~4.5 kg (9.9 lbs) | Gross Shipping: 14.54 kg (32.06 lbs)

Installation & Handling Guidelines

  • Panel Mounting Cutout Setup: Prepare an enclosure panel opening measuring exactly 379 x 305 mm. Use the supplied mounting gasket and brackets to secure an IP65F-rated front seal.
  • VESA Mounting Compatibility: For arm-mounted setups, attach standard VESA 100 mounting hardware directly to the rear mounting holes.
  • Power Supply Wiring: Connect a clean 12 V DC (min. 2.5 A) or 24 V DC (min. 1.25 A) power supply. Ensure proper earth grounding to prevent electrical noise on serial and Ethernet lines.

Technical FAQs

Q1: What communication protocols does the GE IC755CKS15CDMEP terminal support?
A1: It supports RSTi-EP Modbus TCP via its dual FastEthernet ports alongside serial interfaces.

Q2: What is the required cutout size for panel mounting this 15-inch QuickPanel+ terminal?
A2: The required panel cutout dimensions are 379 x 305 mm.

Q3: How is cooling managed on the GE IC755CKS15CDMEP operator interface?
A3: The unit relies on natural convection cooling within the 0 to 55°C operating range.
