IC755CBS06RDA

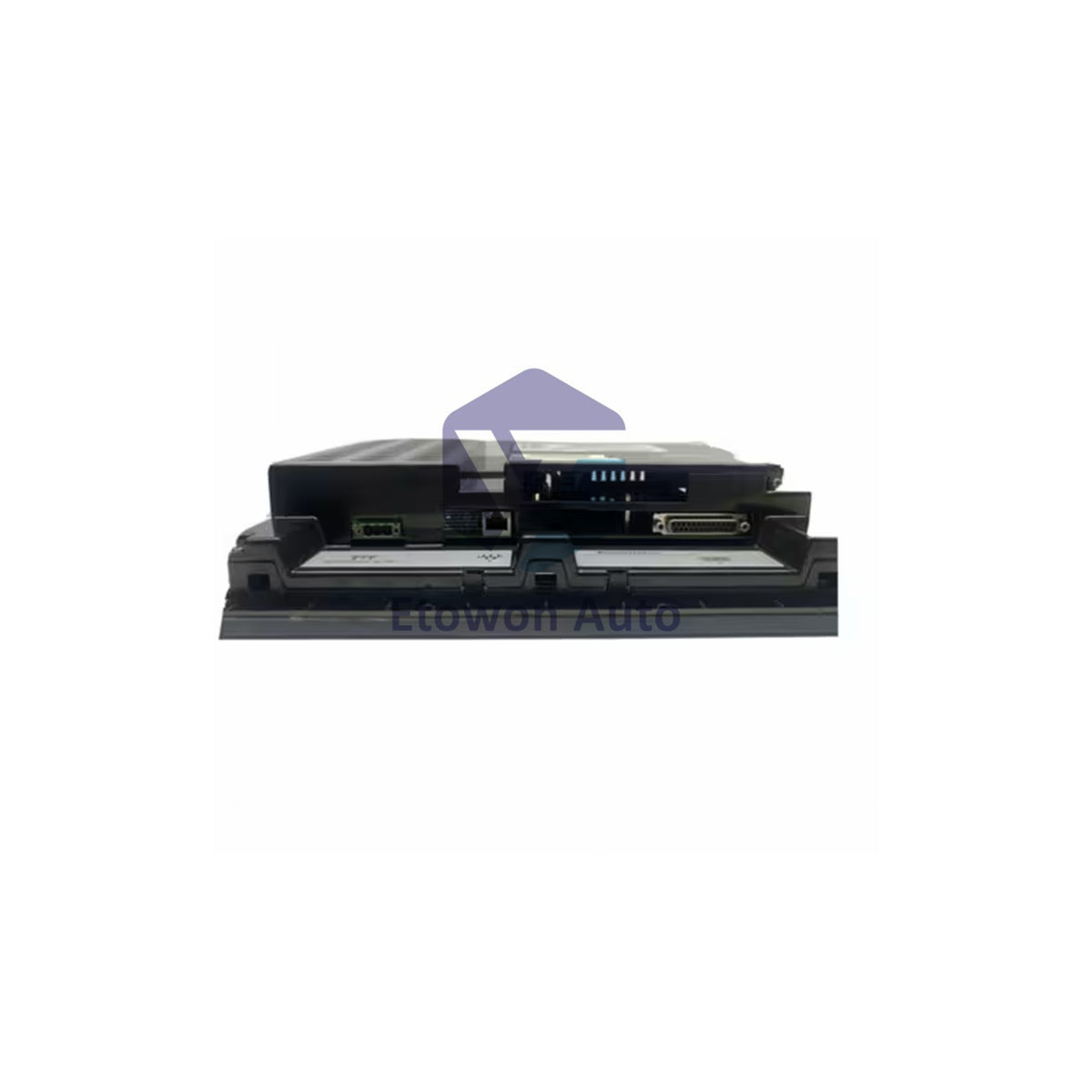

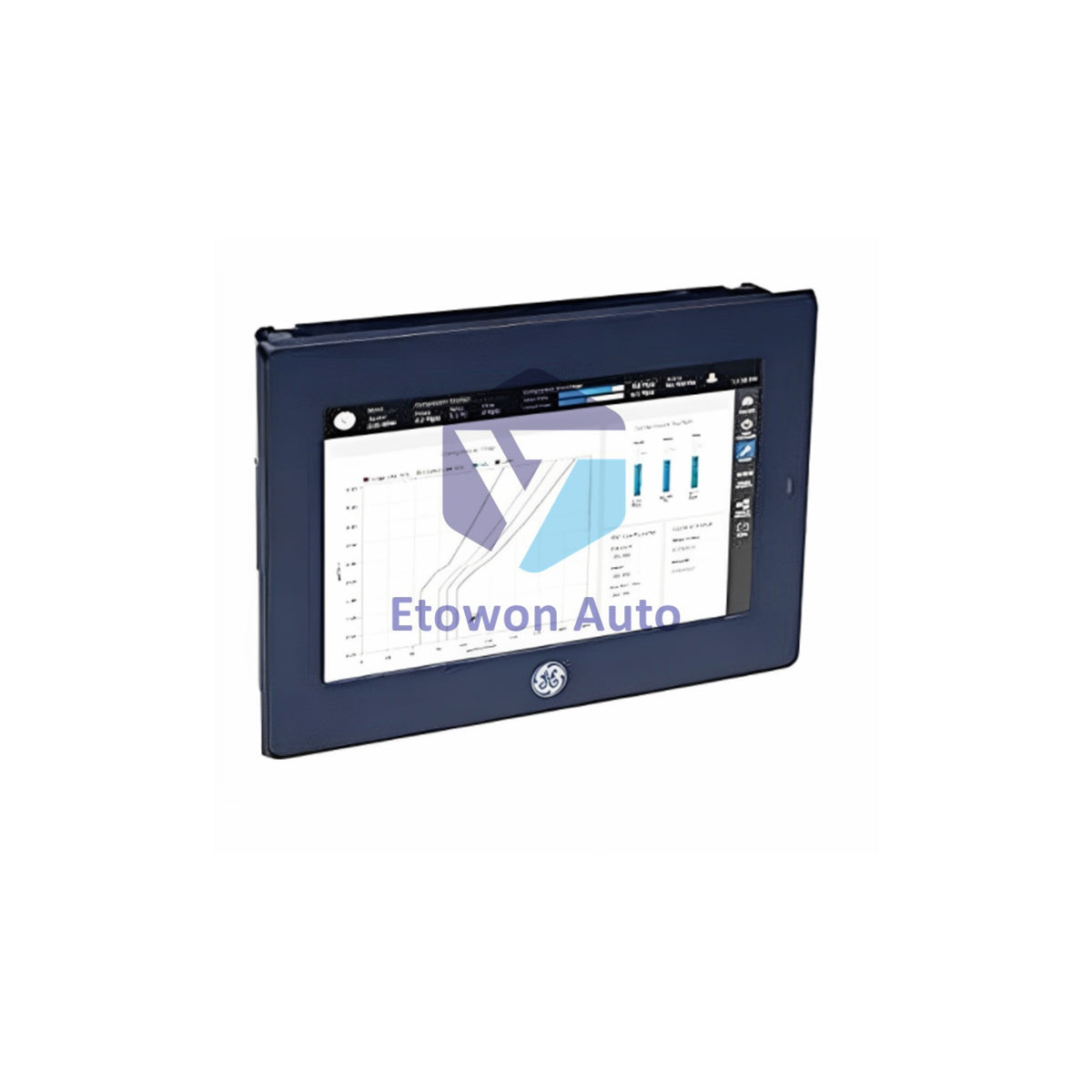

GE Fanuc IC755CBS06RDA QuickPanel 6-Inch Touchscreen Terminal

Skladda bar (12 sany), ibermek üçin taýýar

  • Manufacturer: General Electric

  • Product No.: IC755CBS06RDA

  • Product Type: Operator Interface

  • Product Origin: USA

  • Payment:T/T, Western Union

  • Weight: 700g

  • Shipping port: Xiamen

  • Warranty: 12 months

30 günlük yzyna gaýtaryş syýasaty · 12 aýlyk kepillik
  • Çalt eltip berme
  • 24/7 goldaw
  • Hil üpjünçiligi

Düşündiriş

Product Overview

The GE Fanuc IC755CBS06RDA is a high-performance QuickPanel industrial operator terminal designed for real-time visualization and process control. Powered by a Freescale i.MX5351 ARM Cortex A8 microprocessor clocked at 1.0 GHz, this unit runs on Windows Embedded Compact 7. It features a bright 5.7-inch color TFT LCD screen (320 x 240 QVGA resolution, 65,536 colors, 375 nits brightness) equipped with resistive touchscreen technology. Housed in a compact enclosure measuring 192 x 137 x 36 mm and weighing approximately 0.70 kg (1.54 lbs), the IC755CBS06RDA includes 512 MB RAM, 256 MB flash memory, 512 KB SRAM, 24VDC power input, and comprehensive connectivity ports (Ethernet, RS-232, USB, SD card slot, audio line-out/mic-in).

Key Advantages

  • Fast ARM Processing: Powered by a 1.0 GHz ARM Cortex A8 processor for rapid graphics rendering and smooth HMI responsiveness.
  • Lightweight & Compact Mounting: Weighs only 0.70 kg (1.54 lbs) with support for standard panel cutout (183.5 x 128.5 mm) or VESA 75 x 75 mm mounting bases.
  • Rich Display & Touch Functionality: High-brightness 375 nits TFT display supporting 65,536 colors and durable resistive touch control.
  • Extensive Communication Ports: Includes 10/100BaseT Ethernet, RS-232 serial port, 3 USB ports (2 host, 1 device), SD card expansion slot, and integrated audio ports.
  • Energy Efficient: Operates on standard 24V DC power with low maximum power consumption of only 15 Watts.

Technical Specifications

Part Number / Order Code IC755CBS06RDA
Manufacturer / Product Family GE Fanuc / QuickPanel
Display Size & Type 5.7 Inch (6-Class) TFT LCD Color Touchscreen
Resolution & Brightness 320 x 240 QVGA / 65,536 Colors / 375 nits
Processor & OS Freescale i.MX5351 ARM Cortex A8 (1 GHz) / Windows EC7
Memory Capacity 512 MB RAM, 256 MB Flash, 512 KB SRAM
Input Power & Consumption 24V DC (Rated) / 15 W Maximum Power Input
Communication Interfaces 1 x 10/100 Ethernet, 1 x RS-232, 3 x USB (2 Host / 1 Device), SD Slot
Net Weight 0.70 kg (1.54 lbs)
Dimensions (W x H x D) 192 x 137 x 36 mm (Panel Cutout: 183.5 x 128.5 mm)

Frequently Asked Questions

Q1: What is the weight of the IC755CBS06RDA HMI?

A1: It has a net weight of 0.70 kg (1.54 lbs).

Q2: What display resolution does this terminal support?

A2: It features a 5.7 inch QVGA display with 320 x 240 resolution.

Q3: What operating system powers this QuickPanel unit?

A3: It runs on Windows Embedded Compact 7.
