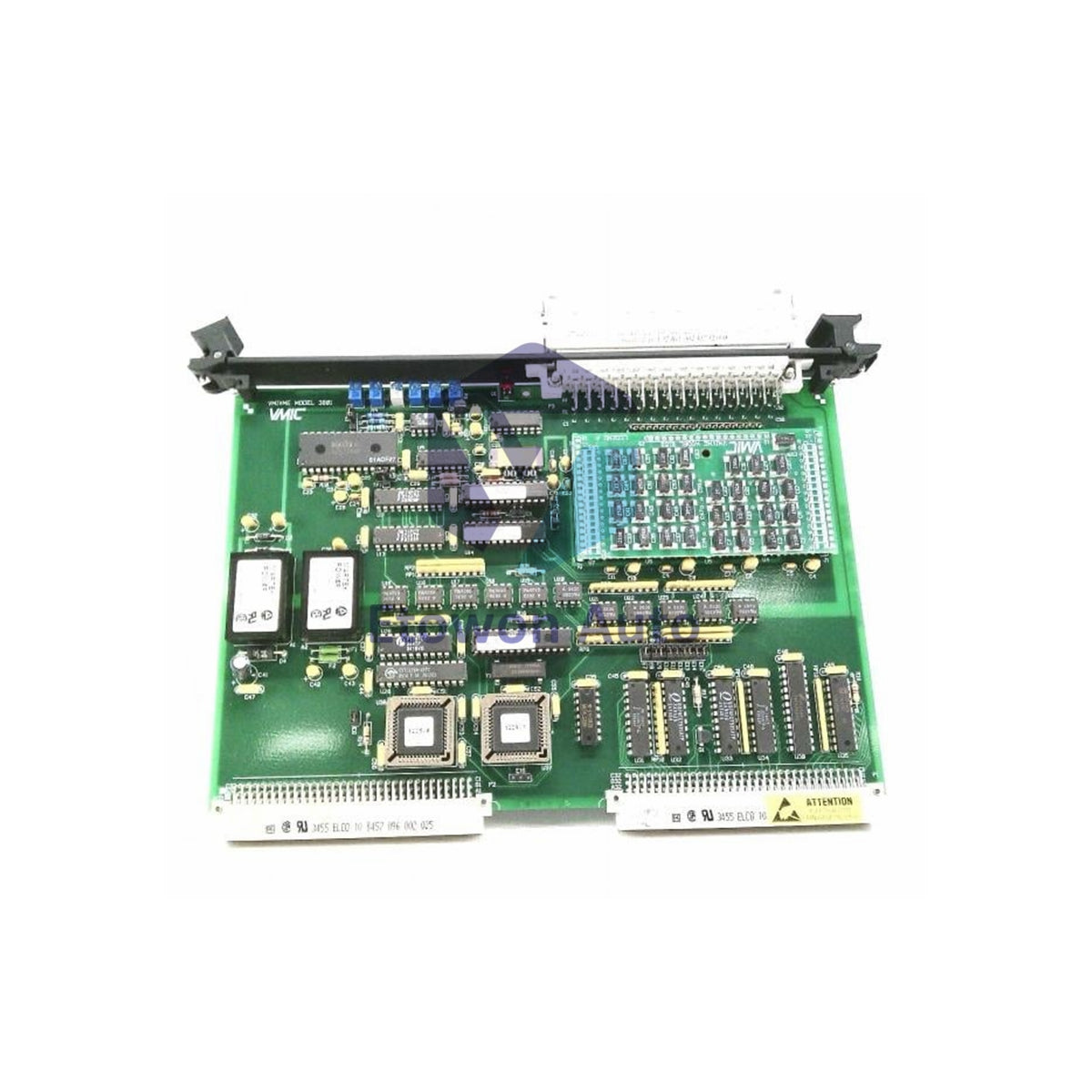

  • IC697VAL318-1

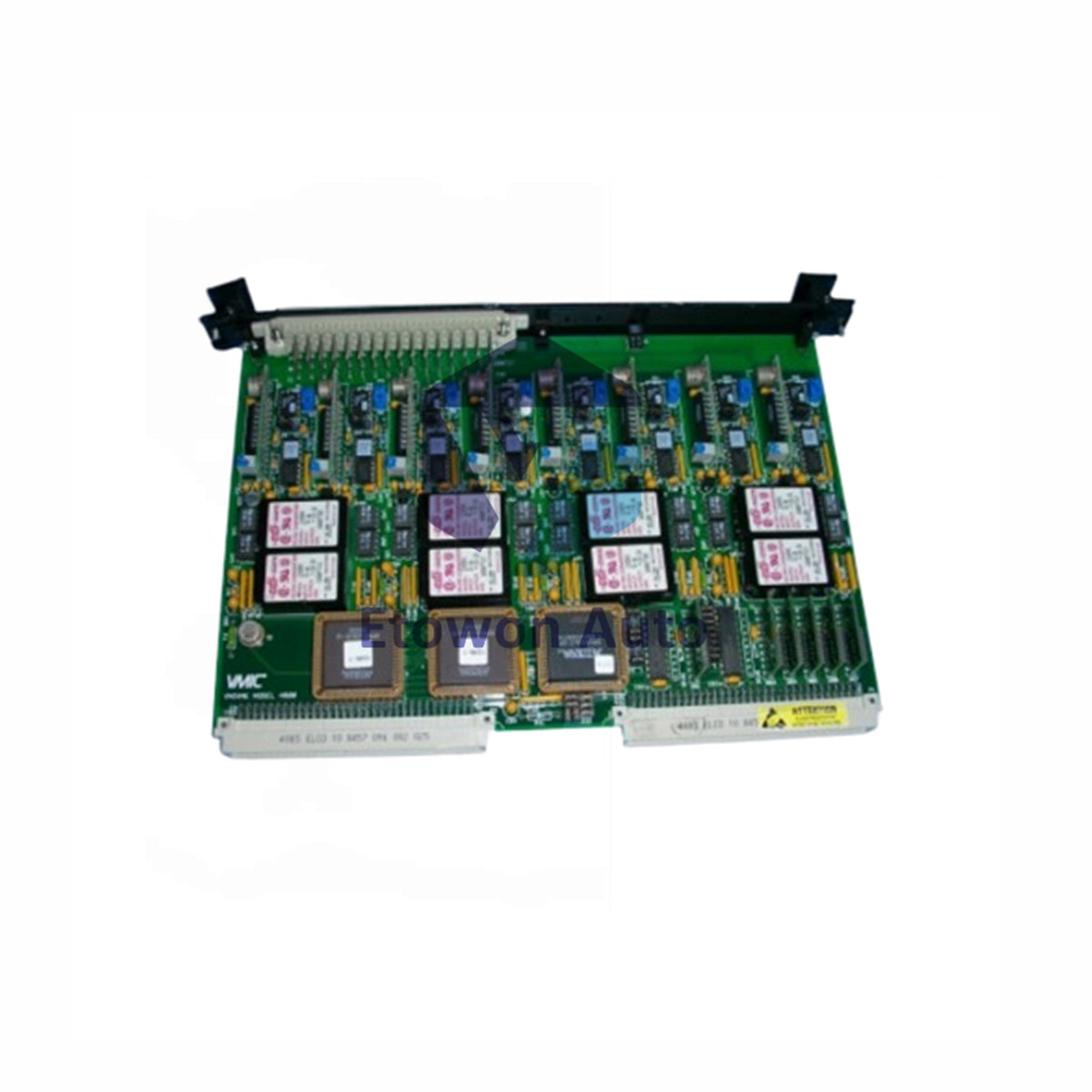

  • IC697VAL318-2
1 3

IC697VAL318

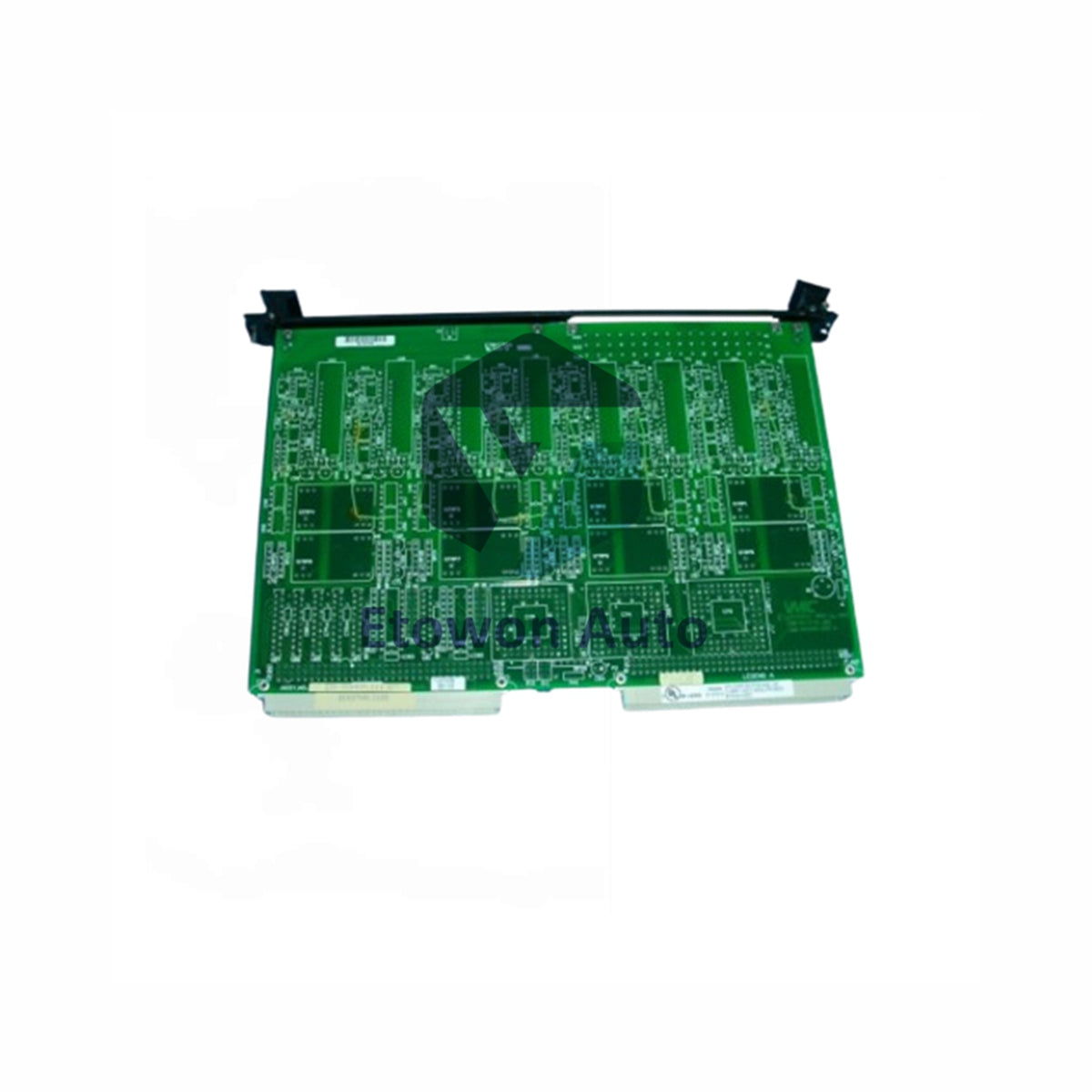

GE Fanuc IC697VAL318 Series 90-70 Analog Input Module 24V DC

Skladda bar (12 sany), ibermek üçin taýýar

  • Manufacturer: General Electric

  • Product No.: IC697VAL318

  • Product Type: Analog Input Module

  • Product Origin: USA

  • Payment:T/T, Western Union

  • Weight: 450g

  • Shipping port: Xiamen

  • Warranty: 12 months

30 günlük yzyna gaýtaryş syýasaty · 12 aýlyk kepillik
  • Çalt eltip berme
  • 24/7 goldaw
  • Hil üpjünçiligi

Düşündiriş

GE Fanuc Series 90-70 Analog Interface Module (IC697VAL318)

The GE Fanuc IC697VAL318 is a high-speed analog input/interface module designed for the Series 90-70 programmable logic controller (PLC) system. Operating on a 24 to 30 VDC power supply, this robust industrial module accepts both voltage and current signals with an input resistance of 10 kΩ and delivers precision conversion accuracy of ±0.1% of full scale. Weighing approximately 0.45 kg (1.0 lb), it provides high-speed data acquisition with a 200 µs response time and features built-in RS-232 and RS-485 communication interfaces running at 9600 bps for reliable system integration.

Key Performance Advantages

Provides rapid 200 µs signal response and high-precision signal conversion for real-time industrial monitoring and process automation. Built for harsh factory floor environments, it maintains high operational stability across temperatures from -10°C to 60°C and non-condensing relative humidity levels from 0% to 90%.

Technical Specifications

Manufacturer & Series GE Fanuc (Series 90-70)
Part / Catalog Number IC697VAL318
Input Signal & Resistance Voltage / Current Signals / 10k Ohm Input Resistance
Accuracy & Response Time ±0.1% of Full Scale / 200 µs Response Time
Power Requirements & Weight 24 - 30 VDC / Approx. 0.45 kg (1.0 lb)
Communication Interface RS-232 / RS-485 Interface (9600 bps Data Transfer Rate)
Operating Temperature -10°C to +60°C (14°F to 140°F)
Relative Humidity Rating 0% to 90% (Non-Condensing)

Installation & Maintenance Guidelines

  • Rack Installation: Align the module card edge with the designated slot in the Series 90-70 backplane chassis, pressing firmly into place until the card locks securely into the backplane connector.
  • Power & Signal Wiring: Connect the 24-30 VDC external supply line ensuring correct polarity. Route analog voltage/current input leads in shielded twisted-pair cables separate from high-voltage AC lines to prevent signal interference.
  • Serial Communication Setup: Configure RS-232 or RS-485 communication parameters to match the connected device at a default 9600 bps baud rate for seamless data exchange.

Frequently Asked Questions

Q1: Has EMC filter?
A1: N/A (PLC analog module).

Q2: Key feature vs PF523?
A2: ±0.1% accuracy & 200 µs response time.

Q3: Drives 3-phase motors?
A3: No, processes analog PLC signals.
