IC693CPU370

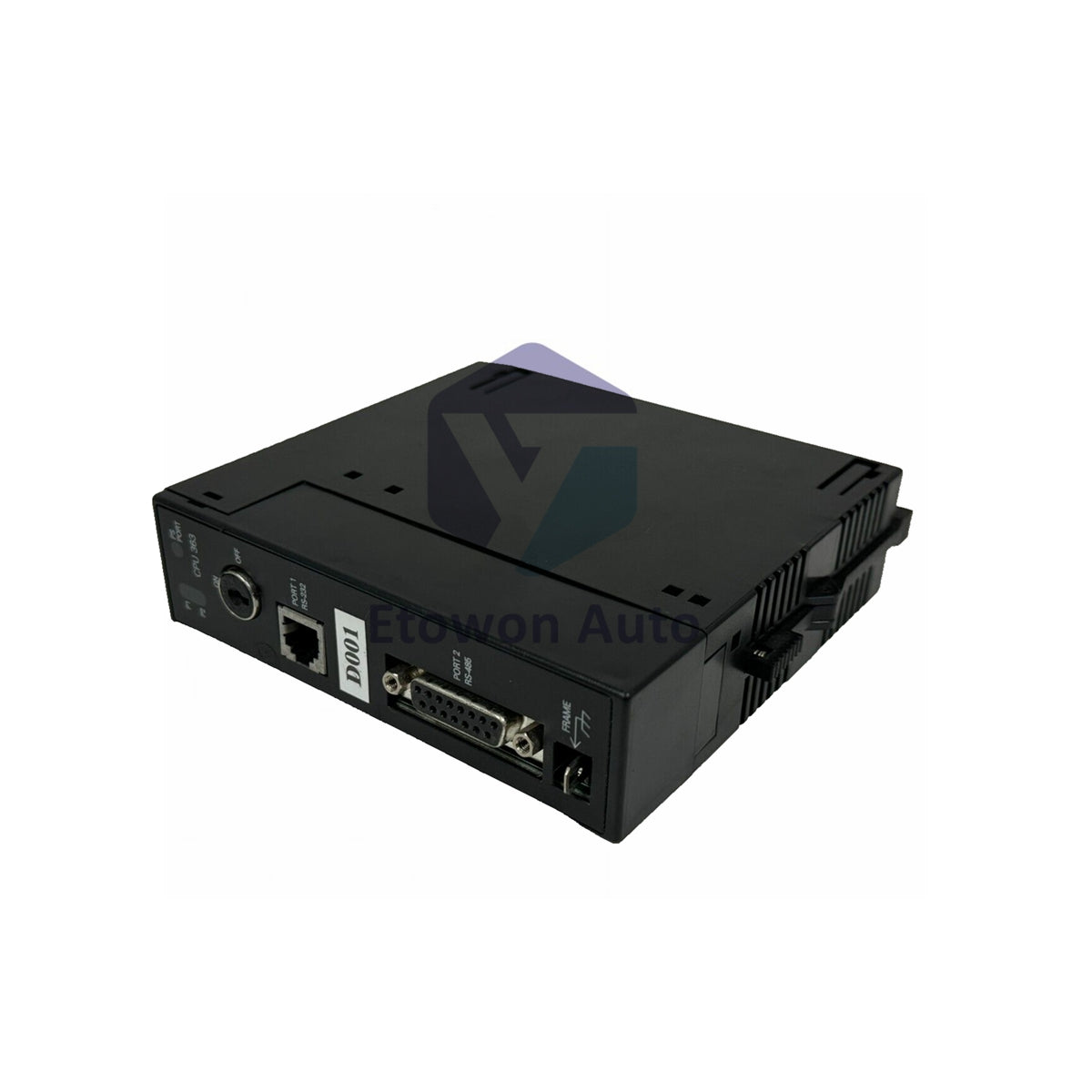

GE Fanuc IC693CPU370 CPU Module 133MHz 240KB 32-bit

Diňe 9 sany galdy

  • Manufacturer: General Electric

  • Product No.: IC693CPU370

  • Product Type: CPU Module

  • Product Origin: USA

  • Payment:T/T, Western Union

  • Weight: 500g

  • Shipping port: Xiamen

  • Warranty: 12 months

30 günlük yzyna gaýtaryş syýasaty · 12 aýlyk kepillik
  • Çalt eltip berme
  • 24/7 goldaw
  • Hil üpjünçiligi

Düşündiriş

GE Fanuc IC693CPU370 Series 90-30 CPU Module

The GE Fanuc IC693CPU370 is a 32-bit PLC CPU module for the Series 90-30 system. Powered by an 80386EX processor (AMD SC520) running at 133 MHz, this module delivers 240 KB of register memory and supports floating point math. It handles up to 4096 total I/O points, including 2048 analog I/O. Weighing approximately 0.5 kg (1.10 lbs), it consumes 7.4 W at 5 V DC.

Technical Specifications

Parameter Value
Manufacturer GE Fanuc
Series Series 90-30
Part Number IC693CPU370
System Type 32-bit PLC CPU
Processor Model 80386EX (AMD SC520)
Processor Speed 133 MHz
Register Memory 240 KB
Maximum Total I/O 4096 points
Analog I/O Capacity 2048 points
Floating Point Math Supported
Timers & Counters 2000 units
Internal Coils 3096 bits
Temporary Coils 256 bits
System Registers 28 words
Power Consumption 7.4 W @ 5 V DC
Battery-Backed Clock Included
Backup Battery Operation 30+ days data retention
Weight Approx. 0.5 kg (1.10 lbs)

Model Number Breakdown

  • IC693 – GE Fanuc Series 90-30 PLC Compatible
  • CPU – Central Processing Unit
  • 370 – 133 MHz, 240 KB, 80386EX Variant

Communication & Compatibility

  • Serial Ports: None on CPU (RS-485 available via power supply)
  • Ethernet Communication: Requires external Ethernet module
  • EZ Program Store Device: Requires Ethernet connection
  • Handheld Programmer: Not supported

Installation & Field Application Guide

  • Install the CPU module in slot 0 of the Series 90-30 rack. Ensure the backplane power supply provides 7.4 W minimum.
  • Connect RS-485 serial communication via the power supply connector for programming or HMI connection.
  • For Ethernet connectivity, install an external Ethernet module (e.g., IC693CMM321) in an adjacent slot.
  • Configure the CPU using GE Fanuc programming software. Set memory allocation, scan timing, and I/O mapping.

Why Choose the IC693CPU370

  • 133 MHz 80386EX processor delivers high-speed logic execution.
  • 240 KB register memory supports large control programs.
  • Supports up to 4096 total I/O and 2048 analog I/O points.
  • Battery-backed clock and 30+ day data retention ensure reliable operation.

Field Engineer FAQs

Q1: What is the scan time of the IC693CPU370?

A1: The typical scan time is 0.4 ms per 1K of logic, depending on program complexity and I/O configuration.

Q2: Can this CPU connect to an HMI without an Ethernet module?

A2: Yes, via the RS-485 port available through the power supply using GE Fanuc SNP or Modbus RTU protocols.

Q3: What type of battery is used for the clock and data retention?

A3: The IC693CPU370 uses a 3V lithium coin cell (replaceable) that provides over 30 days of data retention without external power.
