IC693BEM330

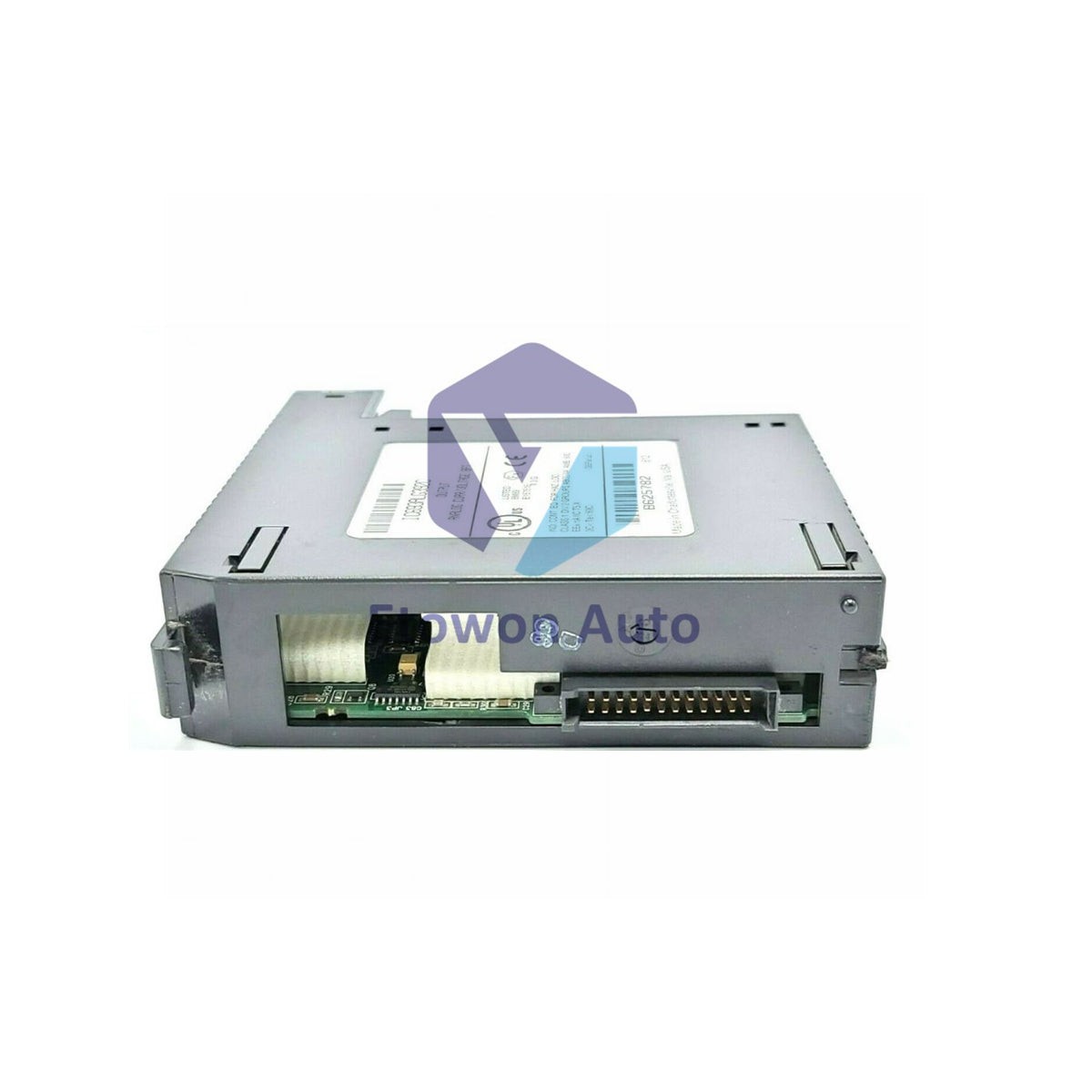

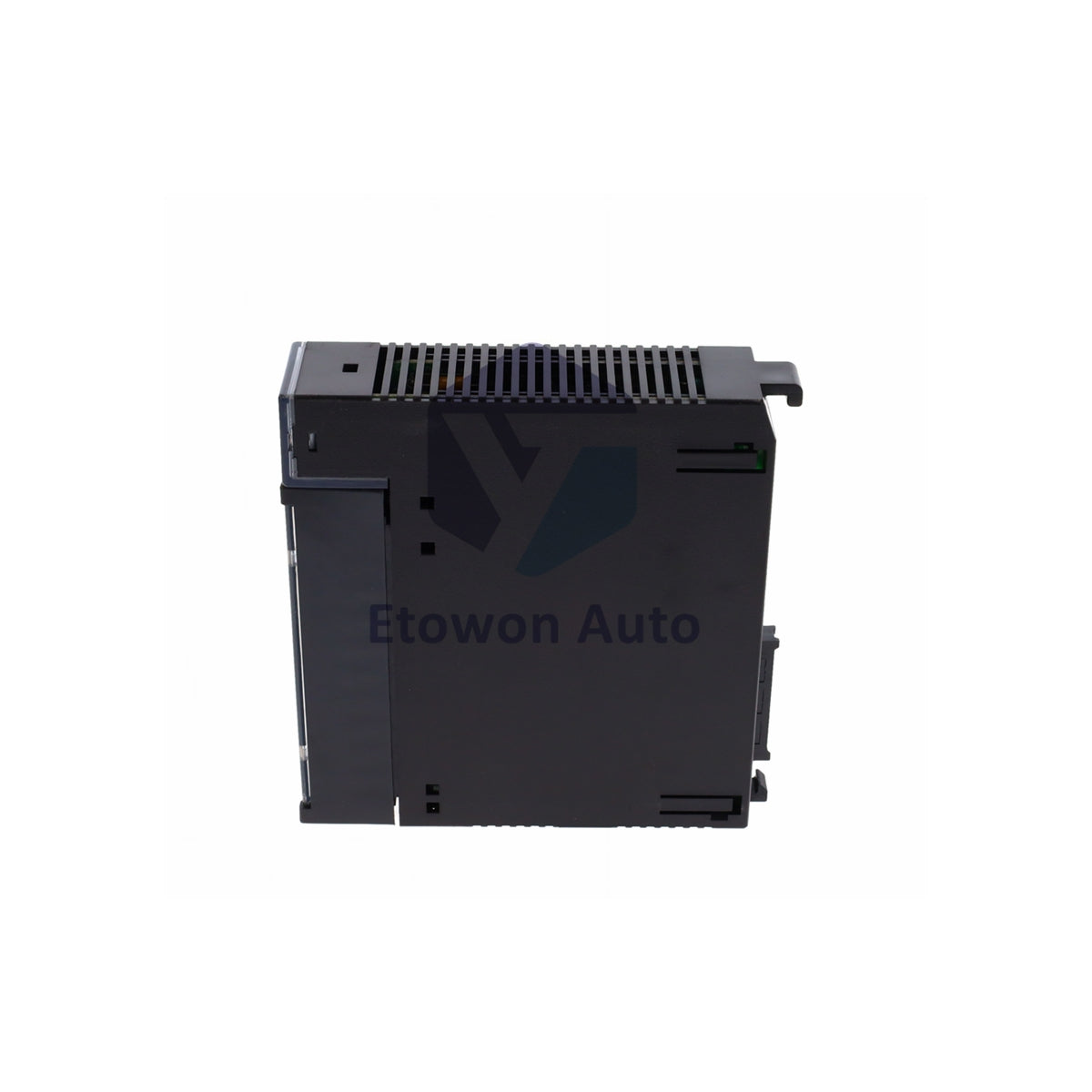

GE Fanuc IC693BEM330 Bus Interface Module Dual FIP

Diňe 3 sany galdy

  • Manufacturer: General Electric

  • Product No.: IC693BEM330

  • Product Type: Scanner Module

  • Product Origin: USA

  • Payment:T/T, Western Union

  • Weight: 210g

  • Shipping port: Xiamen

  • Warranty: 12 months

30 günlük yzyna gaýtaryş syýasaty · 12 aýlyk kepillik
  • Çalt eltip berme
  • 24/7 goldaw
  • Hil üpjünçiligi

Düşündiriş

GE Fanuc IC693BEM330 Bus Interface Module

Product Overview

The GE Fanuc IC693BEM330 is a dual FIP channel bus interface module for the Series 90-30 PLC platform. It occupies a single slot (slot 1 on CPU backplane) and supports up to 19 remote modules across two baseplates. With a 1 MHz data rate per channel and scan cycles under 1 ms, this module delivers high-speed communication for distributed I/O applications. Weight is 210 g.

Specifications

Parameter Value
Brand GE Fanuc
Model IC693BEM330
Product Type Bus Interface Module
Suffix Design BEM330 indicates dual FIP channel design
Compatibility GE Fanuc Series 90-30 PLCs
I/O Capacity Up to 19 remote modules on 2 baseplates
Slots Required 1 (slot 1 on CPU backplane)
Communication Ports 2 × 9-pin D-shell (FIP World FIP)
Data Rate 1 MHz per channel (1,000,000 bps)
Max Cable Length 50 ft (15.2 m) between baseplates
Scan Cycle < 1 ms
Network Jitter < 100 ns
Slave Drops per Channel Up to 16
I/O Throughput 1,500 I/O points/sec
Status LEDs CD1, CD2, TEN1, TEN2
Power Draw 609 mA @ 5 Vdc
Operating Temperature 0 to 60 °C
Humidity 5-95 % RH
MTBF 60,000 hours
Weight 210 g

Key Features

  • Dual FIP channel design for redundant communication paths
  • Single slot installation in slot 1 of CPU backplane
  • 1 MHz data rate per channel for high-speed I/O scanning
  • Scan cycles under 1 ms with network jitter below 100 ns
  • Supports up to 16 slave drops per channel
  • 1,500 I/O points per second throughput
  • Field-upgradeable firmware via handheld tool
  • Status LEDs for carrier detection and transmit enable
  • 60,000 hours MTBF for reliable operation

Installation Notes

Install the module in slot 1 of the CPU backplane. Connect FIP network cables to the two 9-pin D-shell ports. Maximum cable extension between baseplates is 50 ft (15.2 m). Ensure proper termination for FIP World FIP networks. Monitor status LEDs CD1/CD2 and TEN1/TEN2 for network activity.

FAQs

Q1: What does the BEM330 suffix indicate?

A1: The BEM330 suffix identifies this as a dual FIP channel bus interface module for Series 90-30 systems.

Q2: How many remote modules can this support?

A2: Up to 19 remote modules across two baseplates.

Q3: What is the maximum cable distance between baseplates?

A3: Maximum extension is 50 ft (15.2 m) between baseplates.
