  • PR6423/000-030-CN-2
1 3

PR6423/000-030-CN

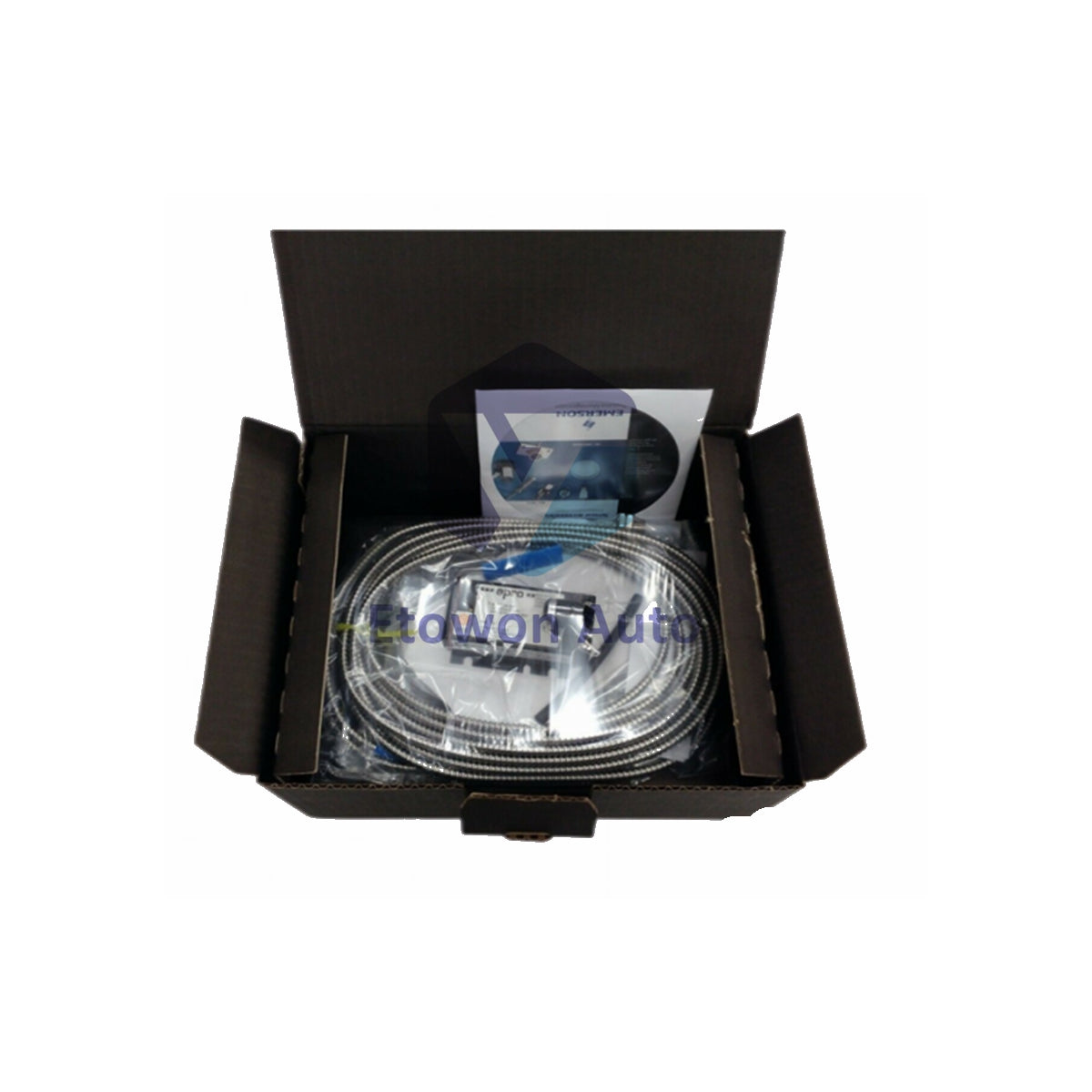

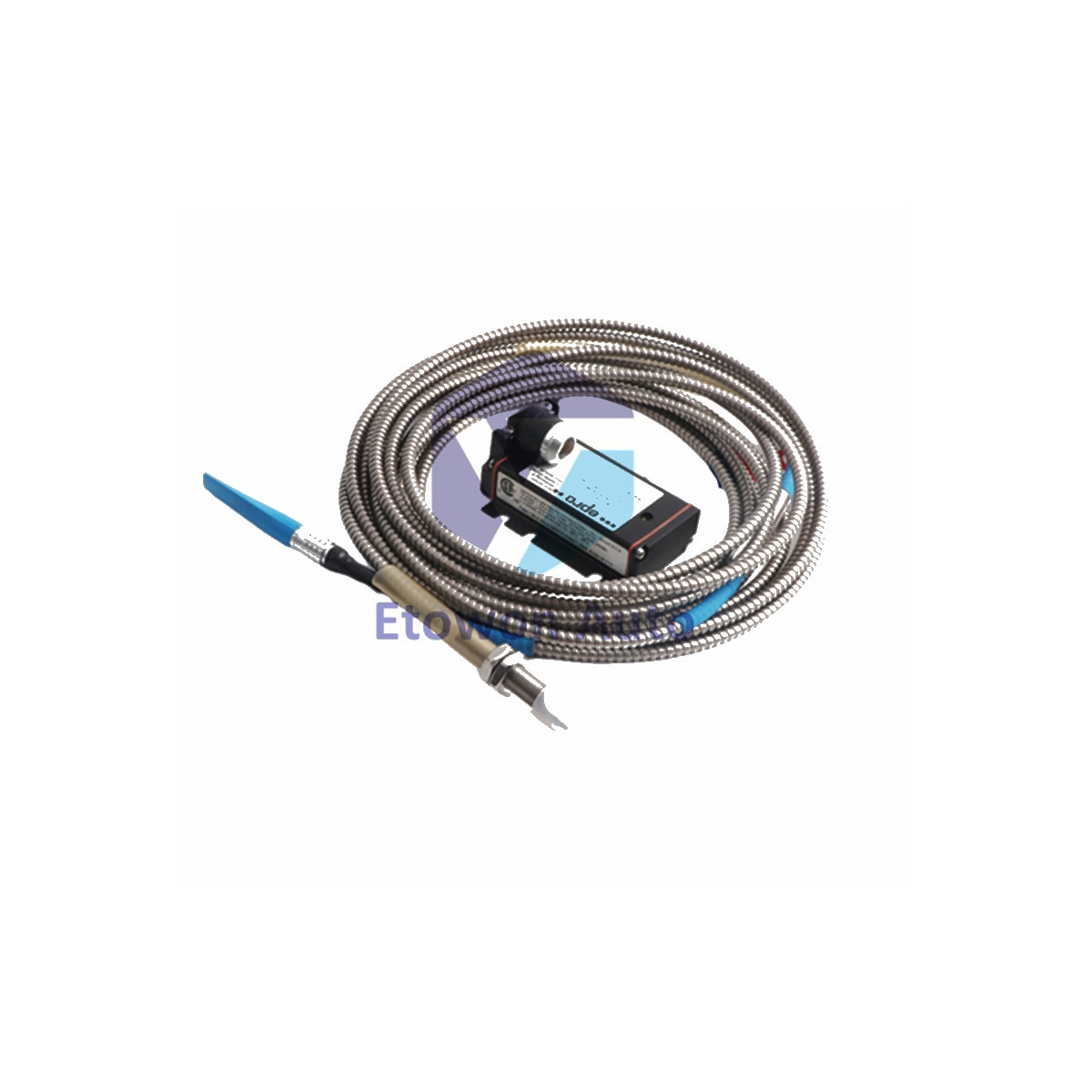

Emerson PR6423/000-030-CN 8mm Eddy Current Sensor 2mm

Skladda bar (14 sany), ibermek üçin taýýar

  • Manufacturer: Emerson

  • Product No.: PR6423/000-030-CN

  • Product Type: Eddy Current Sensor

  • Product Origin: USA

  • Payment:T/T, Western Union

  • Weight: 100g

  • Shipping port: Xiamen

  • Warranty: 12 months

30 günlük yzyna gaýtaryş syýasaty · 12 aýlyk kepillik
  • Çalt eltip berme
  • 24/7 goldaw
  • Hil üpjünçiligi

Düşündiriş

Technical Specifications

Manufacturer / Brand Emerson
Product Line PR6423 Series 8mm Eddy Current Sensors
Part Number PR6423/000-030-CN
Tip Diameter & Thread 8 mm PEEK Sensor Tip | M10 x 1 Case Thread (25 mm length)
Linear Measurement Range 2 mm (80 mils) with 0.5 mm (20 mils) Initial Air Gap
Incremental Scale Factor (ISF) 8 V/mm (203.2 mV/mil) ± 5% (0°C to 45°C)
Cable Length & Materials 8.0 m PTFE Cable with Nickel-Plated Brass Connector (With Adapter Plug)
Protection & Approvals IP66 (IEC 60529) | ATEX, IECEx, CSA (Intrinsic Safety ia / Non-sparking nA)
Operating Temperature Sensor incl. 1m cable: -35°C to +180°C | Cable & Connector: -35°C to +150°C
Weight Approx. 100 g (3.53 oz) with 1m cable

Product Overview

The Emerson PR6423/000-030-CN is an 8mm non-contact eddy current sensor engineered for critical shaft displacement, position, eccentricity, and speed measurement in turbomachinery. Weighing approximately 100 g (3.53 oz) with 1m cable, this high-precision probe features an M10x1 stainless steel body, an 8.0 m PTFE cable, and an adapter plug. It delivers an 8 V/mm scale factor across a 2 mm linear measurement range for gas/steam turbines, compressors, and large pumps in hazardous areas.

Key Features

  • High-Sensitivity Measurement: Provides an 8 V/mm (203.2 mV/mil) incremental scale factor across a 2 mm linear range.
  • Extended 8.0 m Cable: Integrated 8.0 m PTFE cable with a nickel-plated brass connector and adapter plug simplifies cabinet connection.
  • Robust IP66 Construction: Durable PEEK tip and stainless steel housing operate reliably in temperatures up to +180°C.
  • Global Hazardous Area Certifications: Certified with ATEX, IECEx, and CSA approvals for Intrinsic Safety (ia) and Non-sparking (nA) environments.

Installation Essentials

Mount the PR6423/000-030-CN using the M10x1 threaded case (25 mm thread length) and set the initial air gap to 0.5 mm (20 mils). Ensure target shaft diameter is at least 25 mm (0.79 in) for standard 42CrMo4 steel targets. Maintain proper clearance to avoid side-wall interference and verify temperature limits according to hazardous location classifications.

Technical FAQs

Q1: What does the ordering code "PR6423/000-030-CN" signify?
A1: PR6423/00 (8mm sensor), A:0 (25mm thread), B:0 (with adapter plug), C:3 (8.0m cable), D:CN (country-specific approval).

Q2: What is the linear measurement range and scale factor of this sensor?
A2: It offers a 2 mm (80 mils) linear range starting at a 0.5 mm air gap, with a scale factor of 8 V/mm (203.2 mV/mil).

Q3: What ambient temperature limits apply to the sensor probe and cable?
A3: The sensor tip and initial cable section withstand -35°C to +180°C, while the main cable and connector are rated for -35°C to +150°C.
