CC-TUIO31

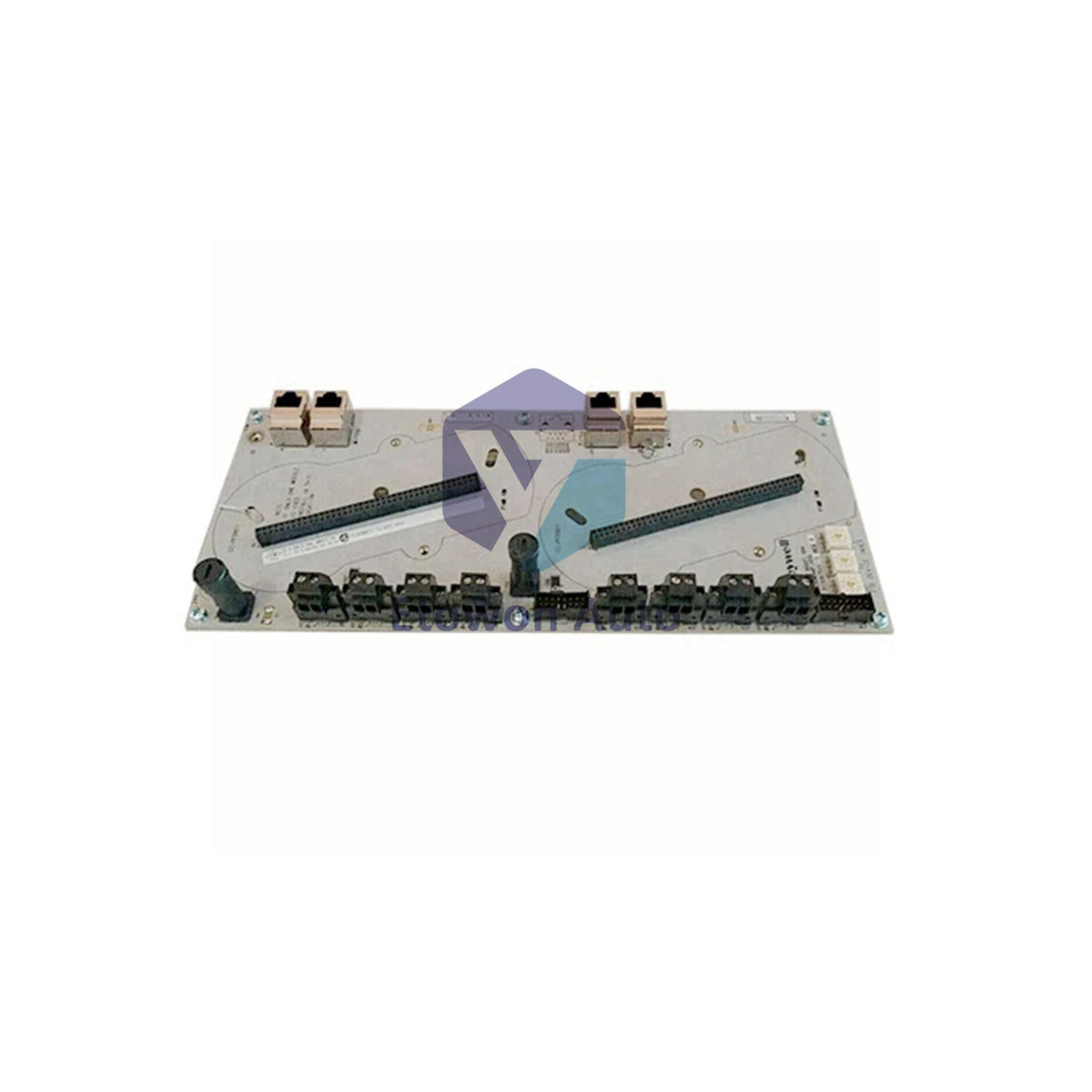

CC-TUIO31 Honeywell Non Redundant IOTA Module

Diňe 7 sany galdy

  • Manufacturer: Honeywell

  • Product No.: CC-TUIO31

  • Product Type: Digital Input Module

  • Product Origin: USA

  • Payment:T/T, Western Union

  • Weight: 500g

  • Shipping port: Xiamen

  • Warranty: 12 months

30 günlük yzyna gaýtaryş syýasaty · 12 aýlyk kepillik
  • Çalt eltip berme
  • 24/7 goldaw
  • Hil üpjünçiligi

Düşündiriş

Honeywell CC-TUIO31 Non Redundant IOTA Module

The Honeywell CC-TUIO31 is a non-redundant IOTA (I/O Termination Assembly) module designed for Honeywell Experion systems. It provides 32 digital input points with Modbus TCP/IP communication via Ethernet. This module delivers reliable field signal termination for distributed control applications in process industries. Weighing 0.5 kg (1.10 lbs), it offers a compact solution for digital input expansion.

Technical Specifications

Parameter Value
Manufacturer Honeywell
Model CC-TUIO31
Product Type IOTA Module (Non Redundant)
Weight 0.5 kg (1.10 lbs)
Input Points 32 Digital
Operating Temperature -20°C to +75°C (-4°F to +167°F)
Storage Temperature -40°C to +85°C (-40°F to +185°F)
Voltage Rating 24 V DC ± 10%
Current Draw 3.0 W
Protocol Modbus TCP/IP
Connection Type Ethernet
Surge Protection Yes
Short Circuit Protection Yes
Status Indicators LED
Self-Testing Automatic

Model Number Breakdown

  • CC – Series Code
  • TUIO – Termination Unit I/O
  • 31 – 32 Digital Inputs, Modbus TCP/IP

Installation & Field Application Guide

  • Mount the IOTA module securely in the control cabinet. Allow adequate clearance for cable routing and airflow.
  • Connect the 24 V DC power supply with ±10% tolerance. The module draws 3.0W; size the power supply accordingly.
  • Wire digital field devices to the 32 input terminals. Each input accepts dry contact or 24V DC sourcing signals.
  • Configure the Ethernet connection for Modbus TCP/IP communication. Assign a static IP address per plant network standards.

Why Choose the CC-TUIO31

  • 32 digital inputs consolidate field wiring and reduce cabinet space requirements.
  • Modbus TCP/IP over Ethernet enables seamless integration with DCS and SCADA systems.
  • Built-in surge and short circuit protection safeguard the module from field wiring faults.
  • Automatic self-testing and LED status indicators simplify troubleshooting and maintenance.

Field Engineer FAQs

Q1: What types of field devices can connect to the CC-TUIO31 inputs?

A1: The module accepts dry contact switches, proximity sensors, push buttons, and 24V DC sourcing devices. Each input is isolated and protects against reverse polarity.

Q2: Can this module be used in redundant configurations?

A2: No, the CC-TUIO31 is explicitly designated as non-redundant. For redundant applications, use the CC-TUIO41 series modules.

Q3: How do I verify Modbus communication after installation?

A3: Ping the assigned IP address from a workstation. Use a Modbus scanner tool to read the input register map. Confirm the module responds with valid data.
