IC697BEM711

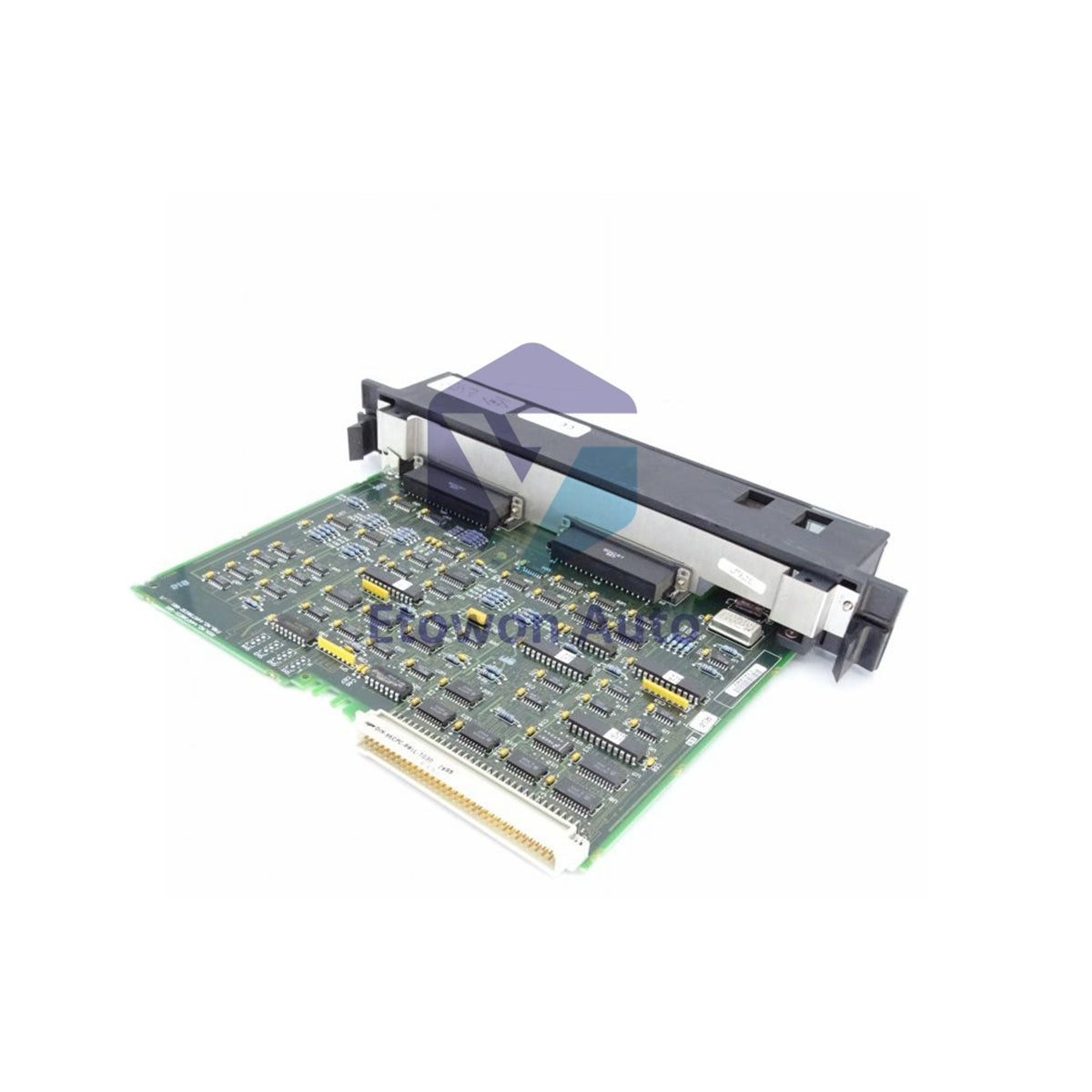

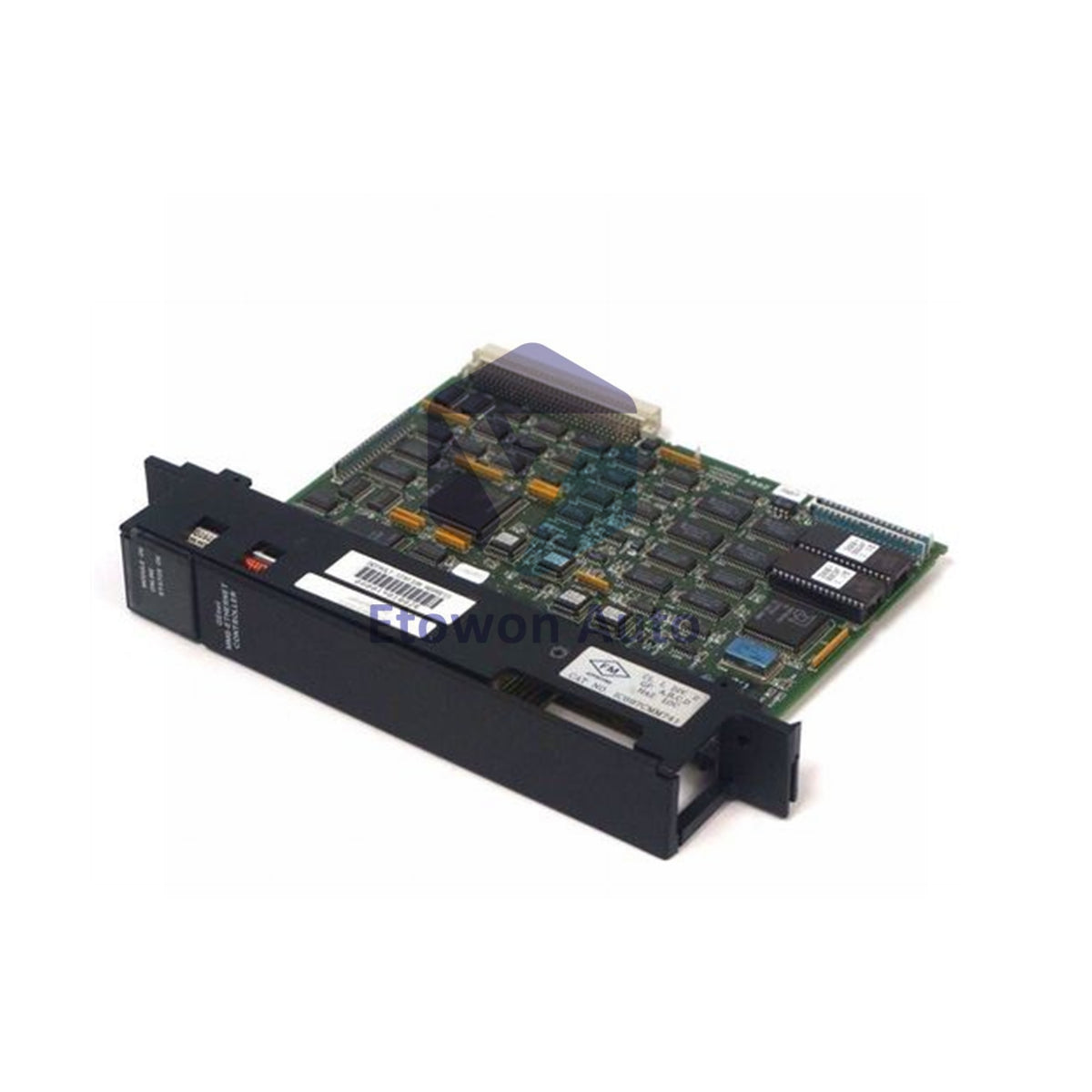

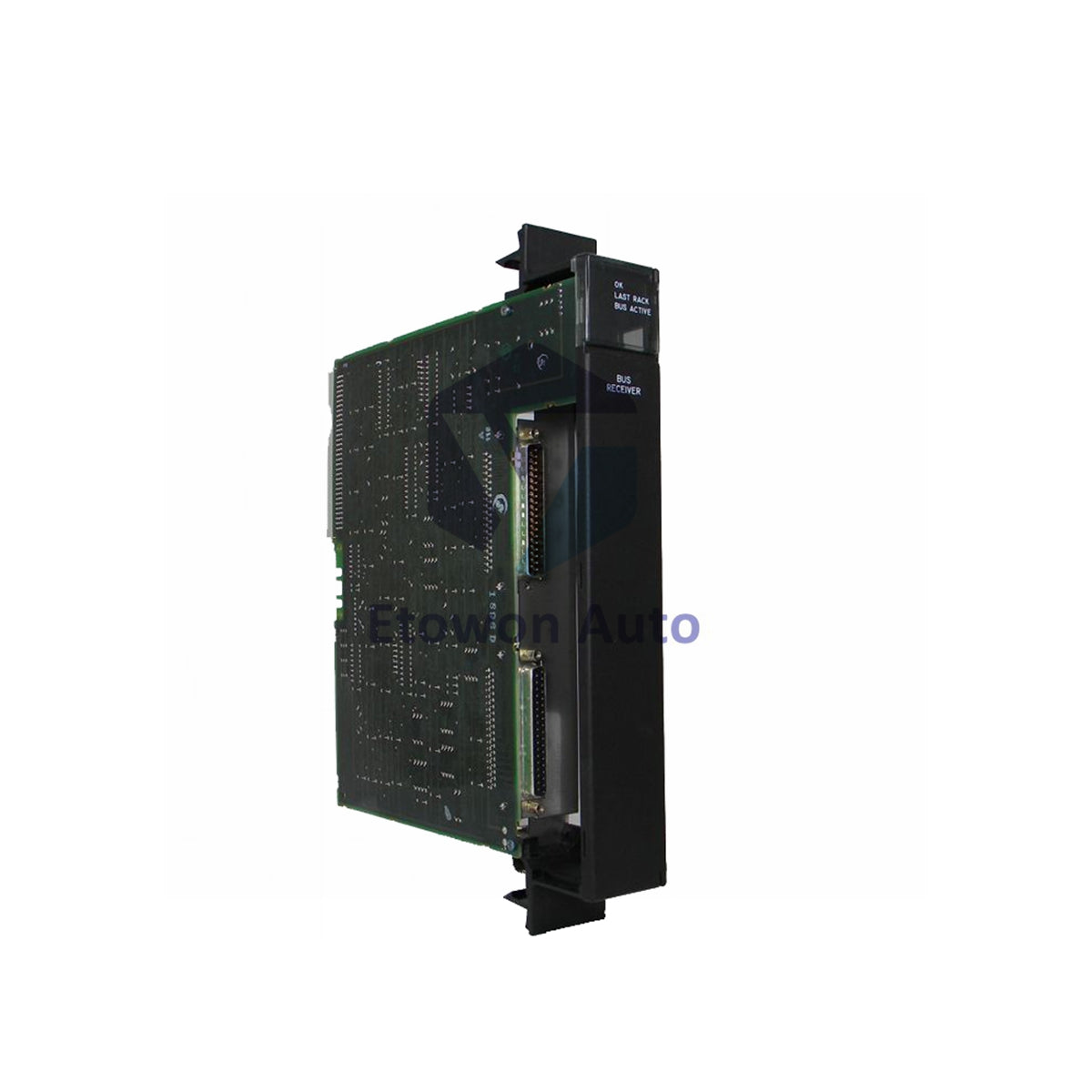

Bus Receiver Module IC697BEM711 Series 90-70 GE Fanuc

Skladda bar (25 sany), ibermek üçin taýýar

  • Manufacturer: General Electric

  • Product No.: IC697BEM711

  • Product Type: Bus Receiver Module

  • Product Origin: USA

  • Payment:T/T, Western Union

  • Weight: 1800g

  • Shipping port: Xiamen

  • Warranty: 12 months

30 günlük yzyna gaýtaryş syýasaty · 12 aýlyk kepillik
  • Çalt eltip berme
  • 24/7 goldaw
  • Hil üpjünçiligi

Düşündiriş

Product Overview

The IC697BEM711 is a high-performance Bus Receiver Module engineered by GE Fanuc for the legacy Series 90-70 PLC systems. This module enables dependable multi-rack expansion communication, processing real-time system link traffic over extended physical distances with minimal transit delays.

Key Advantages

  • Optimized Latency: Features a low propagation latency of just 1.2 ms to ensure swift, deterministic I/O updates.
  • Rugged Interfacing: Equipped with a heavy-duty 25-pin D-sub connector designed to maintain mechanical connection stability in high-vibration control environments.
  • Reliable Data Flow: Integrates a 256-byte data buffering capacity to manage traffic queues smoothly and prevent packet dropouts.

Technical Specifications

Model / Part Number IC697BEM711
System Platform Series 90-70 PLC
Throughput Speed 500 Kbytes/sec effective data rate
Input Voltage / Power 5 V DC | Backplane Current Draw: 800 mA
Max Distance Capability 50 feet (15 meters) total maximum cable length
Thermal Boundaries -10°C to 60°C (14°F to 140°F) operational window
Humidity Envelope 5% to 95% non-condensing relative humidity
Module Net Weight 1.8 kg

Quick Installation Tips

  • Power down the Series 90-70 backplane entirely before sliding the 1.8 kg hardware assembly into the designated slot.
  • Do not exceed the hard limit of 50 feet (15 meters) for the system connection loop to prevent bus communication timing faults.
  • Fully secure the thumb screws on the 25-pin D-sub interface connector to preserve optimal signal grounding.

Technical FAQs

Q1: What is the purpose of the 256 bytes data buffer?

A1: It stores transit data temporarily during high-load processor cycles, preventing bottlenecks and guaranteeing an efficient data rate of 500 Kbytes/sec.

Q2: Can this module function in freezing control rooms?

A2: Yes. The board is rated for extended usability across a broad temperature range of -10°C to 60°C (14°F to 140°F).

Q3: How much power does the unit require directly from the backplane?

A3: The module runs on a standard 5 Volts DC input and demands a nominal current draw of 800 mA during full operations.
