3500/60-01-01

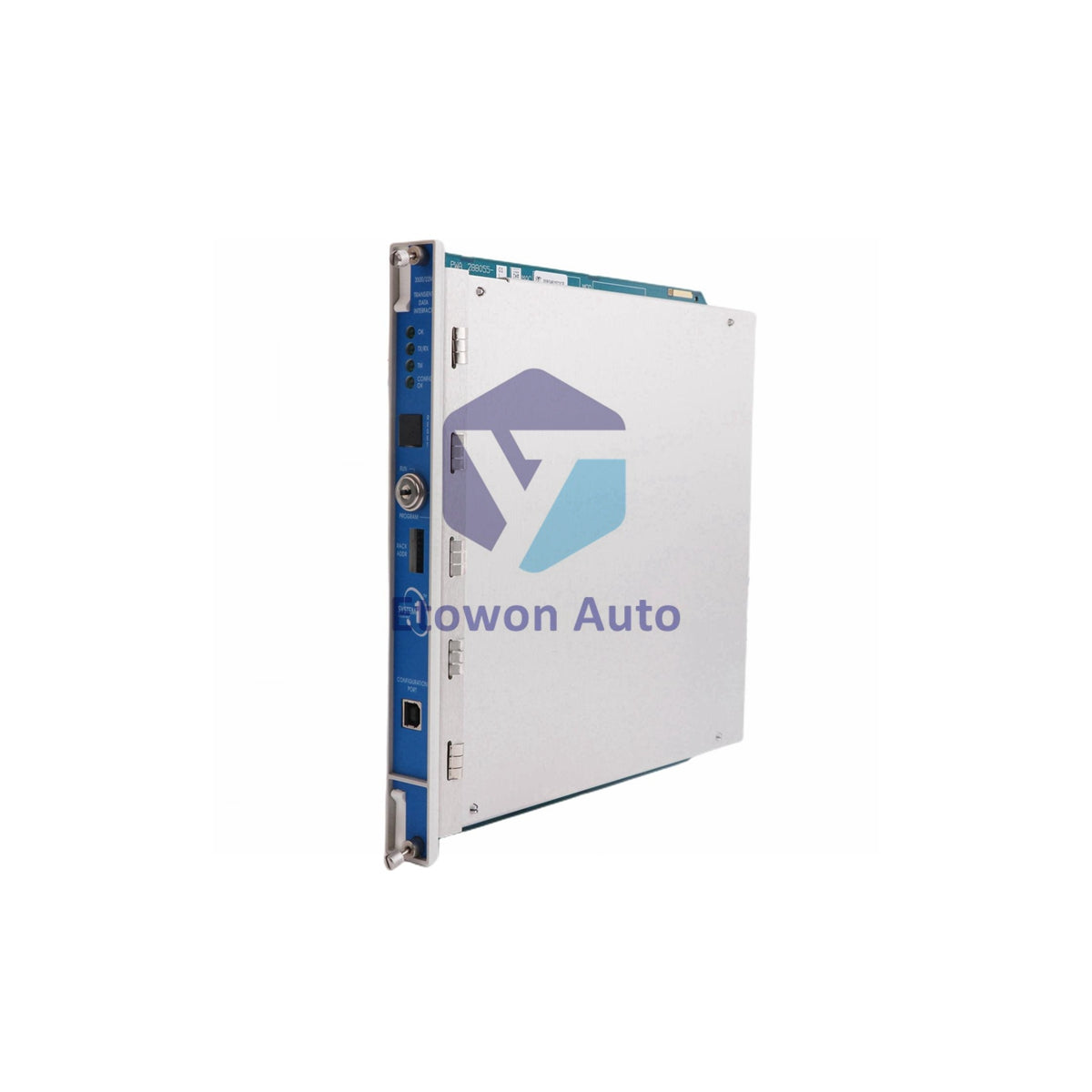

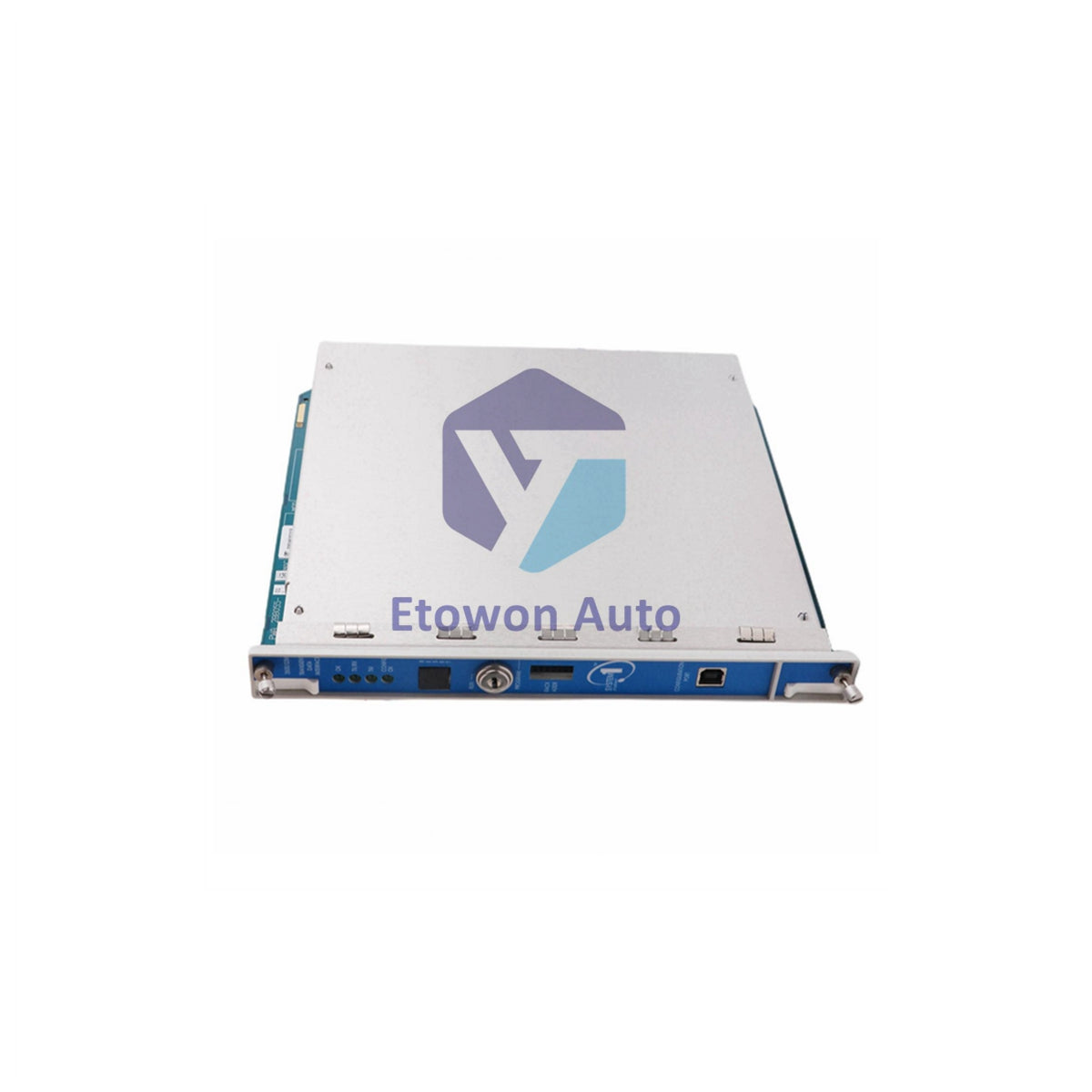

Bently Nevada 3500/60-01-01 Temperature Monitor 6 Input

Skladda bar (15 sany), ibermek üçin taýýar

  • Manufacturer: Bently Nevada

  • Product No.: 3500/60-01-01

  • Product Type: Monitor Module

  • Product Origin: USA

  • Payment:T/T, Western Union

  • Weight: 910g

  • Shipping port: Xiamen

  • Warranty: 12 months

30 günlük yzyna gaýtaryş syýasaty · 12 aýlyk kepillik
  • Çalt eltip berme
  • 24/7 goldaw
  • Hil üpjünçiligi

Düşündiriş

Bently Nevada 3500/60-01-01 Temperature Monitor

Bently Nevada 3500/60-01-01 is a temperature monitor accepting up to 6 RTD or TC signals. Features RTD/TC non-isolated I/O module with internal terminations, CSA/NRTL/C Class 1 Div 2 approval, and 10 MΩ input impedance per lead.

Ordering Configuration

Option Code Description
I/O Module Type 01 RTD/TC Non-isolated I/O Module, Internal Terminations
Agency Approval 01 CSA/NRTL/C (Class 1, Div 2)

Key Specifications

Parameter Value
Input Impedance 10 MΩ per lead
Power Consumption (3500/60) 7W nominal
RTD Current Source 925 ±15 µA @ 25°C
Recorder Output +4 to +20 mA
Monitor Module Weight 0.91 kg (2.0 lb)
I/O Module Weight 0.45 kg (1.0 lb)

Thermocouple Types Supported

Type Range
E -100°C to +1000°C (-148°F to +1832°F)
J -18°C to +760°C (0°F to +1400°F)
K -18°C to +1370°C (0°F to +2498°F)
T -160°C to +400°C (-256°F to +752°F)

RTD Types Supported

RTD Type Range
100Ω Platinum (α=0.00385) -200°C to +850°C (-328°F to +1562°F)
100Ω Platinum (α=0.00392) -200°C to +700°C (-328°F to +1292°F)
120Ω Nickel -80°C to +260°C (-112°F to +500°F)
10Ω Copper -100°C to +260°C (-148°F to +500°F)

Dimensions

Component H x W x D
Monitor Module 241.3 x 24.4 x 241.8 mm (9.50 x 0.96 x 9.52 in)
I/O Module 241.3 x 24.4 x 99.1 mm (9.50 x 0.96 x 3.90 in)
I/O Module (Internal Barrier) 241.3 x 24.4 x 163.1 mm (9.50 x 0.96 x 6.42 in)

Environmental Limits

Parameter Value
Operating (Internal/External I/O) -30°C to +65°C (-22°F to +150°F)
Operating (Internal Barrier I/O) 0°C to +65°C (32°F to +150°F)
Storage -40°C to +85°C (-40°F to +185°F)

Front Panel LEDs

  • OK LED: Indicates proper operation
  • TX/RX LED: Communication status with other modules
  • Bypass LED: Indicates Bypass Mode

FAQs

Q1: How many RTD or TC signals can the 3500/60-01-01 accept?
A1: Up to 6 transducer signals.

Q2: What is the RTD current source value?
A2: 925 ±15 µA at 25°C per transducer.

Q3: What is the recorder output range?
A3: +4 to +20 mA, proportional to full-scale.
