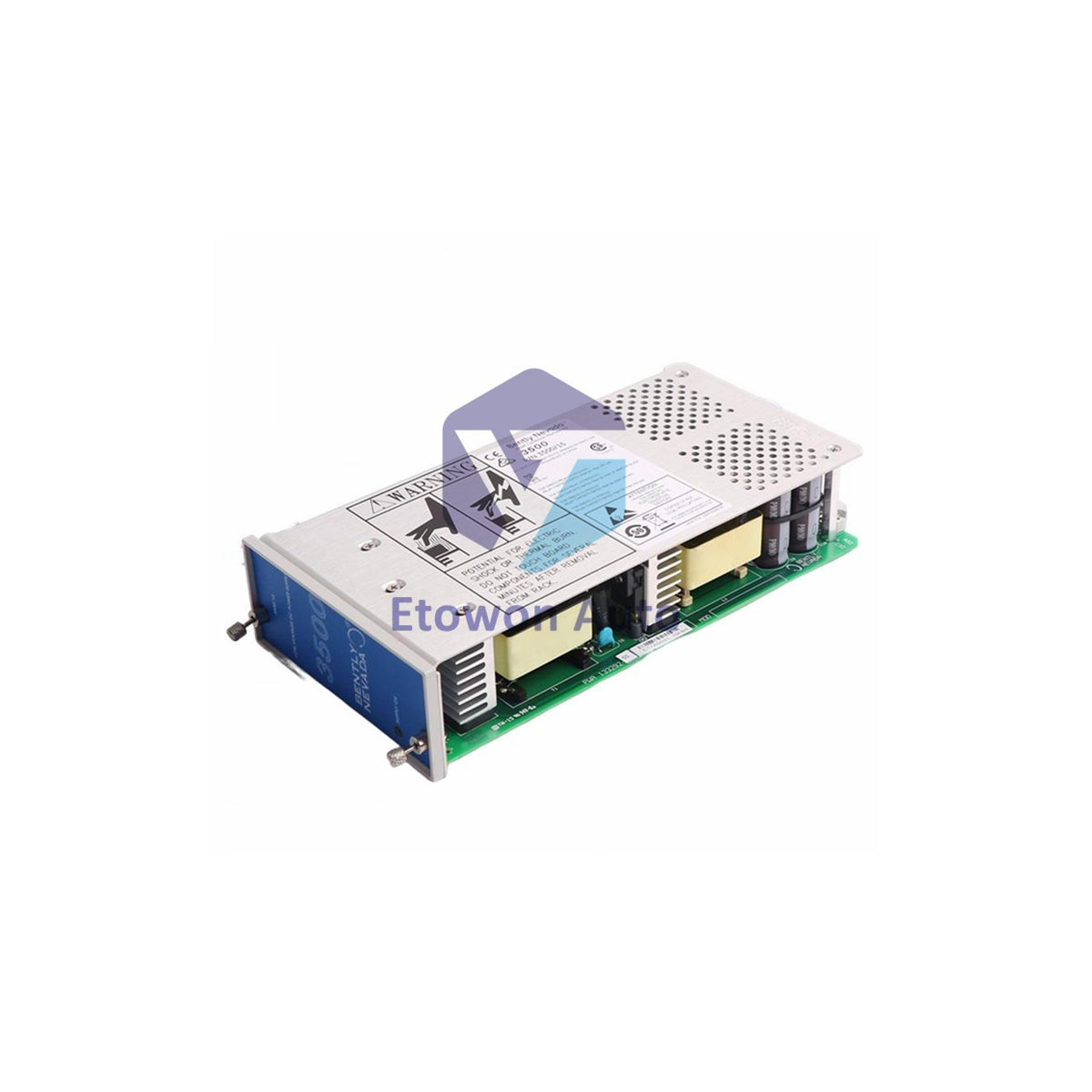

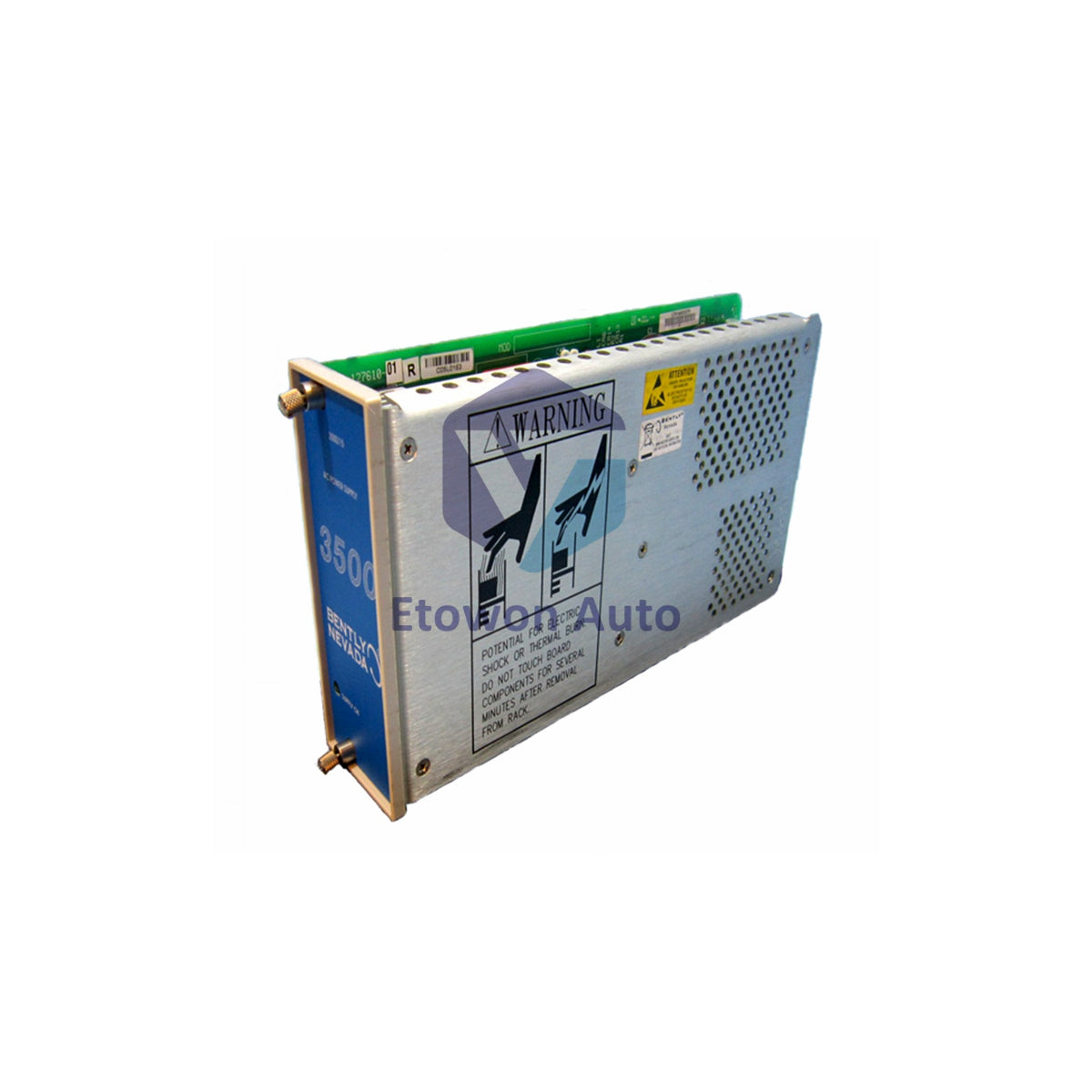

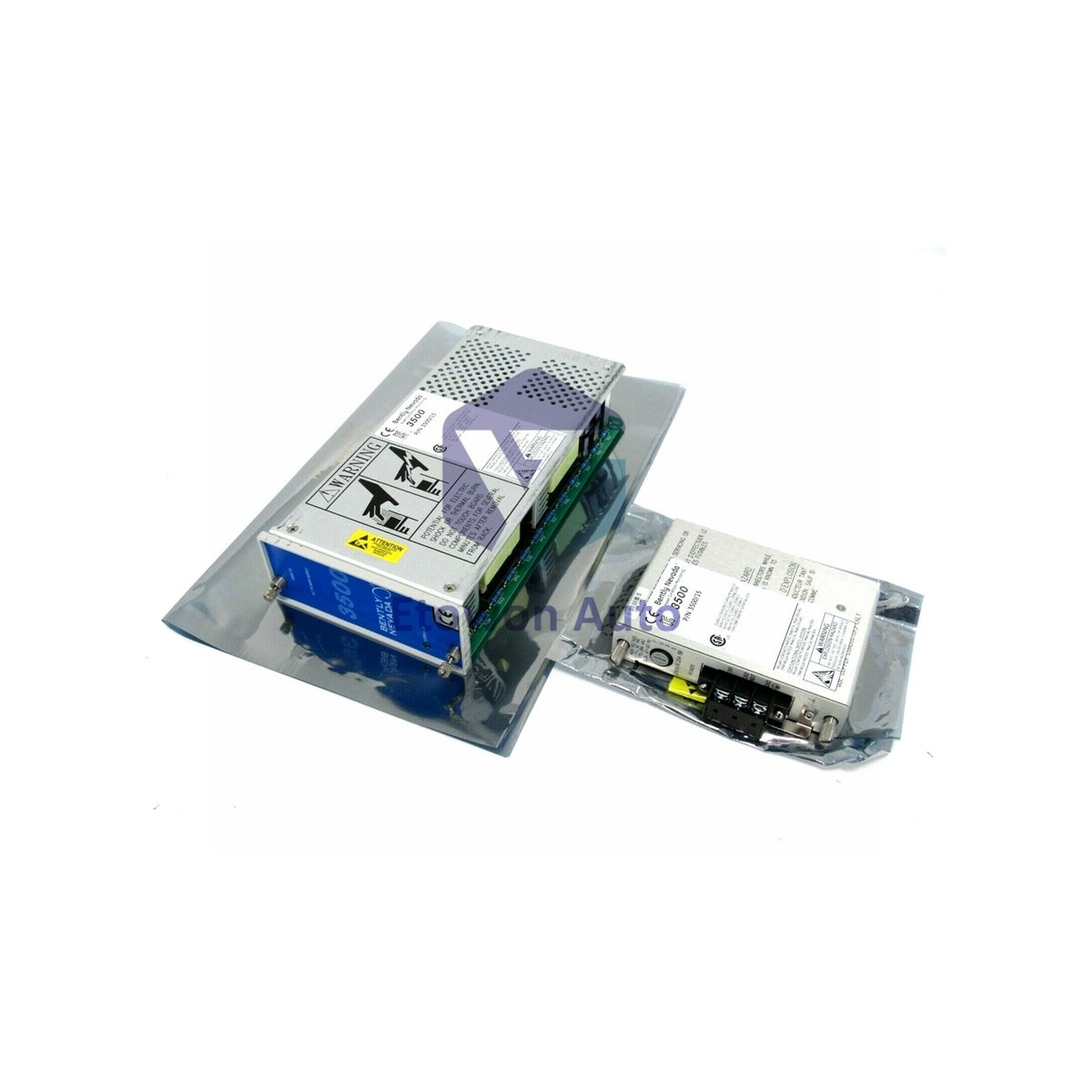

Bently Nevada 3500/25 149369-01 Enhanced Keyphasor Module

Skladda bar (14 sany), ibermek üçin taýýar

  • Manufacturer: Bently Nevada

  • Product No.: 149369-01

  • Product Type: Enhanced Keyphasor Module

  • Product Origin: USA

  • Payment:T/T, Western Union

  • Weight: 460g

  • Shipping port: Xiamen

  • Warranty: 12 months

30 günlük yzyna gaýtaryş syýasaty · 12 aýlyk kepillik
  • Çalt eltip berme
  • 24/7 goldaw
  • Hil üpjünçiligi

Düşündiriş

Bently Nevada 3500/25 149369-01 Enhanced Keyphasor Module

Bently Nevada 3500/25 149369-01 | Enhanced Keyphasor Module for 3500 Machinery Protection System. Half-height, two-channel module converts proximity probe or magnetic pickup signals into digital Keyphasor outputs. Provides precise timing for shaft speed, phase, and vector measurements. Direct plug-in replacement for 125792-01.

Key Features

2-channel half-height module. Input range 1 to 1,200,000 cpm (0.017 to 20 kHz). Output range 1 to 99,999 cpm. Auto or manual threshold triggering. Buffered Keyphasor outputs at front and rear. -24 Vdc transducer power supply. 3.2W typical power consumption. Main module weight 0.34 kg (0.76 lbs). Supports up to four Keyphasor signals standard, eight in paired configuration. Field-upgradeable firmware.

Technical Specifications

Manufacturer Bently Nevada
Part Number 149369-01 (3500/25)
Product Type Enhanced Keyphasor Module
Channels 2 (half-height)
Input Signal Range +0.8V to -21.0V (Non-isolated)
Input Frequency Range 1 to 1,200,000 cpm (0.017 to 20 kHz)
Output Frequency Range 1 to 99,999 cpm (0.017 to 1667 Hz)
Accuracy (Non-processed) ±1 cpm (0.017-100Hz), ±8 cpm (101-500Hz), ±1% (501-20kHz)
Accuracy (Processed) ±1 cpm (0.017-60Hz), ±8 cpm (61-150Hz), ±1% (151-20kHz)
Input Impedance 21.8 kΩ minimum
Auto Threshold 2V p-p min, 120 rpm (2Hz) min
Manual Threshold 0 to -20Vdc, 500mV p-p min
Hysteresis User-selectable 0.2 to 2.5V
Transducer Power Supply -24 Vdc, 40 mA max per channel
Power Consumption 3.2 W typical
Main Module Dimensions 119.9 x 24.4 x 256.5 mm (4.72 x 0.96 x 10.10 in)
Main Module Weight 0.34 kg (0.76 lbs)
I/O Module Dimensions 241.3 x 24.4 x 103.1 mm (9.50 x 0.96 x 4.06 in)
I/O Module Weight 0.46 kg (1.01 lbs)
Rack Space (Main) 1 half-height front slot
Rack Space (I/O) 1 full-height rear slot
Operating Temperature -30°C to +65°C
Storage Temperature -40°C to +85°C
Humidity 95%, non-condensing
Origin Made in U.S.A.

Ordering Code Breakdown

3500/25-AA-BB-CC

A: Number of Channels – 01 = Single half-height 2-channel card; 02 = Two half-height 2-channel cards (4 channels).
B: I/O Module Type – 01 = Internal Terminations; 02 = External Terminations; 03 = Internal Barrier I/O; 04 = Isolated Internal (Magnetic Pickups); 05 = Isolated External (Magnetic Pickups).
C: Agency Approval – 00 = Not required; 01 = cNRTLus (Class I Div 2); 02 = ATEX/IECEx/CSA (Class I Zone 2).

Installation Notes

Install in half-height front slot using mounting adapter. I/O module occupies corresponding full-height rear slot. Configure trigger threshold (auto or manual) and hysteresis per application. For magnetic pickups, use Isolated I/O modules (B:04 or B:05). For hazardous area installation, follow appropriate control drawings (149243/149244 or 138547).

Engineering Advantages

Supports up to eight Keyphasor signals in paired configuration for complex machinery monitoring. Expanded frequency range handles multi-event-per-turn inputs up to 20 kHz. Auto and manual threshold options accommodate various transducer types. Direct replacement for legacy 125792-01 modules. Buffered outputs at front and rear simplify external diagnostics. Field-upgradeable firmware protects investment.

FAQs

Q1: What is the maximum input frequency?
A1: 20 kHz (1,200,000 cpm), supporting multiple events per revolution.

Q2: What is the difference between Isolated and Non-isolated I/O modules?
A2: Isolated modules (B:04/05) are designed for magnetic pickups and provide isolation from other systems. Non-isolated modules (B:01/02) are for standard proximity probe applications.

Q3: Can this module replace older Keyphasor modules?
A3: Yes, the 149369-01 Enhanced Keyphasor Module is a direct plug-in replacement for Keyphasor Module 125792-01.
