330701-00-30-10-02-00

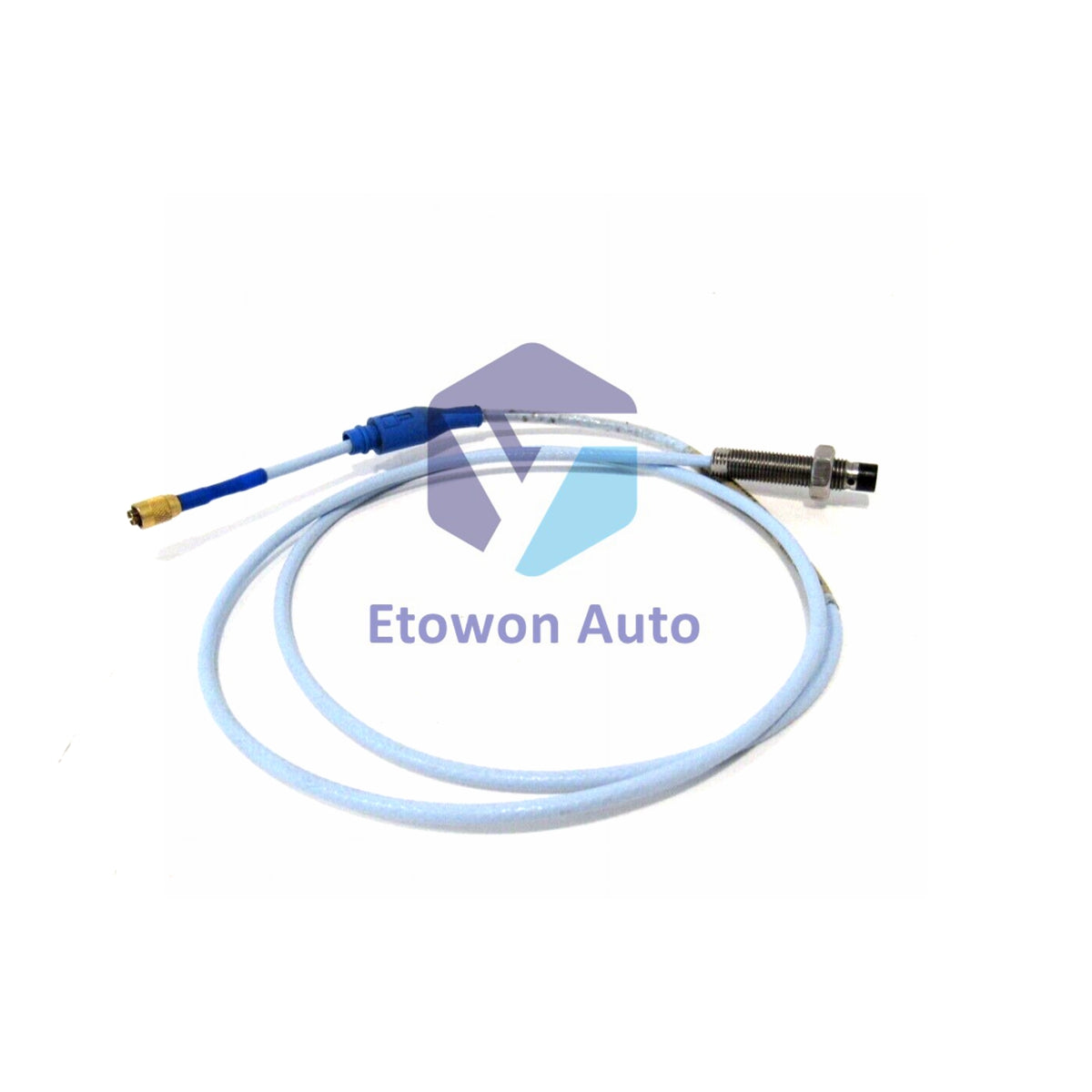

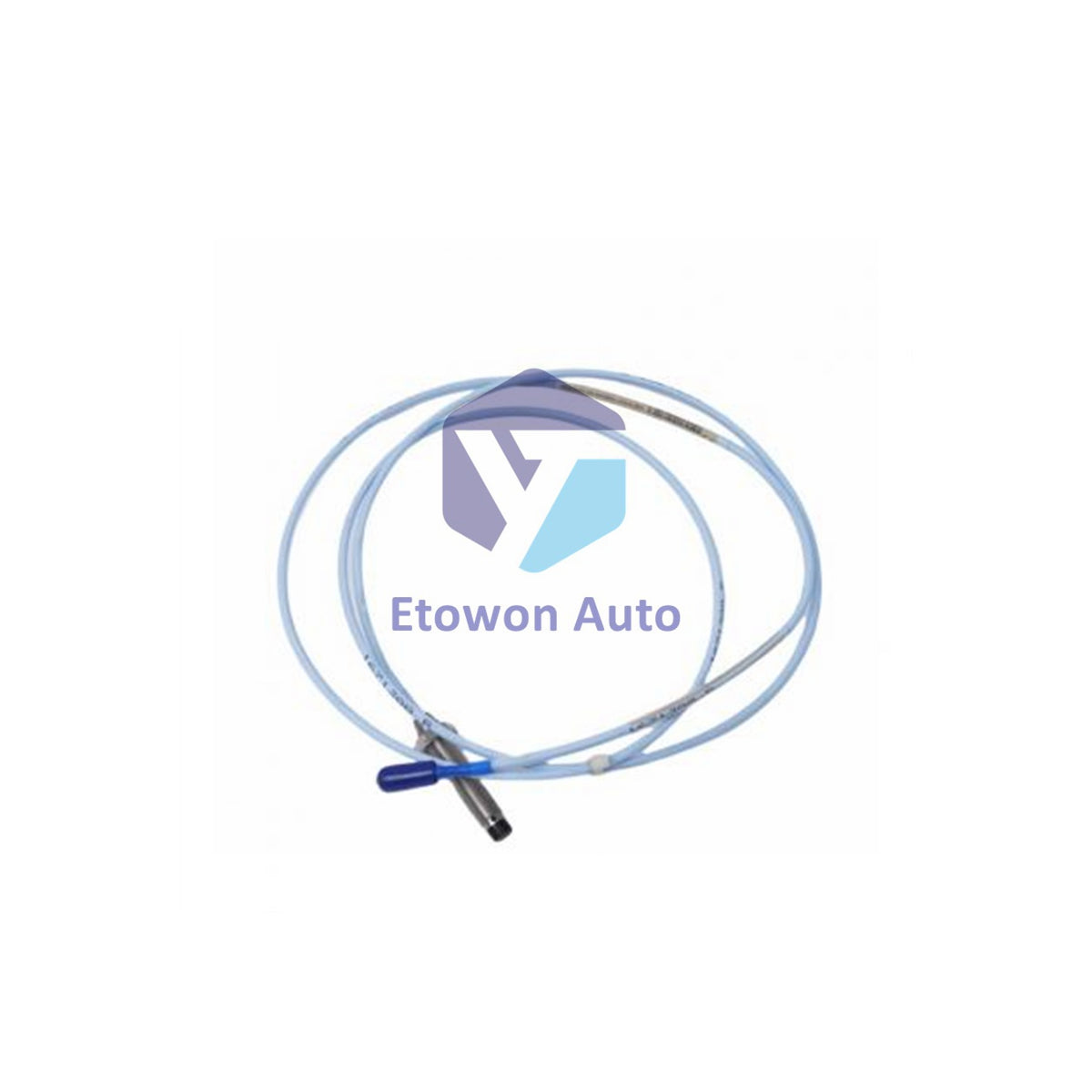

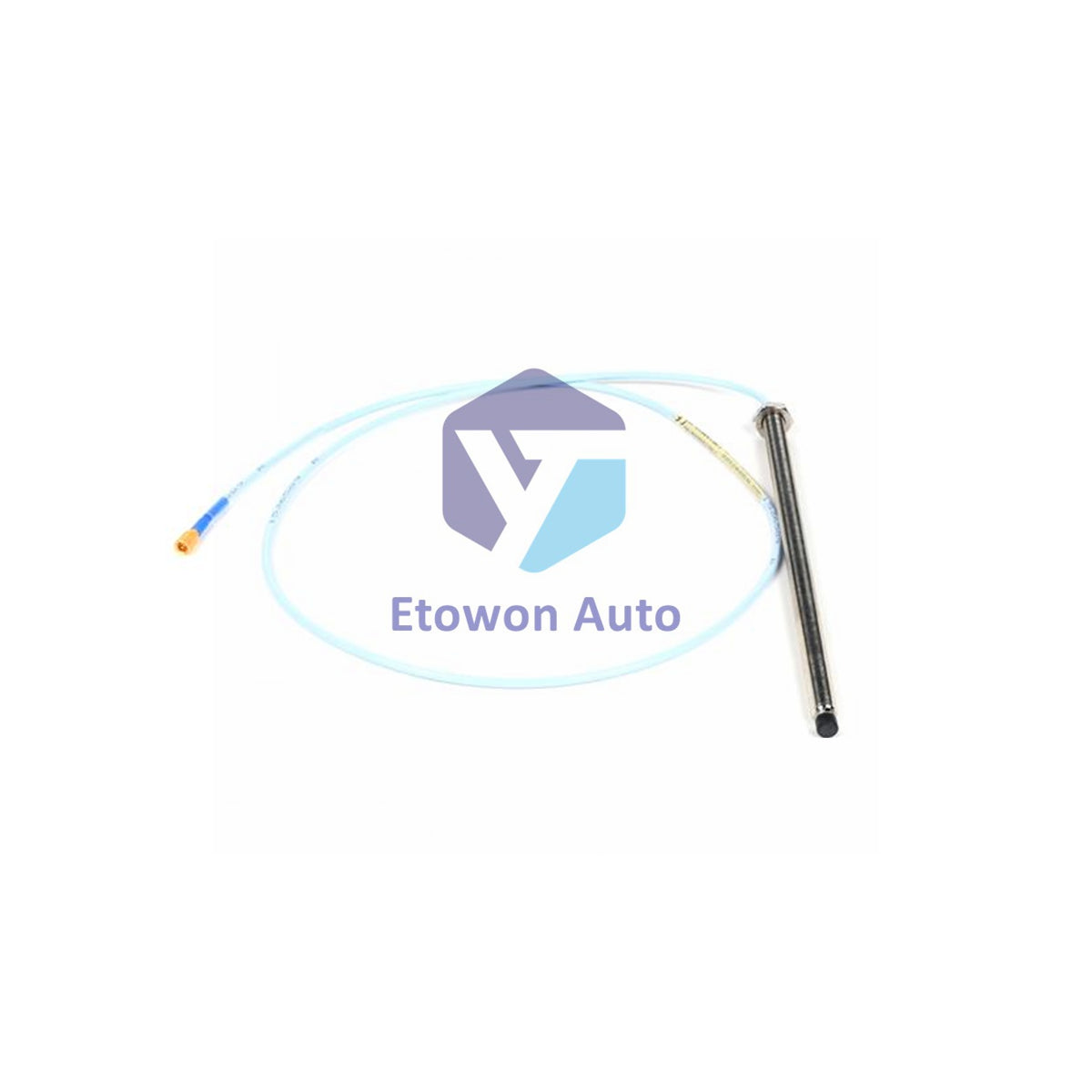

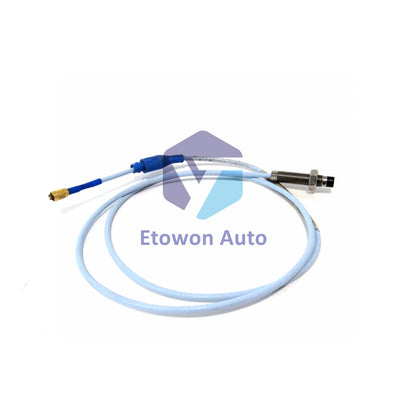

Bently Nevada | 330701-00-30-10-02-00 3300 XL Probe

Skladda bar (21 sany), ibermek üçin taýýar

  • Manufacturer: Bently Nevada

  • Product No.: 330701-00-30-10-02-00

  • Product Type: Proximity Probe

  • Product Origin: USA

  • Payment:T/T, Western Union

  • Weight: 170g

  • Shipping port: Xiamen

  • Warranty: 12 months

30 günlük yzyna gaýtaryş syýasaty · 12 aýlyk kepillik
  • Çalt eltip berme
  • 24/7 goldaw
  • Hil üpjünçiligi

Düşündiriş

Bently Nevada 3300 XL 11 mm Proximity Probe (330701-00-30-10-02-00)

The Bently Nevada 330701-00-30-10-02-00 is a high-performance 3300 XL 11 mm eddy current proximity probe designed for linear position measurement and continuous shaft vibration monitoring in heavy industrial machinery. Featuring a 1/2-20 UNF threaded case with a 3.0-inch overall length and zero unthreaded length, this sensor comes equipped with a 1.0-meter (3.3 feet) standard cable terminated with a miniature coaxial ClickLoc connector. Weighing approximately 0.17 kg (0.37 lbs), it utilizes an internal Viton® O-ring for differential pressure sealing and requires no specialized agency approval (00 option).

Key Performance Advantages

Provides an extended linear measurement range compared to standard 8 mm probes, making it ideal for applications requiring larger gap distances. Built for extreme industrial environments, it features a nominal DC resistance of 5.9 ± 0.5 Ω and operates reliably across an extended temperature range from -51°C to +177°C (-60°F to +351°F) with a typical storage and operational shelf life rating of 1 year.

Technical Specifications

Manufacturer & Series Bently Nevada / Baker Hughes (3300 XL 11 mm Series)
Part / Ordering Number 330701-00-30-10-02-00
Thread & Case Dimensions 1/2-20 UNF Thread / 0.0 in Unthreaded / 3.0 in Case Length
Cable Length & Connector 1.0 Meter (3.3 ft) Standard Cable / ClickLoc Coaxial Connector
Weight & DC Resistance 0.17 kg (0.37 lbs) / 5.9 ± 0.5 Ω DC Resistance
Max Engagement & Torque 0.750 in Max Engagement / Rec. Torque: 15.2 N•m (Max: 45.2 N•m)
Operating Temperature -51°C to +177°C (-60°F to +351°F)
Agency Approvals 00 Option: Unregulated / Approval Not Required

Installation & Maintenance Guidelines

  • Mechanical Installation: Thread the probe into the mounting port using the 1/2-20 UNF threads up to a maximum thread engagement of 0.750 inches. Tighten to the recommended installation torque of 15.2 N•m (133 in•lb); do not exceed the maximum torque limit of 45.2 N•m (400 in•lb).
  • Routing & Cable Management: Support the 1.0-meter cable along its route to prevent physical strain or excessive flexing near the probe base. Protect the unarmored line inside appropriate conduit in harsh environments.
  • Connector Security: Securely lock the miniature coaxial ClickLoc connector into the matching extension cable to prevent signal loss or loose connections caused by high industrial vibration.

Frequently Asked Questions

Q1: Has EMC filter?
A1: N/A (sensor probe).

Q2: Key feature vs PF523?
A2: Extended 11mm range & ClickLoc connector.

Q3: Drives 3-phase motors?
A3: No, measures vibration and position.

Product Resources

📄 Download PDF
🏷️ Tags: 3300 XL 11 mm Probe Proximity Probe
