330905-05-25-10-12-00

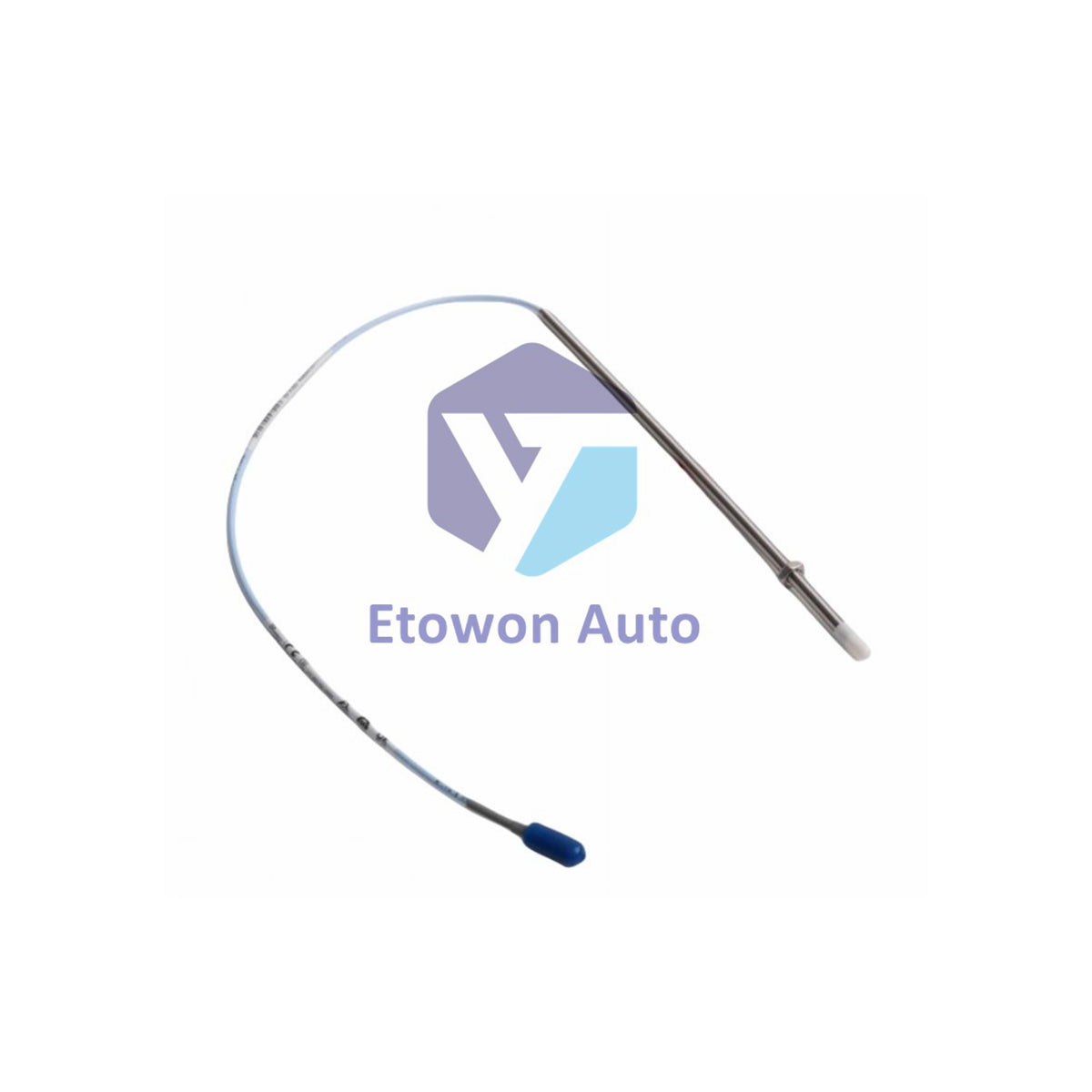

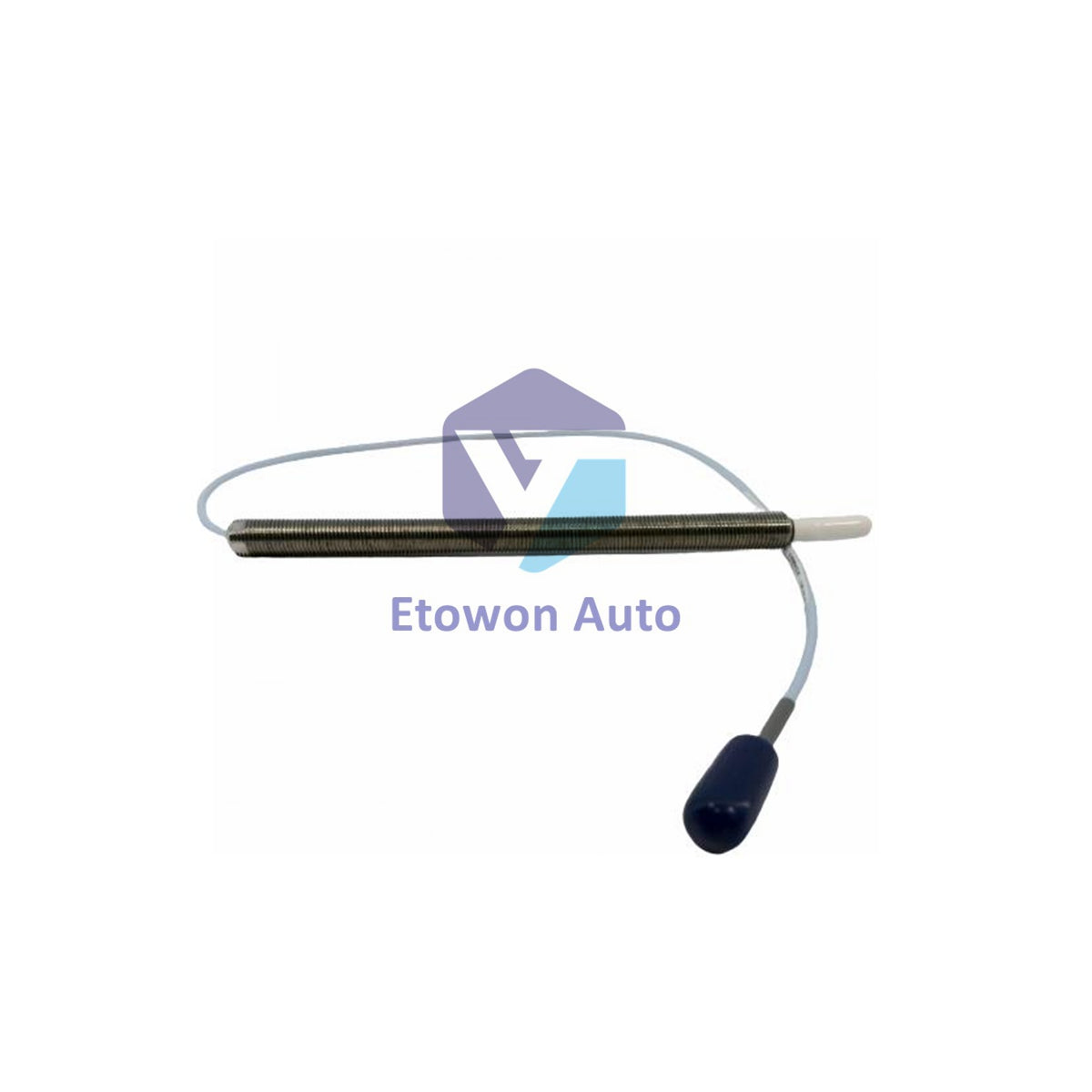

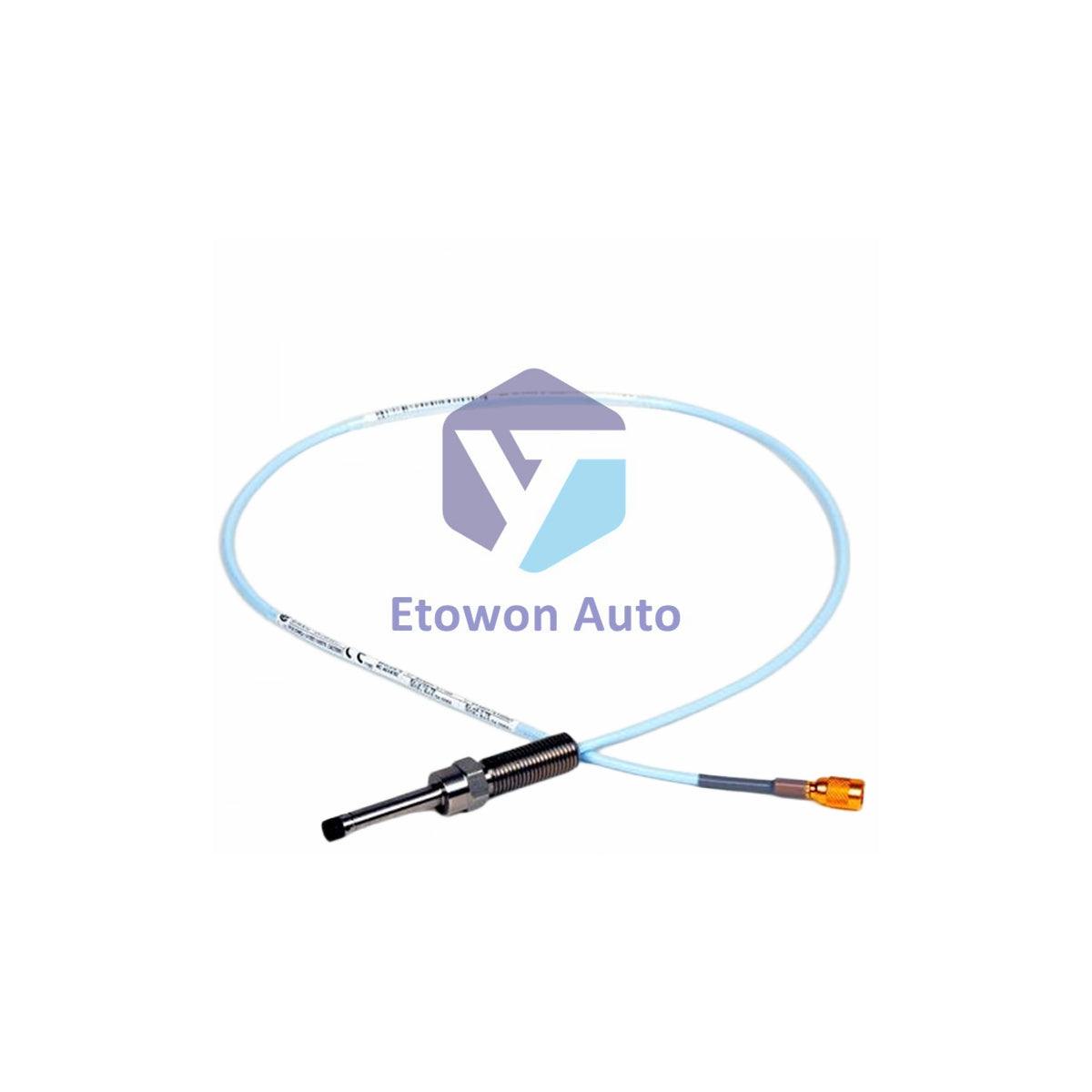

Bently Nevada 3300 NSv Probe 330905-05-25-10-12-00

Skladda bar (23 sany), ibermek üçin taýýar

  • Manufacturer: Bently Nevada

  • Product No.: 330905-05-25-10-12-00

  • Product Type: Proximity Probe

  • Product Origin: USA

  • Payment:T/T, Western Union

  • Weight: 110g

  • Shipping port: Xiamen

  • Warranty: 12 months

30 günlük yzyna gaýtaryş syýasaty · 12 aýlyk kepillik
  • Çalt eltip berme
  • 24/7 goldaw
  • Hil üpjünçiligi

Düşündiriş

Bently Nevada 330905-05-25-10-12-00 3300 NSv Proximity Probe

Bently Nevada 330905-05-25-10-12-00 is a 3300 NSv proximity probe with M10x1 thread, without armor. Features 50mm unthreaded length and 250mm overall case length. Includes 1.0 meter total length with FluidLoc cable and ClickLoc connector. No agency approval required. Weight: 0.11 kg (0.24 lbs).

Technical Specifications

Parameter Specification
Manufacturer Bently Nevada
Model 330905-05-25-10-12-00
Probe Type 3300 NSv Proximity Probe, M10x1 thread, without armor
Unthreaded Length 50 mm (Option 05)
Overall Case Length 250 mm (Option 25)
Total Length 1.0 meter (39 inches)
Connector Type Miniature coaxial ClickLoc with FluidLoc cable
Agency Approval Not required (Option 00)
Probe DC Resistance (1.0m) 4.2 ± 0.5 ohms
Linear Range 1.5 mm (60 mils) from 0.25 to 1.75 mm
Recommended Gap Setting 1.0 mm (40 mils)
Incremental Scale Factor 7.87 V/mm (200 mV/mil) +12.5%/-20%
Deviation from Best Fit Line Less than ±0.06 mm (±2.3 mils)
Frequency Response 0 to 10 kHz with 305m field wiring
Probe Tip Material Polyphenylene sulfide (PPS)
Probe Case Material AISI 304 stainless steel
Operating Temperature -52°C to +177°C (-62°F to +351°F)
Minimum Bend Radius 25.4 mm (1.0 inch)
Recommended Torque Finger tight, max 0.56 N·m (5 in·lb)
Weight 0.11 kg (0.24 lbs)

Configuration Breakdown

Code Description
05 50mm unthreaded length
25 250mm overall case length
10 1.0 meter total length
12 ClickLoc with FluidLoc cable
00 No agency approval required

Key Features

  • 250mm overall case length for deep mounting applications
  • FluidLoc cable prevents oil leakage through cable interior
  • Increased chemical resistance vs. 3300 RAM probes
  • Superior side-view characteristics vs. 3000-series 190 probe
  • Mechanically and electrically compatible with 3300 RAM systems
  • Viton O-ring seals differential pressure
  • 75 ohm coaxial FEP insulated cable

Installation Guidelines (Field Engineer Notes)

Probe Case Torque: For M10x1 probe cases, maximum torque is 22.6 N·m (200 in·lb) on first three threads. Recommended torque is 7.5 N·m (66 in·lb).

Connector Torque: Finger tight maximum. Do not exceed 0.56 N·m (5 in·lb).

Thread Engagement: Maximum thread engagement is 15mm for M10x1. Do not exceed this depth.

Gap Setting: Recommended gap is 1.0 mm (40 mils). Linear range begins at approximately 0.25 mm (10 mils) from target.

FAQs

Q1. What is the advantage of the 250mm case length?
A1. The 250mm overall case length enables deep mounting through thick housing walls, ideal for large machinery and compressor applications.

Q2. What is FluidLoc cable?
A2. FluidLoc is a patented cable design that prevents oil and other liquids from leaking out of the machine through the cable's interior.

Q3. Is this probe compatible with previous 3300 RAM systems?
A3. Yes. The 3300 NSv probe and extension cable are mechanically and electrically compatible with Bently Nevada's previous 3300 RAM systems.
