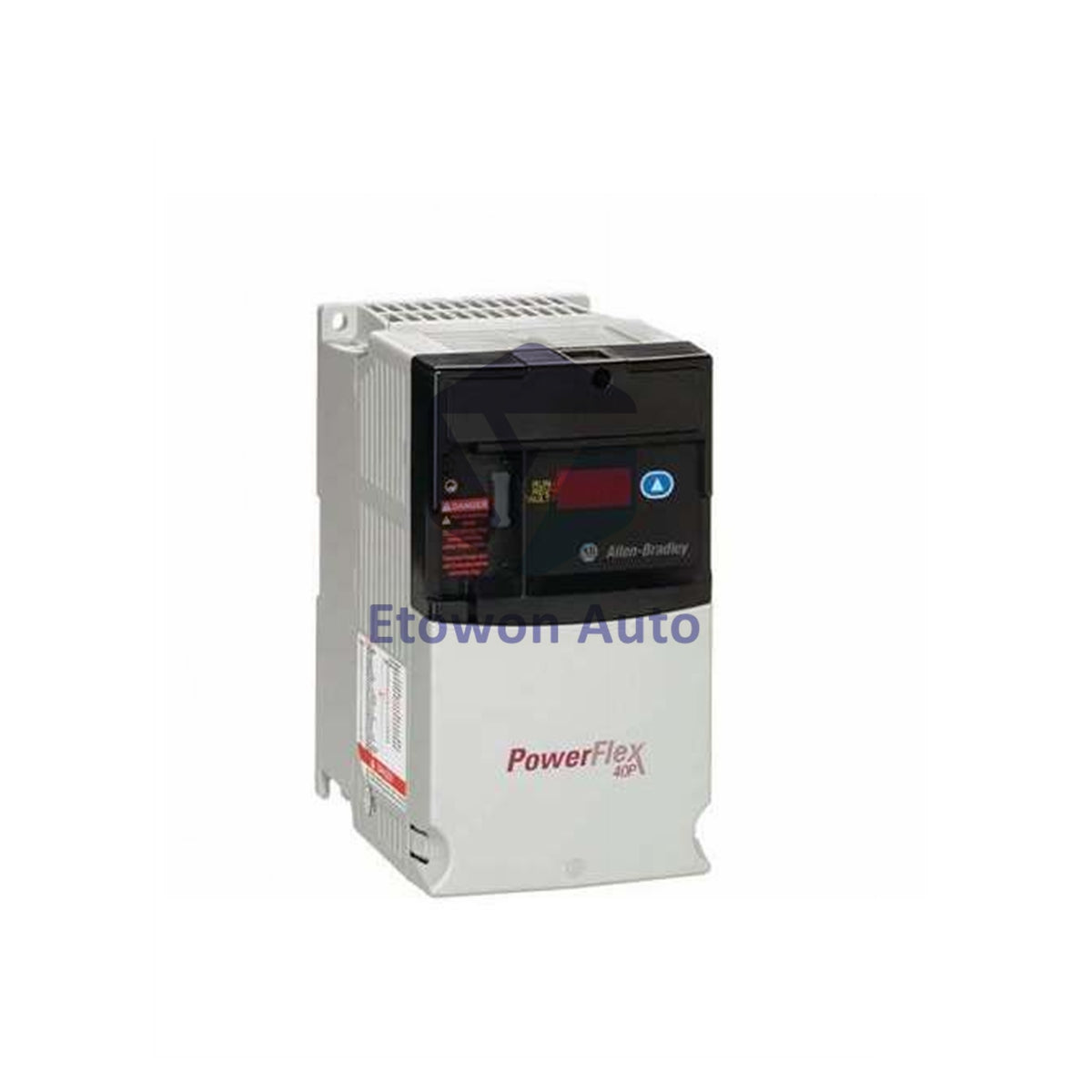

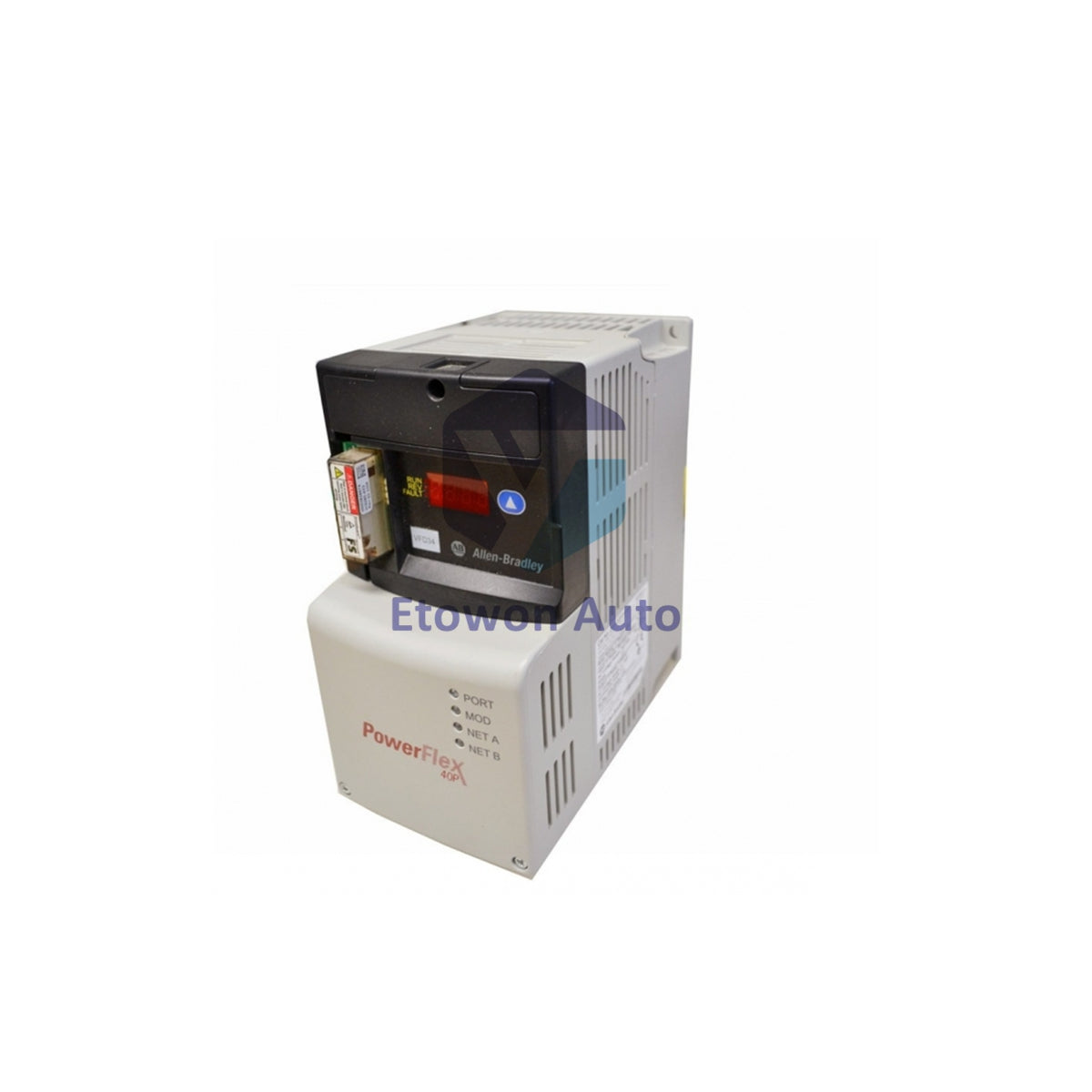

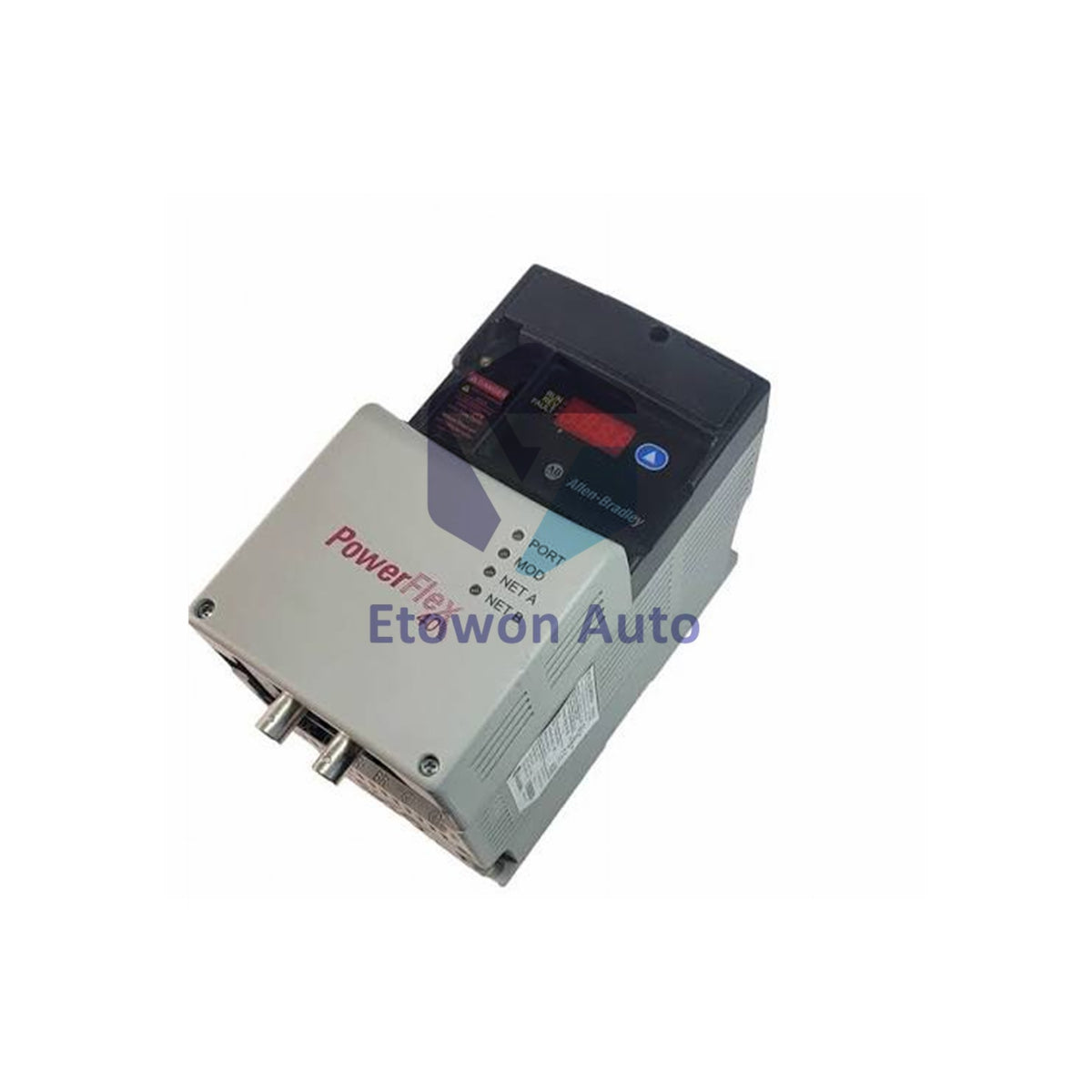

Allen-Bradley PowerFlex 40P 10HP AC Drive 22D-E012N104 12 Amp

Product Overview

The 22D-E012N104 is a 10 Horsepower (HP) Adjustable Frequency AC Drive developed by Allen-Bradley as an integral part of the PowerFlex 40P high-performance controller platform. Operating on a robust 600V AC three-phase input infrastructure, this Frame Size C controller delivers precision vector motor speed and torque regulation within a highly space-saving design. Built to meet global OEM standards, this unit provides clean speed manipulation for heavy industrial components such as pumps, fans, conveyors, and automated material handling networks. It features a solid, industrial-grade chassis with a total net weight of approximately 3.70 kg, ensuring a vibration-resistant foundation when anchored inside electrical control panels.

Key Advantages

• High-Density Performance: Supplies a continuous 12.0 Amp output capability, safely managing 10 HP three-phase electric motors without forcing an increase in cabinet size requirements.
• Zero-Stacking Enclosure Placement: Allows side-by-side positioning inside electrical racks in ambient room temperatures up to 40°C, maximizing limited panel space.
• Streamlined Programming Interface: Features a simplified Basic Program Group containing ten common operational parameter channels, enabling fast out-of-the-box system setups via local navigation dials.
• Optimized Weight Distribution: Weighing only 3.70 kg for a high-power 10 HP drive, it achieves an excellent power-to-weight ratio, minimizing the structural load and reinforcing requirements on control cabinet backplates.

Technical Specifications

Quick Installation Tips

• Thermal Spacing Compliance: When operating multiple drives side by side in standard rooms, you can practice zero-stacking up to 40°C. For hotter environments peaking at 50°C, maintain explicit clearance gaps between adjacent drive housings to preserve heat ventilation pathways.
• Enclosure Shielding Needs: Because the 12.0 A frame is classified with an open IP20 structural rating, mount the electronics securely inside a protected panel cabinet to prevent fine airborne dust or moisture drops from interfering with internal copper line traces.
• Panel Mount Anchorage: Due to its 3.70 kg solid construction and the magnetic forces generated during high-torque motor operations, this Frame C unit must be secured onto a flat metal backplate using heavy-duty mounting screws through all provided chassis bolt holes.

Technical FAQs

Q1: Does this model support immediate speed manipulation straight out of the box?

A1: Yes. The 22D-E012N104 drive is outfitted with an integrated frontal keypad. Operators can take advantage of the built-in local potentiometer and regulation keys to handle quick, manual motor adjustments immediately after mounting.

Q2: Can I mount this specific Frame Size C drive onto a standard 35mm DIN rail?

A2: While Allen-Bradley's smaller PowerFlex A and B frame variations natively feature built-in DIN rail clips, this larger Frame Size C 10 HP block exhibits a heavier 3.70 kg footprint and is explicitly engineered for direct panel mounting to guarantee mechanical stability.

Q3: How does the missing CE filter impact industrial deployments?

A3: This model is a standard version with no CE-compliant filter built in. For applications located in regions with tight electromagnetic compliance (EMC) regulations, external line filters can be easily wired on the incoming 600V AC line to suppress electrical harmonics.
