22B-D010C104

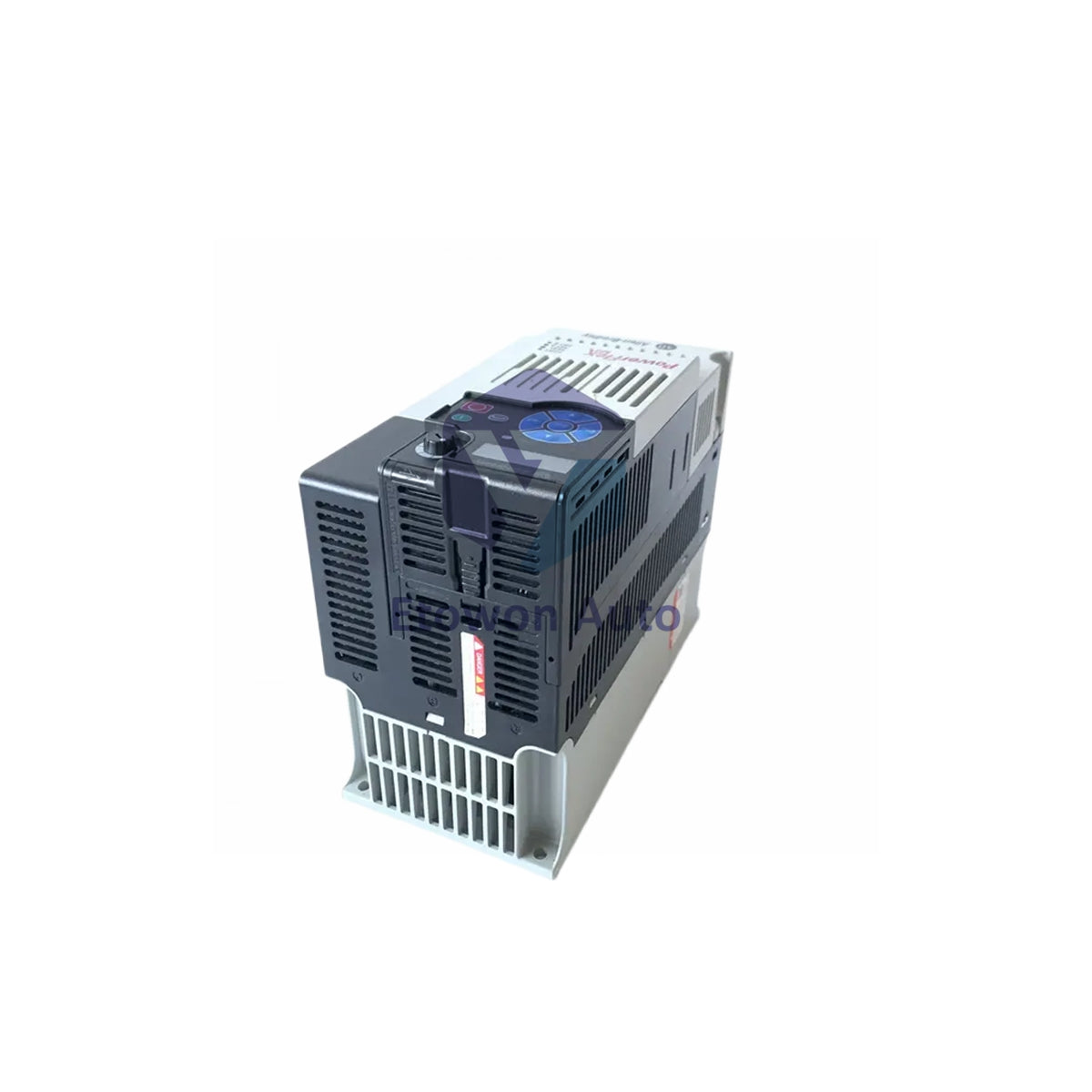

Allen-Bradley PowerFlex 40 22B-D010C104 480V Drive

Skladda bar (23 sany), ibermek üçin taýýar

  • Manufacturer: Allen-Bradley

  • Product No.: 22B-D010C104

  • Product Type: AC Drive

  • Product Origin: USA

  • Payment:T/T, Western Union

  • Weight: 5000g

  • Shipping port: Xiamen

  • Warranty: 12 months

30 günlük yzyna gaýtaryş syýasaty · 12 aýlyk kepillik
  • Çalt eltip berme
  • 24/7 goldaw
  • Hil üpjünçiligi

Düşündiriş

Allen-Bradley 22B-D010C104 PowerFlex 40 AC Drive

Product Overview

Allen-Bradley 22B-D010C104 is a PowerFlex 40 adjustable frequency AC drive. It delivers 5HP (4.0kW) output power at 10.5A. Operates on 480V AC 3 phase input. IP66 NEMA 4X enclosure for harsh environments. Features sensorless vector and V/F control with built in IGBT brake. Panel mount Frame B design with zero stacking capability.

Catalog Number Decoder

Position Code Meaning
1 3 22B PowerFlex 40
4 D 480V AC 3 Phase
5 010 10.5A Output (4.0kW / 5HP)
6 C IP66 NEMA 4X Enclosure
7 1 Display/Fault Reset HIM
8 0 No EMC Filter
9 4 Standard Version

Technical Specifications

Parameter Value
Brand Allen-Bradley / Rockwell Automation
Model 22B-D010C104
Series PowerFlex 40
Output Power 5 HP (4.0 kW)
Output Current 10.5 A
Input Voltage 480V AC 3 Phase
Output Voltage 0 480V AC
Control Type Sensorless Vector, V/F
Brake IGBT included
Enclosure IP66, NEMA 4X
Frame Size B
Zero Stack Yes
Dimensions H x W x D 260 x 130 x 180 mm (10.24 x 5.12 x 7.09 in)
Operating Temperature 0°C to +50°C
Altitude 2000m max
Pollution Degree 2
Overvoltage Category II
Weight 5.0 kg (11.0 lbs)

Installation

Switch off power before installation. Mount drive on panel cut out. Secure with M4 (#8-32) screws. Torque to 1.56 1.96 Nm. Connect 3 phase input to R/L1, S/L2, T/L3. Connect motor to U/T1, V/T2, W/T3. Connect RS485 cable to I/O terminals. Ground safety ground to PE terminal. Zero stacking permits side by side mounting without clearance. IP66 NEMA 4X enclosure suitable for washdown environments.

Wiring

Use copper wire only. Power terminals accept 5.3 mm² (10 AWG) max. I/O terminals accept 1.3 mm² (16 AWG) max. Separate control wiring from power wiring by 0.3m minimum. Remove MOV jumper for ungrounded distribution systems. For 4-20mA analog inputs, verify DIP switch settings match signal type.

Features

Sensorless vector control for high torque across full speed range. Built in IGBT brake for dynamic braking. IP66 NEMA 4X enclosure for harsh and washdown environments. Zero stacking reduces panel space. Supports RS485, ProfiBus, Ethernet, BACnet, Modbus, LonWorks. I/O includes 3 fixed, 4 programmable, 2 analog in, 1 analog out, 1 opto, 1 Form C relay.

FAQ

Q1: What is the difference between PowerFlex 40 and 40P?
A1: PowerFlex 40 is the base series (22B). PowerFlex 40P (22D) offers enhanced features including encoder feedback, position control, and additional I/O.

Q2: What does IP66 NEMA 4X enclosure mean?
A2: IP66 provides dust tight and high pressure water jet protection. NEMA 4X adds corrosion resistance for outdoor and washdown applications.

Q3: What is zero stacking?
A3: Zero stacking allows mounting drives side by side without clearance. Frame B drives require no spacing between drives, saving panel space.
