1762-IQ32T

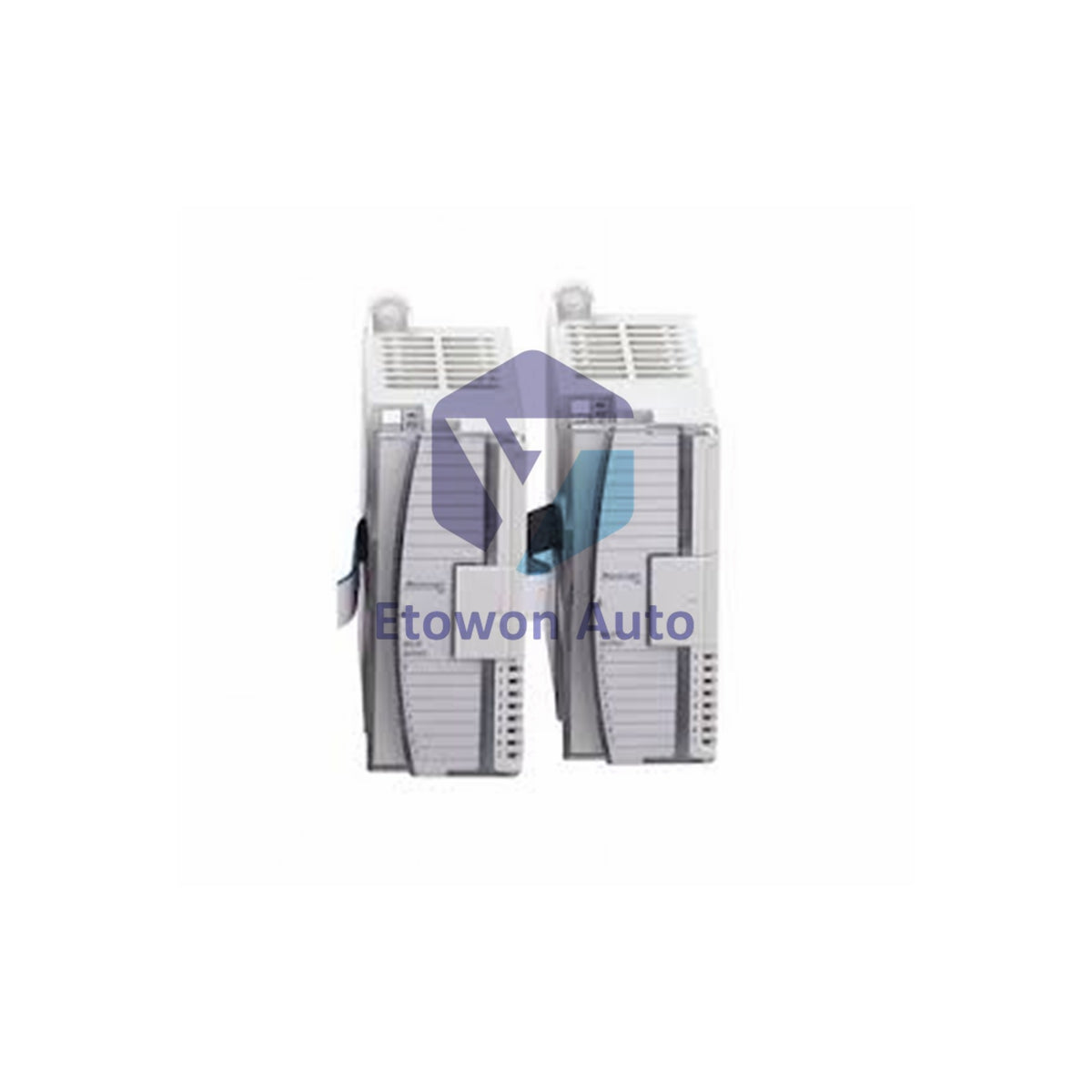

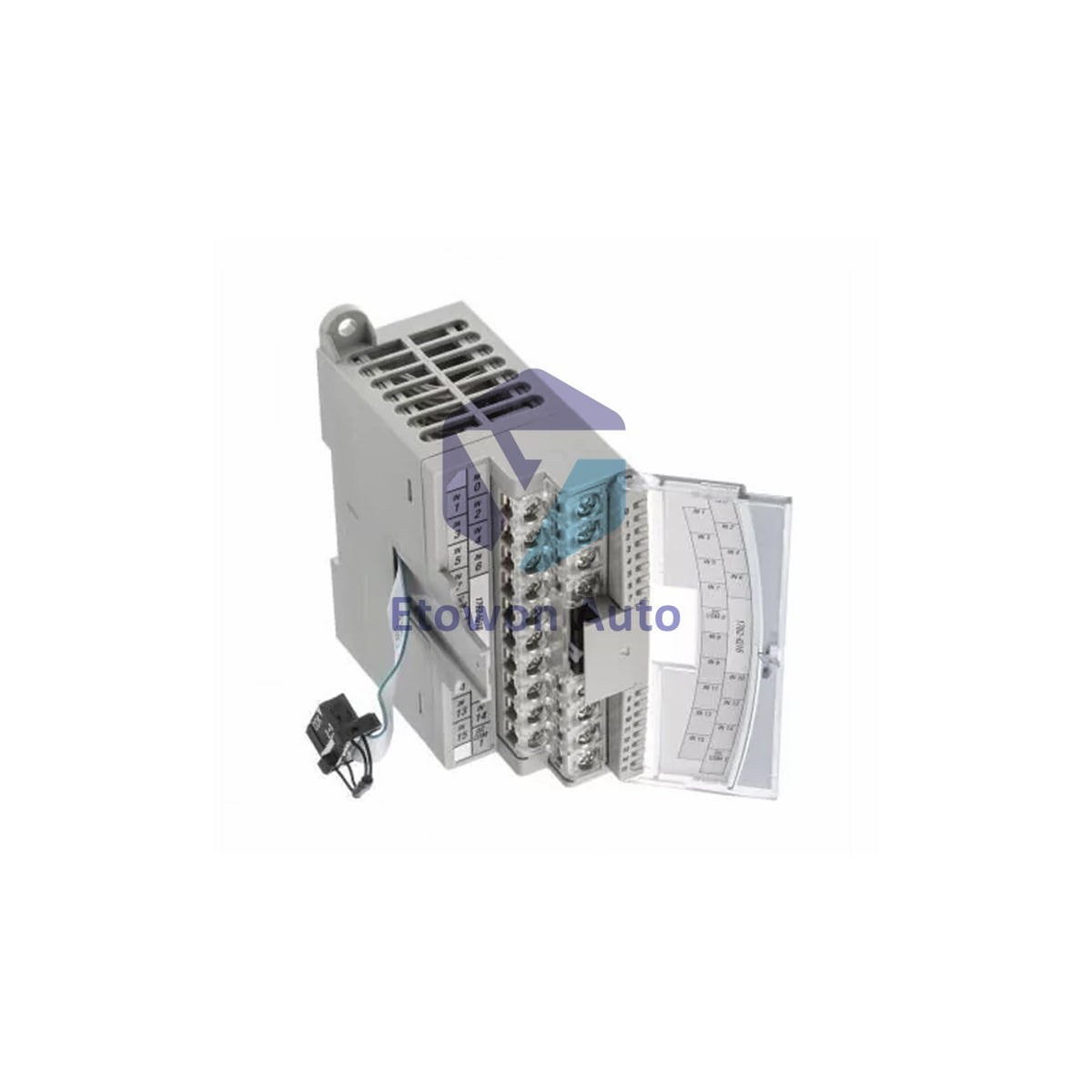

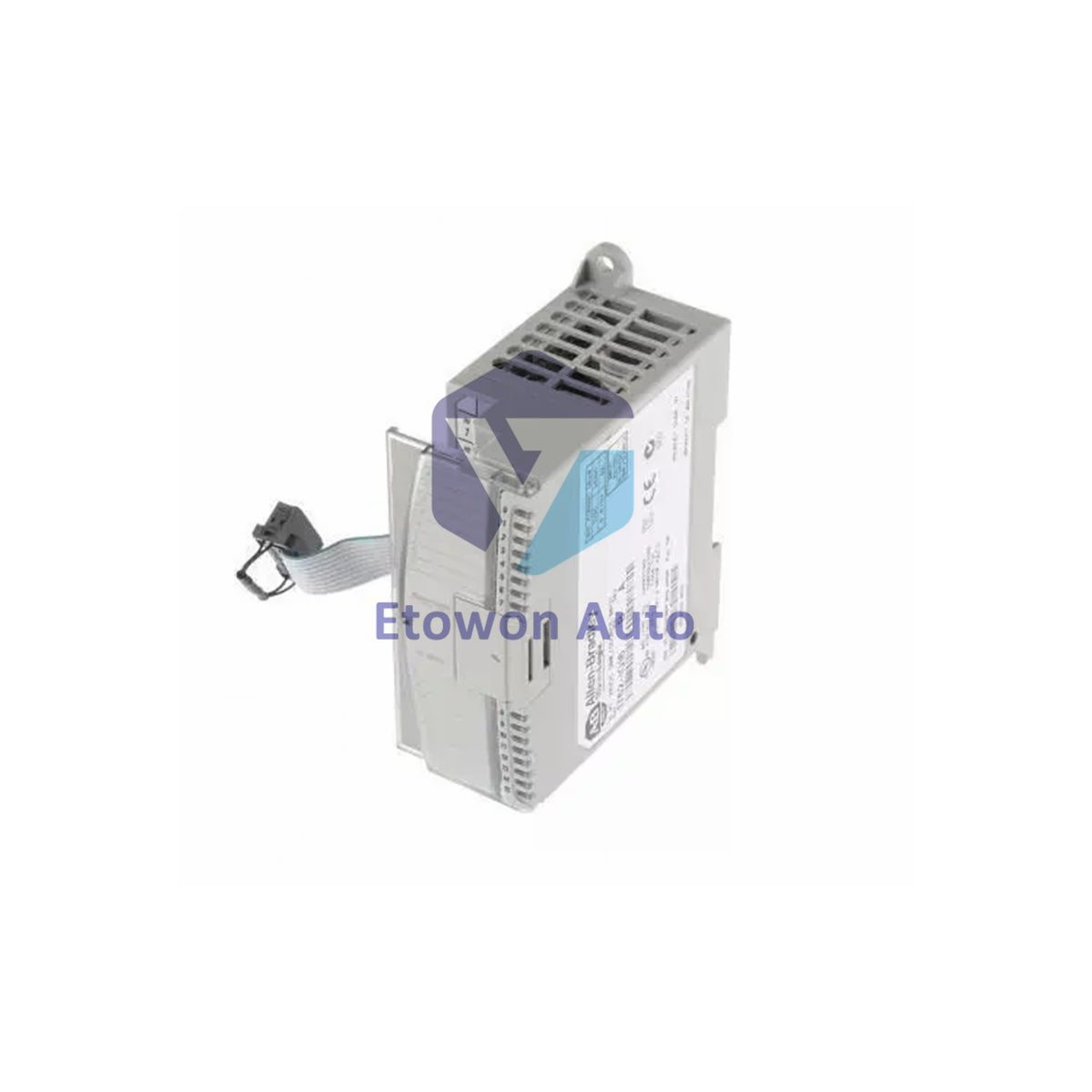

Allen-Bradley MicroLogix 1762-IQ32T 32 Channel Input Module

Skladda bar (13 sany), ibermek üçin taýýar

  • Manufacturer: Allen-Bradley

  • Product No.: 1762-IQ32T

  • Product Type: Discrete Input Module

  • Product Origin: USA

  • Payment:T/T, Western Union

  • Weight: 200g

  • Shipping port: Xiamen

  • Warranty: 12 months

30 günlük yzyna gaýtaryş syýasaty · 12 aýlyk kepillik
  • Çalt eltip berme
  • 24/7 goldaw
  • Hil üpjünçiligi

Düşündiriş

Product Overview

The Allen-Bradley 1762-IQ32T is a high-density 32-channel discrete input expansion module designed for the MicroLogix PLC platform. Compatible with MicroLogix 1100, 1200, 1400, and 1500 controllers, this expansion module provides additional digital inputs organized into four isolated groups of eight channels each. Operating at a nominal input voltage of 24V DC with a total operating range of 10 to 30V DC, it supports both sinking and sourcing field device configurations for versatile sensor interfacing. Featuring a compact DIN rail mountable housing with finger-safe terminal covers and an integrated status LED, the module has a net weight of 0.20 kg (0.44 lbs).

Key Advantages

  • High-Density Channel Capacity: Adds 32 discrete DC inputs in a compact form factor to maximize cabinet space utilization.
  • Flexible Sink/Source Wiring: Configurable input channels support both sinking and sourcing field sensors across 10-30V DC voltage levels.
  • Grouped Electrical Isolation: Four independent 8-channel groups isolated to 1,200V AC offer effective protection against signal noise and ground loops.
  • Broad Controller Compatibility: Integrates seamlessly with MicroLogix 1100, 1200, 1400, and 1500 controller expansion buses.
  • Lightweight & Compact Footprint: Measures 90 x 40.4 x 87 mm with a low net weight of 0.20 kg for fast DIN rail mounting.

Technical Specifications

Manufacturer / Brand Allen-Bradley / Rockwell Automation
Product Series MicroLogix Expansion I/O (1762 Series)
Catalog / Part Number 1762-IQ32T
Module Type High-Density Discrete Input Expansion Module
Number of Inputs 32 Channels (4 Groups of 8 Channels)
Nominal Input Voltage 24V DC (Sink / Source)
Input Voltage Range 10.0V DC to 30.0V DC (@ 30°C) / 10.0 to 26.4V DC (@ 60°C)
ON-State Current (Min / Max) 1.6 mA @ 10V DC / 6.5 mA @ 30V DC
Backplane Current Draw 170 mA @ 5V DC / 0 mA @ 24V DC
Signal Transition Delay 8.0 ms (OFF to ON) / 8.0 ms (ON to OFF)
Isolation Rating 1,200V AC for 2 s or 1,697V DC for 2 s (75V DC Working Voltage)
Heat Dissipation 5.4 to 6.8 Watts
Dimensions (H x W x D) 90 x 40.4 x 87 mm (3.54 x 1.59 x 3.43 in)
Estimated Net Weight 0.20 kg (0.44 lbs / 200 g)
Mounting Format Standard DIN Rail or Panel Mount

Frequently Asked Questions

Q1: Which MicroLogix controllers are compatible with the 1762-IQ32T module?

A1: Compatible with MicroLogix 1100, 1200, 1400, and 1500 controller platforms.

Q2: Does the 1762-IQ32T support both sink and source field wiring?

A2: Yes, all 32 channels support 24V DC sinking or sourcing field device wiring.

Q3: How much does the Allen-Bradley 1762-IQ32T module weigh?

A3: The net weight of the module is 0.20 kg (200 g / 0.44 lbs).
