25B-E6P6N104

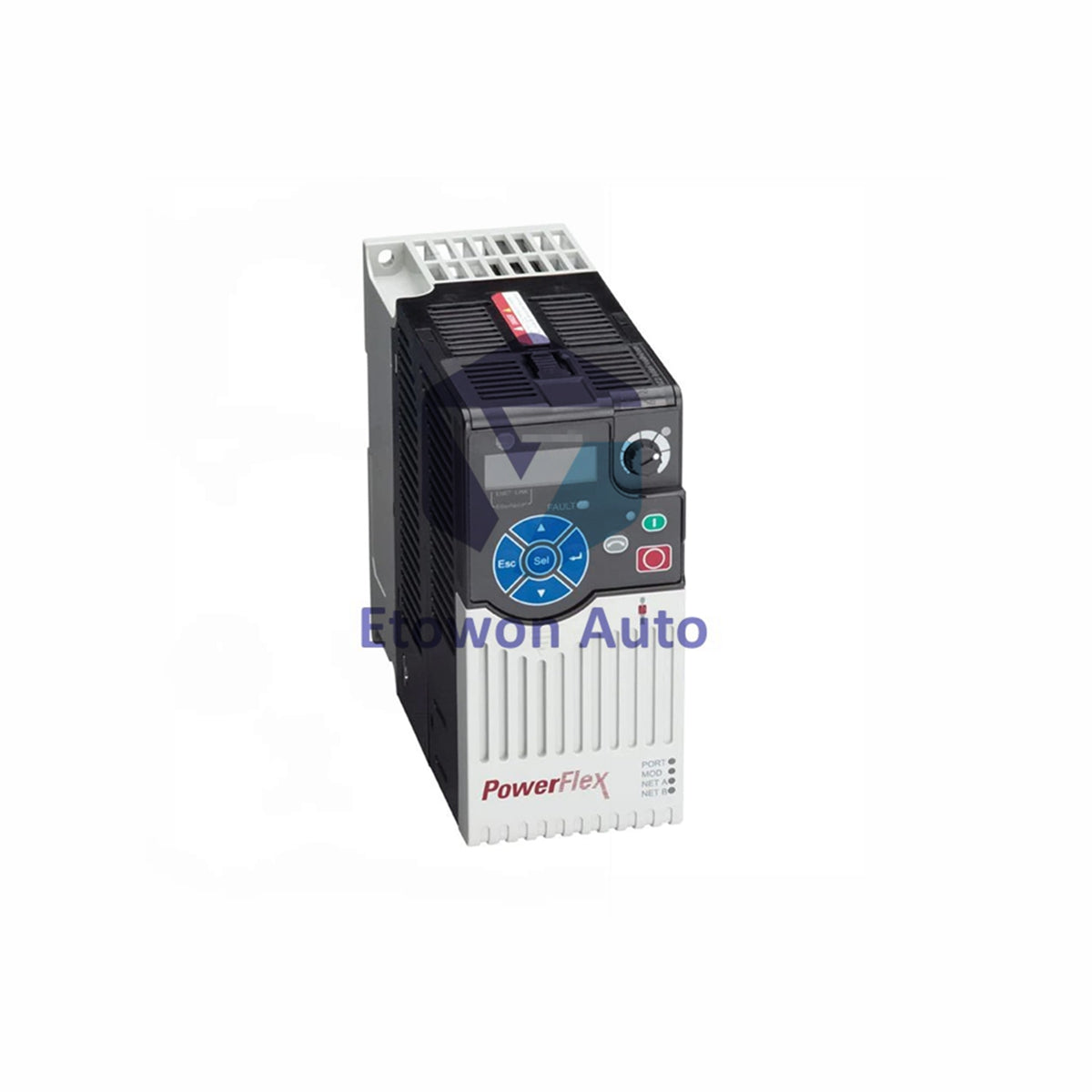

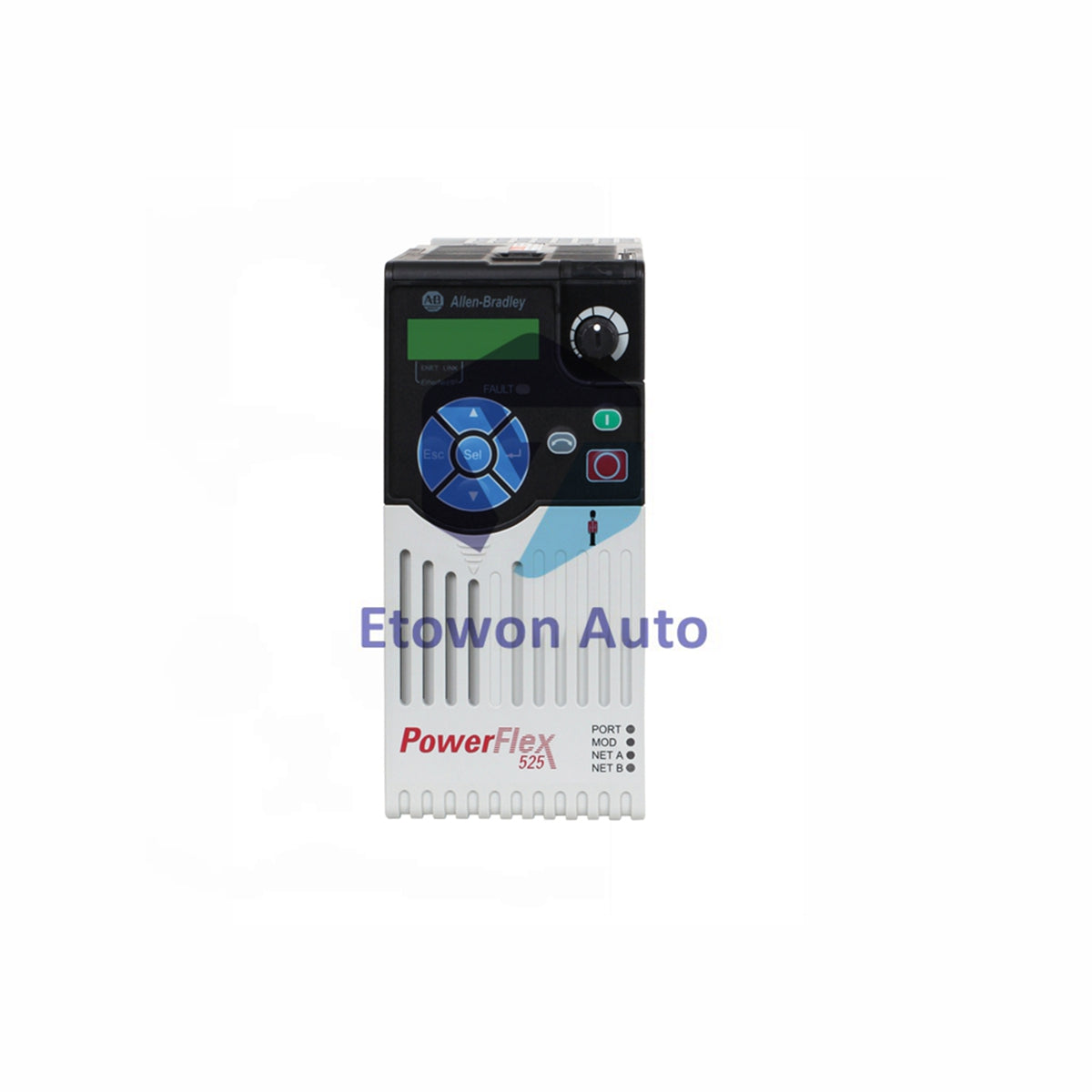

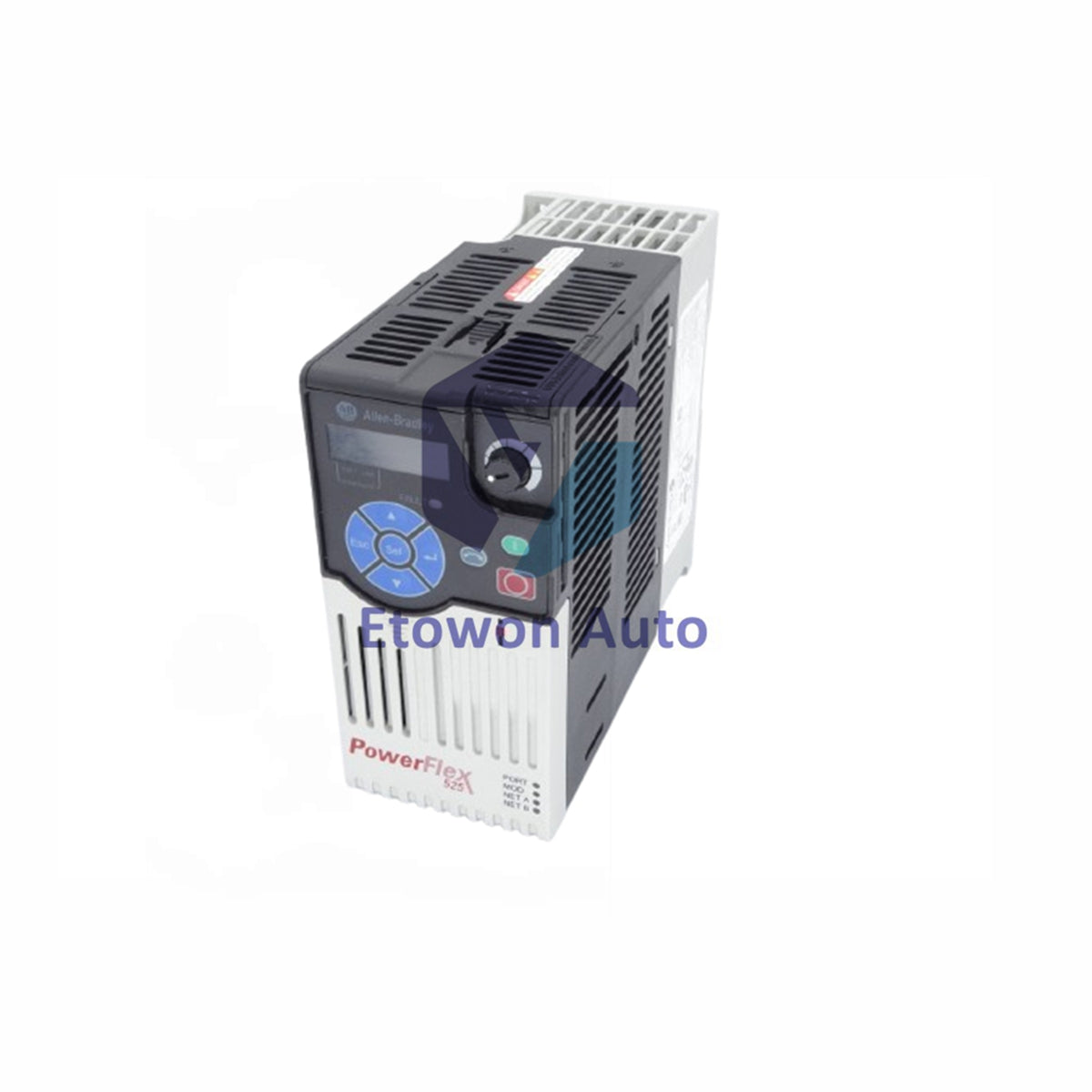

Allen-Bradley 25B-E6P6N104 PowerFlex 525 VFD 5HP 3.7kW

Diňe 10 sany galdy

  • Manufacturer: Allen-Bradley

  • Product No.: 25B-E6P6N104

  • Product Type: AC Drive

  • Product Origin: USA

  • Payment:T/T, Western Union

  • Weight: 2000g

  • Shipping port: Xiamen

  • Warranty: 12 months

30 günlük yzyna gaýtaryş syýasaty · 12 aýlyk kepillik
  • Çalt eltip berme
  • 24/7 goldaw
  • Hil üpjünçiligi

Düşündiriş

Product Overview

The Allen-Bradley 25B-E6P6N104 is a versatile PowerFlex 525 adjustable frequency AC drive manufactured by Rockwell Automation. Built in a compact Frame Size B IP20 / NEMA Open Type enclosure, this drive is rated for a 3-phase input voltage range of 446 to 660 VAC and provides a continuous output current of 6.6 Amperes with a power rating of 5.0 HP (3.7 kW) at 575 VAC. Weighing approximately 2.0 kg (4.4 lbs), the 25B-E6P6N104 features modular design architecture, integrated EtherNet/IP port, embedded Safe Torque-Off (STO) capabilities, and versatile motor control options suitable for standalone machinery and integrated industrial automation systems.

Technical Specifications

Parameter Specification
Product Model 25B-E6P6N104
Manufacturer / Product Line Allen-Bradley / PowerFlex 525
Input Voltage Rating 446 to 660 VAC, 3-Phase
Output Voltage Range 0 to 575 VAC, 3-Phase
Rated Output Current 6.6 Amperes
Output Power Rating 5.0 HP (3.7 kW)
Output Frequency Range 0 to 500 Hz (Programmable)
Frame Size & Enclosure Frame Size B | IP20 / NEMA Open Type
EMC Filtering No Internal EMC Filter Included
Mounting Style Panel Mount (DIN Rail Supportable)
Net Weight Approx. 2.0 kg (4.4 lbs)
Control Modes Volts/Hertz, Sensorless Vector Control (SVC), Closed Loop Velocity Vector, Permanent Magnet Motor Control

Key Hardware & Performance Features

  • Multi-Control Engine: Supports standard V/Hz, Sensorless Vector Control, Closed Loop Velocity Vector Control, and Permanent Magnet motor control modes for elevated dynamic response.
  • Modular Hardware Architecture: Features a detachable control module and power module design, simplifying installation, wiring, and rapid maintenance swapping.
  • Embedded Safety & Networking: Integrated standard dual-port EtherNet/IP interface along with built-in Safe Torque-Off (SIL2 / PLd) safety functionality.
  • High Output Frequency Range: Programmable output frequency up to 500 Hz provides ideal torque control for high-speed motor application requirements.

Installation & Field Wiring Guidelines

1. Enclosure Mounting & Clearance: Mount the Frame B drive vertically on a flat panel. Maintain recommended top/bottom airflow clearance inside IP20 enclosures to guarantee adequate convection cooling.

2. AC Mains & Motor Power Connections: Connect incoming 3-phase 600V class line power to terminals R/L1, S/L2, and T/L3. Connect load motor cabling to U/T1, V/T2, and W/T3 terminals using shielded motor cables.

3. Grounding & Line Filtering: Ground the drive chassis directly to protective earth (PE). Since model 25B-E6P6N104 does not include an internal EMC filter, an external line filter kit should be added where strict EMC compliance is required.

Frequently Asked Questions (FAQs)

Q1: What is the rated horsepower and voltage for the Allen-Bradley 25B-E6P6N104 drive?
A1: The drive is rated for 5.0 HP (3.7 kW) with a 3-phase input voltage range of 446 to 660 VAC (575V nominal output class).

Q2: Does the 25B-E6P6N104 drive include an internal EMC filter?
A2: No, model code 25B-E6P6N104 indicates that an EMC filter is not included inside the drive enclosure.

Q3: What frame size is the PowerFlex 525 25B-E6P6N104?
A3: This model uses the Compact PowerFlex 525 Frame Size B housing with an IP20 / NEMA Open rating.
