22F-V1P6N103

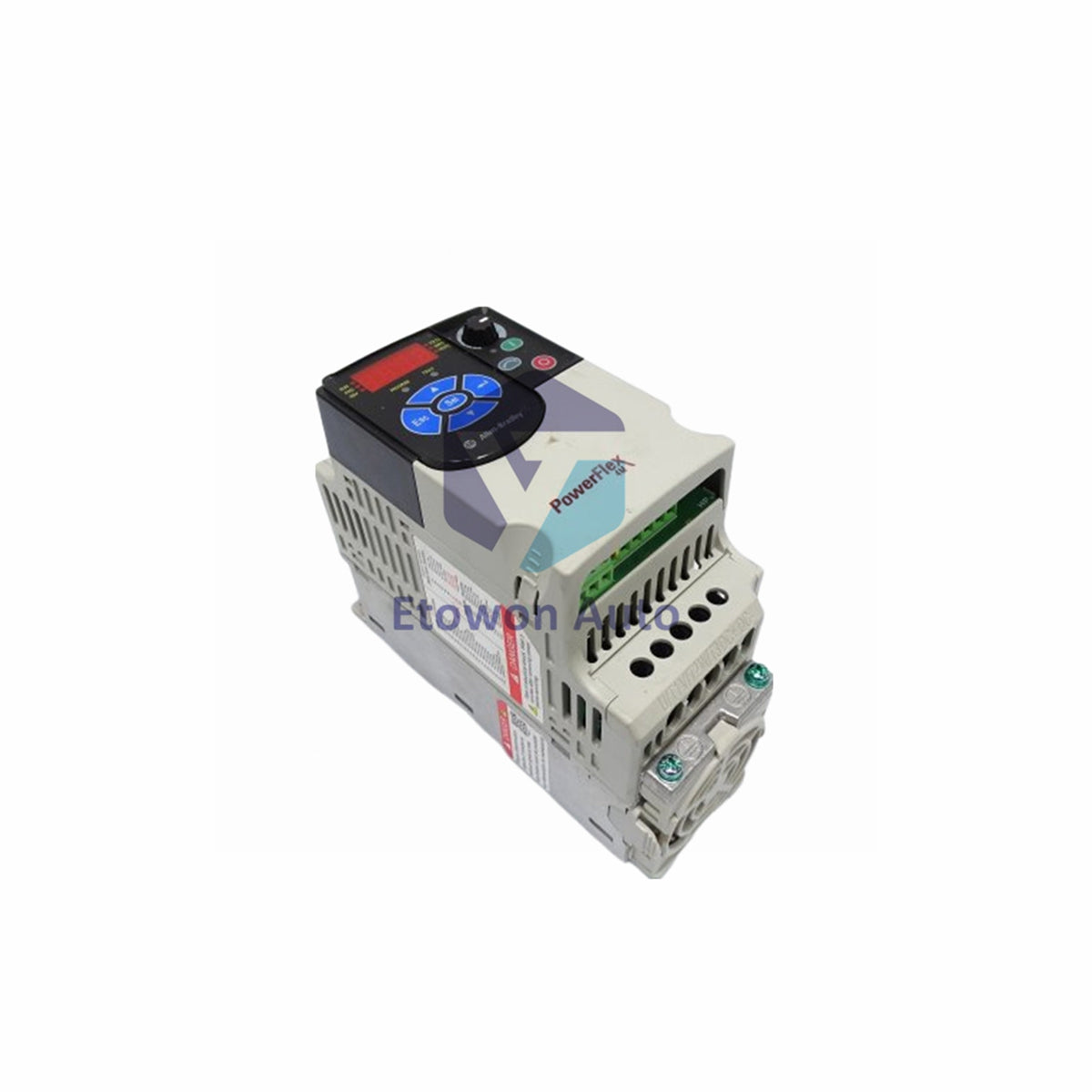

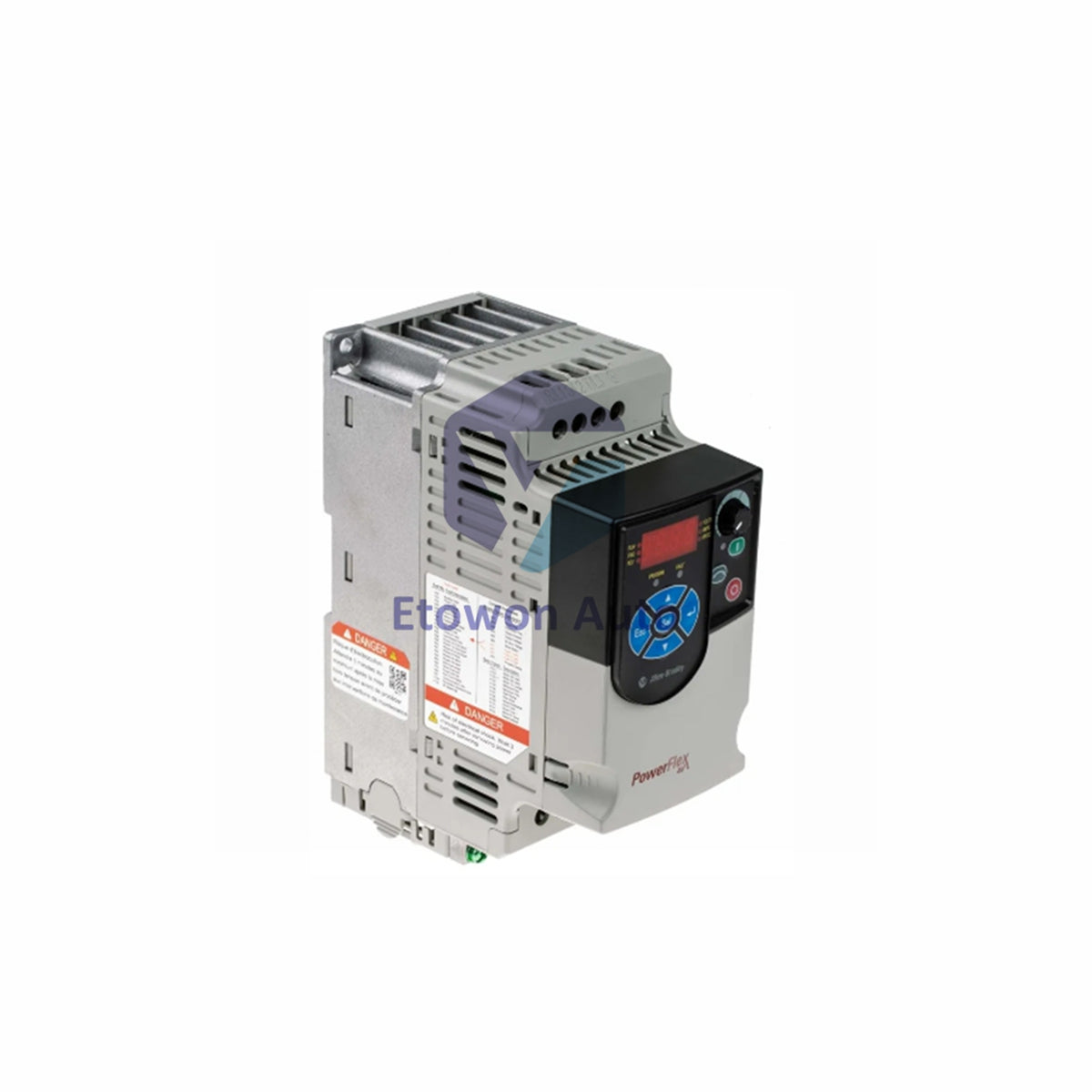

Allen-Bradley 22F-V1P6N103 PowerFlex 4M VFD 0.25HP

Skladda bar (16 sany), ibermek üçin taýýar

  • Manufacturer: Allen-Bradley

  • Product No.: 22F-V1P6N103

  • Product Type: AC Drive

  • Product Origin: USA

  • Payment:T/T, Western Union

  • Weight: 1600g

  • Shipping port: Xiamen

  • Warranty: 12 months

30 günlük yzyna gaýtaryş syýasaty · 12 aýlyk kepillik
  • Çalt eltip berme
  • 24/7 goldaw
  • Hil üpjünçiligi

Düşündiriş

Technical Specifications

Manufacturer / Brand Allen-Bradley / Rockwell Automation
Product Series PowerFlex 4M AC Drive
Part Number 22F-V1P6N103
Input Voltage & Phase 100–120 VAC, Single-Phase (6.4 A Input Current)
Output Voltage & Current 0–230 VAC, Three-Phase | 1.6 A Output Current
Output Power Rating 0.2 kW (0.25 HP) | Volts/Hertz (V/Hz) Control
I/O Configuration 5 Discrete Inputs (Sink/Source), 1 Form C Relay Output, 1 Analog Input (0-10V / 0-20mA)
Communication Ports RS-485 Built-In (Optional: EtherNet/IP, DeviceNet, Profibus)
Enclosure & Frame IP20 / NEMA Open Type | Frame Size A (No CE Filter)
Weight Approx. 1.60 kg (3.50 lbs)

Product Overview

The Allen-Bradley 22F-V1P6N103 is a compact PowerFlex 4M adjustable frequency AC drive engineered for precise motor control. Operating on 100–120 VAC single-phase input power, this Frame Size A variable frequency drive provides a 0.2 kW (0.25 HP) three-phase output at 1.6 A. Weighing approximately 1.60 kg (3.50 lbs) with an IP20 open enclosure rating, it utilizes Volts per Hertz control and integrated RS-485 communication, making it an ideal cost-effective speed control solution for small machinery, conveyors, and fan/pump applications.

Key Features

  • Single-Phase Voltage Doubling: Converts single-phase 100–120 VAC input power to variable three-phase output voltage for standard industrial motors.
  • Compact Space-Saving Design: Frame A panel-mount footprint enables side-by-side zero-stacking installation in control cabinets.
  • Versatile Control & I/O: Features Volts/Hertz control with 5 digital inputs, 1 analog input, and 1 Form C output relay for flexible machine control.
  • Integrated Communication & Protection: Built-in RS-485 serial port with overload, short-circuit, and overvoltage protection built directly into the unit.

Installation Essentials

Mount vertically on panel. Connect 120V single-phase input, wire 3-phase motor, and prevent ESD damage.

Technical FAQs

Q1: What is 22F-V1P6N103's function?
A1: 0.25 HP single-phase input VFD for AC motor speed control.

Q2: What is its size and weight?
A2: Frame Size A drive, weighs approx. 1.60 kg (3.50 lbs).

Q3: What input power is required?
A3: Operates on single-phase 100–120 VAC (6.4 A current draw).
