22B-CCC

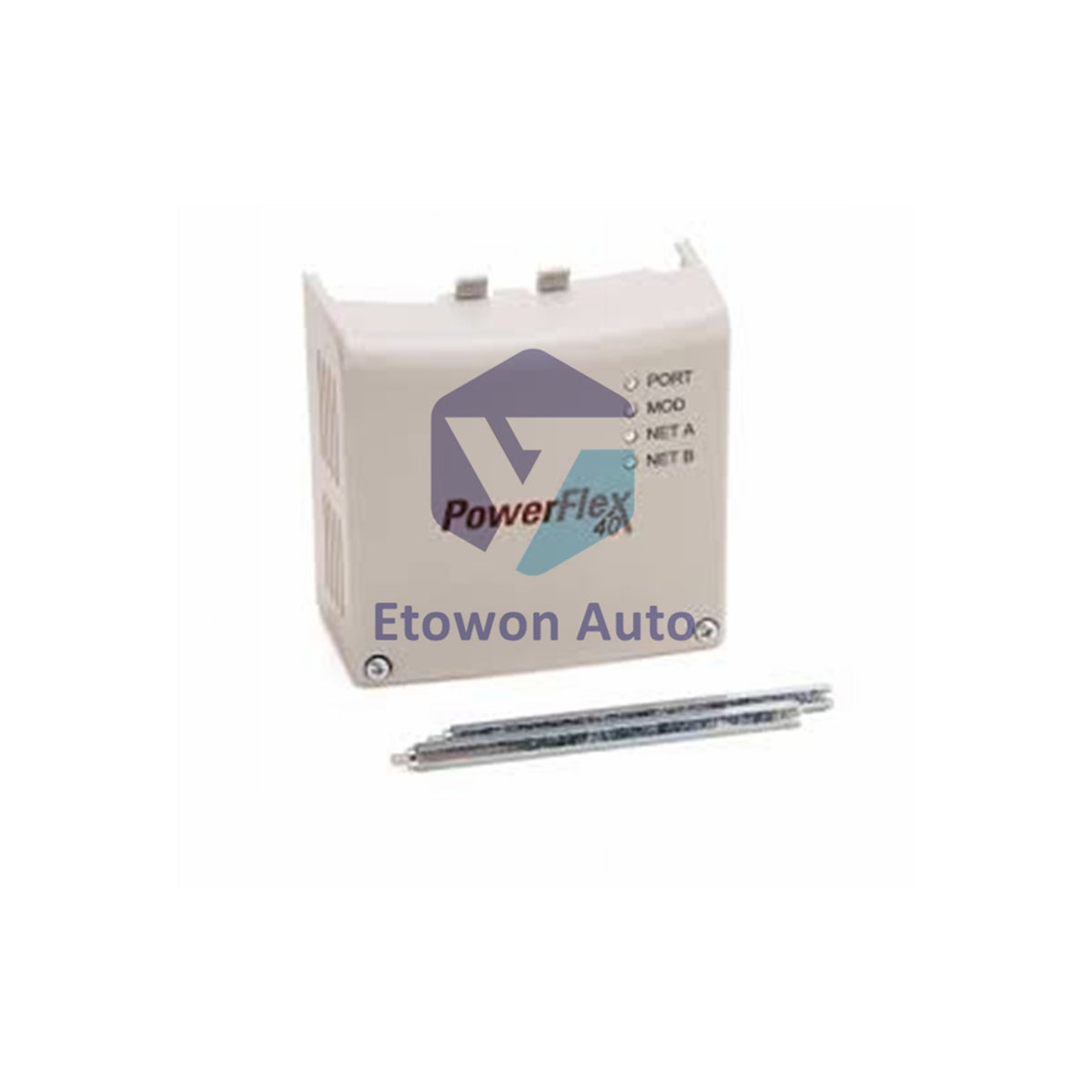

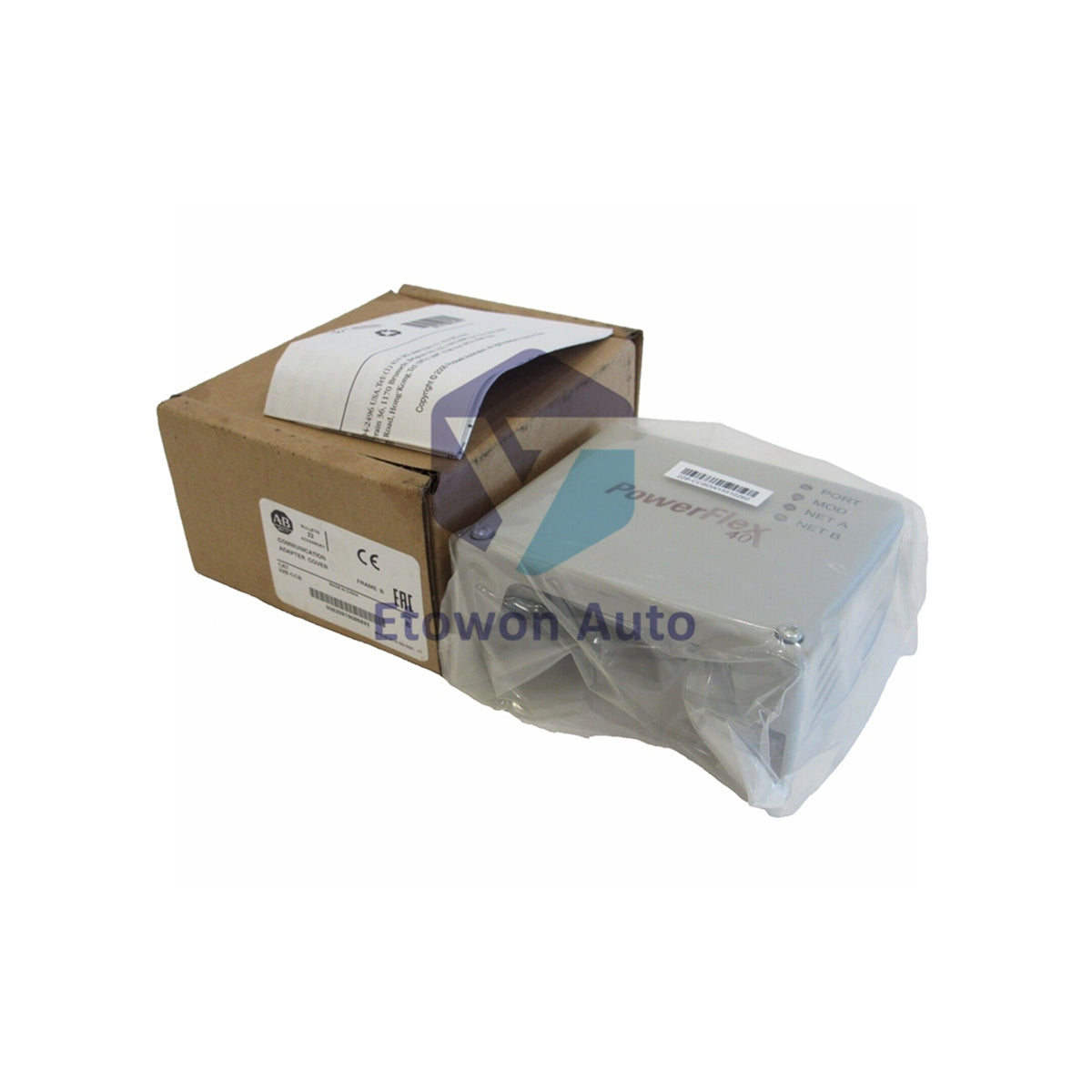

Allen-Bradley 22B-CCC PowerFlex 40 Frame C Adapter Cover

Diňe 9 sany galdy

  • Manufacturer: Allen-Bradley

  • Product No.: 22B-CCC

  • Product Type: Adapter Cover

  • Product Origin: USA

  • Payment:T/T, Western Union

  • Weight: 160g

  • Shipping port: Xiamen

  • Warranty: 12 months

30 günlük yzyna gaýtaryş syýasaty · 12 aýlyk kepillik
  • Çalt eltip berme
  • 24/7 goldaw
  • Hil üpjünçiligi

Düşündiriş

Product Overview

The Allen-Bradley 22B-CCC is a dedicated communication adapter front cover kit designed specifically for Frame Size C PowerFlex 40 Adjustable Frequency Drives. Weighing approximately 0.35 lbs (0.16 kg), this lightweight enclosure component is required when installing internal communication option cards—such as DeviceNet (22-COMM-D), ControlNet (22-COMM-C), or EtherNet/IP (22-COMM-E) adapters. The cover extends the overall drive depth by 25 mm while protecting internal card electronics and maintaining full exterior visibility of diagnostic status LEDs.

Key Advantages

  • Dedicated Frame C Compatibility: Tailored exclusively to fit Frame C PowerFlex 40 drive housings for a clean, secure snap-on fit without modification.
  • Diagnostic Light Visibility: Features clear window spacing so maintenance personnel can view LED status lights on the communication adapter at a glance.
  • Lightweight & Compact Extension: Adds only 25 mm in additional depth and weighs 0.35 lbs (0.16 kg), avoiding significant enclosure footprint growth.
  • IP20 Ingress Protection: Maintains the drive's IP20 touch-safe protection rating against solid foreign objects such as dust and tools.

Technical Specifications

Model / Catalog Number 22B-CCC
Manufacturer Allen-Bradley / Rockwell Automation
Product Line PowerFlex 40 Series
Target Drive Frame Size Size C Frames
Component Weight 0.35 lbs (approx. 0.16 kg)
Added Drive Depth 25 mm (0.98 in)
Ingress Protection Rating IP20 (Open-type enclosure)
Compatible Networks DeviceNet, ControlNet, EtherNet/IP, BACnet, PROFIBUS

Installation Guidelines

  • Power Down Before Assembly: Ensure all main AC power supplied to the PowerFlex 40 drive is disconnected and bus capacitors are fully discharged before removing the factory front cover or installing communication options.
  • Depth Allowance Check: Confirm panel door clearances accommodate the additional 25 mm (0.98 in) depth that the 22B-CCC adds to the front profile of the host drive.
  • Card Alignment: Seat the 22-COMM option card onto the drive's DSI port ribbon header securely before snapping the 22B-CCC cover into place.

Frequently Asked Questions

Q1: Will the 22B-CCC fit on Frame B PowerFlex 40 drives?

A1: No. The 22B-CCC is sized specifically for Frame C drives. If you are using a Frame B PowerFlex 40 drive, you must use part number 22B-CCB instead.

Q2: Is the 22B-CCC cover required if I am NOT using a communication adapter card?

A2: No. The standard front cover included with the drive is sufficient for basic operation. The extended depth 22B-CCC cover is only necessary when a 22-COMM series communication card is installed to provide the required internal clearance.

Q3: Does this cover work with other communication cards besides DeviceNet?

A3: Yes. The 22B-CCC is compatible with various 22-COMM option cards used with PowerFlex 40 drives, including EtherNet/IP (22-COMM-E), ControlNet (22-COMM-C), BACnet (22-COMM-B), and PROFIBUS (22-COMM-P).

🏷️ Tags: Adapter Cover

Skalyar (V/f)

Wektor

AC tok bilen işleýän
  • Sargyt etmezden ozal takyk modeli, bölek belgisini we aýratynlyklary tassyklaň.
  • Bar bolan enjamyňyz ýa-da dolandyryş ulgamlaryňyz bilen laýyklygyny üpjün ediň.
  • Tehniki kömek üçin sale@etowonauto.com ýa-da +8617859788089 arkaly habarlaşyň.
  • Eltip beriş mümkinçiliklerini, öňdebaryş möhletlerini we iberiş talaplaryny gözden geçiriň.
  • Gurnama wagty öndürijiniň görkezmelerine hem-de iň oňat tejribelere eýeriň.

Stokda bar bolan harytlar adatça şol bir iş gününde ugradylýar. Häzir stokda bolmadyk önümler üçin iberiş wagty elýeterliligine görä üýtgäp biler. Halkara eltip bermek mümkindir we eltip bermek tölegleri barýan ýeriňe, agramyna we daşaýjynyň saýlanmagyna görä hasaplanýar.

Harytlar ulanylman we asyl ýagdaýynda bolmak şerti bilen, alnan gününden başlap 30 günüň içinde yzyna gaýtarmak kabul edilýär. Yzyna iberiş üçin eltip bermek çykdajylary müşderiniň jogapkärçiliginde. Yzyna gaýtarmak baradaky rugsaty almak üçin, haýsydyr bir harydy yzyna ugratmazdan öň biziň bilen habarlaşmagyňyzy haýyş edýäris.

Has giňişleýin maglumat üçin, biziň Iberiş we yzyna gaýtarmak syýasatymyzy.

 Önüm jikme-jikliklerini gör

Enjamlaryň ygtybarly işlemegini üpjün ediň

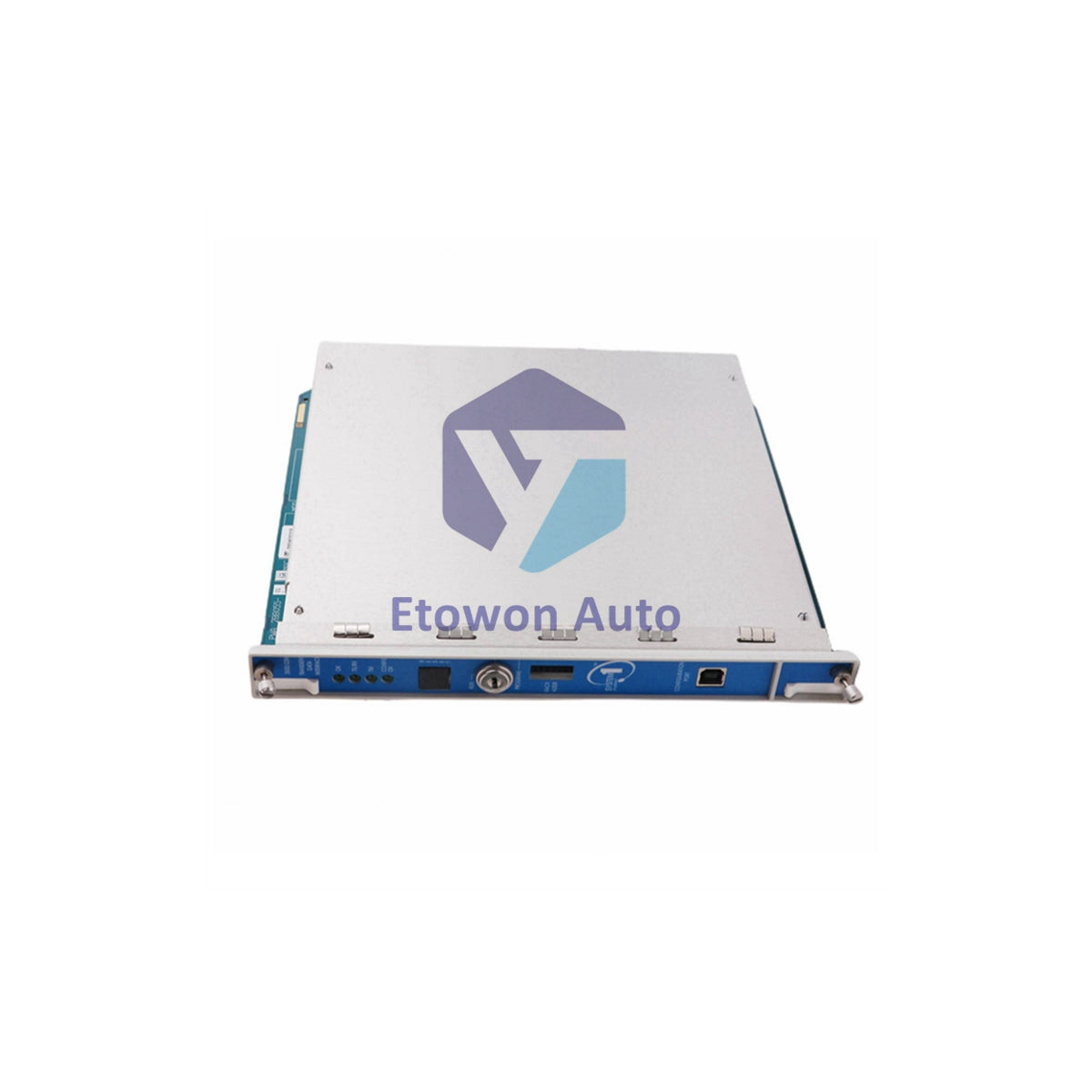

Iň täze köpugurly elektronika çözüwleri bilen öýüňizi özgertmegiňiz mümkin — akylly yşyklandyryşdan başlap, ses arkaly dolandyrylýan enjamlara çenli; bularyň hemmesi durmuşy has aňsat, has howpsuz we has baglanyşykly etmek üçin döredilen. Amallaryňyzy Bently Nevada 3500 Gözegçilik ulgamy bilen optimizirlaň, ol näsazlyklaryň öňüni almak we işleme döwrüni iň ýokary derejede saklamak üçin hakyky wagt režiminde wibrasiýa we enjamyň ýagdaýyna gözegçilik edýär.
