1762-OW16

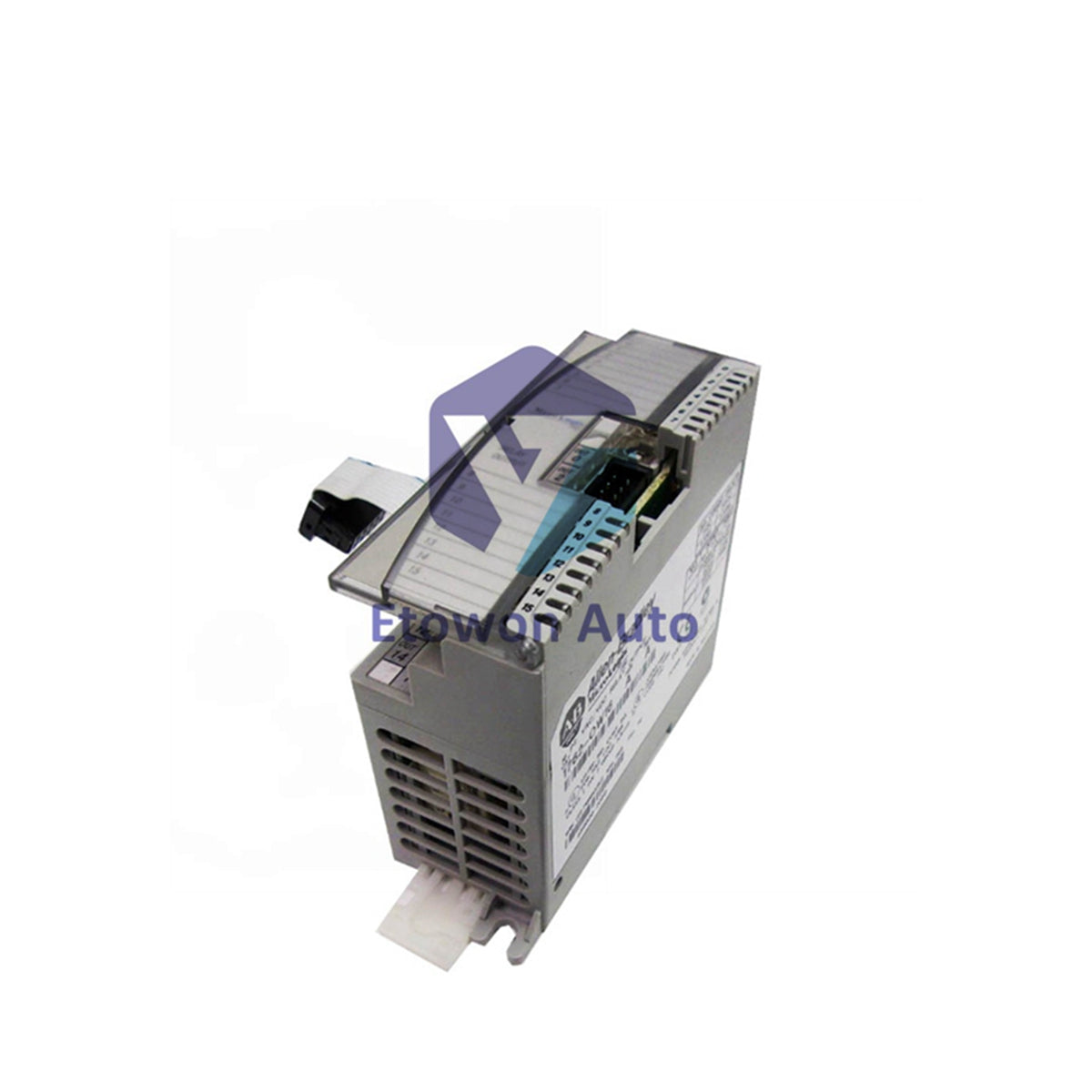

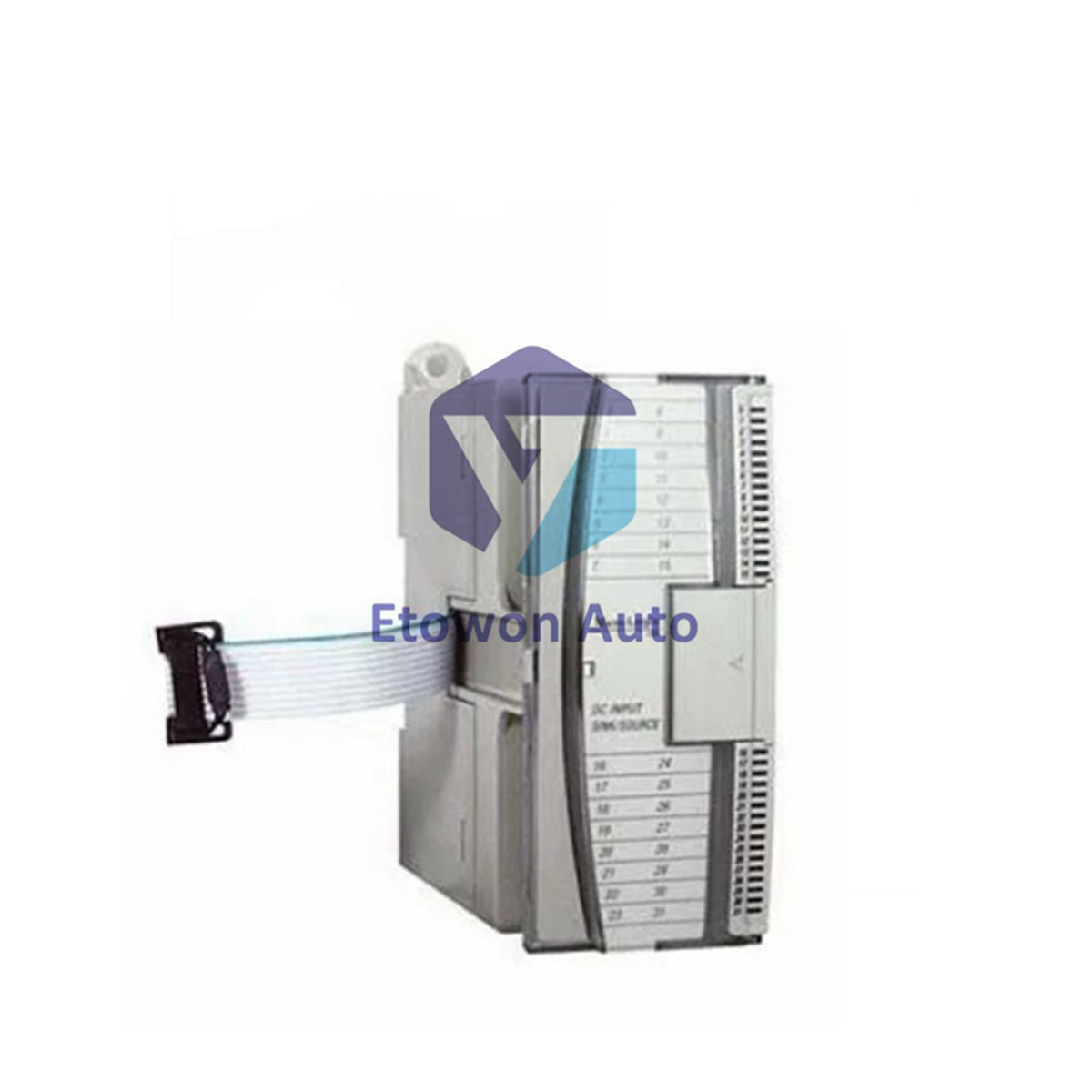

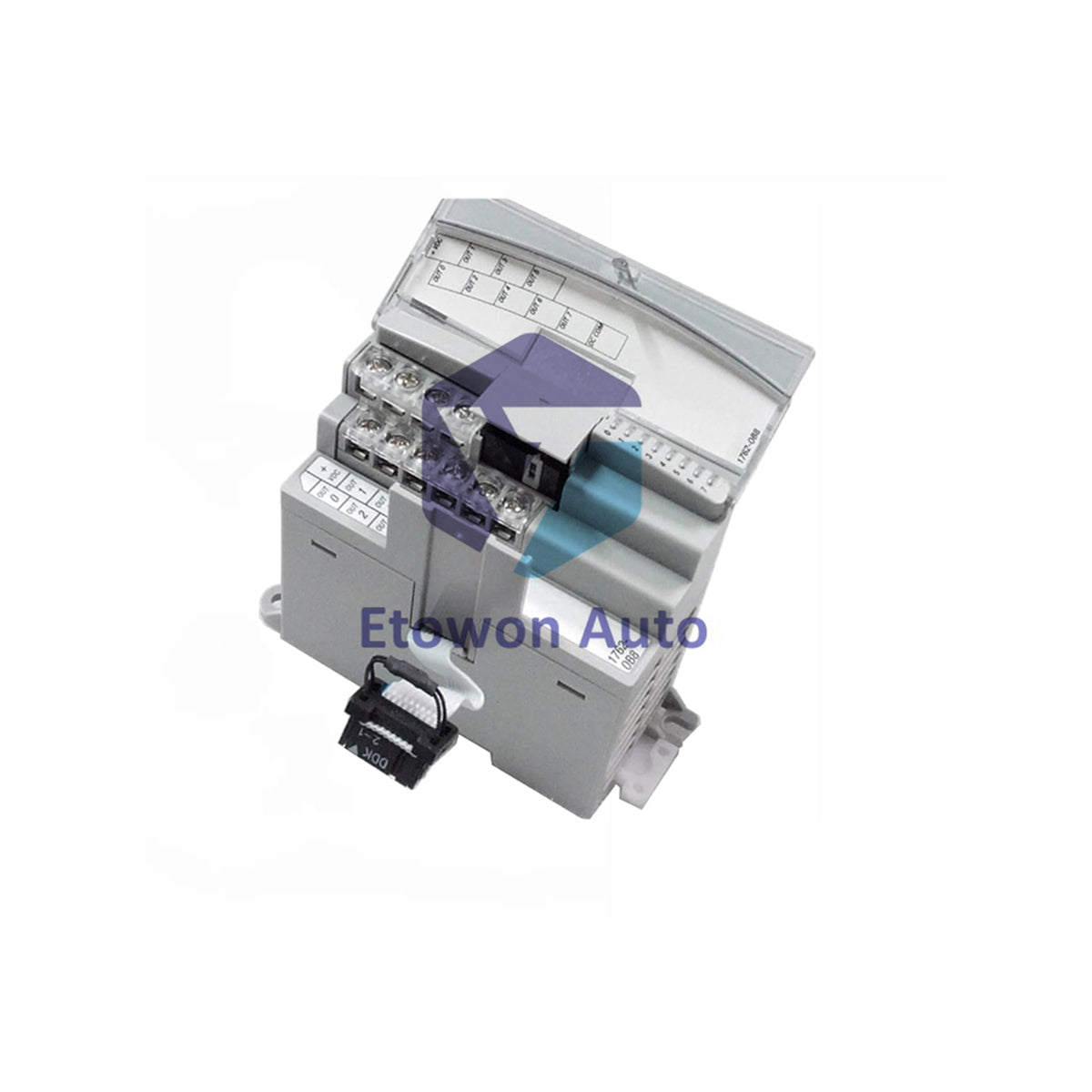

Allen-Bradley 1762-OW16 MicroLogix 16 Relay Output

Skladda bar (19 sany), ibermek üçin taýýar

  • Manufacturer: Allen-Bradley

  • Product No.: 1762-OW16

  • Product Type: Relay Output Module

  • Product Origin: USA

  • Payment:T/T, Western Union

  • Weight: 286g

  • Shipping port: Xiamen

  • Warranty: 12 months

30 günlük yzyna gaýtaryş syýasaty · 12 aýlyk kepillik
  • Çalt eltip berme
  • 24/7 goldaw
  • Hil üpjünçiligi

Düşündiriş

Allen-Bradley 1762-OW16 MicroLogix Relay Output Module

Allen-Bradley 1762-OW16 | MicroLogix relay output expansion module with 16 relay output channels. Compatible with MicroLogix 1100, 1200, and 1400 controllers. Provides AC and DC load switching capability for industrial automation applications. DIN rail or panel mounting. Weight: approximately 286 g (0.63 pounds).

Key Features

16 relay outputs in 2 isolated groups of 8 channels each. Operating voltage range 5-265V AC and 5-125V DC. 10 ms signal delay for ON/OFF transitions. 2.5 A maximum current per point. 8 A continuous current per common. 16 A continuous current per module. 1440 VA maximum controlled load. 6.1 W heat dissipation. IP20 enclosure rating. DIN rail or panel mounting. Surge suppressors recommended for inductive loads.

Technical Specifications

Manufacturer Rockwell Automation
Brand Allen-Bradley
Part Number 1762-OW16
Series MicroLogix
Module Type Relay Output Module
Compatible Controllers MicroLogix 1100 / 1200 / 1400
Outputs 16 (AC/DC Relay)
Isolated Groups 2 (8 channels per group)
Relay Contact Voltage Ratings 24-125V DC; 120-240V AC
Operating Voltage Range 5-265V AC; 5-125V DC
Signal Delay 10 ms
Max Current per Point 2.5 A
Continuous Current per Common 8 A
Continuous Current per Module 16 A
Maximum Controlled Load 1440 VA
Minimum On-State Current 10 mA
Bus Current Draw 140 mA @ 5V DC; 180 mA @ 24V DC
Heat Dissipation 6.1 W
Enclosure Rating IP20
Mounting Type DIN Rail; Panel Mounting
Dimensions (H x W x D) 90 x 40.4 x 87 mm (3.54 x 1.59 x 3.43 in)
Weight Approx. 286 g (0.63 lbs)
UPC 10611320152149

Installation Notes

Mount on DIN rail or panel as required by the base controller. Install surge suppressors across inductive loads to extend relay contact life. Maintain proper grounding to limit electrical noise. Up to 4 modules can be used with MicroLogix 1100, 6 modules with MicroLogix 1200, and 7 modules with MicroLogix 1500. Take precautions against electrostatic discharge, which can damage internal semiconductors. Keep the module in an IP20 enclosure.

Engineering Advantages

Dual AC/DC load capability eliminates the need for separate output modules. Two isolated groups of 8 channels provide flexibility in wiring and fault isolation. High 2.5 A per point rating handles demanding industrial loads directly. 10 ms signal delay supports responsive control applications. Expandable up to 7 modules with MicroLogix 1500 for large I/O counts. Compact 286 g design with DIN rail mounting simplifies panel layout.

FAQs

Q1: How many outputs does this module provide?
A1: 16 relay outputs in 2 isolated groups of 8 channels each.

Q2: What is the maximum current per point?
A2: 2.5 A per point, with 8 A per common and 16 A per module.

Q3: How many modules can be connected to each controller?
A3: Up to 4 with MicroLogix 1100, 6 with MicroLogix 1200, and 7 with MicroLogix 1500.
