1762-OB32T

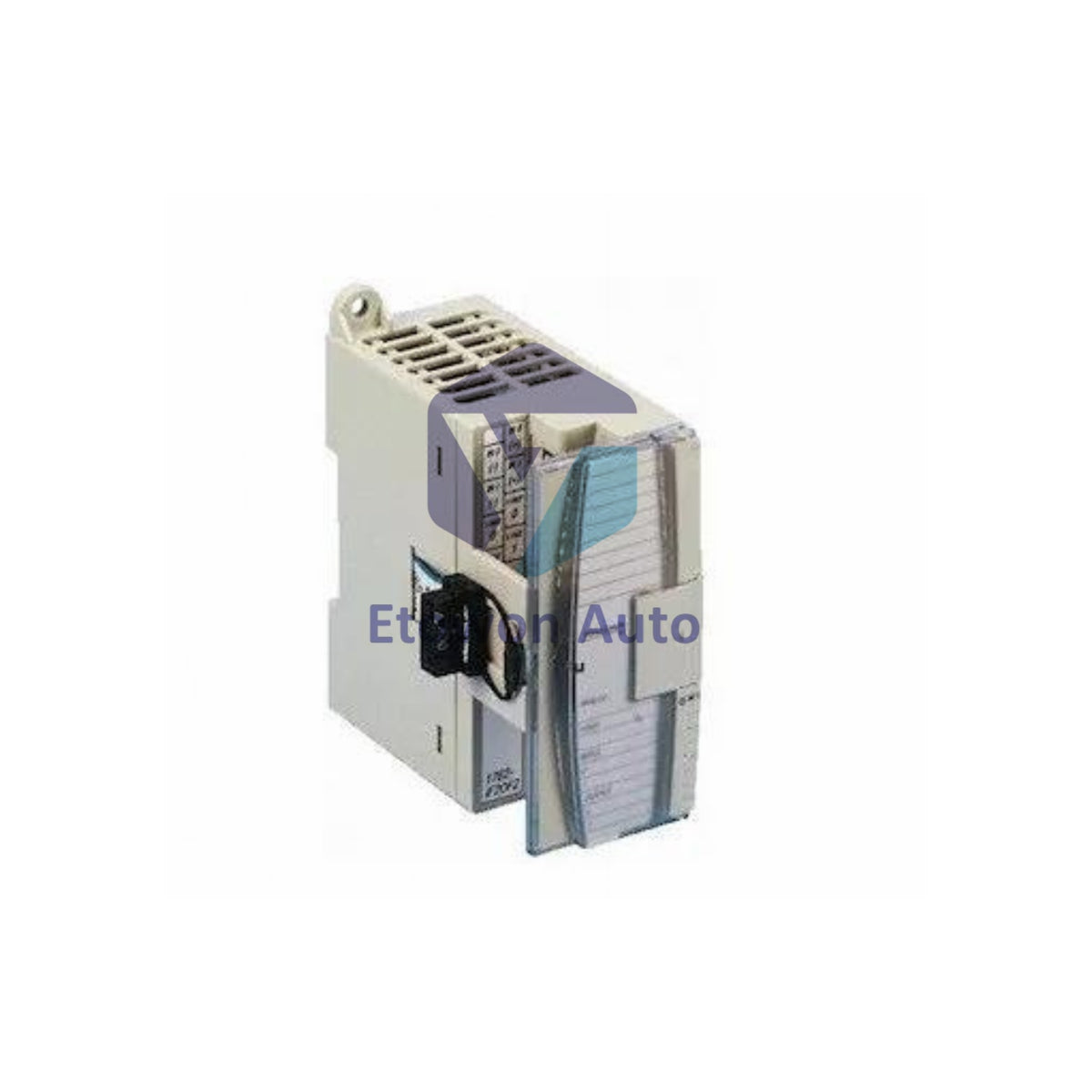

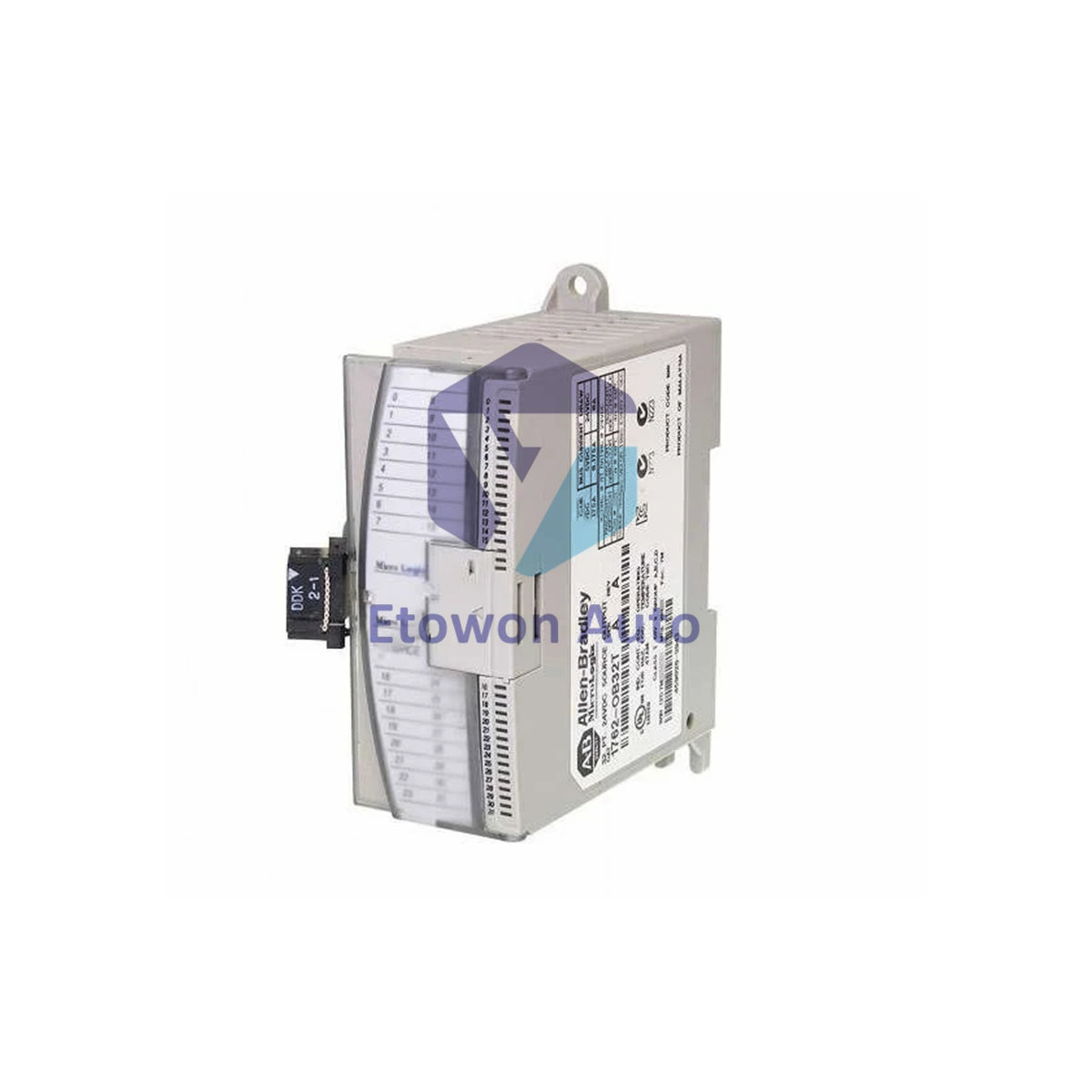

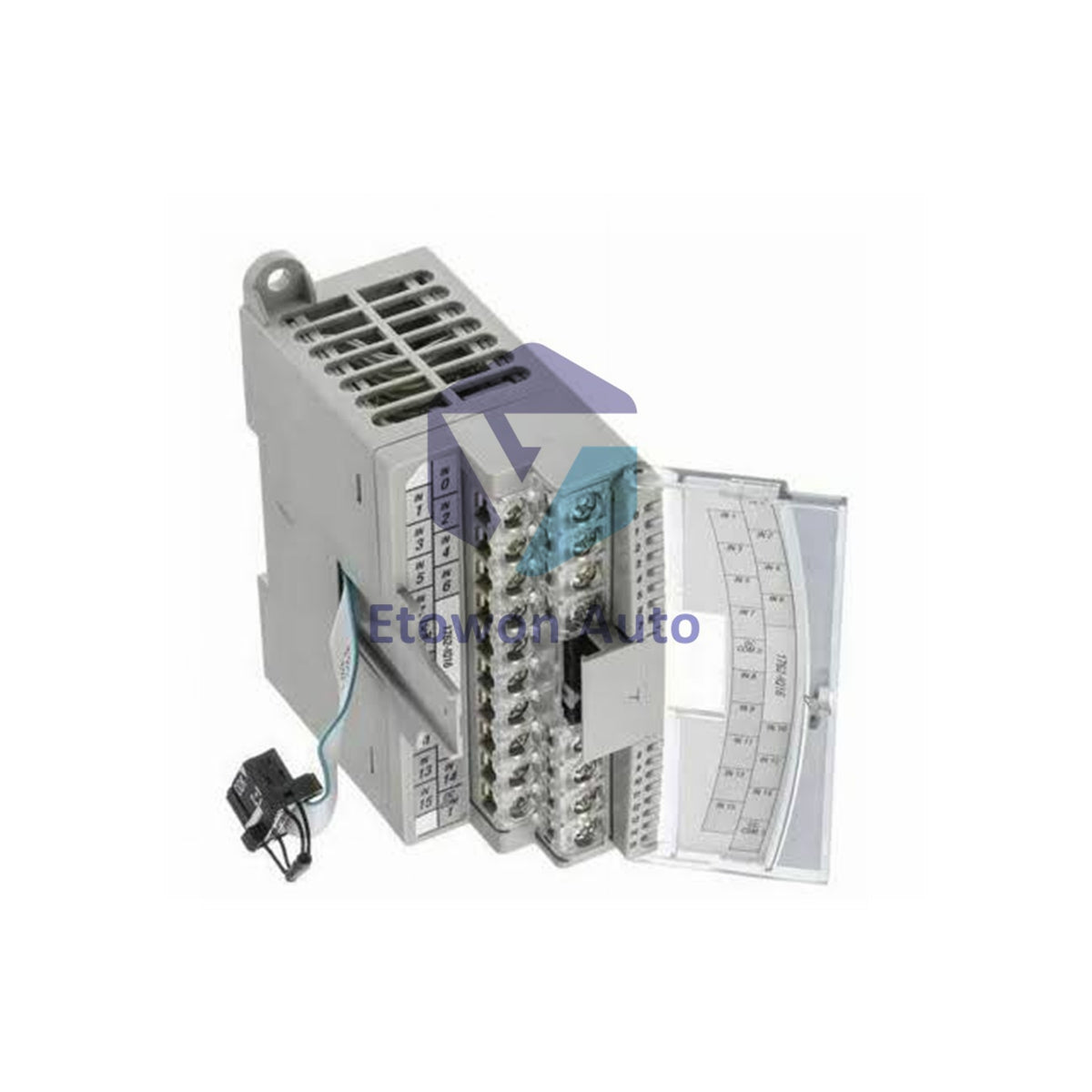

Allen-Bradley 1762-OB32T MicroLogix Output Module 32 Point 24VDC

Skladda bar (26 sany), ibermek üçin taýýar

  • Manufacturer: Allen-Bradley

  • Product No.: 1762-OB32T

  • Product Type: Discrete Output Module

  • Product Origin: USA

  • Payment:T/T, Western Union

  • Weight: 230g

  • Shipping port: Xiamen

  • Warranty: 12 months

30 günlük yzyna gaýtaryş syýasaty · 12 aýlyk kepillik
  • Çalt eltip berme
  • 24/7 goldaw
  • Hil üpjünçiligi

Düşündiriş

Allen-Bradley 1762-OB32T MicroLogix High-Density Output Module

The Allen-Bradley 1762-OB32T is a MicroLogix high-density solid-state output module featuring 32 output channels in 2 isolated groups of 16. Operating from 10.2-26.4 V DC with 24 V DC nominal output, it delivers 0.5 A per channel and 4.0 A per module at 60°C. With 1200 V AC isolation and source wiring support, this module drives indicating lights, solenoids, and small DC motors. Weighing approximately 0.5 lbs (0.23 kg), it dissipates 3.4 W.

Technical Specifications

Parameter Value
Manufacturer Rockwell Automation
Brand Allen-Bradley
Part Number 1762-OB32T
Series MicroLogix
Module Type Solid-State Output Module
Product Type Source Output Module
Outputs 32 (2 Groups of 16)
Nominal Output Voltage 24 V DC
Output Voltage Range 10.2-26.4 V DC
Current per Channel 0.5 A @ 60°C
Current per Group 2.0 A @ 60°C
Current per Module 4.0 A @ 60°C
Surge Current 2.0 A (Repeatable every 2 s for 10 ms)
Minimum On-State Current 1 mA
Off-State Leakage Current 0.1 mA @ 26.4 V DC
On-State Voltage Drop 0.3 V DC @ 0.5 A
Isolation Rating 1200 V AC for 2 s or 1697 V DC for 2 s
Signal Delay (On/Off) 0.5 ms / 4.0 ms (Resistive Loads)
Heat Dissipation 3.4 W
Wire Size 22, 24, 26 AWG
Shipping Weight Approx. 0.5 lbs (0.23 kg)
UPC 10612598849922

Installation & Field Application Guide

  • Mount the 0.5 lb module in a flame-retardant enclosure with a rating of 5VA, V2, V1, V0, or equivalent for non-metallic enclosures.
  • Use 22, 24, or 26 AWG wire for field connections. Source wiring configuration.
  • Operates in Pollution Degree 2 environments at altitudes up to 6562 feet without derating.
  • The enclosure interior must be accessible only by tool to prevent injury.

Why Choose the 1762-OB32T

  • 32 outputs in 2 isolated groups for high-density DC output control.
  • Source wiring simplifies connection to sinking field devices.
  • 1200 V AC isolation protects the controller from field-side faults.
  • Fast 0.5 ms turn-on delay supports high-speed switching applications.

Field Engineer FAQs

Q1: What is the difference between per-channel, per-group, and per-module current ratings?

A1: Each channel handles 0.5 A, each group of 16 channels handles 2.0 A total, and the entire module handles 4.0 A total at 60°C.

Q2: Can this module drive AC loads?

A2: No, it is a DC output module. AC loads require interposing relays or circuitry between the module and the load.

Q3: What is the minimum load current for reliable operation?

A3: The minimum on-state current is 1 mA. Loads below this may not switch reliably.
