1762-L24BXB

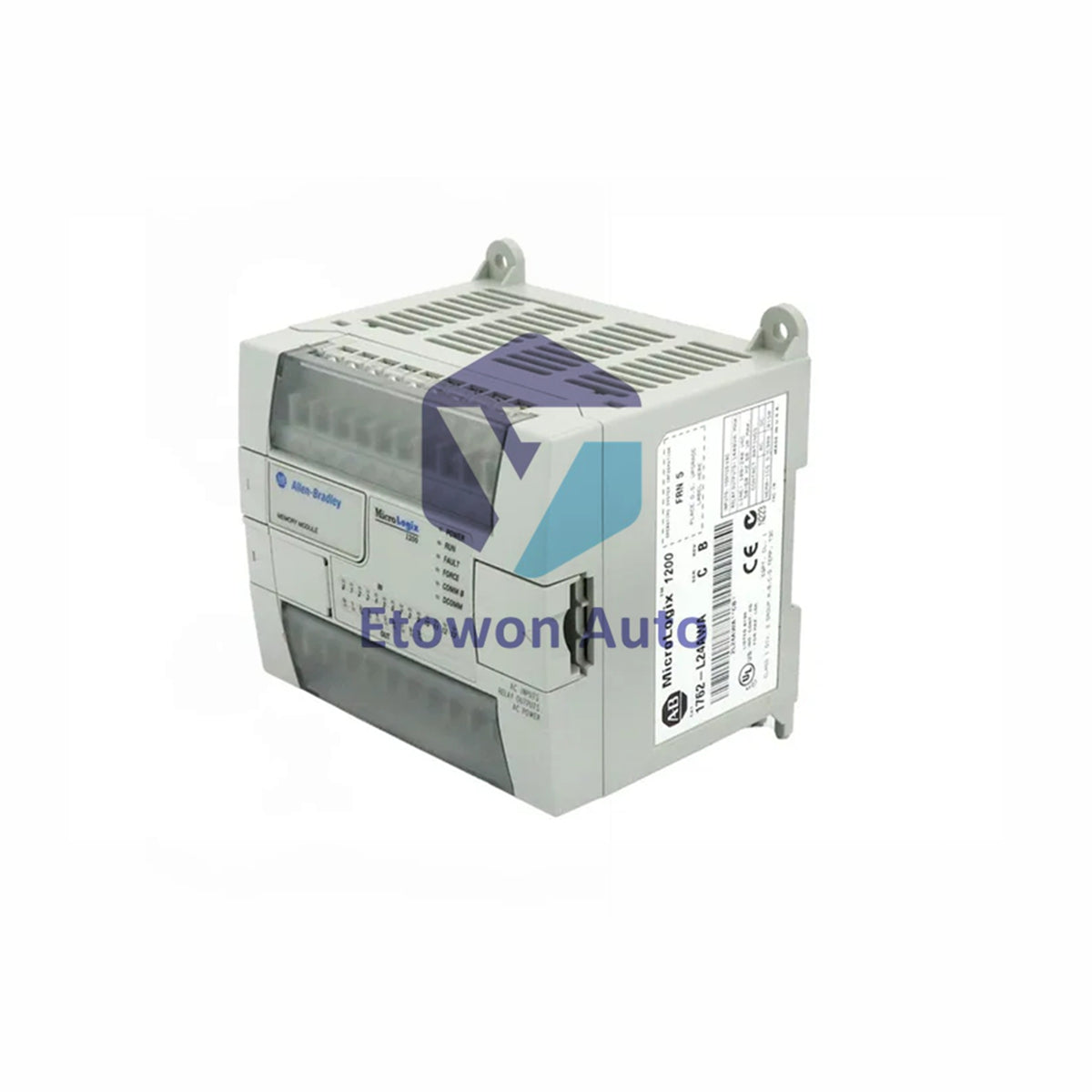

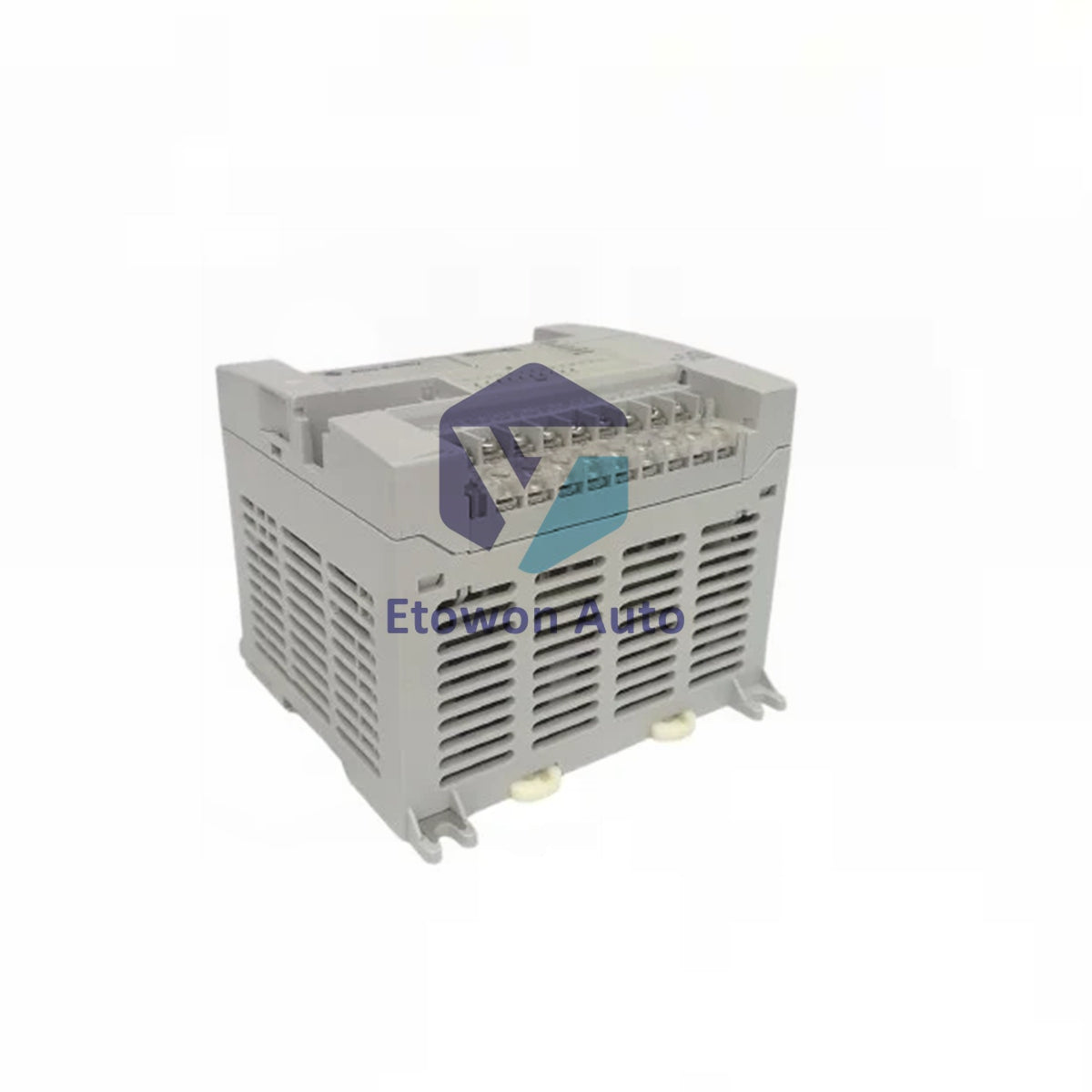

Allen-Bradley 1762-L24BXB MicroLogix 1200 PLC

Skladda bar (16 sany), ibermek üçin taýýar

  • Manufacturer: Allen-Bradley

  • Product No.: 1762-L24BXB

  • Product Type: Controller Module

  • Product Origin: USA

  • Payment:T/T, Western Union

  • Weight: 1090g

  • Shipping port: Xiamen

  • Warranty: 12 months

30 günlük yzyna gaýtaryş syýasaty · 12 aýlyk kepillik
  • Çalt eltip berme
  • 24/7 goldaw
  • Hil üpjünçiligi

Düşündiriş

Allen-Bradley 1762-L24BXB MicroLogix 1200 PLC

Allen-Bradley 1762-L24BXB | MicroLogix 1200 Programmable Logic Controller with 14 DC inputs and 10 mixed outputs (5 relay, 5 FET). Embedded 8-pin mini-DIN communication port supports DF1, DH-485, ASCII, and Modbus protocols. Compact all-in-one design for micro and small automation applications. Weight: 1.09 kg (2.4 pounds).

Key Features

10 standard 24VDC inputs plus 4 fast 24VDC inputs. 5 relay, 4 standard FET, and 1 high-speed FET output. 24VDC sink/source input configuration. 8-pin mini-DIN RS-232 communication port. Supports DF1, DH-485, ASCII, and Modbus protocols. High-speed output supports counting, totalizing, and position monitoring. DIN rail or panel mounting. Heat dissipation 17 W.

Technical Specifications

Manufacturer Rockwell Automation
Brand Allen-Bradley
Part Number 1762-L24BXB
Series MicroLogix 1200
Module Type Programmable Controller
Input Power 24V DC
No. of Inputs 14 (10 standard + 4 fast, 24VDC)
Input Circuit Type 24VDC Sink/Source
No. of Outputs 10 (5 relay + 4 FET + 1 high-speed FET)
Output Circuit Type Relay; FET
Relay Contact Rating 24-125VDC; 120-240VAC
Load Current 10A minimum
Mechanical Cycles 20,000,000
Communication Ports 1 x 8-pin mini-DIN serial
Supported Protocols DF1, DH-485, ASCII, Modbus
Power Supply Output 400 mA @ 5VDC, 350 mA @ 24VDC
Power Supply Usage 40W (27W typical)
Operating Frequency 0-20 kHz
Heat Dissipation 17 W
Inrush Current (24V) 15A for 20 ms
Inrush Current (120V) 25A for 8 ms
Inrush Current (240V) 40A for 4 ms
Dimensions (H x W x D) 90 x 160 x 87 mm (104 mm with DIN latch open)
Weight 1.09 kg (2.4 pounds)
Operating Temperature 0°C to +55°C (+32°F to +131°F)
Storage Temperature -40°C to +85°C (-40°F to +185°F)
Relative Humidity 5-95% (non-condensing)
Mounting DIN Rail or Panel Mount
UPC 10612598279309
UNSPSC 32151705

Installation Notes

Mount on DIN rail or panel in an industrial enclosure to reduce electrical interference. Install away from load lines, power lines, relays, AC motor drives, and other noise sources. Connect 24VDC supply. Use the 8-pin mini-DIN port for programming, configuration, online edits, and SCADA/HMI communication. No sensor power output is provided. Disconnect power before installing or removing expansion modules.

Engineering Advantages

Mixed relay and FET outputs provide flexibility for both AC and DC loads. High-speed FET output supports counting, totalizing, and position monitoring applications. 4 fast inputs enable high-frequency pulse capture. 20 million mechanical relay cycles ensure long-term reliability. Compact design saves panel space. Multiple protocol support enables integration with SCADA and HMI systems.

FAQs

Q1: What output types does this controller provide?
A1: 5 relay outputs, 4 standard 24VDC FET outputs, and 1 high-speed 24VDC FET output.

Q2: What communication protocols are supported?
A2: DF1, DH-485, ASCII, and Modbus via the 8-pin mini-DIN serial port.

Q3: Does this controller provide sensor power output?
A3: No, the 1762-L24BXB has no sensor power output.
