1762-L24BWAR

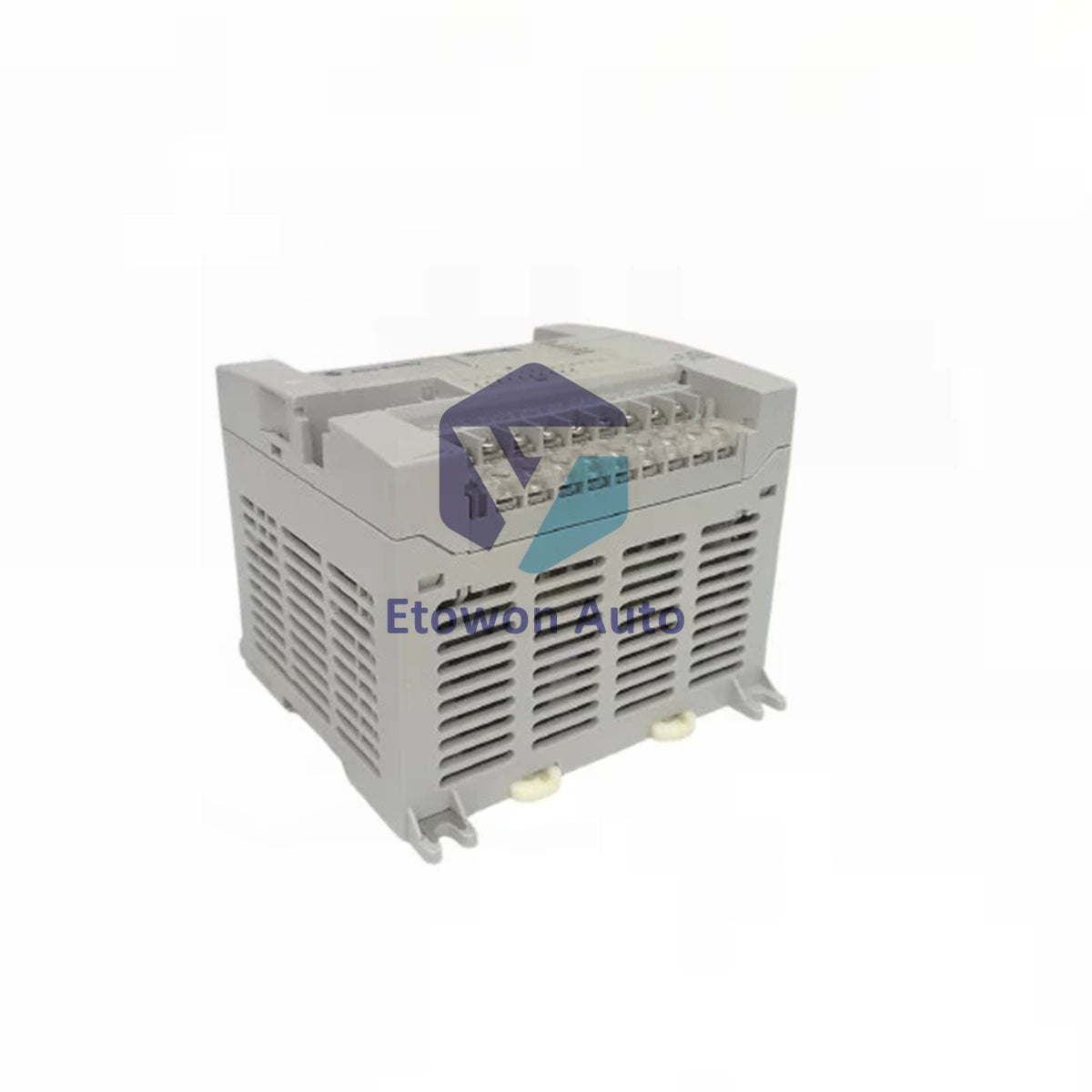

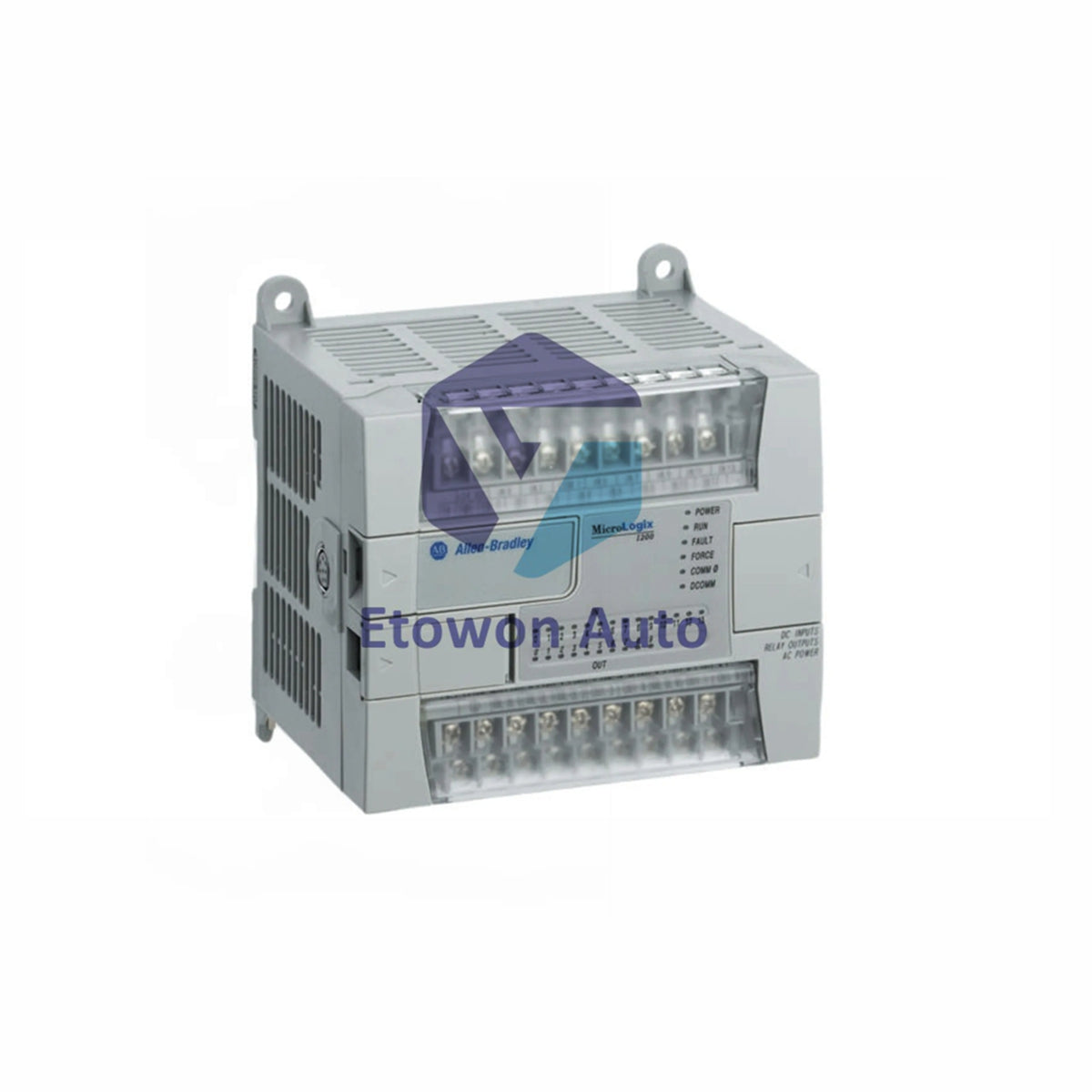

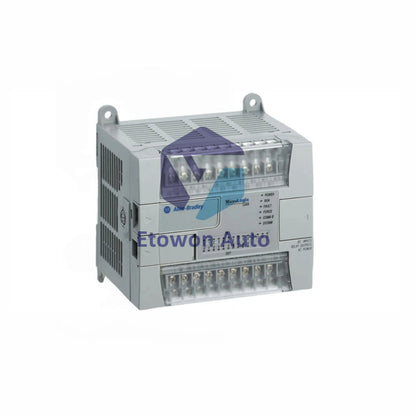

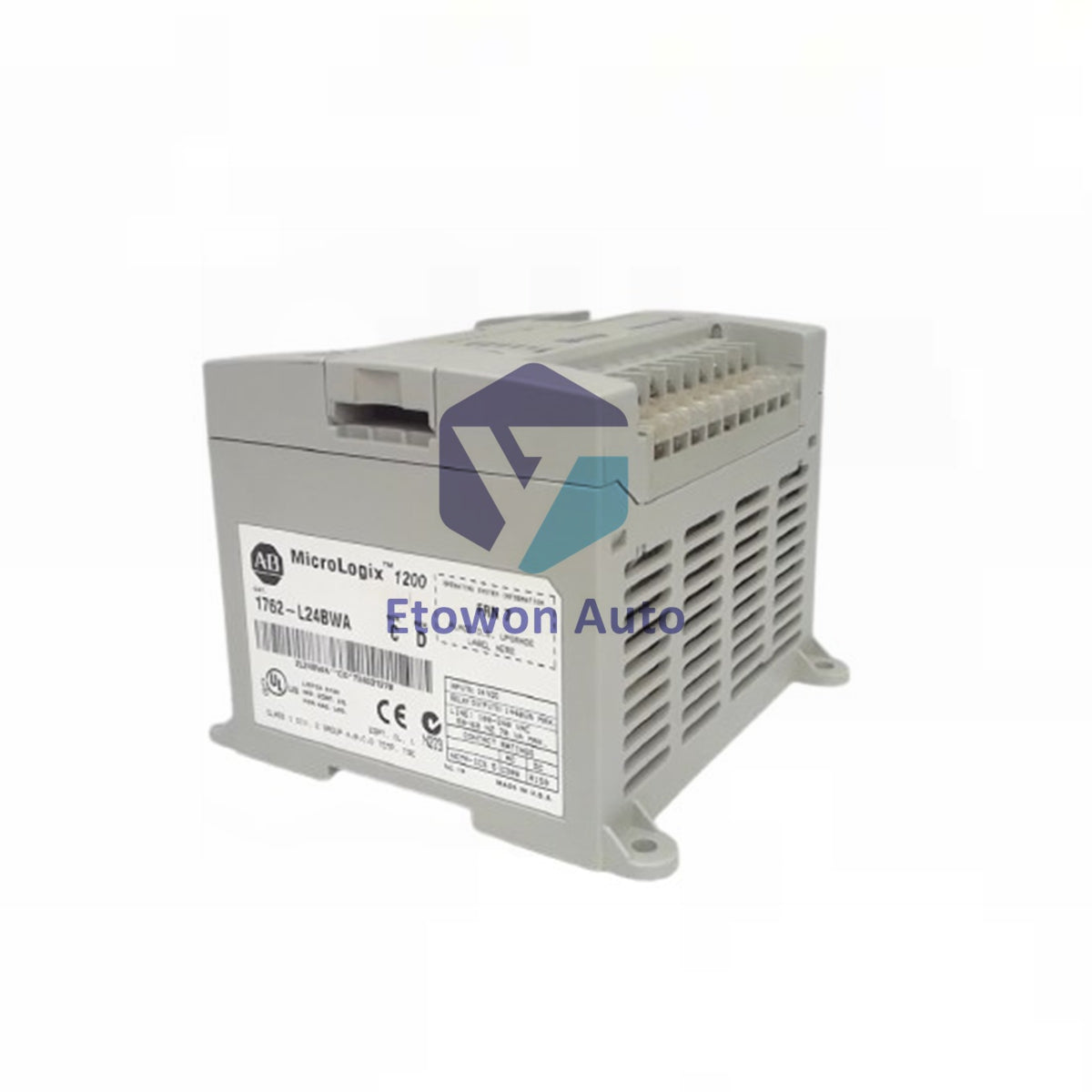

Allen-Bradley 1762-L24BWAR MicroLogix 1200 PLC

Skladda bar (17 sany), ibermek üçin taýýar

  • Manufacturer: Allen-Bradley

  • Product No.: 1762-L24BWAR

  • Product Type: Controller Module

  • Product Origin: USA

  • Payment:T/T, Western Union

  • Weight: 900g

  • Shipping port: Xiamen

  • Warranty: 12 months

30 günlük yzyna gaýtaryş syýasaty · 12 aýlyk kepillik
  • Çalt eltip berme
  • 24/7 goldaw
  • Hil üpjünçiligi

Düşündiriş

Allen-Bradley 1762-L24BWAR MicroLogix 1200 PLC

Allen-Bradley 1762-L24BWAR | MicroLogix 1200 Embedded I/O and Input Power Controller with 14 DC inputs (10 standard + 4 fast) and 10 relay outputs. Features an additional RS-232 Programmer/HMI port for DH Full-Duplex communication. Powered by 120-240VAC input. Dimensions: 3.5 x 4.33 x 3.43 inches. Weight: approximately 0.9 kg (2.0 lbs).

Key Features

10 standard 24VDC inputs plus 4 fast 24VDC inputs. 10 relay outputs. Sink/source input configuration. RS-232 Programmer/HMI port (DH Full-Duplex). 120-240VAC input power. Inputs 0-3 operate at 0-20 Hz. Inputs 4+ operate at 0 Hz to 1 kHz. Sensor supply COM internally connected to chassis ground. EMC Directive compliant.

Technical Specifications

Manufacturer Rockwell Automation
Brand Allen-Bradley
Part Number 1762-L24BWAR
Product Line MicroLogix 1200
Module Type Embedded I/O and Input Power Controller
Input Power 120-240V AC
No. of Inputs 14 (10 standard + 4 fast, 24VDC)
Input Circuit Type 24VDC Sink/Source
No. of Outputs 10 (Relay)
Dimensions (H x W x D) 3.5 x 4.33 x 3.43 in
Weight Approx. 0.9 kg (2.0 lbs)
Communication Port RS-232 Programmer/HMI (DH Full-Duplex)
UPC 10612598207173

Input Specifications

Inputs 0-3 On-State (Min) 2.5 mA @ 14 VDC
Inputs 0-3 On-State (Nom) 7.3 mA @ 24 VDC
Inputs 0-3 On-State (Max) 12 mA @ 30 VDC
Inputs 4+ On-State (Min) 2 mA @ 10 VDC
Inputs 4+ On-State (Nom) 8.9 mA @ 24 VDC
Inputs 4+ On-State (Max) 12 mA @ 30 VDC
Inputs 0-3 Frequency 0 to 20 Hz
Inputs 4+ Frequency 0 Hz to 1 kHz (depending on scan time)
Off-State Voltage Range 0 to 5 VDC
Off-State Leakage Current 1.5 mA minimum

Installation Notes

Mount on DIN rail or panel in a clean, dry environment. Connect 120-240VAC supply. Use sensor supply only for input devices (switches and sensors), not for output circuits — COM is internally connected to chassis ground. Use RS-232 Programmer/HMI port for local programming or HMI connection; the port responds to received messages only. Disconnect power before installing or removing expansion modules.

Engineering Advantages

Four fast inputs support high-speed counting and pulse capture up to 1 kHz. Sink/source input flexibility simplifies field wiring. 10 relay outputs handle both AC and DC loads. Dedicated RS-232 port enables HMI or network connection without additional modules. Compact all-in-one design saves panel space. Expansion I/O capability supports application growth.

FAQs

Q1: How many inputs and outputs does this controller have?
A1: 14 digital inputs (10 standard + 4 fast, 24VDC) and 10 relay outputs.

Q2: What is the difference between the standard and fast inputs?
A2: Inputs 0-3 operate at 0-20 Hz; inputs 4 and above operate at 0 Hz to 1 kHz depending on scan time.

Q3: Can the sensor supply power output circuits?
A3: No, the sensor supply COM is internally connected to chassis ground. Use it only for input devices, not output circuits.
