1762-L24AWAR

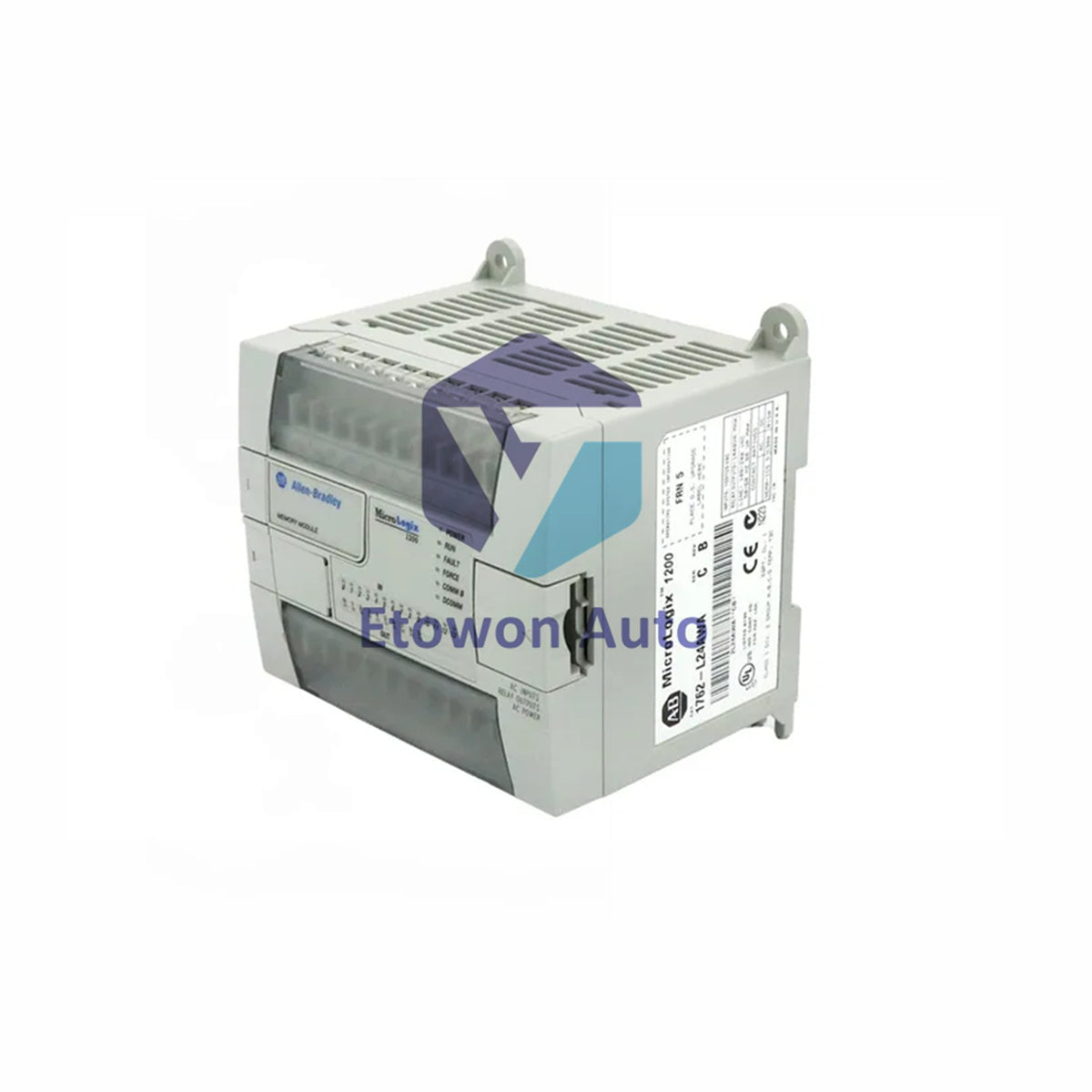

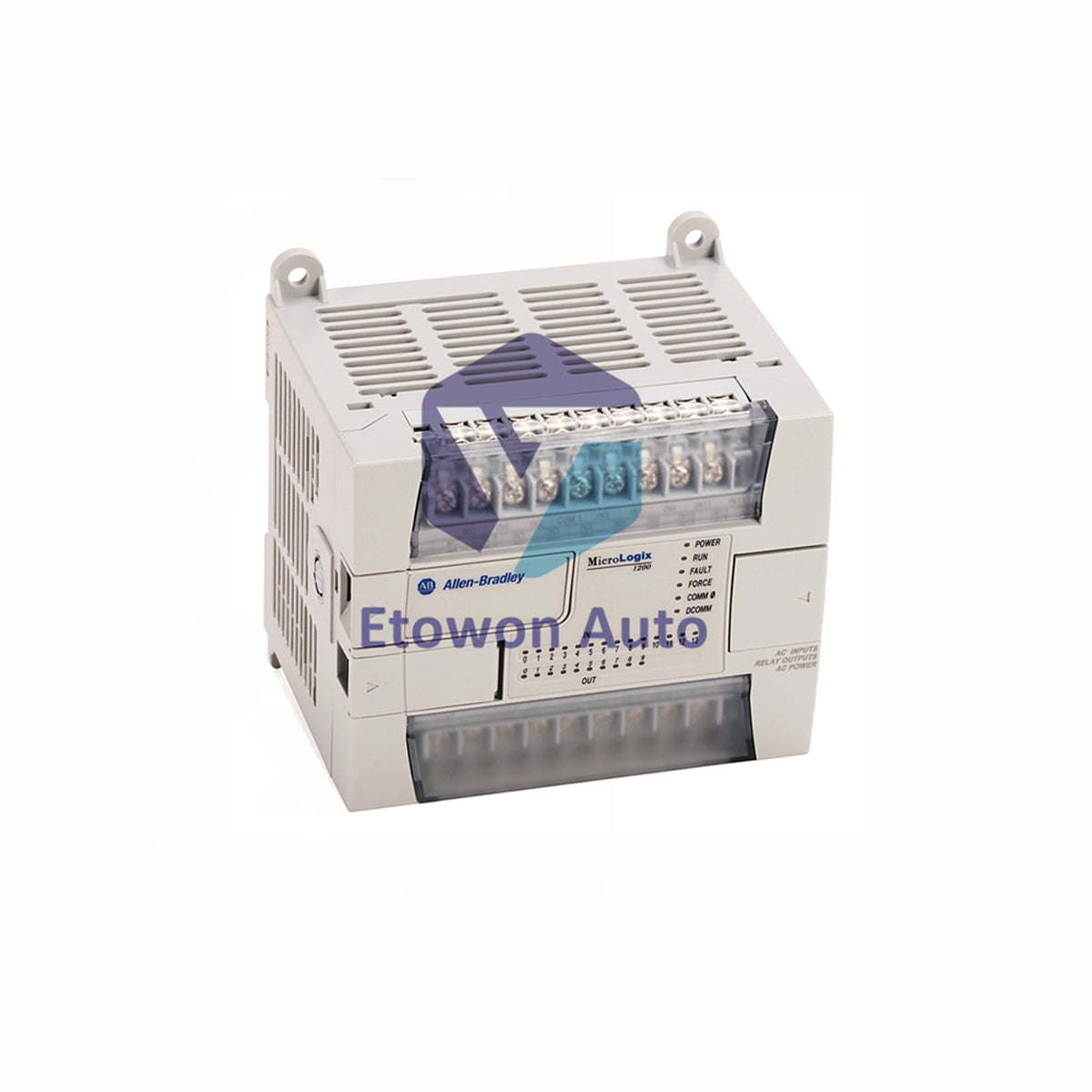

Allen-Bradley 1762-L24AWAR PLC 14 Input 10 Relay

Skladda bar (28 sany), ibermek üçin taýýar

  • Manufacturer: Allen-Bradley

  • Product No.: 1762-L24AWAR

  • Product Type: Controller Module

  • Product Origin: USA

  • Payment:T/T, Western Union

  • Weight: 900g

  • Shipping port: Xiamen

  • Warranty: 12 months

30 günlük yzyna gaýtaryş syýasaty · 12 aýlyk kepillik
  • Çalt eltip berme
  • 24/7 goldaw
  • Hil üpjünçiligi

Düşündiriş

Allen-Bradley 1762-L24AWAR MicroLogix 1200 PLC

Allen-Bradley 1762-L24AWAR | MicroLogix 1200 sinking and sourcing Programmable Logic Controller with 14 AC inputs and 10 relay outputs. Features a dedicated RS-232 Programmer/HMI port for DH Full-Duplex communication. Powered by external 120/240VAC nominal supply. Mounting dimensions: 3.5 x 4.33 x 3.43 inches. Weight: approximately 0.9 kg (2.0 lbs).

Key Features

14 digital inputs (120VAC). 10 relay outputs. RS-232 Programmer/HMI port (DH Full-Duplex). 120/240VAC input power. 47-63 Hz operating frequency. On-state voltage 79-132VAC. Off-state voltage 0-20VAC. Off-state leakage 2.5 mA max. Five isolation voltage groups. 400 mA at 5VDC / 350 mA at 24VDC backplane output. Compact DIN rail mount design. Lightweight at 0.9 kg (2.0 lbs).

Technical Specifications

Manufacturer Rockwell Automation
Brand Allen-Bradley
Part Number 1762-L24AWAR
Product Line MicroLogix 1200
Module Type Sinking / Sourcing Controller
Input Power 120-240V AC
No. of Inputs 14 (120V AC)
No. of Outputs 10 (Relay)
On-State Voltage Range 79 to 132V AC
Off-State Voltage Range 0 to 20V AC
On-State Current 5 mA @ 79VAC, 12 mA @ 120VAC, 16 mA @ 132VAC
Off-State Leakage Current 2.5 mA max
Max Inrush Current (120V) 250 mA
Operating Frequency 47 to 63 Hz
Backplane Output 400 mA @ 5VDC, 350 mA @ 24VDC
Communication Port RS-232 Programmer/HMI (DH Full-Duplex)
Isolation Groups 5 (input/backplane, output/backplane, input/input, output/output, power/backplane)
Mounting Dimensions 3.5 x 4.33 x 3.43 in
Weight Approx. 0.9 kg (2.0 lbs)
UPC 10781180463836
UNSPSC 32151705

Installation Notes

Mount horizontally on DIN rail in a clean, dry environment. Connect 120-240VAC supply at 47-63 Hz. Use RS-232 Programmer/HMI port for local programming or HMI connection. The port supports DH Full-Duplex and responds to received messages only. Maintain proper isolation between input, output, and power groups. Ensure adequate ventilation for heat dissipation.

Engineering Advantages

All-in-one controller with integrated power supply and I/O reduces panel space. 14 AC inputs allow direct field device connection without interposing relays. 10 relay outputs handle both AC and DC loads. Five isolation groups protect against ground loops and noise. Dedicated RS-232 port enables HMI or network connection without additional modules.

FAQs

Q1: How many inputs and outputs does this controller have?
A1: 14 digital inputs (120VAC) and 10 relay outputs.

Q2: What communication port is available?
A2: One RS-232 Programmer/HMI port supporting DH Full-Duplex communication.

Q3: What is the input power requirement?
A3: 120-240VAC at 47-63 Hz operating frequency.
