1762-IR4

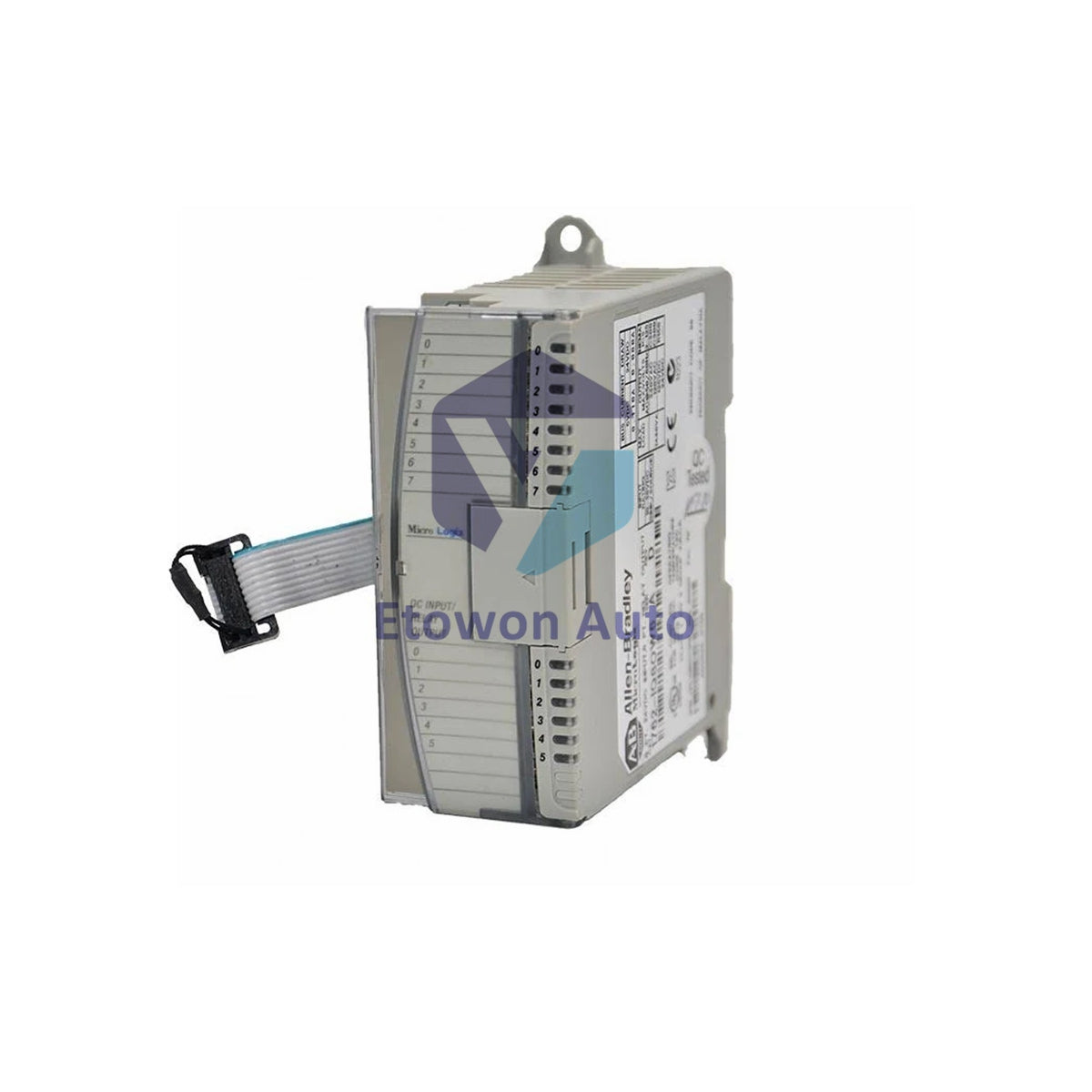

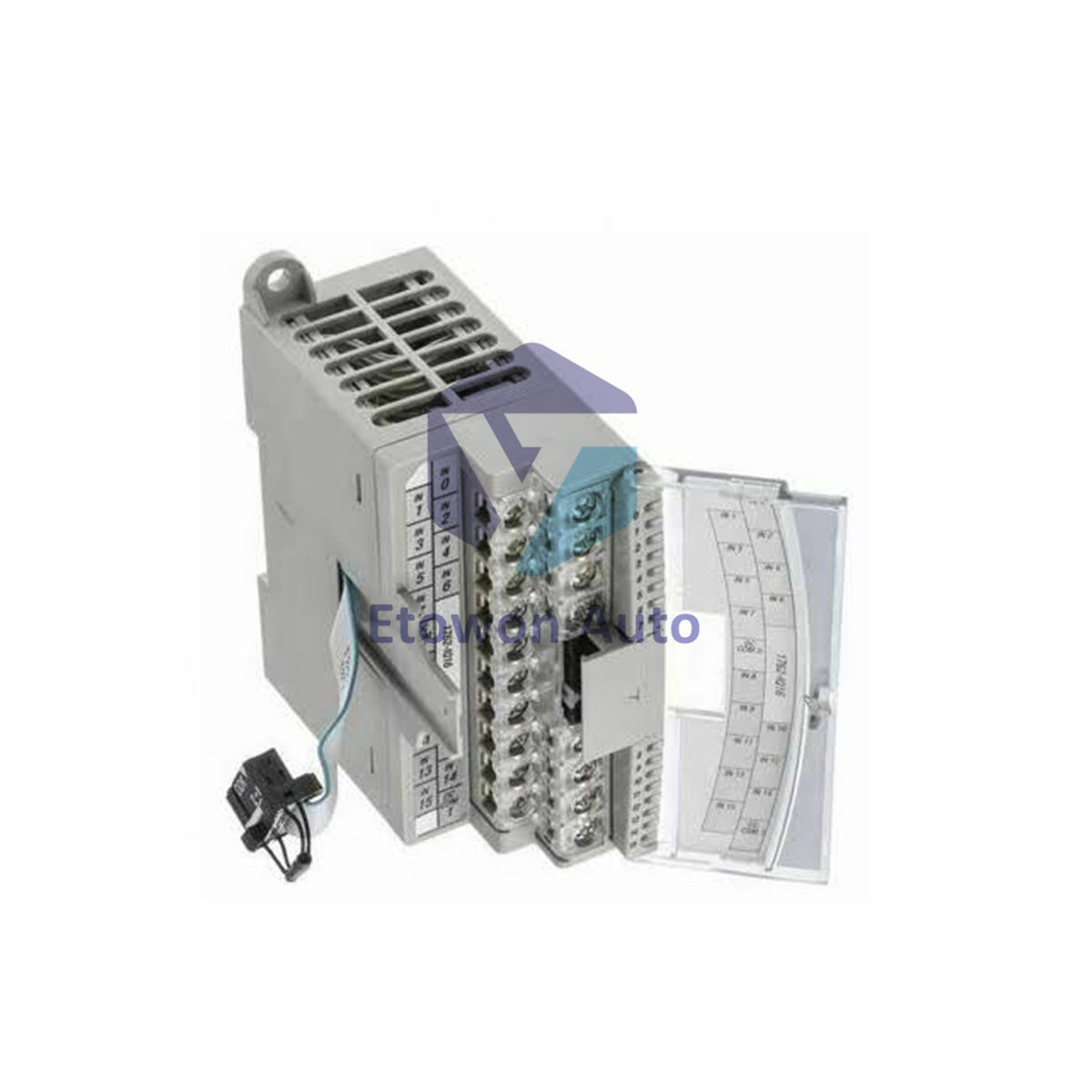

Allen-Bradley 1762-IR4 MicroLogix RTD Input Module 4 Channel

Skladda bar (21 sany), ibermek üçin taýýar

  • Manufacturer: Allen-Bradley

  • Product No.: 1762-IR4

  • Product Type: Discrete Input Module

  • Product Origin: USA

  • Payment:T/T, Western Union

  • Weight: 230g

  • Shipping port: Xiamen

  • Warranty: 12 months

30 günlük yzyna gaýtaryş syýasaty · 12 aýlyk kepillik
  • Çalt eltip berme
  • 24/7 goldaw
  • Hil üpjünçiligi

Düşündiriş

Product Overview

The Allen-Bradley 1762-IR4 is a MicroLogix RTD and resistance input module with 4 channels. Weighing approximately 230 g, it interfaces Resistance Temperature Detectors and resistance generating devices for temperature, displacement, and position monitoring in industrial applications.

Key Features

4 channel RTD and resistance input with Sigma Delta conversion. Compatible with 2 wire, 3 wire, and 4 wire RTDs. Accepts resistance ranges of 0 to 150 ohm, 0 to 500 ohm, 0 to 1000 ohm, and 0 to 3000 ohm. Selectable input filters at 10 Hz, 50 Hz, 60 Hz, 250 Hz, 500 Hz, and 1 kHz. Auto calibration on channel enable or programmable every 5 minutes. Single diagnostic LED for status and power indication. Lightweight 230 g design with finger safe cover for input terminal blocks.

Technical Specifications

Manufacturer Rockwell Automation
Brand Allen-Bradley
Part Number 1762-IR4
Product Family MicroLogix
Product Type RTD / Resistance Input Module
Number of Inputs 4
Converter Type Sigma Delta
Compatible RTD Types 100/200/500/1000 ohm Pt 385, 100/200/500/1000 ohm Pt 3916, 10 ohm Cu 426, 120 ohm Ni 672, 120 ohm Ni 618, 604 ohm Ni Fe 518
RTD Wiring 2 Wire, 3 Wire, 4 Wire
Resistance Ranges 0 to 150 ohm, 0 to 500 ohm, 0 to 1000 ohm, 0 to 3000 ohm
Compatible Controllers MicroLogix 1100 / 1200 / 1400
Data Formats Raw/Proportional, Engineering Units x1, x10, Scaled for PID, Percent Full Scale
Input Filters 10 Hz, 50 Hz, 60 Hz, 250 Hz, 500 Hz, 1 kHz
Heat Dissipation 1.5 W
Dimensions 90 x 87 x 40 mm
Weight Approximately 230 g

Installation Guide

Mount the 1762-IR4 (approx. 230 g) on a DIN rail or panel in a non hazardous, dry, and clean environment away from electrical noise and heat. Wire RTDs using 2 wire, 3 wire, or 4 wire configuration as required. Connect resistance devices using 2 wire or 3 wire. Configure each channel after installation since operation details are channel specific. Use the finger safe cover when wiring input terminal blocks. Module update time increases with more channels and autocalibration cycles.

Engineering Advantages

Supports a wide range of RTD types for application flexibility. Selectable input filters reduce noise for accurate temperature measurement. Auto calibration maintains accuracy over time without manual intervention. Lightweight 230 g design requires minimal mounting space. Module and channel diagnostics simplify troubleshooting. Compatible with MicroLogix 1100, 1200, and 1400 controllers for seamless expansion.

Frequently Asked Questions

Q1: How many RTD input channels does the 1762-IR4 provide?

A1: It provides 4 RTD and resistance input channels.

Q2: Which RTD wiring configurations are supported?

A2: It supports 2 wire, 3 wire, and 4 wire RTD connections.

Q3: Which controllers is this module compatible with?

A3: It is compatible with MicroLogix 1100, 1200, and 1400 controllers.
