1762-IF2OF2

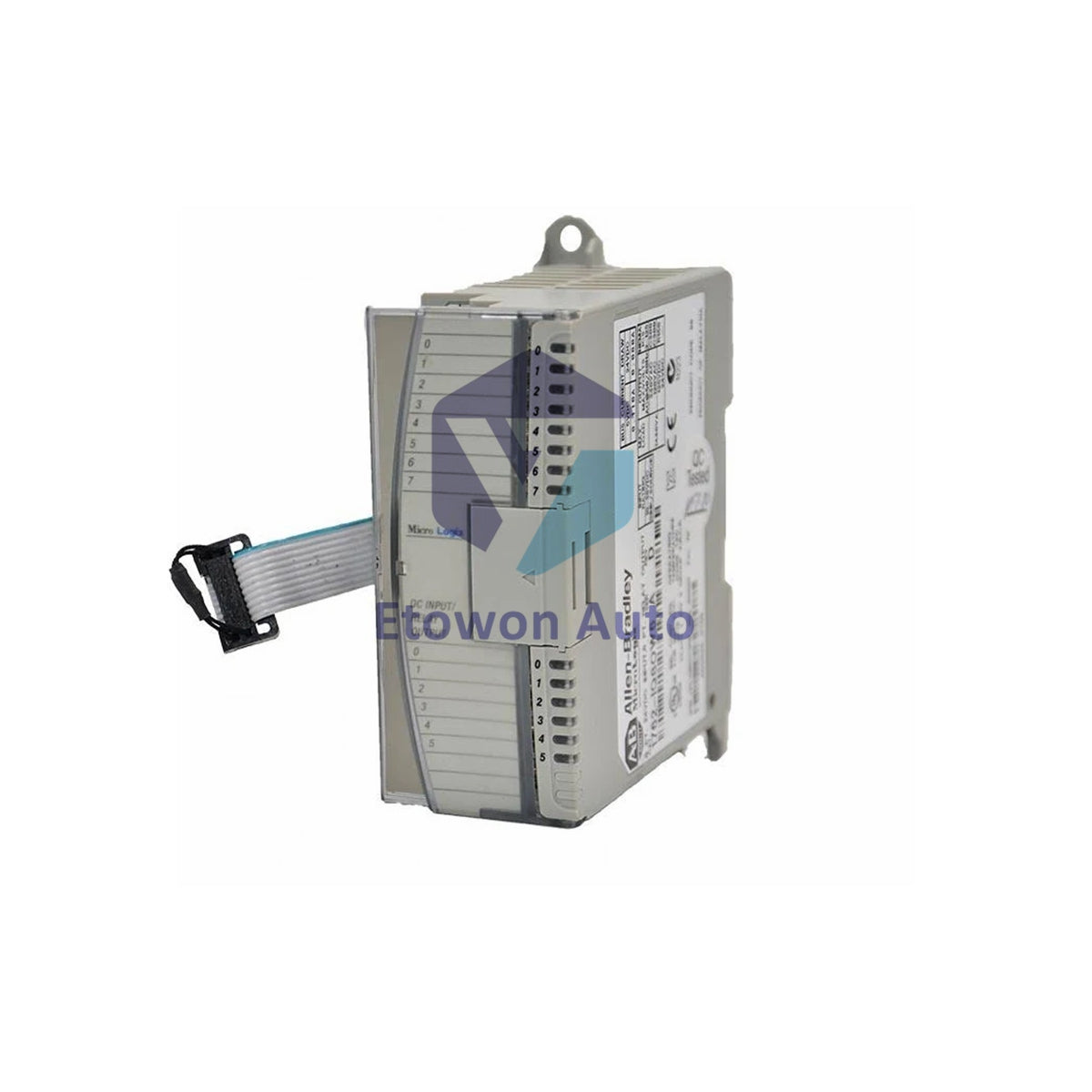

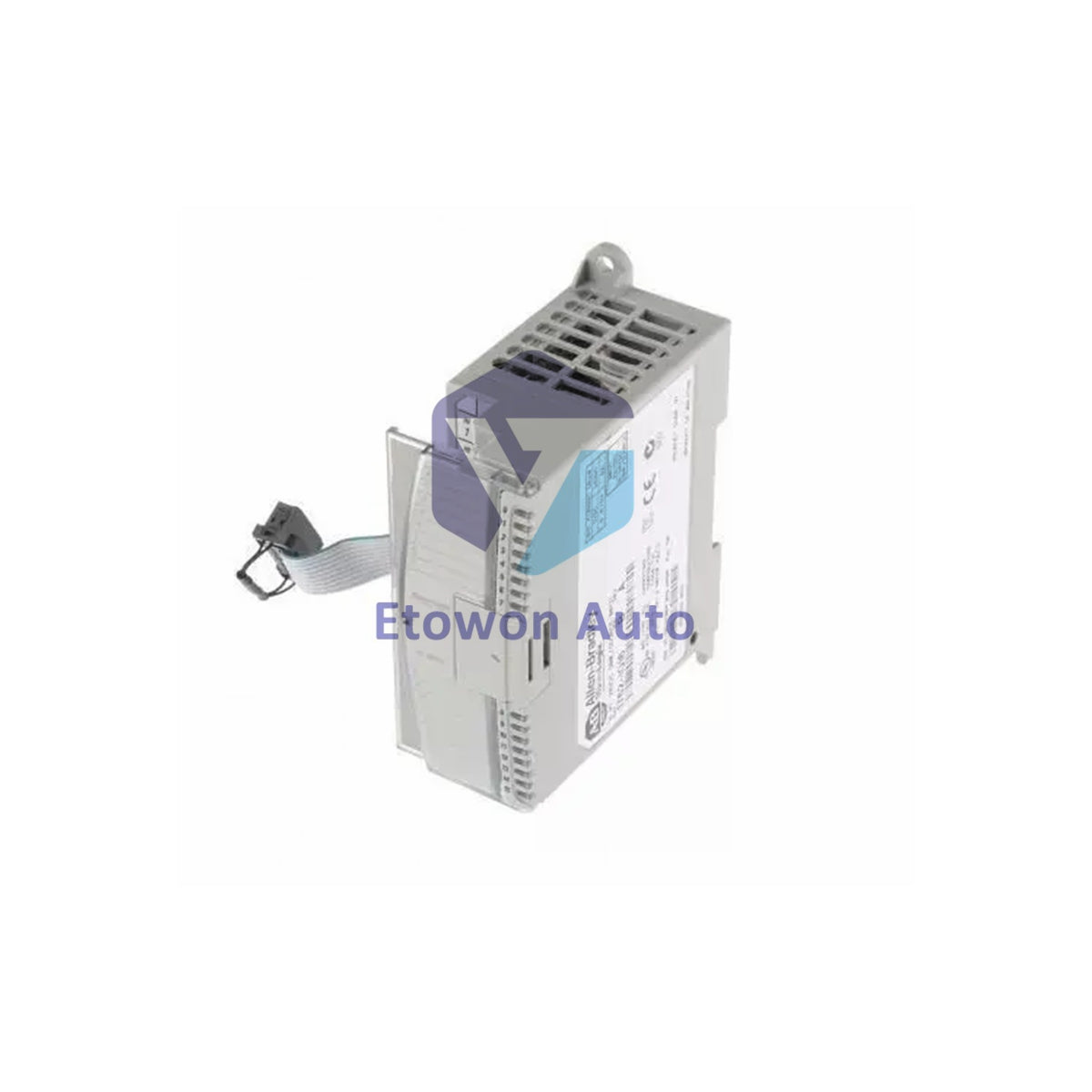

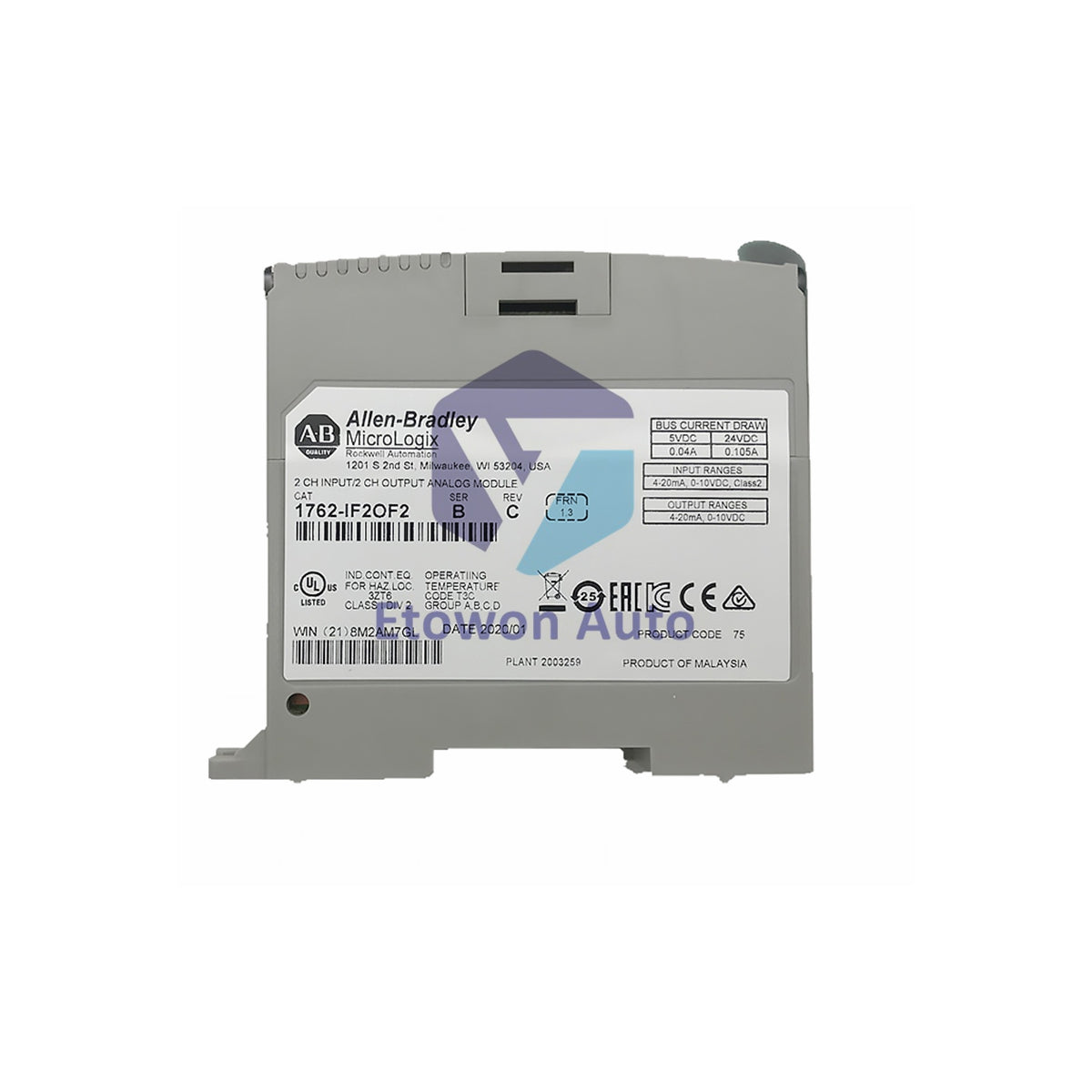

Allen-Bradley 1762-IF2OF2 MicroLogix 1200 1400 Expansion Module

Skladda bar (12 sany), ibermek üçin taýýar

  • Manufacturer: Allen-Bradley

  • Product No.: 1762-IF2OF2

  • Product Type: Expansion Module

  • Product Origin: USA

  • Payment:T/T, Western Union

  • Weight: 240g

  • Shipping port: Xiamen

  • Warranty: 12 months

30 günlük yzyna gaýtaryş syýasaty · 12 aýlyk kepillik
  • Çalt eltip berme
  • 24/7 goldaw
  • Hil üpjünçiligi

Düşündiriş

Allen-Bradley 1762-IF2OF2 MicroLogix Combination Analog I/O Module

The Allen-Bradley 1762-IF2OF2 is a compact combination analog I/O expansion module designed for MicroLogix 1100, 1200, and 1400 programmable logic controller platforms. Providing a space-saving and cost-effective automation solution, this unit features two differential analog inputs and two single-ended analog outputs configurable for 0 to 10 VDC voltage or 4 to 20 mA current signals. Equipped with 12-bit unipolar resolution, successive approximation A/D conversion, and robust channel diagnostics, the 1762-IF2OF2 delivers precise signal processing for process control devices such as modulating valves, drives, and transmitters. Weighing approximately 0.24 kg (0.53 lbs), it connects via an integrated bus ribbon cable for DIN rail or panel mounting.

Technical Specifications

Manufacturer & Brand Allen-Bradley / Rockwell Automation
Catalog Number / Part No. 1762-IF2OF2
Product Family Compatibility MicroLogix 1100 / 1200 / 1400 Controller Systems
Module Functionality 2-Input / 2-Output Combination Analog Expansion Module
Input & Output Signal Ranges Voltage: 0 to 10 VDC (0–10.5V Full Range) | Current: 4 to 20 mA (0–21 mA Full Range)
Channel Configuration 2 Differential Inputs | 2 Single-Ended Outputs
Resolution & Conversion Method 12-Bit Unipolar Resolution | Successive Approximation ADC / Resistor String DAC
Bus Current Draw 40 mA @ 5 VDC | 105 mA @ 24 VDC
Operating Temperature Limits -20°C to +65°C (-4°F to +149°F)
Dimensions & Net Weight 90 x 87 x 40 mm (3.54 x 3.43 x 1.58 in) | Approx. 0.24 kg (0.53 lbs)

Quick Installation Guide

  • Mount the module adjacent to the main MicroLogix controller on a standard DIN rail or using direct panel mounting screws.
  • Connect the attached flat ribbon bus cable to the expansion connector on the adjacent controller or existing expansion module.
  • Wire input and output field devices using shielded twisted-pair cables and verify proper grounding to minimize electrical noise interference.

Technical FAQs

Q1: What signal types are supported on the inputs and outputs of the 1762-IF2OF2 module?
A1: Both the two inputs and two outputs can be individually configured for 0 to 10 VDC voltage or 4 to 20 mA current signals.

Q2: Which Allen-Bradley controller families are compatible with the 1762-IF2OF2 expansion module?
A2: It is natively compatible with Allen-Bradley MicroLogix 1100, MicroLogix 1200, and MicroLogix 1400 PLC platforms.

Q3: What conversion resolution and update rate does the 1762-IF2OF2 deliver?
A3: It features 12-bit unipolar analog conversion resolution with a fast input update time of 2.5 ms.
